Names of Parts

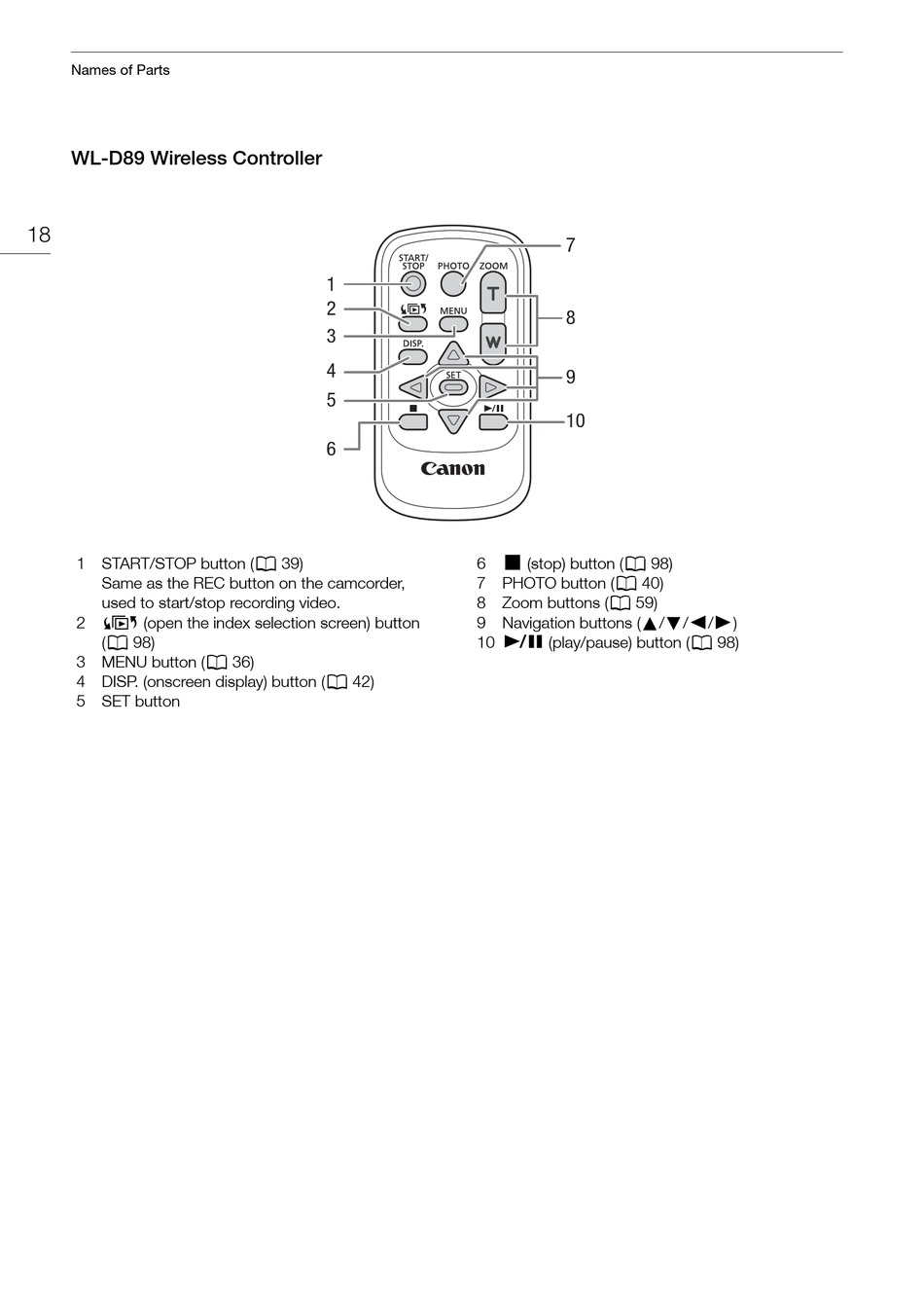

WL-D89 Wireless Controller

18
1 START/STOP button (A 39)
Same as the REC button on the camcorder,
used to start/stop recording video.
2 G (open the index selection screen) button
(A 98)
3 MENU button (A 36)
4 DISP. (onscreen display) button (A 42)
5 SET button
1
2
3
4
5
6
6
7 PHOTO button (A 40)
8 Zoom buttons (A 59)
9 Navigation buttons (Í/Î/Ï/Ð)
10 Ò (play/pause) button (A 98)
7
8
9
10
Ñ
(stop) button (A 98)
