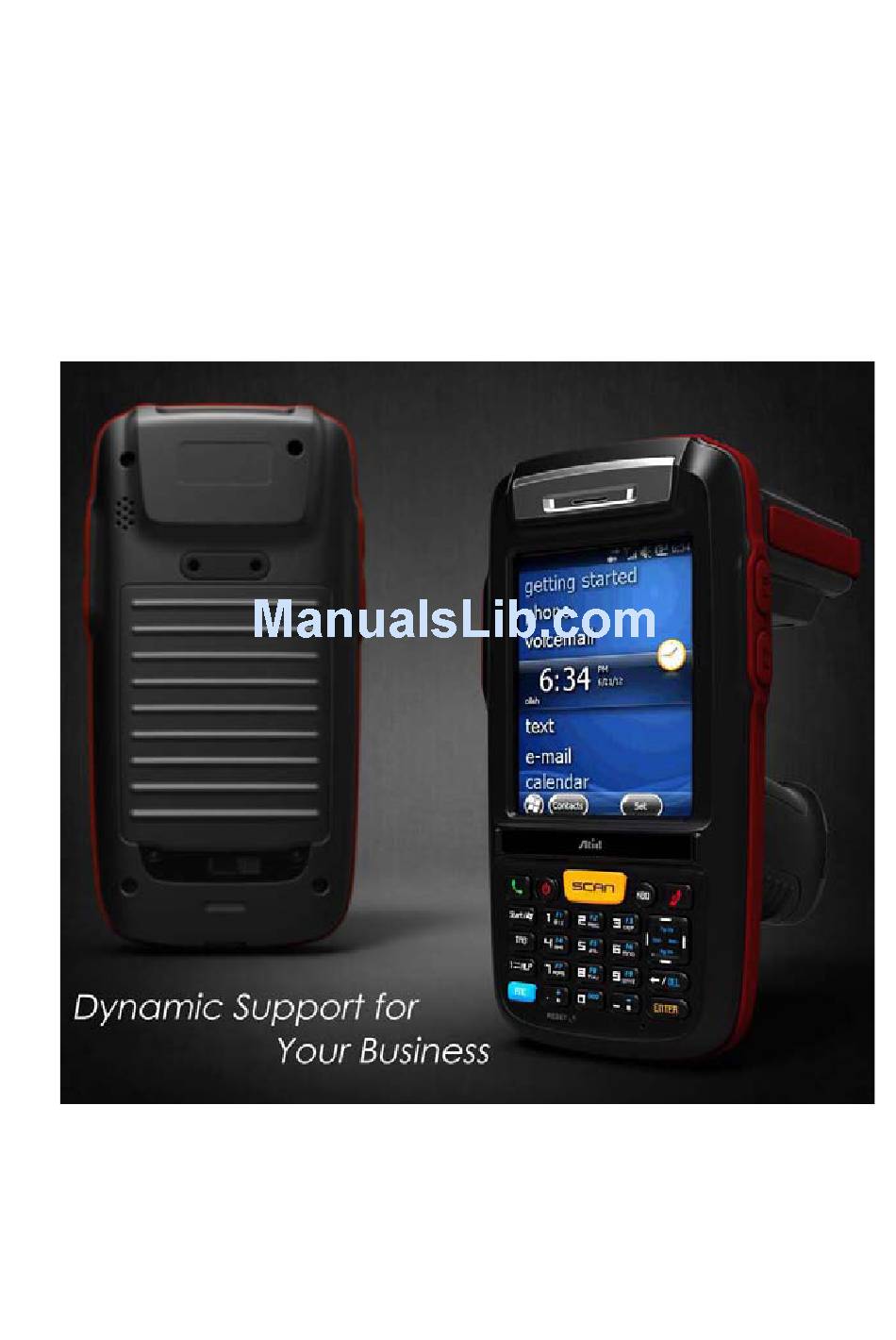

  • Page 1 AB700 User guide For Windows Embedded Handheld 6.5...
  • Page 2 1.5cm from the user’s body. NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. AB700 User Guide...
  • Page 3 The Futureid logo is a trademark of Futureid. All other trademarks and trade names referred to herein are property of their respective owners. AB700 is a registered trademark of Futureid Co., Ltd. and of its wholly owned subsidiaries. Microsoft Windows®, Windows® 2000, Windows® CE .NET, Windows® Embedded Handheld, Windows®...

  • Page 4: Table Of Contents

    SAM C NSTALLING ARD AND 4. PERSONAL CONDITION SETTING ....................22 ......................................22 ................22 OU WANT TO QUICKLY RUN FREQUENTLY USED PROGRAMS ........................22 OU CAN SET THE SHORTCUTS FUNCTION ..........................22 ET UP THE PHONE PASSWORD AB700 User guide...
  • Page 5 1. USING 1D OR 2D BARCODE SCANNER ................... 38 .............................. 38 CANNING ARCODE ..........................40 ETTING BARCODE MULATOR 1.3 B ........................43 ARCODE CANNING OSITION 2. WIFI ................................. 44 ................. 44 OWER IRELESS ONFIGURATION WIFI AP ..............................45 2.2 C ONNECT AB700 User Guide...
  • Page 6 OW TO USE 10. USING SMART CARD READER ......................65 ......................... 65 10.1 H OW TO USE MART 11. USING UHF 900MHZ READER ......................66 ........................66 11.1 H UHF 900M OW TO USE CHAPTER5. APPENDIX ........................... 70 AB700 User guide...
  • Page 7 CONFIGURATION ............................. 70 AB700 User Guide...
  • Page 8 This manual is written for the person who is responsible for installing, configuring, and maintaining the AB700. This manual provides you with information about the features of the AB700, and how to install, configure, operate, and maintain it. Before you work with the AB700, you should be familiar with your network and general networking terms, such as IP address.

  • Page 9: Chapter1. Caution When Using Futureid Pda Product

    Chapter1. Caution when using Futureid PDA Product Before you handle and operate your AB700 and other Futureid PDA Products, Please read through and familiar with the contents of this manual. 1. How to use the battery correctly When you dropped the main body or battery in w ater, please do not put it on the stove or heater for drying.

  • Page 10: Chapter 2. Product Composition

    3. L Lithium poly 2. Powe er Adaptor a and sync cab battery pac 1. AB700 Ma ain Body 5. USB syn c cable Protective f film 8. Stylus pe 7. H Hand strap 4.

  • Page 11: Each Part Name

    2. E Each Par t Name Came ra & flash 1D/2 D scanner w window nternal HF can & Func ction AN LED uttons ne receiver Hand st trap hole arge LED Speake Volum me/cursor UHF Co onnecting port button Main Battery ch screen...

  • Page 12: Each Part Name And Function

    Display running programs, and could execute, use, and exit programs via using stylus to Touch Screen touch the screen. Enable you to attach a hand strap or a stylus for the convenience of using, while need to Hand strap hole use the device for a long period time. AB700 User guide...

  • Page 13: Chapter3. Basic Functions

    hapter 3. Bas sic Fun nction 1. P Power an d Battery Batte ery is compos sed of main b battery and b backup batte ery. A main b battery suppli ies the powe er to the syste em and RAM which could d keep save t the data.

  • Page 14: Detaching And Attaching Main Battery

    Detaching and attach ing Main B attery Detaching B Battery Thes e images as s below, sho ows the bac ck bottom of f the PDA. Slide the battery latch to the e right (UNLO OCK side), a and then lift t the main b attery out o f the...

  • Page 15: Charging

    1.3 C Charging You h have to cha rge the batt tery via dedi cated adap ter, which p provided from m the factor “Pow wer LED” is Red or Oran while ch harging or is Green en charged c completely.
  • Page 16 Power On a nd Off via < <Power> But tton Power O Off: When the sys stem is in boo oting status, press <Power> but ton for a cou uple of secon ds, then the backlight will be turned off f and enter the e low-power mode (sleep...

  • Page 17: Checking Battery Gauge

    <Power> button to turn off the power, and to charge the battery as soon as possible. AB700 User Guide...

  • Page 18: Backup Battery

    1.7 Dispose of Battery You need to purchase a new one if the battery damaged or reached its end of life. Warning! Please dispose the used batteries in a designated place AB700 User guide...

  • Page 19: System Reset

    Using stylus pen to Press <Power> Button and <Reset> Button simultaneously, the system will restarting again after the screen turns off shortly. [Hard Reset Result] System will be restarting. Operating System will be loading and rebooting. Home Screen will appear in about ten seconds. AB700 User Guide...

  • Page 20: Initializing System

    It is for the image (BOOT, OS) update by SD Card Format My Device and Registry area recover as shipped Factory Reset My Device, Registry and Flash Disk area recover as shipped Exit Finish the Boot Menu. AB700 User guide...

  • Page 21: Using Micro Sd, Sim, Sam Card

    ng Micro o SD, SIM M, SAM C Card The i mage as be low is batter ry compartm ent of, and t there are 1E EA SIM Card Slot, 1EA S SAM Card Slot a and 1EA Mic cro SD Card S Slot.

  • Page 22: Installing Sim Card And Sam Card

    You c can find the e Micro SD M Memory Car rd icon when n executing the file exp plorer, after inserted the M Micro SD car [Star rt] -> [File e explorer] 3.2 In nstalling S SIM Card an nd SAM Ca SIM C Card and SA...

  • Page 23: Personal Condition Setting

    PUK code is that PIN Code entered incorrectly three times identification Number (PIN) consecutive USIM unlock code. (8digit). It will be on the USIM card’s envelope or the body Entered incorrectly 10 times in a row when not able to use the USIM card, please note AB700 User Guide...

  • Page 24: Owner Information

    If the handset is not in use for a certain period of time and the switch to the lock status, You suppose to enter a password to unlock it. [How to set the LOCK] [Start button] -> [setting] -> [LOCK] Set up the LOCK screen LOCK screen Input the password AB700 User guide...

  • Page 25: Set Up The System

    This will display a list of programs installed in addition to the Preinstalled programs [How to remove the program] [Start button] -> [setting] -> [system] -> [Remove program] It can be removed from the list, select the program you want to Remove AB700 User Guide...

  • Page 26: Gps

    Off screen timeout time can be set [Start button] -> [Setting] -> [system] -> [Backlight] Battery Power: When using the Battery power, set up the brightness On/Off. External power: the brightness of the screen when using an external Power on/ off settings AB700 User guide...

  • Page 27: Screen Calibration

    At first beginning of using the device after purchasing or need to use the device for a long period time, if you cannot select the place where you touched with stylus, you need to reset the coordinate calibration values. [Start button] -> [setting] -> [system] -> [Screen] -> [align screen] AB700 User Guide...

  • Page 28: Setting Volume And Sounds

    Notification: Select the ring type 5.10 Set up the Clock and Alarms Set up the date, time and Alarms [How to set up] [Start button]-> [setting] -> [Clock and Alarms] Time: Set the Date and Time Alarms: Set the Alarms AB700 User guide...

  • Page 29: Wireless Manage

    All: It can control the all ON/OFF of WIFI, Bluetooth, and PHONE Separately: when you click the Buttons (Wi-Fi, Bluetooth, and Phone) It is possible to ON/OFF It can be expressed differently depending on the product option AB700 User Guide...

  • Page 30: Using Keypad

    Perform Page Up or Page Down. Cursor Key on the Keypad Perform F1 ~ F9 Function Key <1> ~ <9> Delete a letter which located after the cursor. <Back Space> Enable you to input <+> <000> < – > symbols. <.>,<0>,<_> AB700 User guide...

  • Page 31: Using Stylus

    Select button, zone or tab bar in a window box or program. Caution: Please do not use sharp objects on the touch screen. Use only supplied stylus, otherwise would bring seriously damage to the touch screen. AB700 User Guide...

  • Page 32: Using Active Sync Program

    Click [Next] Button. Select the License agreement, and then click the next button. Enter a user name and organization name, and Specify the path to the installation program, then click the Next button. and then click the next button. AB700 User guide...
  • Page 33 Click on the install button Installation of active sync program Click the finish button to complete the installation. AB700 User Guide...

  • Page 34: Connection Pc To Pda

    8.3 Connection Pc to PDA Setting PC [Start button] -> [Programs] -> [Microsoft ActiveSync] < Windows Xp > < Win7 / Vista > Active Synce is a program run screen. File connection settings, Click the button. AB700 User guide...
  • Page 35 Please select the Enable advanced network functionality To use a VPN you can connect your computer to your device Using the RNDIS. In this case, please try to connect and after you turn off the ‘Enable advanced network functionality’ AB700 User Guide...

  • Page 36: Transmitting Data

    < Win7 / Vista > Start - Program– Click Microsoft ActiveSync Start – Program – Click Windows Mobile Device When you connect ActiveSync Click the Content on the device when Active sync explorer menu. Connected, click the browse ICON. AB700 User guide...
  • Page 37 File/ directory device’s screen Data transfer screen AB700 User Guide...

  • Page 38: Chapter4. Optional Module

    3) Wireless LAN – 801.11 b/g 4) Bluetooth 5) UHF 900 M – Gen 2 Full Function (OPTION) ISO18000 6C (Only Tag UID Reader) 6) RF 13.56 – Mifare, ISO15693 (OPTION) 7) GPS Module 8) Phone 9) Camera 10) IC Card AB700 User guide...

  • Page 39: Using 1D Or 2D Barcode Scanner

    Main window - Start Scan: start reading barcode. - Stop Scan: stop reading barcode - Symbol: Read barcode type name - Length: length of the barcode read - Menu: application pop-up menu. - Exit: Exit the application. AB700 User Guide...
  • Page 40 - RAW Data: To set the scan results in the form of raw data 2D scanners only support. Capturing window - Start Preview: Start preview by 2D scanner - Stop Preview: Stop preview - Do Capture: current screen and save it as a file AB700 User guide...

  • Page 41: Setting Barcode Emulator

    Barcode Emulator program enables you to set the barcode value input type scan button, scan sound (Notes , internet explorer) When user running the barcode Emulator, who should finish the previous running program. Running application - [Start Button] -> [File Explorer] -> [My Device] -> [Program Files] -> [ATID_DemoApps] -> BarcodeEmulatorWM.exe AB700 User Guide...
  • Page 42 - F8: Set up for starting when the F8 key is pressed - SCAN: Set up for starting when the SCAN key is pressed - Gun Trigger: Set up for starting when the Gun Trigger is Pressed AB700 User guide...
  • Page 43 - Keyboard Event: Output barcode value on the screen by using Keyboard Event. - Copy and Paste: Copy to clipboard and then copy to screen . Warning! Please do not look directly into the laser beam of barcode, or it may do harm to your vision. AB700 User Guide...

  • Page 44: Barcode Scanning Beam Position

    2. The laser beam is a red thick line, when scanning a barcode. . [Incorrect scanning beam position] 1. The laser beam must across the barcode. 2. It cannot scan barcode if the laser beams across only a fraction of barcode. AB700 User guide...

  • Page 45: Wifi

    [Start button] -> [Setting] -> [System] -> [WiFi POWER] ON: WIFI ON OFF: WIFI OFF When you want to turn off the When you want to turn on the WIFI function please turn off WIFI WIFI function. Please turn on WIFI AB700 User Guide...

  • Page 46: Connect Wifi Ap

    When you turn on Wi-Fi, AP list up automatically. . Choose the AP what you Click for connecting want to use and click Input the network key. If it connect well you will be able to see mark as screen AB700 User guide...
  • Page 47 You can connect using the wireless AP management program [Start button] -> [Setting] -> [Connections] -> [Network cards] Router captured Click as picture automatically, Click appropriate device form the list You will be able to see Input the Network key. connect Wireless AB700 User Guide...

  • Page 48: Wifi Power On /Off Summit Client Utility

    2.3 W WiFi Power O On /Off Sum mmit client ut tility WIFI is always se et to the OF FF state, whe en products s ship from f factory Custo omer needs to ON for u using WIFI [How w to set SCU [Star rt button] ->...
  • Page 49 Click the "Scan". Click the Configure". " Click the Yes" Input the password Click the Commit. If you choose a list of registered AP WIFI connection, turn on the WIFI AB700 User Guide...

  • Page 50: Bluetooth

    3. Bluetooth This User Guide described how to Pairing and Disconnecting between AB700 and Bluetooth devices, and also described basic testing method of Mobile Printer SPR-R203, which launched by Bixolon, as a sample device. ** It could pairing with maximum 6ea devices, but assign COM Port only to COM2 and COM7.

  • Page 51: Bluetooth (Paring)

    Depending on the situation, maybe need to input password for some devices, then could Input the PIN code and click the next Click the SPP-R200 on the list button. *Basically SPP-R200’s printer pin code is “0000”. AB700 User Guide...
  • Page 52 * Password that should be used to Pairing (authentication code), the unit can be set by mutual * After the paring is normally achieved, User can use SDK for Bluetooth service. The SDK should be by manufacture of the Bluetooth devices AB700 User guide...

  • Page 53: Bixolon Spp-R200 Printer Demo

    SDK, to AB700 Flash Disk. 10. Executing the Sample.exe program in the AB700 Flash Disk. 11. Change the COM8 to COM2, then press “Open” button to testing printer. 12. Please check to click Printing button and sample printing button. it is working well or not...

  • Page 54: Using Modem

    Enable to looking for recent Call History. After input phone number, press “Talk” button to dialing. Press and hold relevent Speed Dial number for a while to make phone call, when you the speed dial number has been already registered. AB700 User guide...

  • Page 55: Receiving Phone Call

    Mute microphone during a phone call. Switch active phone call on holding status. Switch on holding phone call to active status. Enable to Search/add/delete contacts. Enable to add a phone call while looking for contacts, End a phone call. AB700 User Guide...

  • Page 56: Contacts

    5. Contacts Contact List 1. [Home] -> [Contacts] How to search a contact information Enter the contacts number or name into the searching box. AB700 User guide...

  • Page 57: Add To Contact List

    Add to contact list Press this button to add a new Select new contact information type. contact information Select items which will add new contact Enable to add name and company information. information. AB700 User Guide...
  • Page 58 Enable to add mobile phone number. Enable to add new Email information. Except for mobile number, Enable to Except for basic e-mail address, add other phone number. enable to add other e-mail AB700 User guide...

  • Page 59: Text Message

    6. Text Message How to use Text Message 1. [Home] -> [Text Message] 2. [Start Button]->[Text Message] Sending Message Press this button to make a new Press this button to send a message. message. AB700 User Guide...

  • Page 60: Receiving Message

    Receiving Message Check message in detail. Press this button to check new message. Received message may expressed differently. Replying Message click the relevant message in received Press “Reply/Forward(R)” button and message box. then choose Reply(R) item. AB700 User guide...
  • Page 61 Press this button to send reply message, after done text. AB700 User Guide...

  • Page 62: Gps Module

    GPS Data checking: 1. GPS data should be received effectively in open field. 2. GPS Data receiving time is depended on actual using environment. (around 3~10minutes) After received GPS data once, then next GPS connection will be very fast. AB700 User guide...

  • Page 63: Using Camera

    How to use Camera Demo Application Execution [Start Button] -> [Pictures&Videos] -> [Camera] Main Window button description: Thumb… :end main window switch Pictures&Videos screen. - Menu : main Manu list press “Enter” button to save current screen picture. AB700 User Guide...

  • Page 64: Using Hf13.56Mhz Reader

    - ISO> : switch ISO-15693 command screen. - Block : block number which will be accessed - Key Type : key type of block which will be accessed. - Key Set : key set of block which will be accessed. AB700 User guide...
  • Page 65 ISO-15693 window button description: - <MF : switch to Mifare command window. - Block : start number of block which will be accessed. - Read Count : number of block which be accessed. AB700 User Guide...

  • Page 66: Using Smart Card Reader

    - GetParam : get Card reader’s protocol type, clock rate, bit rate and so on data. - Default : initialize Card reader’s set value to default values. - TxBlock : send APDU Command to Card reader. - FwVersion : get the firmware version of Card reader. AB700 User guide...

  • Page 67: Using Uhf 900Mhz Reader

    Using U HF 900M Mhz reade This product en nable to in stall UHF m module as optional it em, and re ead&write R RFID tag base ed on EPC GEN2 Prot tocol, perfo ormance fr equency b etween 850 0~960Mhz HF Reader How to us...
  • Page 68 - Clear : delete all tag values on the screen. - Menu : Main Manu Demo Application optional Manu: - Read/Write : Read/Write tag. - Lock/Kill : Lock/Kill tag. - Option : Application option. - Version : Version infroamtion. AB700 User guide...
  • Page 69 Please refer to EPC Class1 Gen2 specification for further information. - Do Lock : performance command according to check marks on box. - Kill : Kill tag. The tag will be never restore if kill a tag, please think twice before perform kill tag. AB700 User Guide...
  • Page 70 - Demo app Ver : Demo application Version. - Firmware Ver : UHF module firmware Version. - Protocol Ver : UHF module library Version. - Hopping Mode : UHF module country Version. - Max Tx Pwr : UHF module maximum output. AB700 User guide...

  • Page 71: Chapter5. Appendix

    1D Laser Scanner or 2D Image Scanner Camera 3.0Mega Pixel with Auto Focus UHF 900MHz Tag Reader Frequency 850MHz- 960Mhz (Adjustable) Reading Range 0m ~ 7m (Differs from each tag) Writing Range 0m ~ 3m (Differs from each tag) Antenna Gain 2dbi (Standard) AB700 User Guide...
  • Page 72 RF Output 1W EIRP Protocol EPC Gen2 ISO 18000 6C / ISO 18000 6B(option) Multi-Reading Anti-collision Technical support and Sale Contact Futureid Co., Ltd. 224, Hwangsaeul-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, Seoul, Korea TEL: +82-070-4015-0108 FAX: +82-031-712-6008 E-mail: atid@atid1.com AB700 User guide...
