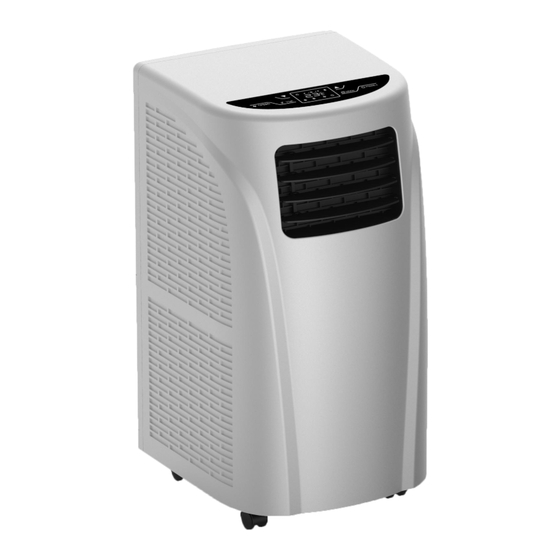

7000 BTU Portable A/C
Owners Manual
Thank you for selecting our high-quality mobile air conditioner from Yoau. Before
use, please read this entire manual carefully for information regarding setting up your
portable A/C, operating it, and tips on regular maintenance. For any problems, please
contact (GCR Warranty Information).
Advertisement
Summary of Contents for Yoau YPZ
-
Page 1: Owners Manual
7000 BTU Portable A/C Owners Manual Thank you for selecting our high-quality mobile air conditioner from Yoau. Before use, please read this entire manual carefully for information regarding setting up your portable A/C, operating it, and tips on regular maintenance. For any problems, please... -
Page 2: Table Of Contents
Table of Contents Table of Contents-----------------------------------------------------1 Important Safety Precautions--------------------------------------2 Key Features-----------------------------------------------------------3 Parts & Accessories------------------------------------------------4-5 Control Panel----------------------------------------------------------6 Remote Control--------------------------------------------------------7 Installation-------------------------------------------------------------8 Operating Methods---------------------------------------------------9 Drainage Operation-------------------------------------------------10 Maintenance----------------------------------------------------------11 Troubleshooting------------------------------------------------------12 Limited Warranty Information-----------------------------------13 - - 1 - -... -
Page 3: Important Safety Precautions
Important Safety Precautions For your and your families’ health, please read the following safety precautions carefully before use of this air conditioner: Requirements * Please put the air conditioner in flat and dry places. Keep the air conditioner 50cm away from the surrounding objects. * Power supply of the air conditioner shall comply with the safety regulations where it is used and ensure reliable grounding. -
Page 4: Key Features
and Parts Key Features Features: ＊ Brand new generation condensate self-evaporation design, environment friendly and more energy-saving. ＊L type evaporator design, enabling more compact and efficient body. ＊Ultrahigh loading quantity, greatly saving logistics cost. ＊Downsizing and compact design of the whole air conditioner. ＊Simple and convenient installation of accessories such as exhaust pipe, etc. -
Page 5: Control Panel
POWER: press this button to turn on or off the air conditioner. MODE： During on or timer on pressing this button can select COOL, DEHUMIDIFY, FAN and HEAT modes, etc. (the HEAT mode only exists in COOL/HEAT YPZ-H model). The corresponding indicator lamp to the selected mode is on. -
Page 6: Remote Control
Remote control POWER Press this button to turn on/off the air conditioner. TIMER Press this button to set timer. TEMPERATURE CONVERSION BUTTON Temperature converted from ℃ to ℉. COOL Press this button to select COOL mode. Single cool remote control HEAT Press this button to select HEAT mode. -
Page 7: Operating Methods
Operating methods Timer setting 1. Setting of timer off When the air conditioner is running, press this button, the timer LED lamp is on, and meanwhile 88 Nixie tube will flicker “ ” for 5 times, at the moment, press UP and DOWN to adjust time from 0.5h to 24h. - Page 8 3. FAN mode ＊ In on or timer on state press MODE to select FAN mode. At the moment the corresponding indicator lamp is on. ＊ Press SPEED to select appropriate speed, and LOW and HIGH speeds can be circularly selected. ＊...
- Page 9 Installation 1. Select mounted place Install in a flat and dry place, and 50cm must be left around the air conditioner to enable smooth circulation of air, as shown in Fig.5 (before connection of exhaust pipe). 2. Assembly method of exhaust pipe Fig.5 ＊Connect exhaust pipe assembly with round joint (as shown in Fig.6).
- Page 10 4．Illustration of installation 1) Wall mounted Fig.10 2) Bow alignment Fig.11 Fig.12 3) Incorrect bending Fig.13 - - 9 - -...
-
Page 11: Drainage Operation
Drainage operation Drainage operation ＊ When COOL or DEHUMIDIFY or HEAT is run in humid weather, more condensate is produced, water full alarm will be issued as he level in water pan reaches a certain location, compressor stops operation. Water full indication on display screen will light up and an audible alarm will be issued simultaneously for 10 times per 5min till the level in water pan is lower than alarm level or water in water pan has been drained manually. -
Page 12: Maintenance
Maintenance Cleaning Caution Before cleaning please turn off the air conditioner and pull out the plug. Strainer Unit 2 Strainer Unit 1 1. Cleaning surface Clean surface of the air conditioner with duster or semi-wet soft cloth. Do not use chemical reagents, such as benzene, alcohol and gasoline, etc. - Page 13 Fault removal Please check the following before contact with professional electricians: Faults Check Solutions The air conditioner does Power off? Normal phenomenon. not work Plug not inserted? Insert power plug steadily. Fuse burnt out or power supply Replace fuse or turn on turned off? power supply.
- Page 14 List of fittings Description: Exhaust hose ……………………………………….1 pc Outer diameter and extended length φ15cm 28cm~150cm Oblate joint……………………………………………1 pc Round joint……………………………………………1 pc Adjustable window mounting plate….……………….1 set Length 90cm~130cm Screw (length 10mm)…………………………………1 pc Screw Oblate joint Hose Round joint Window sealplate Fig.16 - - 13 - -...
- Page 15 Accessories 1. Parameters of fuse Model: YPZ Voltage: 220-240V,50HZ Current: 3.5A Meaning of crossed –ou t wheeled dustbin: Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. waste, use separate collection facilities. Contact your local government for information regarding the collection systems available.
