V-Moda remix User Manual

Hide thumbs Also See for remix:
Table of Contents

Advertisement

Quick Links

See also: User Manual
USER'S MANUAL

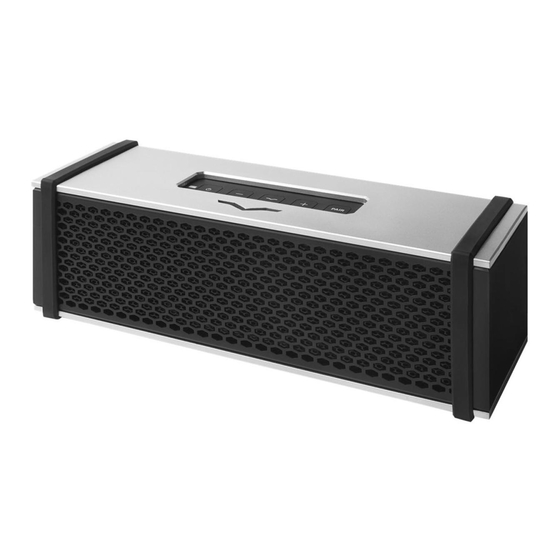

Remix Speaker
REGISTER NOW AT
V-MODA.com/REGISTER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the remix and is the answer not in the manual?

Questions and answers

Related Manuals for V-Moda remix

Summary of Contents for V-Moda remix

  • Page 1 USER’S MANUAL Remix Speaker REGISTER NOW AT V-MODA.com/REGISTER...
  • Page 2 CAUTION serial number on manual cover or bottom of packaging is missing or defaced, please return to retailer immediately.
  • Page 3 V-MODA.com/manuals english V-MODA.com/manuals español V-MODA.com/manuals français V-MODA.com/manuals italiano V-MODA.com/manuals deutsch 한국어의 V-MODA.com/manuals V-MODA.com/manuals 要获得说明书的打印件, 请访问 简体中文 要獲得說明書的打印件, 請訪問 V-MODA.com/manuals 繁體中文 本取扱説明書の電子版を以下のページからダウンロード・ 日本語 プリントアウトすることができます V-MODA.com/manuals...
  • Page 4 Association (ASHA), “listening to personal music players, stereos and headphones at high volumes for extended periods of time can directly result in lifelong hearing loss”. At V-MODA we are dedicated to providing an enjoyable listening experience, but we also care greatly about your personal health and safety.
  • Page 5 With the essence of music at the foundation of all we do, we have precisely engineered our Remix speaker to provide an enjoyable and natural sound signature, which invokes the sense of listening to your music live.

  • Page 6: Charging The Speaker

    10 hours before using it for the first time. Note that Remix is equipped with USB to Type-C charging cable for faster and safer charging. Do not use any other type of charging cables to charge the Remix speaker.
  • Page 7 TURNING ON/OFF THE REMIX SPEAKER – BATTERY STATUS When turning on the Remix speaker, the orange LED indicates the battery level. 1. Press the button to turn on the Remix speaker. Power on tone plays and the orange LED flashes a number of times based on the battery level: •...

  • Page 8: Wireless Mode

    WIRELESS MODE TOP VIEW Status LED Microphone ON/OFF Pairing Volume down Volume up Multifunction...

  • Page 9: Back View

    BACK VIEW VAMP port + LED AUX-IN USB Type-C port...

  • Page 10: Pairing And Connecting With A Bluetooth Device

    Bluetooth devices” section on your phone, select it to begin pairing. If passkey input is required on the display of a Bluetooth device, type “0000” 3. Ready to rock. When the Bluetooth connection is established, connected tone plays and white LED on the Remix speaker stays lit...

  • Page 11: Connecting With A Paired Bluetooth Device

    CONNECTING WITH A PAIRED BLUETOOTH DEVICE When pairing with one, two or more Bluetooth devices, perform the following procedure every time you connect the Remix speaker with an already paired device. 1. Press the button to turn on the Remix speaker.

  • Page 12: Listening To Music

    Press twice buttons on for next track the Remix speaker Press and hold Press 3 times for 8 seconds to for previous track reach max volume 8 SEC...

  • Page 13: Answer A Call

    MAKING A CALL / RECEIVING A CALL ANSWER A CALL Press once to answer (music pauses automatically) REFUSE / HANG UP To refuse an incoming call or to hang up an existing call, press and hold for 2 seconds, then release 1-2 SEC...

  • Page 14: Call On Hold

    MAKING A CALL / RECEIVING A CALL CALL ON HOLD Press once to put the ongoing call on hold and connect to the second incoming call; long press 2 seconds to connect the second call and hang up the first call; short press twice to refuse a second call while attending one Making a call/ Receiving a call functions do not work in wired mode.

  • Page 15: Wired Mode

    WIRED MODE When connecting an audio device via LINE IN, plug in the device with the included audio cable. 1. Plug in an audio device and Remix speaker via V-MODA audio cable. All LEDs are off 2. Press the button to turn on the Remix speaker.

  • Page 16: Vamp Mode

    VAMP MODE VAMP Mode transforms the Remix speaker into a headphone amplifier for stunning sound quality. 1. Plug in an audio device into Remix speaker’s LINE IN via audio cable. All LEDs are off 2. Press the button to turn on the Remix speaker.

  • Page 17: Daisy Chain Mode - Bluetooth

    DAISY CHAIN MODE - BLUETOOTH Two or more Remix speakers can be linked together and play (Hi-Res audio if in wired mode) seamlessly via the same audio player. 1. Press the button to turn on the Remix speaker. Power on tone plays, battery level orange LED flashes a number of times based on the battery level.

  • Page 18: Daisy Chain Mode - Wired

    DAISY CHAIN MODE - WIRED 1. Plug in an audio device and Remix speaker 1 via V-MODA audio cable for wired Hi-Res audio 2. Plug in Remix speaker 1’s VAMP and Remix speaker 2’s LINE IN 3. Press the button to turn on both Remix speaker 1 and Remix speaker 2.
  • Page 19 DAISY CHAIN MODE - BLUETOOTH DAISY CHAIN MODE - WIRED...
  • Page 20 2. Bluetooth connect Remix speaker 2 and audio player following the instructions on page 10 3. Remix speakers 1 and 2 will be both shown as “V-MODA Remix” on the audio player 4. Easily shift the playing Remix speaker by by pressing the...
  • Page 21 ONE REMIX SPEAKER, TWO AUDIO DEVICES The Remix speaker can be connected with two audio devices at the same time and play alternatively from both audio devices. 1. Bluetooth connect Remix speaker and audio player 1 following the instructions on page 10 2.

  • Page 22: Other Useful Functions

    3 seconds. White and orange LEDs flash alternatively twice HOLD 3sec POWER SAVING MODE If no device is paired with the Remix speaker in 2 minutes, white LED flashes once every 3 seconds, VAMP orange LED stays lit for standby mode.
  • Page 23 If no device to be connected is detected in 2 minutes, speaker will switch to standby mode HOW TO CHECK YOUR BATTERY STATUS To easily check the Remix speaker battery status, hold the button for 2 seconds. VAMP orange LED flashes 4 times if battery life is between 81-100%;...
  • Page 24 USING YOUR REMIX RINGS AND 3D PRINTED CUSTOM PARTS With the 3D printed custom sides, housing and grill you can revolutionize your Remix speaker and forge your own personal relic which will be 3D sculpted in Italy and 3D printed in NYC.
  • Page 25 USING YOUR 3D PRINTED CUSTOM SIDES (SOLD SEPARATELY) Slide Remix Rings onto their housing Slide 3D printed custom sides onto the Remix speaker until the sides cover the Remix Rings and cannot slide any further creating a snug fit...
  • Page 26 USING YOUR 3D PRINTED CUSTOM HOUSING (SOLD SEPARATELY) Remove the Remix Rings from their housing if present Unscrew screws from the surface of Remix Speaker...
  • Page 27 Remove the pre-installed housing Install and adjust the 3D printed custom housing onto the back of the Remix speaker Screw the screws in for a snug fit...
  • Page 28 USING YOUR 3D PRINTED CUSTOM GRILL (SOLD SEPARATELY)
  • Page 29 Screw the screws in for a snug fit The sound quality and acoustics performance of the Remix speaker may vary when 3D parts are installed in place of the original parts. V-MODA will not be responsible for the product reliability and acoustics performance...

  • Page 30: Troubleshooting

    Troubleshooting If you are experiencing trouble with your Remix speaker, please refer to the troubleshooting guidelines below. If the problem persists, please contact the V-MODA Six Star Service at V-MODA.com/SUPPORT or 1.888.VMODA.LA. TROUBLE SUGGESTIONS No audio (in wired mode) Check that the Remix speaker is on. Make certain the audio device’s Remix speaker jack is free of debris and that the headphone plug is securely connected.
  • Page 31 Check to make sure the problem is not with the audio device or the file to which Distorted sound you are listening. Ensure the EQ settings on the device are set properly. Remix speaker will Make sure the Charging cable and source are functioning properly not charge...
  • Page 32 TROUBLE SUGGESTIONS Be sure the Remix speaker is not connected to the charger and the power Trouble during switch is on the pairing process Turn your Remix speaker off, then on again Remember to turn on the Bluetooth feature on your device...
  • Page 33 CLEANING YOUR REMIX SPEAKER To clean the exterior surface of the Remix speaker, you can wipe it using a soft and dry cloth. Do not use solvents, chemicals, or sprays and do not allow liquids to spill on the product.
  • Page 34 V-MODA warrants that this product is free from any defects in manufacturing, materials and workmanship, under the following conditions: • V-MODA will repair or replace the product within a reasonable period of time and free of charge for one (1) year from the date of retail purchase by the original end-use purchaser •...
  • Page 35 • This warranty is void if the label bearing the serial number has been removed or defaced • To obtain service under this limited warranty, visit V-MODA.com/WARRANTY to fill out the online warranty form and obtain further information • To acquire a printable version of this warranty, please visit V-MODA.com/WARRANTY •...
  • Page 36 • This limited warranty gives you specific legal rights, and you also may have other rights that vary from state to state or country to country. Some places do not allow limitations on implied warranties or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you...
  • Page 37 V-MODA Immortal Life Program has your back. All we ask is that you send the Remix speaker (or what’s left of it) to us and we will email you a 50% off VIP Code towards a comparable product from V-MODA.com.
  • Page 39 This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1)this device may not cause interference, and(2) this device must accept any interference, including interference that may causeundesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables auxappareils radio exempts de licence.
  • Page 41 For more support please contact V-MODA’s Six Star Service V-MODA.com/SUPPORT ©2016 V-MODA. All rights reserved. V, V-MODA, Remix and VAMP are registered trademarks of V-MODA, LLC. U.S. patent pending application no. 14/740107. iPhone®, iPad®, iPod® are trademarks of Apple Inc., registered in the U.S. and other countries.
  • Page 42 PLEASE DO NOT RETURN TO RETAILER For any issues relating to your V-MODA product, please contact our Six Star Service directly. visit email V-MODA.com/SUPPORT support@V-MODA.com twitter @VMODASixStar skype call V-MODASixStar 1.888.VMODALA...
  • Page 43 ACTIVATE YOUR WARRANTY 50% IMMORTAL LIFE PROGRAM REGISTER NOW V-MODA.com/REGISTER...
