  • Page 1 ReadyPay Power System User Manual...

  • Page 2: Locked Unlocked

    Place solar panel The solar panel can be placed on the ground or be in the sun mounted on the roof, and should directly face the sun. Keep the ReadyPay battery out of direct sun. Empty ReadyPay Controls Locked Unlocked...

  • Page 3: Table Of Contents

    Press the power button. With your remote directly pointed 3.6 Big Pin USB Cable towards the Power System, press * followed by the 8 digit ReadyPay 3.7 USB Cable code (from SMS), then #. 3.8 3:1 Switch Hub For example: *12345678# ReadyPay Payments &...

  • Page 4: Kit Contents

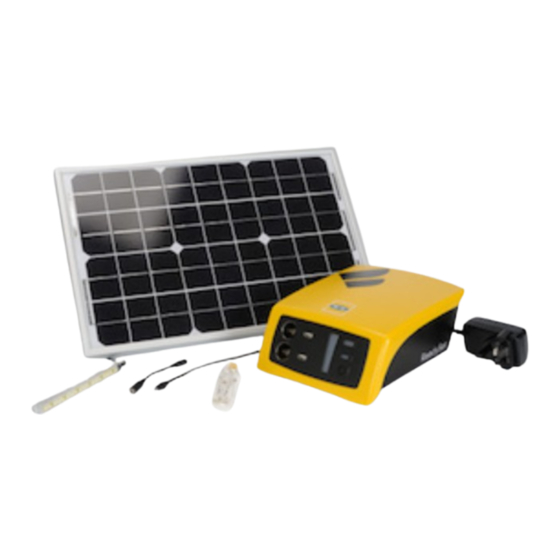

    Kit Contents These are included in every ReadyPay Power System kit: Additional contents will depend upon kit purchased. Grid Charger ReadyPay Power System Solar Panel Car Lighter to USB Adapter Accessory for making ReadyPay Payments: ReadySquid Cable ReadyPay Remote USB Phone Charging...

  • Page 5: Location Of Contents In Box

    Power Button for wakeup, reset (x2) and checking battery level The Power Button wakes up the ReadyPay Power System when it is in sleep mode. It also resets the Power System if there is an error. When pressed, the Battery Level Lights on the Power System will turn on.
  • Page 6 Don't tamper with your battery. This will void your warranty. Call If the Lock Light is blinking/flashing very quickly, ReadyPay Customer Service if your Power System needs repair. the Power System needs to be serviced. Please contact ReadyPay Customer Service for instructions...

  • Page 7: Using Banana Pins To Charge

    3.2.1 Using Banana Pins to Charge Step 1 Twist each terminal closed. Step 3 Push the red Banana Pin from the Grid Charger or Solar Panel into the bottom of the red bind terminal. Note Be sure to connect red to red. Step 2 Push the black Banana Pin from the Grid Charger or Step 4...

  • Page 8: Using Bare Wires To Charge

    3.2.2 Using Bare Wires to Charge Step 1 Unscrew each bind terminal. Step 3 Twist each terminal closed onto the wire. Note You can use this process if the banana pins of your solar panel or Grid Note Finger tightened is sufficient. Be sure to connect black to black and Charger break or get damaged.

  • Page 9: Multiple Charging Connections

    3.2.3 Multiple Charging Connections Step 1 To connect additional Solar Panels using Banana Pins, Step 1 To connect additional Solar Panels using bare wires push additional Banana Pins through the holes in the first or a mix of wires and Banana Pins, first insert the wires using Banana Pins.

  • Page 10: Charging With A Solar Panel

    Step 1 Insert the Banana Pins from the Solar Panel cable into DON'Ts the red and black terminals on the back of the ReadyPay DO NOT place the Power System in direct sunlight. Keep Power System. the Power System cool. The Power System should not get Note Be sure to connect black to black and red to red.

  • Page 11: Charging From Grid

    Step 1 Insert the Banana Pins from the Grid Charger into the red and black terminals on the back of the ReadyPay Power System. Note Be sure to connect black to black and red to red. Do not touch metal between the red and black terminals.

  • Page 12: Lightbar, Wire & Car Lighter Plug

    Step 2 Press the Power Button on the ReadyPay Power The LED lightbar comes with a Car Lighter Plug. System to wake it up (the ReadyPay Power System “sleeps” to save energy when not being used for 2 minutes). Step 1...

  • Page 13: Big Pin Usb Cable

    Big Pin USB Cable* Step 1 The Big Pin cable provided will only work with Step 3 Insert the Big Pin into a compatible phone and compatible phones. press the Power Button to start charging. Step 2 Insert USB cable into any of the USB ports. Step 4 Check to see if the phone is charging.

  • Page 14: Usb Cable

    USB Cable* ReadySquid Cable USB-A to Micro USB Cable Step 2 Attach an adapter tip if needed. Here you can see the difference between the Small Pin (left) and USB mini (right) adapter tips. Without adapters the tips are USB Micro. Step 1 Insert the USB cable into any of the USB ports.

  • Page 15: 3.8 3:1 Switch Hub

    Step 2 Press the Power Button on the ReadyPay Power The 3:1 Switch Hub comes with a Car Lighter Plug. System to wake it up (the ReadyPay Power System “sleeps” to save energy when not being used for 2 minutes).

  • Page 16: Readypay Payments & Codes

    After you successfully make a payment, you will receive an allows you to pay in installments. You take home the solar SMS with a code. You will use your ReadyPay remote to kit for a small downpayment, then pay consistently over enter the code and unlock the Power System for the number time until you reach the total purchase price.

  • Page 17: Readypay Power System Uses

    Additional accessories for your ReadyPay Power System will be released in the future. If you’d like to use an accessory not included in your kit, please call ReadyPay Customer Service for advice.

  • Page 18: Technical Specifications

    Up to 10 hours with one 1.5W LED lightbar or up to 4 cellphone charges on a full battery. Charge Times Approximately 8 hours via 10W Solar Panel. ReadyPay Power System Approximately 4 hours via Grid Charger. Output & Input Charging time will vary if charging phones or...
  • Page 19 Up to 40 hours with one 1.5W LED lightbar or up to 14 cellphone charges on a full battery. Charge Times Approximately 8 hours via two 17W Solar Panels. ReadyPay Power System+ Approximately 6 hours via Grid Charger. Output & Input Charging time will vary if charging phones or...
  • Page 20 Technical Specifications Grid Charger* Solar 10 Output Output 18 volts Max Output Power 10 watts 1.3 amps Max Output Voltage 17.56 volts Input Max Output Current 0.57 amps 100–240 volts Open Circuit Voltage 22.32 volts 50/60Hz Short Circuit Current 0.68 amps 1 amp max Power Tolerance Irradiance &...
  • Page 21 Technical Specifications Solar 17 3:1 Switch Hub Output Wire Length Max Output Power 17 watts Max Current Max Output Voltage 17.56 volts Input Voltage 10-15V Max Output Current 0.97 amps Dimensions 45 x 95 x 33mm Open Circuit Voltage 22.32 volts Fuse F1AL250V Short Circuit Current...

  • Page 22: Common Issues

    ReadyPayCustomer Service. Note The Charging Light should come on if the Power System is charging. ReadyPay Customer Service Please remove all accessories and recharge your Power System with the Grid Charger or Solar until the Charging Uganda: 0800 202 933 Light turns off and your Power System is full.
  • Page 23 Common Issues Accessories are not receiving power Trouble with an accessory Check your lock light. If it’s on, you need to make a payment. If you insert an accessory not supported by the Power If it is off, you should recharge your Power System. System (fridge, woofers, etc), the Power System will make a beeping sound, all of the Battery Level lights will flash, and power output will be disabled.

  • Page 24: Call Customer Service When

    You have verified from the troubleshooting pages that your remote is not functioning. You have questions about your account balance. You wish to pay off your ReadyPay early and benefit from an early repayment discount. ReadyPay Customer Service Uganda:...

  • Page 25: Healthy Power System Tips

    Please call ReadyPay Customer Service before attempting to extend your wires. Do not use or store the ReadyPay Power System in hot places such as near a fire or in direct sunlight. This may damage the battery and reduce its useful life.

  • Page 26: Frequently Asked Questions

    If the problem persists, please call ReadyPay Customer Service. Can I charge the Yes, that is fine. Power System and, at...
  • Page 27 Once entered into your Power my code? with your code immediately code last? System, the ReadyPay code after making a payment. Enter will last for the number of days your code as soon as you of power you paid for. After receive it.

  • Page 28: Warranty, Service & Support

    When should I top-up? Don’t wait to be locked out to In order to receive warranty service, the ReadyPay Power top-up. It’s better to maintain System, solar panel, lights, remote and other accessories a positive balance.
  • Page 29 When your product reaches its work. In all cases, we will work with our customers to get end of life, contact Fenix or your local authorities to learn their ReadyPay Power System up and running again as fast about recycling options. as possible.
  • Page 30 Fenix International Inc. 30 Cleveland Street San Francisco, CA 94103 http://www.fenixintl.com © 2016 Fenix International Inc. All rights reserved. The Fenix logo and ReadyPay Power System are trademarks of Fenix International. 602-0004-H...
