WHAT'S IN THE BOX?
The IQ Panel 2 keeps you connected to an
entire ecosystem of smart devices giving
you control over your entire home.
Exciting features like touchless disarming
using Bluetooth and a built in glass break
detector are enabled through powerful
software that improves over time through
regular software updates.

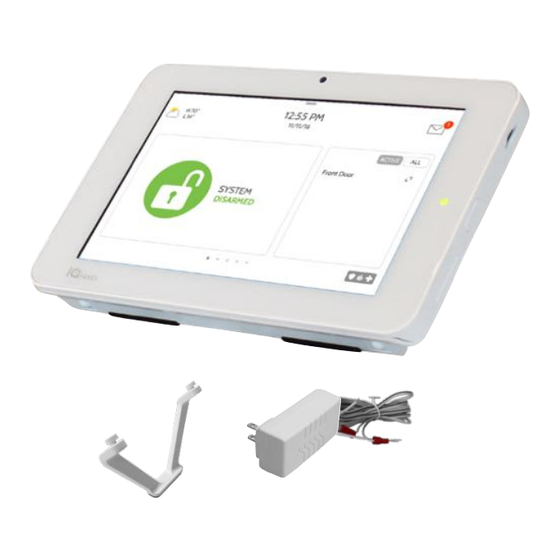

The IQ Panel also includes a snap on table
stand and power supply with cable.
The IQ Motion detects infrared body heat
useful for both security and home
automation. Create rules like "when
someone enters the room, turn on light" or
"Trigger siren when body detected".
The IQ Mini door/window sensor is a
powerfully small device that can be placed
on anything that opens or closes. Create
automation rules like "turn on light when
door is opened" or "Adjust thermostat if
window left open".
Advertisement
Table of Contents
Related Manuals for QOLSYS IQPanel 2
Summary of Contents for QOLSYS IQPanel 2
- Page 1 WHAT’S IN THE BOX? The IQ Panel 2 keeps you connected to an entire ecosystem of smart devices giving you control over your entire home. Exciting features like touchless disarming using Bluetooth and a built in glass break detector are enabled through powerful software that improves over time through regular software updates.
- Page 2 SETTING UP YOUR PANEL Let’s start by connecting your power. Plug in the power connector Route the wire behind the Insert the wire into the strain- retainer clip relief Now let’s put on your cover and attach the table stand. Place the top of the cover onto Push the cover down until it Insert the table stand into the...
- Page 3 INSTALLING YOUR DOOR SENSOR DOORS & WINDOWS...
- Page 4 INSTALLING THE IQ MINI SENSOR Your IQ Mini is an ultra compact encrypted sensor that can be placed on anything that opens or closes. Apply the included Remove the Remove the two adhesive. protective film. battery tabs. Line up the sensor Secure the sensor and with the magnet.
- Page 5 INSTALLING ON A WINDOW Typical installation of magnet/sensor with the magnet on the window and the sensor on the window frame. When installing the sensor on a window, place the “magnet” on the part of the window that moves, to reduce possibility of damage to the sensor as you open and close the window.
- Page 6 INSTALLING ON A DOOR Standard install magnet/sensor orientation. Alternate install magnet/sensor orientation. (used when door trim does not allow standard install) When installing the sensor on a door, place the “magnet” on the door and the sensor on the door frame. This helps to reduce the possibility of damage to the sensor as you open and close the door.
- Page 7 INSTALLING YOUR MOTION SENSOR MOTION DETECTION...
- Page 8 INSTALLING THE IQ MOTION Your IQ Motion is an encrypted infrared sensor with a range of 25 feet. The motion detector is most effective when a person moves across its field of view, rather than towards the sensor. We recommend that all motions are installed at a height of 6.5 feet.
- Page 9 WALL MOUNT: FLAT Have pets? By mounting the motion sensor flat against the wall you get more more open air coverage within the room but less floor coverage, reducing the risk of false alarms. Reduce False Alarms: When possible, avoid installing your motion sensor Install Finished toward windows, as the heat or...
- Page 10 CORNER MOUNT: FLAT Corner mounting is the most common placement because it allows the sensor to provide wall to wall protection. Have pets? By mounting the motion sensor flat against the wall you get more more open air coverage within the room but less floor coverage, reducing the risk Install Finished...
- Page 11 WALL MOUNT: ANGLED DOWNWARD Angle Mount: pointing the motion downward gives you less open air coverage but more floor coverage. This is a great installation in homes without pets. Reduce False Alarms: When possible, avoid installing your motion sensor Install Finished toward windows, as the heat or screws here...
- Page 12 INSTALLING YOUR MOTION CORNER MOUNT: ANGLED DOWNWARD Corner mounting is the most common placement because it allows the sensor to provide wall to wall protection. Angling downward is a great installation in homes without pets. Reduce False Alarms: When possible, avoid installing your motion sensor Install Finished...
