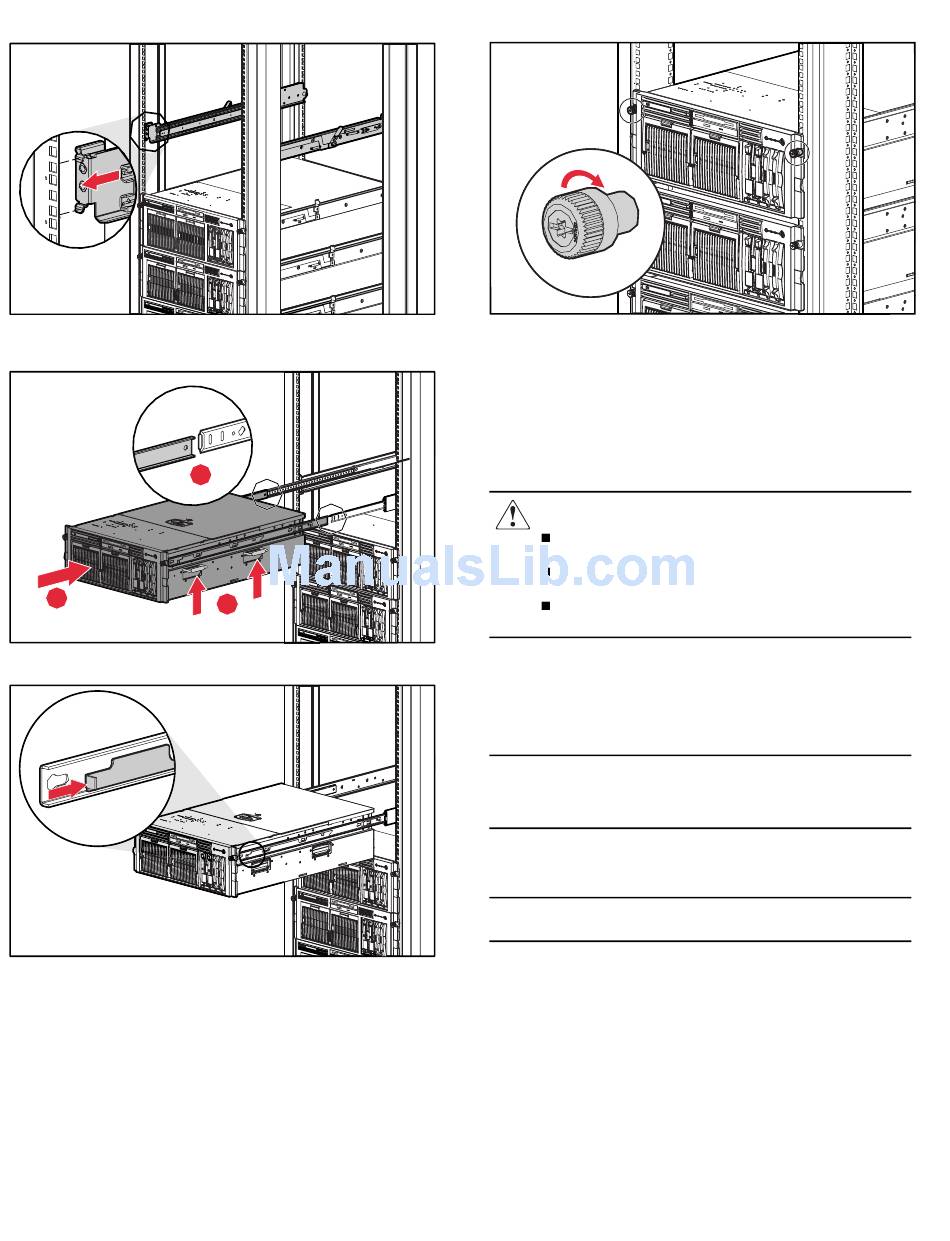

10. Install the front of the rail into the designated holes in the
front of the rack.
3
11. Install the rails on the chassis into the rails in the rack.
12. Slide the server onto the rack rails until the locking pin
engages.
2
1
13. Tighten the thumbscrews to secure the server to the rack.
5. Connecting the Power Cord and Device
Cables
The NAS 9000s server can operate either on a 120-V or a 240-V
AC input. Two AC inlets are on the rear of the server, one for
each power supply installed.
WARNING: To reduce the risk of electric shock or damage to
the equipment:
Do not disable the power cord-grounding plugs. The
grounding plugs are an important safety feature.
Plug the power cords into grounded (earthed) electrical
outlets that are easily accessible at all times.
Disconnect power from the server by unplugging the
power cords from either the electrical outlets or the server.
To connect the power cords:
1. Locate the correct voltage line cords that came with your
server. Remove any labels that cover the cord connectors.
2. Plug the power cords into the power supply AC inlets.
Note: To connect the power cords, plug them into the appropriate
power supply AC inlets. The power connector is connector number
one for the primary power supply and is connector number two for the
redundant hot-plug power supply.
3. Plug the other end of the power cords into grounded electrical
outlets or UPS, depending on power cord types.
Note: To help protect the server against downtime due to a loss of
power, plug each power supply into separate AC circuits.
4. Connect the peripheral device cables to the server, and then
route the power cord and device cables through the cable
management solution. For more information, refer to the
Cable Management System Reel Assembly Installation
Instructions that are included in the hardware kit.
