Replacement of High Current Fuse, Medium
Current Fuse and Fuse

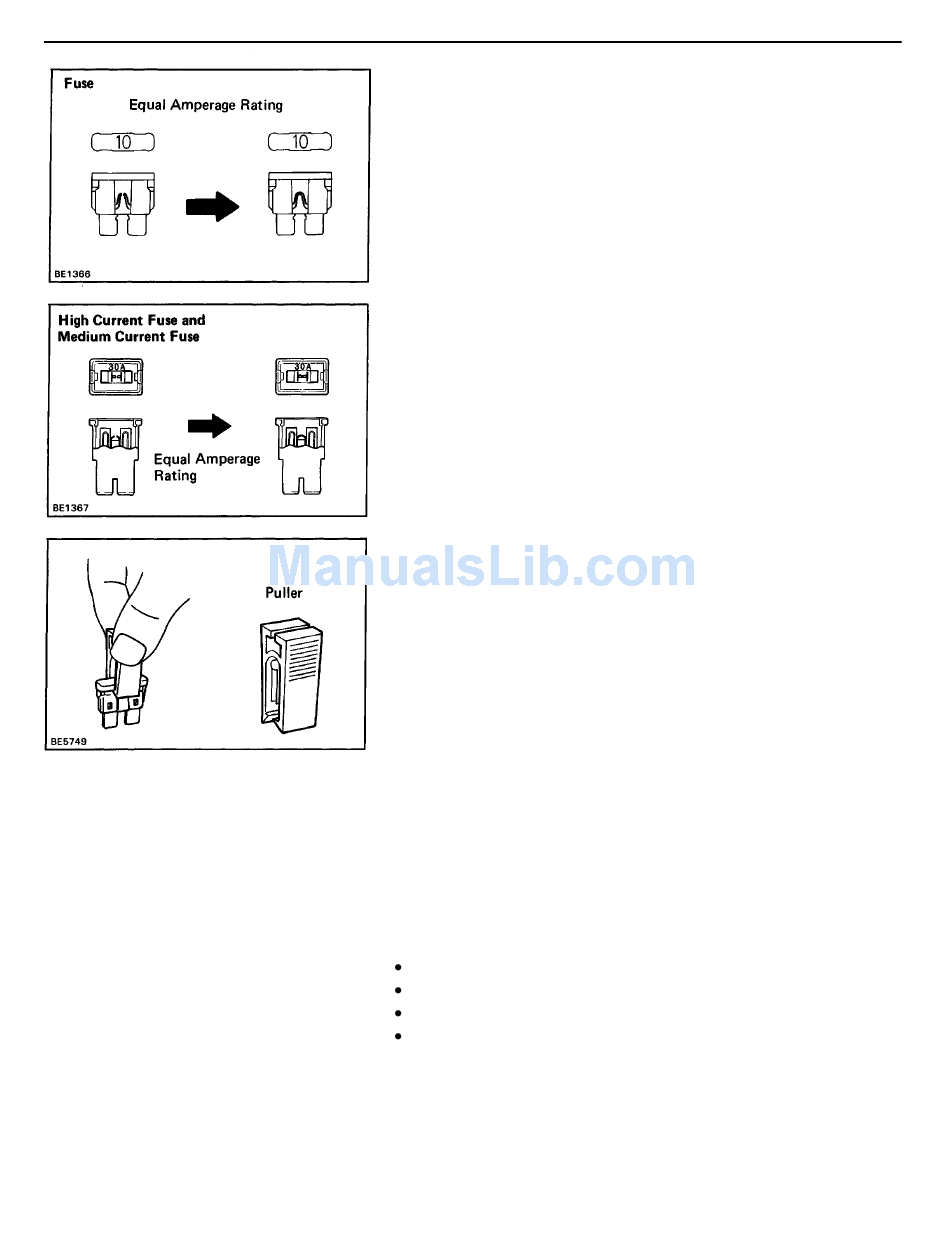

HINT: If replacing the fuse be sure to replace it with a
fuse of fusible link with and equal amperege rating.
NOTICE:
1. Turn off all electrical components and the ignition
switch before replacing a fuse or fusible link. Do not
exceed the fuse or fusible link amperage rating.
2. Always use a fuse puller for removing and inserting
a fuse. Remove and insert straight in and out with–
out twisting. Twisting could force open the termi–
nals too much, resulting in a bad connection.
If a fuse or fusible link continues to blow, a short circuit is
indicated. The system must be checked by a qualified
technician.
How to Inspect for System Inspection
This inspection procedure is a simple troubleshooting
which should be carried out on the vehicle during system
operation and was prepared on the assumption of system
component troubles (except for the wires and connec–
tors, etc. ).
Always inspect the trouble taking the following items
into consideration.
Ground point fault
Open or short circuit of the wire harness
Connector or terminal connection fault
Fuse or fusible link fault
NOTICE:
1. This is an on–vehicle inspection during system oper–
ations. Therefore, inspect the trouble with due re–
gard for security.
2. In case of connecting the battery directly, be careful
not to short circuit, and select the applicable volt–
age.
