ITEM PART # qTY DESCRIPTION
1 00084 2 .50 LOCKWASHER
2 00085 2 .50 FLAT WASHER
00182
3 1 HAIR PIN, .120 WIRE X 2.375
00967
4 4 BOLT, .50NC X 1.25
5 02178 4 NUT, .50NC LOCK, NY. INSERT
6 02384 4 .50 X 14GA MACHINE WASHER
7 02397 2 LYNCH PIN
02534
8 1 WASHER, MACHINE .75 X 14GA NR (PLATED)
9 02961 2 .75NC NYLON INSERT LOCK NUT
10 03803-81 2 CONNECTING CLEVIS
11 03809 4 CLEVIS SPACER WASHER
03878-95
12 2 ATTACHING PIN
07164-95
13 2 CLEVIS BOLT
14 07248-95 1 RECEIVER PIN
15 07251 1 HAIRPIN, RECEIVER PIN
13169-81
16 1 RECEIVER JOINT
13171-88
17 2 ALUMINUM CLEVIS
18 13172-93 2 FRONT ADAPTOR
19 13173-93 2 RAIL TUBE
20 13174-93 2 DOMINATOR SPUD
13176
21 2 TRIGGER HANDLE
22 13178-81 2 LATCH MOUNT
23 13179 2 COMPRESSION SPRING
24 13184 8 SCREW, SOCKET BUTTON, .25 -20 X ..375 SS
13185
25 24 SCREW, SOCKET BUTTON, .25 -20 X .50 SS
13212-88
26 4 RAIL CLIP HOLDER
27 13213 6 SCREW, SOCKET HD, #8-32 X .625 SS
28 13226-88 1 HD RAIL CLIP F/DOMINATOR
13227
29 2 FLANGED BUSHING, .50 ID
13228
30 4 FLANGED BUSHING, .75 ID
31 13233 2 LINEAR BEARING
32 13235 2 SEAL, 1.50 OD X 1.25 ID
33 13238-88 1 LIGHT WIRE ROD
13249
34 4 CLEVIS GROOVED PIN, .313 X 1.25, SS
35 13250 4 RETAINING RING F/ .313 SHAFT SS
36 13273 2 SAFETY CABLE 54" DOUBLE HOOKS
37 13296-95 1 BOLT, .75 NC x 5.875 w/ 4.75 SHANK
13297-95
38 1 BOLT, .75 NC X 3.75 W/ 2.50 SHANK
13305
39 2 BOLT, .50NC X 2.25 W/1.75 SHANK SS
40 13317 4 NYLON WASHER, .50 ID X 1.25 OD
41 13431 2 STORAGE PIN
13432
42 2 RETAINING E-CLIP SS F/ .25 SHAFT
43 13570-81 1 TOW BAR RECEIVER, 1.5 DROP/RISE
44 13571 2 SPRING, COMPRESSION
45 13589-70 2 STORAGE PLATE, SPRING LOADED
13590-95
46 1 SPACER
47 13859 2 LATCH SEAR
48 14890 8 SCREW, SOCKET BUTTON .25-.20 X .625 SS
15716-88
49 2 CONNECTING LEG SHAFT
50 15717 2 LATCH/STOP WASHER
Please order replacement parts by PART NO. and DESCRIPTION.

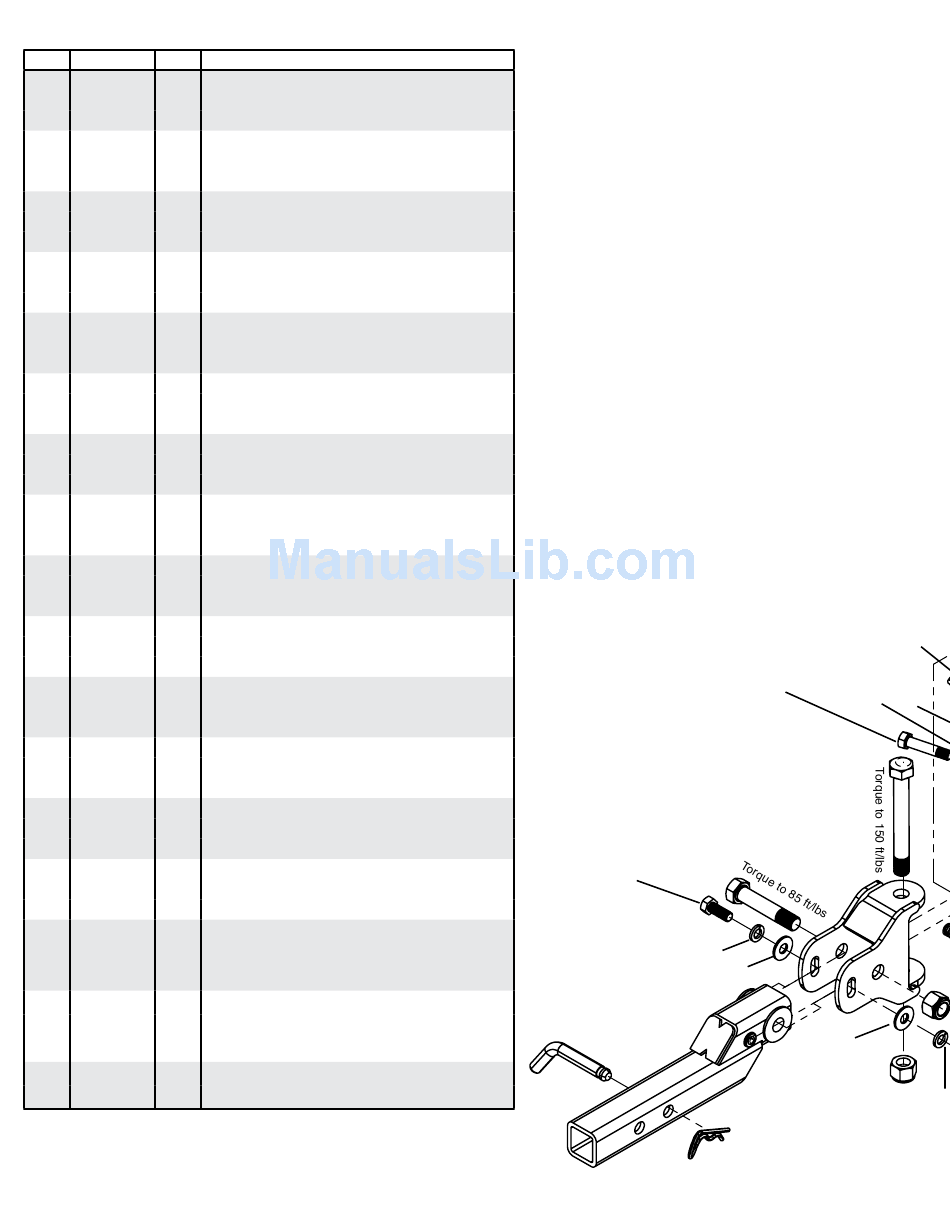

PARTS BREAkDOWN Order No. 9511008
Page 12
Perform a tow bar safety check before
towing, look for any loose fasteners,
condition of safety cables, excessive
movement in connecting leg shaft
when the shaft is extended and locked.
If any excessive movement or loose
fasteners are found, the tow bar will
need to be serviced before towing.
Dominator must be serviced by an
authorized dealer or sent to Demco.
Torque to 40-50 ft/lbs
or when legs self-support
Torque to 85 ft/lbs 38
4
1
2
14
43
15
45
30
17
39
37
16
44
2
1
