AXIS 207/207W/207MW Installation Guide

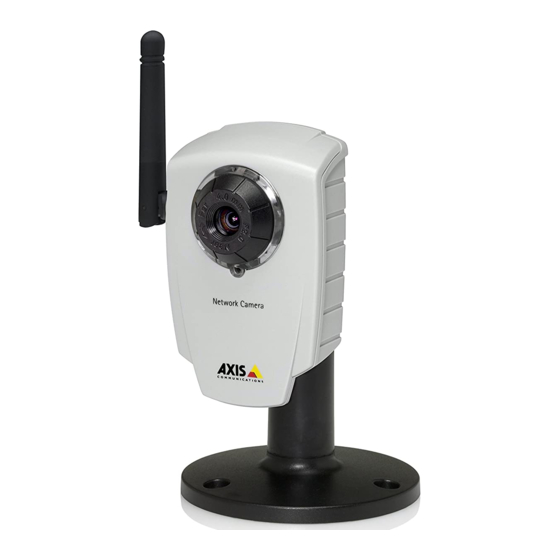

AXIS 207/207W/207MW Network Camera
This installation guide provides instructions for installing the AXIS 207/207W/207MW on
your network. For all other aspects of using the product, please see the product User's Manual,
available on the CD included in this package, or from www.axis.com
Installation steps
Follow these steps to install the AXIS 207/207W/207MW on your local network (LAN):
1. Check the package contents against the list below.
2. Make all the necessary connections. See page 6.
3. Set an IP address. See page 6 for information on the available methods.
4. Set the password. See page 10.
5. For wireless models, configure the wireless connection. See page 11.

Package contents

Item
Axis Network Camera models
Power adapter
Camera stand
Flexible clamp
Connector block
Cable clip
CD
Printed Materials

Installation Guide

Description
AXIS 207
AXIS 207W
AXIS 207MW
AXIS 207: Type PS-L, country-specific
AXIS 207W/AXIS 207MW: type PS-H, country-specific
Supplied with 3 mounting screws. The extension section is ready fitted.
For shelf mounting
4-pin connector block for connecting external devices to the I/O terminal connector
Self-adhesive - fixes to back panel for holding power cable
Axis Network Video Product CD, including installation tools and other software,
product documentation
AXIS 207/207W/207MW Installation Guide (this document)
Axis Warranty Document
Page 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 207 and is the answer not in the manual?

Questions and answers

Related Manuals for Axis 207

Summary of Contents for Axis 207

  • Page 1: Installation Guide

    CD included in this package, or from www.axis.com Installation steps Follow these steps to install the AXIS 207/207W/207MW on your local network (LAN): 1. Check the package contents against the list below. 2. Make all the necessary connections. See page 6.

  • Page 2: Hardware Overview

    Page 4 AXIS 207/207W/207MW Installation Guide Hardware overview I/O terminal connector Antenna (wireless models) Focus ring Lock ring Status Network indicator indicator (outer ring) Product ID & serial number (S/N) label Control button Wireless indicator (Wireless models only) Microphone Network...

  • Page 3: Hardware Installation

    Hardware installation Important! The AXIS 207/207W/207MW is designed for indoor use only, and must always be positioned where it is not exposed to direct sunlight or strong halogen light, which can cause permanent damage to the camera’s image sensor. Damage as a result of exposure to strong light is not covered by the Axis warranty.

  • Page 4: Cable Connections

    If required, the AXIS 207W/ AXIS 207MW can be used solely as a wired camera, in which case the network cable should be left connected.

  • Page 5: Axis Ip Utility

    Note that you must install the AXIS 207/207W/207MW on the same network segment (physical subnet) as the computer running AXIS IP Utility. AXIS IP Utility is available on the CD supplied with this product, or it can be downloaded from www.axis.com/techsup Automatic discovery 1.

  • Page 6: Installation With Arp/Ping

    AXIS 207/207W/207MW Installation Guide Bonjour™ Bonjour™ will automatically discover the AXIS 207/207W/207MW when it is connected to the network. Simply navigate to the Bonjour™ bookmark in your browser (e.g. Safari) and click on the camera link to access the web pages. See page 10 for instructions on how to set the password.

  • Page 7: Axis Internet Dynamic Dns Service

    AXIS 207/207W/207MW to the AXIS Internet Dynamic DNS Service. No personal information is transferred. To remove the DNS name and unregister from this service, open the Setup pages in the AXIS 207/207W/207MW, click System Options > Network > TCP/IP > Basic, click the Settings...

  • Page 8: Setting The Password

    See page 13. 5. If required, click Yes to install AMC (AXIS Media Control), to allow viewing of the video stream in your browser. You will need administrator rights on the computer to do this.

  • Page 9: Status Of Wireless Networks

    • SSID - The name of a wireless network (or ad-hoc device). If the same name occurs several times this means that several access points for that network were found. The AXIS 207W/AXIS 207MW cannot be configured to only associate with one particular access point.
  • Page 10 2. Disconnect the network cable from the camera. 3. Refresh the web page after 20-30 seconds to confirm the wireless connection. If the camera cannot be accessed, run AXIS IP Utility to discover the new IP address and try again.

  • Page 11: Accessing The Camera From The Internet

    One method for this is NAT traversal via port mapping. For more information, please refer to the product’s User’s Manual, available on the CD included in this package and from the Axis Web site at http://www.axis.com. See also the AXIS Internet Dynamic DNS Service at www.axiscam.net...
  • Page 12 Page 14 AXIS 207/207W/207MW Installation Guide...
