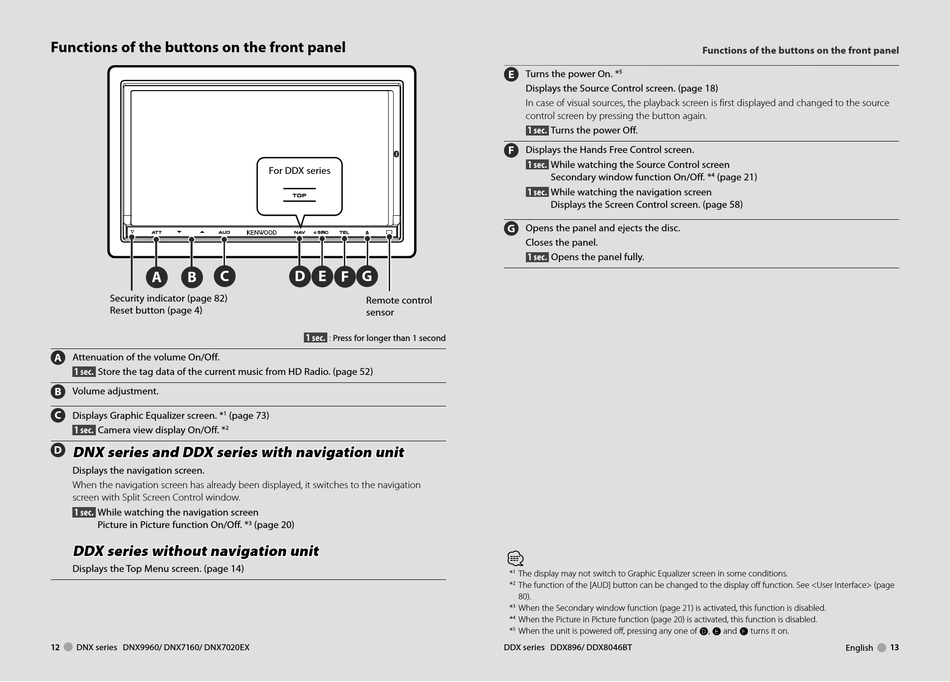

Functions of the buttons on the front panel

C
A B
Security indicator (page 82)
Reset button (page 4)
A Attenuation of the volume On/Off.
1 sec. Store the tag data of the current music from HD Radio. (page 52)
B Volume adjustment.
C 1
Displays Graphic Equalizer screen. * (page 73)
1 sec. Camera view display On/Off. * 2
D
DNX series and DDX series with navigation unit DNX series and DDX series with navigation unit
Displays the navigation screen.
When the navigation screen has already been displayed, it switches to the navigation
screen with Split Screen Control window.
1 sec. While watching the navigation screen
Picture in Picture function On/Off. *
DDX series without navigation unit DDX series without navigation unit
Displays the Top Menu screen. (page 14)
12 DNX series DNX9960/ DNX7160/ DNX7020EX
For DDX series
D E F G
Remote control
sensor
1 sec. : Press for longer than 1 second
3 (page 20)
5
E Turns the power On. *
Displays the Source Control screen. (page 18)
In case of visual sources, the playback screen is first displayed and changed to the source
control screen by pressing the button again.
1 sec. Turns the power Off.
F Displays the Hands Free Control screen.
1 sec. While watching the Source Control screen
Secondary window function On/Off. *
1 sec. While watching the navigation screen
Displays the Screen Control screen. (page 58)
G Opens the panel and ejects the disc.
Closes the panel.
1 sec. Opens the panel fully.
⁄
* 1 The display may not switch to Graphic Equalizer screen in some conditions.
2
* The function of the [AUD] button can be changed to the display off function. See <User Interface> (page
80).
3
* When the Secondary window function (page 21) is activated, this function is disabled.
* 4 When the Picture in Picture function (page 20) is activated, this function is disabled.
5 When the unit is powered off, pressing any one of Î, ¯ and Ï turns it on.
*
DDX series DDX896/ DDX8046BT
Functions of the buttons on the front panel
4 (page 21)
