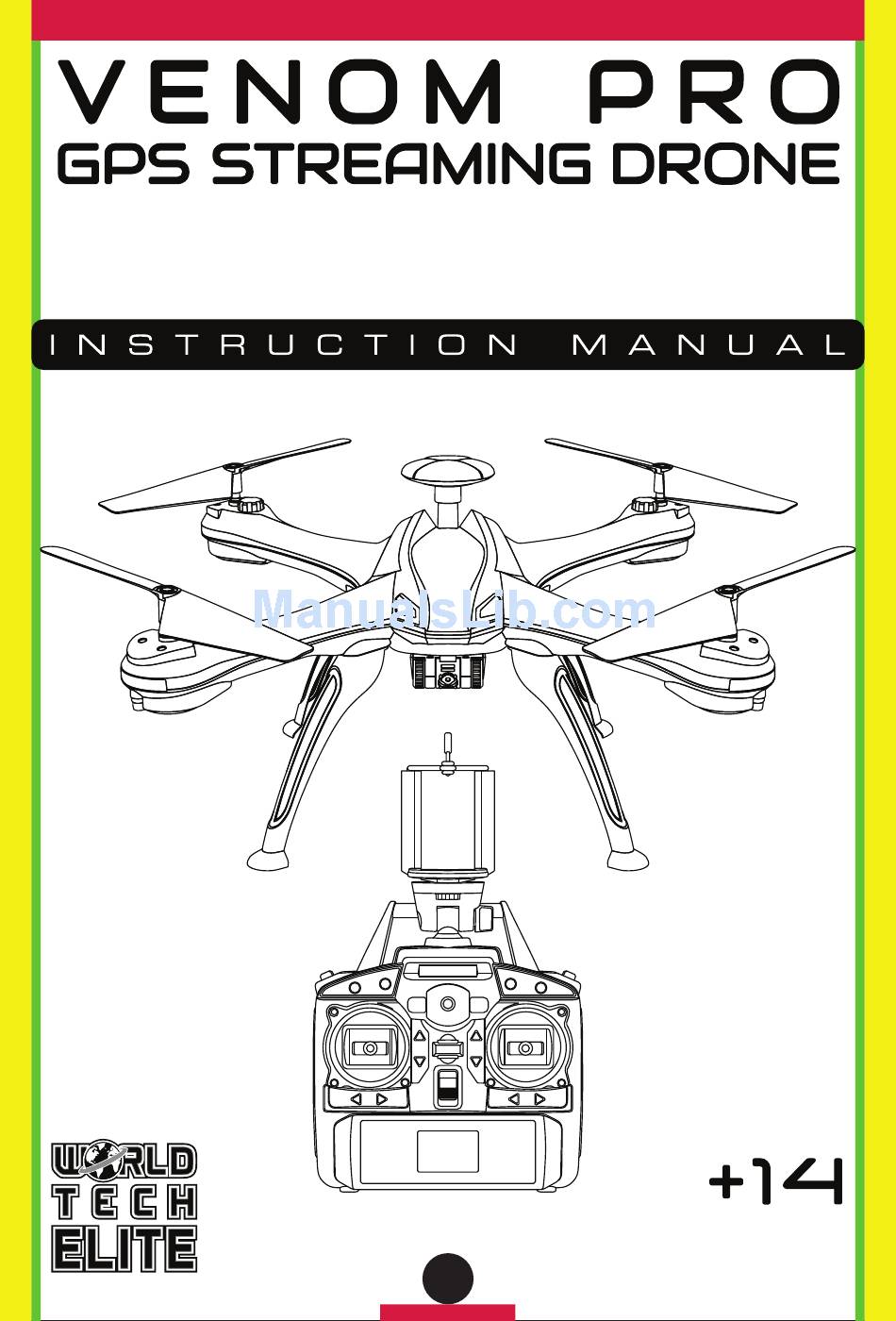

- Page 1 G P S S T R E A M I N G H D C A M E R A 2 . 4 G H z 4 . 5 C H R C Q U A D C O P T E R ITEM NO.
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTI ON SA FE TY & P R ECAU TIONS DRO NE D I AGRAM TRANSMITTER DIAGRAM/PHONE CRADLE INSTALLATION INSTALLING THE ROTOR GUARDS INSTALLING THE LANDING SKIDS INSTALLING THE TRANSMITTER BATTERY INSTALLING THE DRONE BATTERY CHARGING THE DRONE BATTERY SYNCING THE DRONE TO THE TRANSMITTER RE CALI BRATI NG TH E DRON E ROTOR UNLOCK/LOCK - AUTO-TAKE OFF/LAND... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing this amazing World Tech Toys product. This drone is suitable for indoor and outdoor flight. Please carefully read the entire manual before operating this drone and keep it for reference in the future. SAFE T Y & PRECAUTIONS 1. -
Page 4: Drone Diagram
DRONE DIAGRAM BOTTOM OF DRONE Rotor Power Switch Battery Compartment LED Lights HD Picture/Video Camera Landing Skids Rotor Guard Slot Headlight HD Picture/Video Camera 720p Landing Skids TRANSMITTER DIAGRAM/PHONE CRADLE INSTALLATION Smart Phone Cradle *Speed Control Modes: Pull up on cradle top and slowly release to secure •... -
Page 5: Installing The Rotor Guards
INSTALLING THE ROTOR GUARDS The drone comes with 4 rotor guards. It is recommended that you install the rotor guards to protect the rotor blades from getting damaged or harming others. If you need to install or remove a rotor guard, just follow these easy steps. -
Page 6: Installing The Transmitter Battery
INSTALLING THE TRANSMIT TER BAT TERY First, remove the screw on the battery cover and then remove the battery cover itself. Next, install 4 AA batteries with the correct polarity. Finally, replace the battery cover and screw it in place. CAUTION: Battery Cover 1. -
Page 7: Charging The Drone Battery
CHARGING THE DRONE BAT TERY Make sure the drone power switch is in the Gently pull the battery pack and connector OFF position. Pull the battery compartment cables out from the drone battery door away from the drone and swing it open. compartment. -
Page 8: Syncing The Drone To The Transmitter
SYNCING THE DRONE TO THE TRANSMITTER Switch ON the drone and place it on a flat surface. The drone’s LED lights will start flashing rapidly as it searches for GPS signals and the transmitter. Switch ON the transmitter and it will emit a short beep. -
Page 9: Rotor Unlock/Lock - Auto-Take Off/Land
ROTOR UNLOCK/LOCK - AUTO-TAKE OFF/LAND Before flying your drone for the first time please read all the instructions carefully and make sure you fully understand how to control it. You will not be able to control your drone until you unlock the rotors at the start of each flight. -
Page 10: Flight Controls
FLIGHT CONTROLS Ascend/Descend Move Forward/Backward FRONT BACK Move Left/Right FRONT Move Left Move Right BACK Turn Left/Right Turn Left FRONT Turn Right BACK... -
Page 11: Live Feed App And Camera Operation
LIVE FEED APP AND CAMERA OPERATION 1. Search your phone’s application store for “VENOM FPV” and download App Available on Apple & Android Devices the free app. This application allows you to see a live feed of your drone’s camera, take photos/videos that can be kept in the app or saved to your phone as well as other special actions. -
Page 12: Special Functions
SPECIAL FUNCTIONS EASY MODE - THIS MODE ONLY WORKS WHEN THE PHONE APP IS NOT BEING USED. THE PHONE APP WILL INTERFERE WITH THIS FUNCTION. Simplify the drone controls by limiting command directions based on pilot direction. Use Easy Mode when you are having difficulty telling which direction the drone is facing and controlling the drone has become difficult. -
Page 13: Special Functions Continued
SPECIAL FUNCTIONS CONTINUED FOLLOW ME Activate Flight Trace via the Venom FPV app drone functions after the transmitter has been turned off. The drone will autonomously hover near the smart phone with the Venom FPV app active and follow it if moving. -
Page 14: Post Flight
POST FLIGHT After you are done flying the drone make sure the battery pack is disconnected and the transmitter power is turned off. If you are not going to use the drone for an extended period of time, please remove the AA batteries from the transmitter to prevent them from draining or leaking. REPL ACING THE ROTORS The rotors can be damaged during a collision. -
Page 15: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION Transmitter is not syncing with Drone is unresponsive. The Repeat the power up process. drone. transmitter light keeps flashing. Drone is unresponsive. Transmitter and or drone is not Turn both transmitter and drone ON. powered ON. Transmitter batteries are installed Install the batteries with the correct incorrectly. -
Page 16: Fcc Warnings
NOTES: FCC WARNINGS 1. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
