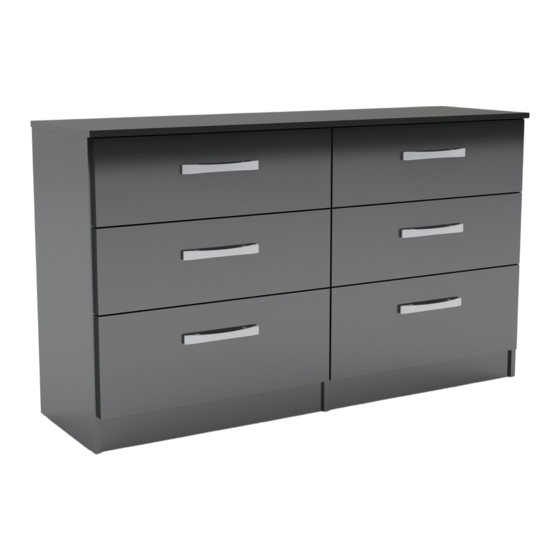

Birlea LYNX 6 Assembly Instructions Manual

Drawer chest
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE OR
USE YOUR LYNX 6 DRAWER CHEST.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
ASSEMBLY:
Assembly should be carried out with this item laying flat, not standing upright.
Assemble on a soft, clean surface to prevent damages.
To erase the numbers printed on the pieces, use the rubber into the accessories pack.
HEALTH & SAFETY:
DO NOT use this chest if any parts are missing, damaged or worn.
DO NOT use this chest unless all fixings are secured .
Always use on a level, even surface.
CARE & MAINTENANCE:
Periodically check all screws & fixings to ensure they are secure.
DO NOT push the chest as this will damage the base.
Always lift the chest with two people to reposition.
Keep any sharp objects away from the chest.
Rev 05
ASSEMBLY INSTRUCTIONS
LYNX 6 DRAWER CHEST
www.birlea.com
Vendor: S000139
Page
1
of
6

Advertisement

loading
Need help?

Need help?

Do you have a question about the LYNX 6 and is the answer not in the manual?

Questions and answers

Related Manuals for Birlea LYNX 6

Summary of Contents for Birlea LYNX 6

  • Page 1 ASSEMBLY INSTRUCTIONS LYNX 6 DRAWER CHEST IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE OR USE YOUR LYNX 6 DRAWER CHEST. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. ASSEMBLY: Assembly should be carried out with this item laying flat, not standing upright.
  • Page 2 Vendor: S000139 Parts List Hardware List Part Descripion Part Descripion Top Panel 8 x 30mm Wooden Dowel Left Panel Plastic Cap Centre Panel 3 x 14mm Screw Right Panel 3.5 x 25mm Screw Plinth 4.5 x 45mm Screw Small Drawer Front 10 x 10mm Tack Large Drawer Front Simple Minifix Screw...
  • Page 3 Vendor: S000139 Step 1: Insert hardware part H into the top panel (1) using a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 2: Attach three drawer runners (17) to the left panel (2) using hardware part D and a screwdriver (not provided).
  • Page 4 Vendor: S000139 Step 5: Insert hardware parts A, H and N using hardware part J, a small mallet and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 6: Attach the plinths (5) to the left panel (2), centre panel (3) and right panel (4) using hardware parts I and L with a screwdriver (not provided).
  • Page 5 Vendor: S000139 Step 7: Attach the top panel (1) using hardware part L. Attach hardware part K to the base using hardware part G. You will need to use a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 8: Connect the back panels (15) using the spine (18) and secure using harware part G and a small mallet (not provided).

  • Page 6: Additional Information

    Then attach hardware part D to the item with a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Birlea Furniture advise you use the wall straps provided to further enhance the safety of this product 1°...

This manual is also suitable for:

Lynx 6 drawer chest
