Summary of Contents for iSimple TranzIt USB IS32
- Page 1 GET CONNECTED Installation & Operation Manual DEVICE INTEGRATION AND CHARGING KIT TranzIt USB IS32...

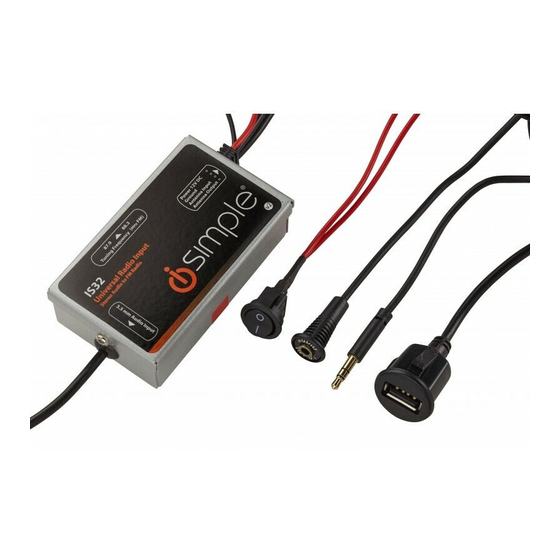

- Page 2 TranzIt USB 1. Introduction Thank you for choosing the iSimple TranzIt™ USB as your portable audio car integration solution. The TranzIt USB is designed to provide a connecting link between your portable audio device and your car stereo. Using the hardware included in this kit, you can connect virtually any audio source directly to any factory or aftermarket car radio.
-
Page 3: Back View
TranzIt USB BE AWARE: Before installing the Radio Input Interface make sure you disconnect the battery. Then make the following connections on the radio input interface, take into consideration the connector cable’s length and desired mounting locations for the connectors. Be sure the cables will reach to make any proper adjustment. -
Page 4: Mounting Options
TranzIt USB 2.5mm Connector 3. Installation (cont.) Audio B. Connector Mounting Options ON/OFF Switch 2.5mm Connector Antenna Input from vehicle antenna* Audio ON/OFF Switch 3/8” 3.5mm Antenna Input Audio Input from vehicle antenna* m Connector Antenna Out “Factory Look” 3.5 mm Dash Panel Mount Audio input (6 ft.) to FM radio* 3.5 mm to 3.5 mm Audio Cable (4 ft.) 3.5mm... -
Page 5: Troubleshooting
® and or any incidental or consequential damages of any kind (including water damage) resulting from malfunctions, defects, misuse, improper installation or alteration of this product. All parts of this iSimple ® product are guaranteed for a period of 1 year as follows:... - Page 6 TranzIt USB 1. Re-orientate or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that of which the receiver is connected. 4. Consult the dealer or an experienced radio / television technical for help. Notice : The changes or modifications not expressly approved by the party responsible compliance could void the user authority to operate the equipment.
