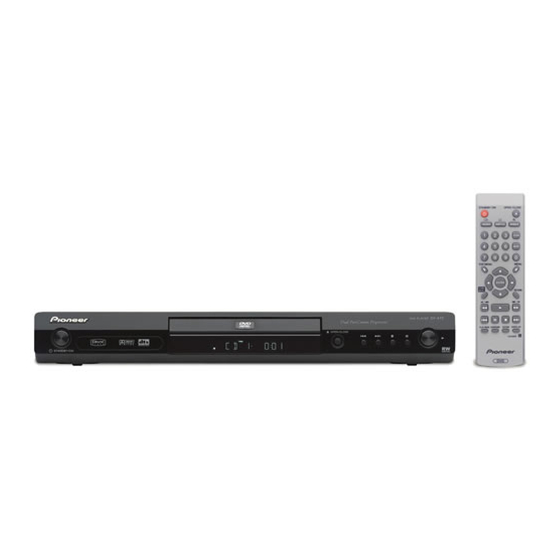

DVD Player Lettore per DVD DV-470 Operating Instructions Istruzioni per líuso...
Page 2
IMPORTANT The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
WARNING: BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY. The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230V or 120V) written on the rear panel.
Before you start Chapter 1 Before you start Features • 24-bit/192kHz compatible DAC The on-board 24-bit/192kHz DAC means that this player is fully compatible with high sampling-rate discs, capable of delivering exceptional sound quality in terms of dynamic range, low-level resolution and high-frequency detail.
Before you start Putting the batteries in the remote • Open the battery compartment cover and insert the batteries as shown. Use two AA/R6P batteries and follow the indications ( , ) inside the compartment. Close the cover when you’re finished. Important Incorrect use of batteries can result in hazards such as leakage and bursting.
Before you start Disc/content format playback compatibility This player is compatible with a wide range of disc types (media) and formats. Playable discs will generally feature one of the following logos on the disc and/or disc packaging. Note however that some disc types, such as recordable CD and DVD, may be in an unplayable format—see below for further compatibility information.
Before you start About WMA ® The Windows Media logo printed on the box indicates that this player can playback Windows Media Audio content. WMA is an acronym for Windows Media Audio and refers to an audio compression technology developed by Microsoft Corporation. WMA content can be encoded by using Windows ®...
Connecting up Chapter 2 Connecting up Easy connections The setup described here is a basic setup that allows you to play discs using just the cables supplied with the player. In this setup, stereo audio is played through the speakers in your TV. A/V IN COAXIAL VIDEO...
Connecting up Connect the VIDEO OUT and AUDIO OUT L/R jacks to a set of A/V inputs on your Use the supplied audio/video cable, connecting the red and white plugs to the audio outputs and the yellow plug to the video output.
Page 11
Connecting up COAXIAL VIDEO OPTICAL AUDIO OUT COMPONENT VIDEO OUT DIGITAL AUDIO OUT Connecting using the component video output You can use the component video output instead of the standard video out jack to connect this player to your TV (or other equipment).
Connecting up Compatibility of this player with progressive-scan and high-definition TVs This player is compatible with progressive video Macro Vision System Copy Guard. Consumers should note that not all high- definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture.
Controls and displays Remote control STANDBY/ON AUDIO SUBTITLE TOP MENU ENTER HOME MENU PLAY MODE SURROUND ZOOM STANDBY/ON (page 15) AUDIO (page 28) SUBTITLE (page 28) Number buttons (page 18) TOP MENU (page 19) ENTER & cursor buttons (page 15) HOME MENU (page 15) (page 18, 21) (page 18)
STANDBY/ON on the front panel or remote control to switch the player on. Also, switch on your TV and make sure that it is set to the input you connected the DVD player STANDBY/ON STANDBY/ON • My DVD player switches on but there is nothing displayed on my TV.
Getting started Setting up the player for your If you have a widescreen (16:9) TV, you should setup the player so that the picture will be presented correctly. If you have a conventional (4:3) TV, you can leave the player on the default setting and move on to the next section.
Page 17
Getting started STANDBY/ON OPEN/CLOSE ENTER ENTER If the player isn’t already on, press STANDBY/ON to switch it on. If you’re playing a DVD, disc containing DivX video files or Video CD/Super VCD, also turn on your TV and make sure that it is set to the correct video input.
Getting started Basic playback controls The table below shows the basic controls on the remote for playing discs. The following chapter covers other playback features in more detail. Button What it does Starts playback. If the display shows RESUME or LAST MEM playback starts from the resume or last memory point (see also Resume and Last Memory...
Page 19
Getting started DVD disc menus Many DVD-Video discs feature menus from which you can select what you want to watch. They may also give access to additional features, such as subtitle and audio language selection, or special features such as slideshows.
Page 20
Getting started • After I load a DVD disc, it ejects automatically after a few seconds! Most likely, the disc is the wrong region for your player. The region number should be printed on the disc; check it against the region number of the player (which you can find on the rear panel).
Playing discs Chapter 5 Playing discs Note • Many of the functions covered in this chapter apply to DVD discs, Video CDs/ Super VCDs, CDs, DivX video and WMA/ MP3 JPEG discs, although the exact operation of some varies slightly with the kind of disc loaded.
Playing discs Frame advance/frame reverse You can advance or back up DVD discs frame- by-frame. With Video CD/Super VCDs and DivX video file you can only use frame advance. During playback, press Press advance a frame at a time. To resume normal playback, press (play).
Playing discs Browsing DVD or Video CD/ Super VCD disc with the Disc Navigator Use the Disc Navigator to browse through the contents of a DVD or Video CD/Super VCD disc to find the part you want to play. Important •...
Playing discs Browsing WMA, MP3, DivX video and JPEG files with the Disc Navigator Use the Disc Navigator to find a particular file or folder by filename. Note that if there are other types of files on the same disc, these will not be displayed in the Disc Navigator.
Playing discs To resume normal playback, select ‘Off’ from the menu. Using repeat play There are various repeat play options, depending on the kind of disc loaded. It’s also possible to use repeat play together with program play to repeat the tracks/chapters in the program list (see Creating a program list on page 26).
Playing discs Press PLAY MODE and select ‘Random’ from the list of functions on the left. Play Mode A-B Repeat Random Title Repeat Random Chapter Random Random Off Program Search Mode Select a random play option. The random play options available depend on the kind of disc loaded.
Playing discs Repeat step 3 to build up a program list. A program list can contain up to 24 titles/ chapters/tracks. • You can insert steps into the middle of a program list by just highlighting the position where you want the new step to appear and entering a title/chapter/track number.
Playing discs Switching subtitles Some DVD and DivX video discs have subtitles in one or more languages; the disc box will usually tell you which subtitle languages are available. You can switch subtitle language during playback. Press SUBTITLE repeatedly to select a subtitle option.
Playing discs Displaying disc information Various track, chapter and title information, such as the elapsed and remaining playing time can be displayed on-screen while a disc is playing. To show/switch/hide the information displayed, press DISPLAY repeatedly. • When a disc is playing, the information appears at the top of the screen.
Audio Settings and Video Adjust menus Chapter 6 Audio Settings and Video Adjust menus Audio Settings menu The Audio Settings menu offers features for adjusting the way discs sound. Press HOME MENU and select ‘Audio Settings’ from the on-screen display. Audio Settings Select and change settings using the (cursor) buttons, and ENTER.
Audio Settings and Video Adjust menus • How good the surround effect is varies with the disc. Dialog • Settings: High, Medium, Low, Off (default) The Dialog feature is designed to make the dialog stand out from other background sounds in the soundtrack. Video Adjust menu From the Video Adjust screen you can adjust various settings that affect how the picture is...
Initial Settings menu Chapter 7 Initial Settings menu Using the Initial Settings menu The Initial Settings menu provides audio and video output settings, parental lock settings, and display settings, among others. If an option is grayed out it means that it cannot be changed at the current time.
Initial Settings menu Setting Option MPEG Out MPEG > PCM MPEG Video Output settings Setting Option TV Screen 4:3 (Letter Box) (See also Screen sizes and disc formats on 4:3 (Pan & Scan) page 38.) 16:9 (Wide) Component Out Interlace Progressive AV Connector Out Video...
Initial Settings menu Setting Option Subtitle Language English Languages as displayed Other Language DVD Menu Lan- w/Subtitle Lang. guage Languages as displayed Other Language Subtitle Display Display settings Setting Option OSD Language English Languages as displayed Angle Indicator Options settings Setting Option Parental Lock...
Default Country code: us (2119) To give you some control over what your children watch on your DVD player, some DVD- Video discs feature a Parental Lock level. If your player is set to a lower level than the disc, the disc won’t play.
Initial Settings menu ® About DivX VOD content In order to play DivX VOD (video on demand) content on this player, you first need to register the player with your DivX VOD content provider. You do this by generating a DivX VOD registration code, which you submit to your provider.
Additional information Chapter 8 Additional information Taking care of your player and discs General Hold discs by the edge or by the center hole and edge. When you're not using a disc, return it to its case and store upright. Avoid leaving discs in excessively cold, humid, or hot environments (including under direct sunlight).
Cleaning the pickup lens The DVD player’s lens should not become dirty in normal use, but if for some reason it should malfunction due to dust or dirt, consult your nearest Pioneer-authorized service center.
All DVD-Video discs carry a region mark on the case somewhere that indicates which region(s) of the world the disc is compatible with. Your DVD player also has a region mark, which you can find on the rear panel. Discs from incompatible regions will not play in this player.
Additional information Selecting languages using the language code list Some of the language options (such as ‘DVD Language’ in the Setup Navigator) allow you to set your prefered language from any of the 136 languages listed in the language code list on page 41.
Additional information Language code list Language (Language code letter), Language code Japanese (ja), 1001 Bhutani (dz), 0426 English (en), 0514 Esperanto (eo), 0515 French (fr), 0618 Estonian (et), 0520 German (de), 0405 Basque (eu), 0521 Italian (it), 0920 Persian (fa), 0601 Spanish (es), 0519 Finnish (fi), 0609 Chinese (zh), 2608...
Additional information Glossary Analog audio Direct representation of sound by an electrical signal. See also Digital audio. Aspect ratio The width of a TV screen relative to its height. Conventional TVs are 4:3; widescreen models are 16:9. Digital audio Indirect representation of sound using numbers.
Specifications General System ......DVD player Power requirements . . .AC 220–240 V, 50/60 Hz Power consumption ....12 W Power consumption (standby) .
Page 44
IMPORTANTE Il simbolo del lampo con terminale a forma di freccia situato all’interno di un triangolo equilatero serve ad avvisare l’utilizzatore della presenza di una “tensione pericolosa” non isolata nella struttura del prodotto che potrebbe essere di un’intensità tale da provocare scosse elettriche all’utilizzatore.
Page 45
AVVERTENZA: PRIMA DI COLLEGARE L’UNITÀ PER LA PRIMA VOLTA, LEGGERE LA SEZIONE SEGUENTE CON ATTENZIONE. Il voltaggio per l’alimentazione è diverso a secondo dei paesi e delle regioni, quindi assicuratevi che l’alimentazione elettrica del posto dove l’unità sarà utilizzata possiede il voltaggio richiesto (E.G., 230 V o 120 V) indicato sul pannello anteriore.
Page 46
Sommario 01 Prima di iniziare Caratteristiche ..... . 5 Contenuto della confezione ... . 5 Suggerimenti per l’installazione .
Prima di iniziare Capitolo 1 Prima di iniziare Caratteristiche • Compatibile con DAC a 24 bit/192kHz Il convertitore DAC incorporato da 24 bit/ 192kHz è totalmente compatibile con dischi ad alta frequenza di campionamento e in grado di produrre suono di qualità eccezionale in termini di gamma dinamica, risoluzione dei bassi e dettagli delle alte frequenze.
Prima di iniziare • Non utilizzare contemporaneamente batterie vecchie e nuove. • Non utilizzare contemporaneamente tipi diversi di batterie. Anche se possono sembrare simili, batterie diverse potrebbero essere di tensione diversa. • Verificare che i poli positivo e negativo di ciascuna batteria corrispondano alle indicazioni del vano portabatterie.
Prima di iniziare Questo lettore supporta il formato Super VCD di IEC. Paragonato allo standard Video CD, esso offre una qualità superiore delle immagini e permette la registrazione di due colonne sonore invece di una. Super VCD inoltre supporta le proporzioni di schermo Wide. Super VCD Compatibilità...
Prima di iniziare Compatibilità dei video DivX ® • Prodotto DivX certificato ufficialmente. • Riproduce file video DivX ® ® DivX 3 e DivX VOD (in accordo con le caratteristiche tecniche richieste per la ® certifica DivX • Estensioni dei file: .avi e .divx. (esse sono necessarie perché...
Collegamento Capitolo 2 Collegamento Collegamenti facili La seguente installazione è un’installazione di base che consente di riprodurre dei dischi utilizzando soltanto i cavi forniti con il lettore. In questa installazione l’audio stereo viene riprodotto attraverso gli altoparlanti del televisore. A/V IN Televisore COAXIAL VIDEO...
Collegamento Collegare le prese VIDEO OUT e AUDIO OUT L/R alla serie di ingressi A/V del televisore. Utilizzare il cavo audio/video in dotazione, collegando le spine rossa e bianca alle uscite audio e la spina gialla all’uscita video. Assicurarsi di collegare le uscite audio sinistra e destra ai corrispondenti ingressi per ottenere una riproduzione stereo ottimale.
Collegamento Collegamento con l’uscita video Component Per collegare questo lettore al vostro televisore (o altro apparecchio) potete usare al posto della presa di uscita video standard quella video Component. Ciò dovrebbe darvi un’immagine della migliore qualità da una delle tre uscite video disponibili. •...
Collegamento Collegamento a un ricevitore Per ottenere un suono surround multicanale, è necessario collegare il lettore a un ricevitore AV via l’uscita digitale. Questo lettore possiede sia prese digitali coassiali che ottiche: usare quelle che si ritengono più convenienti. Oltre al collegamento digitale, si raccomanda di utilizzare anche il collegamento stereo analogico.
Controlli e display Telecomando STANDBY/ON AUDIO SUBTITLE TOP MENU ENTER HOME MENU PLAY MODE SURROUND ZOOM STANDBY/ON (pagina 15) AUDIO (pagina 27) SUBTITLE (pagina 27) Pulsanti numerici (pagina 17) TOP MENU (pagina 19) ENTER & pulsanti cursore (pagina 15) HOME MENU (pagina 15) (pagina 18, 21) (pagina 17) (pagina 17)
Come iniziare Capitolo 4 Come iniziare Accensione Dopo aver verificato che tutti i cavi siano collegati correttamente e che il lettore sia collegato ad una presa di corrente, premere STANDBY/ON sul pannello anteriore oppure sul telecomando per accendere il lettore. Inoltre, accendere il televisore e verificare che sia impostato sull’ingresso a cui è...
Come iniziare Impostazione del lettore a seconda del proprio televisore Se si possiede un televisore widescreen (proporzioni 16:9), impostare il lettore in modo che riproduca un’immagine di tali dimensioni. Se si possiede un televisore di proporzioni convenzionali (4:3) potete lasciarlo impostato come è...
Come iniziare STANDBY/ON OPEN/CLOSE ENTER ENTER Se il lettore non è ancora acceso, premere STANDBY/ON per accenderlo. Se si sta riproducendo un DVD, un disco che contiene file DivX o un Video CD/Super VCD, accendere il televisore e controllare che sia regolato sull’ingresso video corretto.
Page 60
Come iniziare Pulsante A cosa serve Avvia la riproduzione. Se il display mostra RESUME o LAST MEM, la riproduzione inizia dal punto di ripresa della riproduzione o dal punto di ultima memoria (vedi in proposito anche Funzioni di ripresa della riproduzione e di ultima memoria a pagina 18).
Page 61
Come iniziare • Se non si desidera utilizzare la funzione di ultima memoria quando si ferma la riproduzione di un disco, si può premere OPEN/CLOSE per far fermare la riproduzione ed aprire il piatto del disco. Menu del disco per DVD Numerosi dischi DVD-Video presentano menu delle funzioni dai quali è...
Page 62
Come iniziare • Quando si carica un disco DVD, questo viene espulso automaticamente dopo pochi secondi. È molto probabile che il disco sia di una regione diversa a quella del lettore. Il numero della regione dovrebbe essere riportato sul disco; verificare che sia lo stesso del lettore (riportato sul pannello posteriore).
Riproduzione di dischi Capitolo 5 Riproduzione di dischi Nota • Molte delle funzioni coperte in questo capitolo valgono per dischi DVD, Video CDs/Super VCD CDs, CD, video DivX e file WMA/MP3/JPEG, nonostante le esatte operazioni da fare varino leggermente a seconda del disco caricato.
Riproduzione di dischi Visione di uno slideshow JPEG Dopo aver caricato un CD/CD-R/RW contenente file di immagini JPEG, premere (riproduzione) per avviare uno show di dispositive dalla prima cartella/file del disco. Il lettore visualizza le immagini presenti in ciascuna cartella in ordine alfabetico. Le immagini vengono adattate allo schermo automaticamente e nel miglior modo possibile (se le proporzioni dell’immagine sono diverse...
Riproduzione di dischi Lo schermo visualizza sino a sei anteprime video visualizzate una dopo l’altra. Per visualizzare le sei anteprime precedenti i successivo, premere visualizzare la pagina precedente o successiva non è necessario attendere che tutte le anteprime abbiano finito di venire riprodotte.) Scegliere l’anteprima del materiale che si vuole riprodurre.
Riproduzione di dischi Suggerimento • Per riprodurre il contenuto di un intero disco piuttosto che solo la cartella attuale, abbandonare Disc Navigator ed iniziare la riproduzione usando il pulsante (riproduzione). Ripetizione ripetuta di una sezione di un disco La funzione A-B Repeat consente di specificare due punti (A e B) all’interno di una traccia (CD e Video CD/Super VCD) o di un titolo (DVD) che formano un passaggio riprodotto...
Riproduzione di dischi È possibile impostare l’opzione di riproduzione casuale quando si riproduce un disco o la riproduzione viene interrotta. Importante • La riproduzione casuale rimane in funzione sino a che si sceglie Random Off dalle opzioni del menu di riproduzione casuale. •...
Riproduzione di dischi Selezionare ‘Create/Edit’ dalle opzioni della lista programmi. Usare i pulsanti del cursore e ENTER per scegliere un titolo, un capitolo o una traccia per il passo attuale nella lista del programma. Per un disco DVD, potete aggiungere anche un titolo o un capitolo alla lista di passi del programma.
Riproduzione di dischi Utilizzare i pulsanti numerati per immettere un titolo, un capitolo, un numero di traccia oppure un tempo. Play Mode A-B Repeat Title Search Input Chapter Repeat Chapter Search Random Time Search Program Search Mode • Per una ricerca basata sul tempo, immettere il numero di minuti e secondi del titolo correntemente riprodotto (DVD/ DivX vídeo) o della traccia (CD/Video CD/...
Riproduzione di dischi • Se il riquadro di navigazione non è più visibile nella parte superiore dello schermo, premere di nuovo ZOOM per visualizzarlo. Cambio dell’angolo di visuale Alcuni dischi DVD dispongono di scene riprese da due o più angolazioni. Per ulteriori informazioni, verificare sulla confezione del disco.
Menu delle impostazioni audio e video (Audio Adjust e Video Adjust) Capitolo 6 Menu delle impostazioni audio e video (Audio Adjust e Video Adjust) Menu delle impostazioni audio (Audio Settings) Il menu Audio Settings offre funzioni di regolazione del suono di un disco. Premere HOME MENU e selezionare ‘Audio Settings’...
Menu delle impostazioni audio e video (Audio Adjust e Video Adjust) Dialog Enhancer • Impostazioni: High, Medium, Low, Off (predefinita) La caratteristica Dialog Enhancer è studiata per far risaltare il dialogo dai suoni di sottofondo della colonna sonora. Menu delle impostazioni video (Video Adjust) Dalla schermata Video Adjust potete regolare vari parametri che influenzano l'aspetto...
Menu Initial Settings Capitolo 7 Menu Initial Settings Utilizzo del menu Initial Settings Il menu Initial Settings contiene impostazioni di emissione di segnale audio e video, di blocco della visione, di visualizzazione, ecc. Se un’opzione non è disponibile significa che in quel determinato momento non può...
Menu Initial Settings Impostazione Opzioni 96 kHz PCM Out 96kHz > 48kHz 96 kHz MPEG Out MPEG > PCM MPEG Impostazioni Video Output Impostazione Opzioni TV Screen 4:3 (Letter Box) (Vedere anche Dimensioni dello schermo e formati dei 4:3 (Pan & Scan) dischi a pagina 37.) 16:9 (Wide) Component Out...
Menu Initial Settings Impostazioni Language Impostazione Opzioni Audio Language English Linque come indicato Other Language Subtitle Language English Linque come indicato Other Language DVD Menu w/Subtitle Lang. Language Linque come indicato Other Language Subtitle Display Impostazioni del display Impostazione Opzioni OSD Language English Linque come indicato...
Menu Initial Settings Parental Lock • Livello predefinito: Off; Password predefinita: none (nessuna); Codice di paese predefinito: us (2119) Per darvi il controllo su quel che i vostri bambini possono vedere sul lettore DVD, alcuni DVD possiedono una caratteristica di controllo della visione.
Page 77
Menu Initial Settings I nuovo codice paese viene impostato e si ritorna alla schermata del menu Options. Tenere presente che la modifica del Country Code avrà effetto a partire dal caricamento del disco successivo (o nuovo uso del disco attuale). ®...
Informazioni aggiuntive Capitolo 8 Informazioni aggiuntive Manutenzione del lettore e dei dischi Generali Prendere il disco per le estremità o tra un bordo e il foro centrale. Quando non si utilizza un disco, riporlo nella custodia e posizionare quest’ultima in verticale.
Informazioni aggiuntive Pulitura della lente del lettore La lente del lettore DVD non dovrebbe sporcarsi se utilizzata normalmente. Se non funziona correttamente a causa di polvere o sporcizia, consultare il centro di assistenza di zona Pioneer. Non si raccomanda l’uso di pulitori per lenti di lettori CD dei tipi disponibili in commercio.
Informazioni aggiuntive Impostazione del sistema di colore L’impostazione predefinita per il lettore è AUTO e si consiglia di lasciare quest’unità su AUTO se non si nota una distorsione delle immagini durante la riproduzione di alcuni dischi. Se con alcuni dischi le immagini risultano distorte, impostare il televisore di modo che corrisponda alle impostazioni locali del sistema.
Informazioni aggiuntive Selezione della lingua tramite la lista dei codici delle lingue Alcune delle opzioni relative alla lingua (ad esempio ‘DVD Language’ in Setup Navigator) consentono di selezionare la lingua desiderata tra le 136 elencate nella lista di codici delle lingue riportata nella pagina 40.
Informazioni aggiuntive Lista di codici delle lingue Lingua (Sigla), Codice della lingua Japanese (ja), 1001 English (en), 0514 French (fr), 0618 German (de), 0405 Italian (it), 0920 Spanish (es), 0519 Chinese (zh), 2608 Dutch (nl), 1412 Portuguese (pt), 1620 Swedish (sv), 1922 Russian (ru), 1821 Korean (ko), 1115 Greek (el), 0512...
Informazioni aggiuntive Glossario Audio analogico Rappresentazione diretta di suoni con un segnale elettrico. Vedere anche Audio digitale. Rapporto di Rapporto tra la larghezza e l’altezza forma dello schermo del televisore. I televisori normali hanno un rapporto di forma pari a 4:3, quelli widescreen ne hanno uno da 16:9.
Page 84
Informazioni aggiuntive L’acronimo WMA sta per Windows Media Audio e si riferisce ad una tecnologia di compressione dati audio sviluppata dalla Microsoft Corporation. I file MP3 vengono riconosciuti dalla loro estensione “.wma”. Il termine Microsoft, Windows Media ed il logo di Windows sono marchi di fabbrica o marchi di fabbrica registrati della Microsoft Corporation negli Stati Uniti e/o altri...
