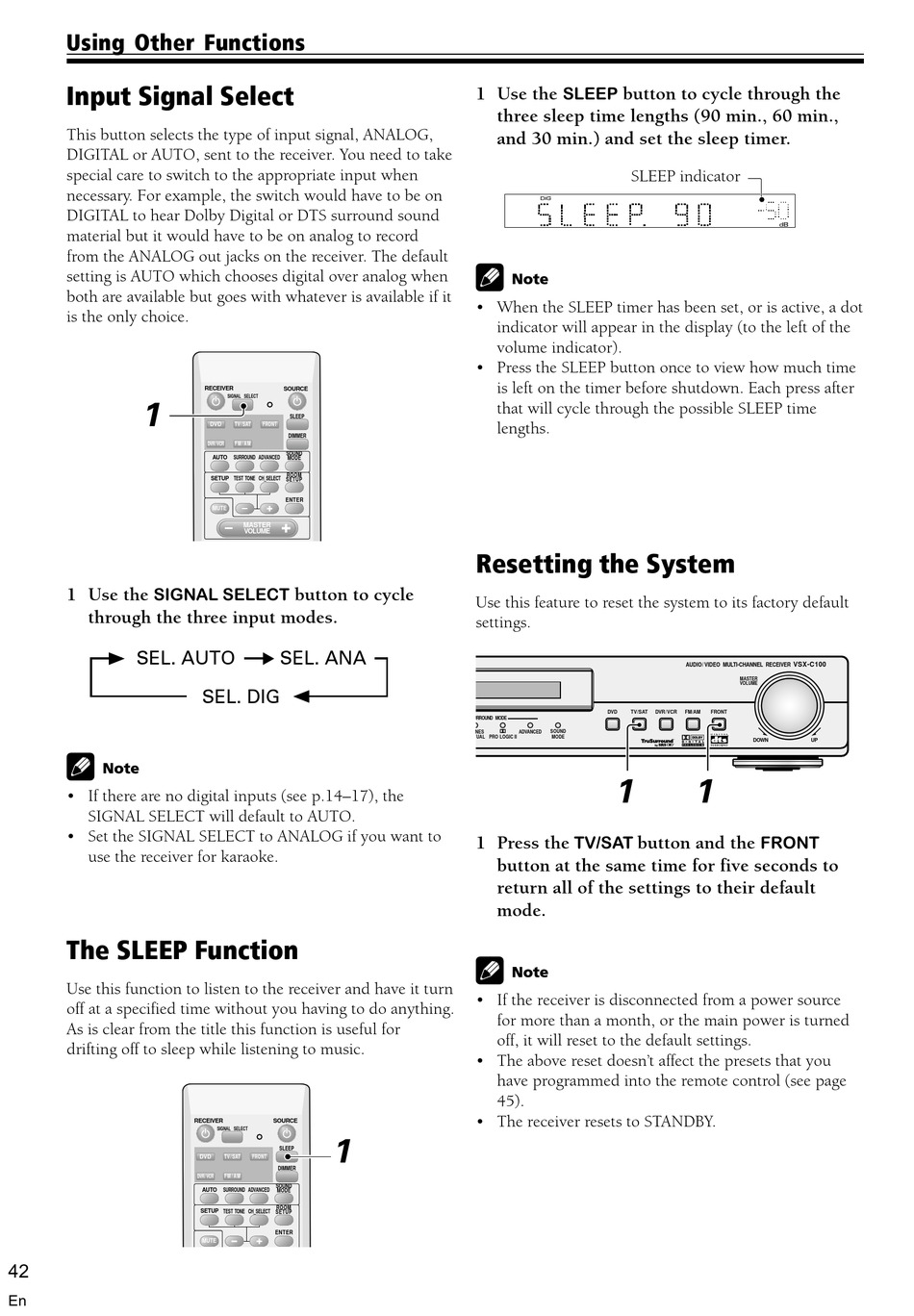

Input Signal Select; The Sleep Function; Resetting The System - Pioneer VSX-C100 Operating Instructions Manual

Using Other Functions

Input Signal Select

This button selects the type of input signal, ANALOG,
DIGITAL or AUTO, sent to the receiver. You need to take
special care to switch to the appropriate input when
necessary. For example, the switch would have to be on
DIGITAL to hear Dolby Digital or DTS surround sound
material but it would have to be on analog to record
from the ANALOG out jacks on the receiver. The default
setting is AUTO which chooses digital over analog when
both are available but goes with whatever is available if it
is the only choice.
1
1 Use the
SIGNAL SELECT
through the three input modes.
SEL. AUTO
• If there are no digital inputs (see p.14–17), the
SIGNAL SELECT will default to AUTO.
• Set the SIGNAL SELECT to ANALOG if you want to
use the receiver for karaoke.

The SLEEP Function

Use this function to listen to the receiver and have it turn
off at a specified time without you having to do anything.
As is clear from the title this function is useful for
drifting off to sleep while listening to music.
42
En
RECEIVER SOURCE
SIGNAL SELECT
SLEEP
DVD TV / SAT FRONT
DIMMER
DVR/ VCR FM / AM
SOUND
AUTO SURROUND ADVANCED
MODE
ROOM
SETUP
TEST TONE CH_SELECT SETUP
ENTER
MUTE
MASTER
VOLUME
button to cycle
SEL. ANA
SEL. DIG
RECEIVER SOURCE
SIGNAL SELECT
1
SLEEP
DVD TV / SAT FRONT
DIMMER
DVR/ VCR FM / AM
SOUND
AUTO
SURROUND ADVANCED MODE
ROOM
SETUP TEST TONE CH_SELECT
SETUP
ENTER
MUTE
1 Use the button to cycle through the
SLEEP
three sleep time lengths (90 min., 60 min.,
and 30 min.) and set the sleep timer.
SLEEP indicator
• When the SLEEP timer has been set, or is active, a dot
indicator will appear in the display (to the left of the
volume indicator).
• Press the SLEEP button once to view how much time
is left on the timer before shutdown. Each press after
that will cycle through the possible SLEEP time
lengths.

Resetting the System

Use this feature to reset the system to its factory default
settings.
DVD TV/SAT
URROUND MODE
2
NES SOUND
ADVANCED
TUAL PRO LOGIC II MODE
1
1 Press the button and the
TV/SAT
button at the same time for five seconds to
return all of the settings to their default
mode.
• If the receiver is disconnected from a power source
for more than a month, or the main power is turned
off, it will reset to the default settings.
• The above reset doesn't affect the presets that you
have programmed into the remote control (see page
45).
• The receiver resets to STANDBY.
VSX-C100
AUDIO/ VIDEO MULTI-CHANNEL RECEIVER
MASTER
VOLUME
DVR/VCR FM/AM FRONT
R
DOWN UP
1
FRONT
