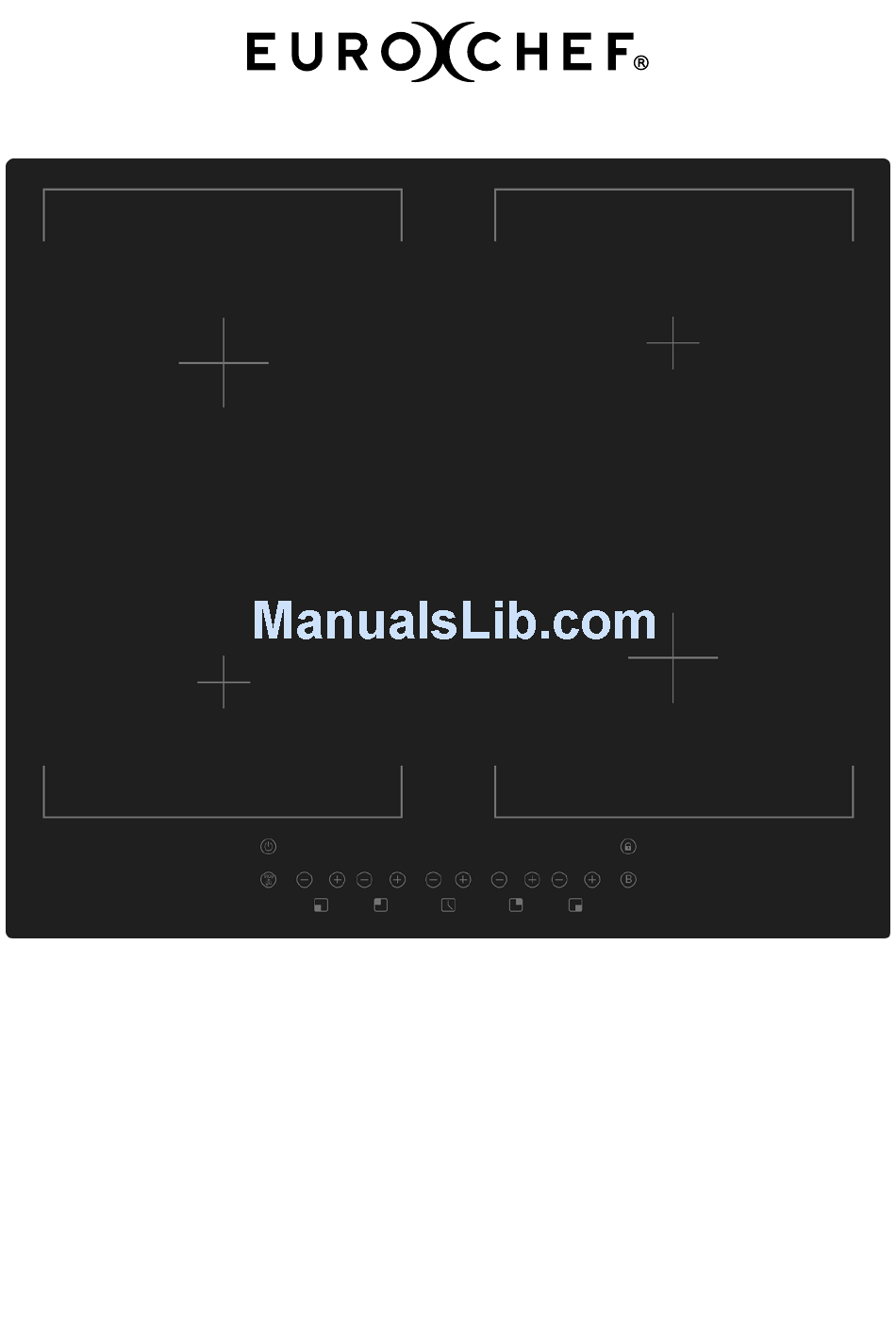

Page 1: User Manual
Four-Zone Induction Cooktop User Manual RETAIN THIS MANUAL FOR FUTURE REFERENCE PLEASE READ THIS MANUAL CAREFULLY BEFORE USE... -
Page 2: Table Of Contents
Four-Zone Induction Cooktop Safety Warnings ....................1 Safety Instructions ..................2 Choosing the Right Cookware ............... 5 Operation ......................7 Control Panel Layout ....................7 Display Codes ......................8 Powering On ......................9 Activating Cooking Segment .................. 9 Booster Mode ......................9 Timer ........................ -
Page 3: Safety Warnings
Four-Zone Induction Cooktop Safety Warnings Your safety is important to us. Please read this information before using your cooktop. Electrical Shock Hazard Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. ... -
Page 4: Safety Instructions
Four-Zone Induction Cooktop Switch the cooktop off at the wall before cleaning or maintenance. Failure to follow this advice may result in electrical shock or death. Health Hazard This appliance complies with electromagnetic safety standards. However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that their implants will not be affected by the electromagnetic field. - Page 5 Four-Zone Induction Cooktop Do not place or leave any magnetisable objects (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) near the appliance, as they may be affected by its electromagnetic field. Never use your appliance for warming or heating the room. ...
- Page 6 Four-Zone Induction Cooktop This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 7: Choosing The Right Cookware
Four-Zone Induction Cooktop Choosing the Right Cookware Only use cookware with material suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan. You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the base of the pan. - Page 8 Four-Zone Induction Cooktop Make sure that the base of your pan is smooth, sits flat against the glass and is the same size as the cooking zone. Please try not to use pots smaller than the induction segment. A smaller pot can have less than expect efficiency.
-
Page 9: Operation
Four-Zone Induction Cooktop Operation Control Panel Layout Function Power ON/OFF button Indicator lamp Stop + Go (Pause button) 7 segment display (1 for each cooking segment) Minus button (1 for each cooking segment) Cooking segment area Plus button (1 for each cooking segment) Timer Timer duration display Child lock... -
Page 10: Display Codes
Four-Zone Induction Cooktop Display Codes The 7 segment displays (No. 4 in previous table) have a range of patterns to indicate it’s function and status. Please see below table for their references: Display Description Booster setting has been selected Cooking segment is activated Heating level (1 –... -
Page 11: Powering On
Four-Zone Induction Cooktop Powering On Touch the Power button for 1 second to activate the appliance. The indicator lamp will alight. . Touch the Power button for 1 second to deactivate the appliance. The indicator lamp will go out. If no further entry is made, the hob will automatically switch off after 30s for safety reasons. -
Page 12: Timer
Four-Zone Induction Cooktop Timer The timer function allows you to set a time for which the cooktop will cook for. Individual segments cannot have different timers set. It applies to the whole cooktop. Press the Timer button. “00” will flash in the timer section. Adjust the time (in minutes) using the timer “+”... -
Page 13: Guidelines
Four-Zone Induction Cooktop Guidelines Take care when frying as the oil and fat heat up very quickly, particularly if you’re using Power Boost. At extremely high temperatures, oil and fat will ignite spontaneously and this presents a serious fire risk. Cooking Tips ... -
Page 14: Heat Settings
Four-Zone Induction Cooktop For Stir-Frying Choose an induction compatible flat-based wok or a large frying pan. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches. Preheat the pan briefly and add two tablespoons of oil. Cook any meat first, put it aside and keep warm. -
Page 15: Caring And Cleaning
Four-Zone Induction Cooktop Caring and Cleaning What? How? Important! Everyday soiling on 1. Switch the power to the When the power to the cooktop is switched off, there will be no ‘hot glass (fingerprints, cooktop off. surface’ indication but the cooking marks, stains left by food 2. -
Page 16: Troubleshooting
Four-Zone Induction Cooktop Troubleshooting Problem Possible causes What to do The induction hob cannot be No power. Make sure the induction hob is turned on. connected to the power supply and that it is switched on. Check whether there is a power outage in your home or area. -
Page 17: Error Codes
Four-Zone Induction Cooktop Problem Possible causes What to do Pans do not become hot and The induction hob cannot Use cookware suitable for appears in the display. detect the pan because it induction cooking. See section “Choosing the right cookware”. is not suitable for induction cooking. -
Page 18: Installation Instructions
Four-Zone Induction Cooktop Installation Instructions Gasket Installation The gasket should be attached to the appliance in the following way: Remove the protective film from the gasket. Then, attach the gasket to the lower side of the glass, approximately 2-3 millimetres from the edge (as shown in the figure). The gasket must be attached along the entire length of the glass edge and should not overlap at the corners. -
Page 19: Required Measurements
Four-Zone Induction Cooktop Required Measurements A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) 50 mini 50 mini 50 mini 50 mini... - Page 20 Four-Zone Induction Cooktop A (mm) B (mm) C (mm) 120 mini 30 mini Air intake Air exit 30 mm...
-
Page 21: Reminders Before Installing The Hob
Four-Zone Induction Cooktop Reminders before Installing the Hob Make sure that: The work surface is square and level, and no structural members interfere with space requirements. The work surface is made of a heat-resistant material. If the hob is installed above an oven, the oven has a built-in cooling fan. ... -
Page 22: Fastening The Cooktop To The Bench
Four-Zone Induction Cooktop Fastening the Cooktop to the Bench Turn the cooktop upside down and place it on a soft surface. Spread the seal around the edges of the glass with the adhesive side facing down, making sure that the whole perimeter is sealed. Cut off any excess material. Mount the supplied clamps and screws onto the cooktop, as shown (without tightening the screws). -
Page 23: Connecting The Cooktop To The Mains Power Supply
Four-Zone Induction Cooktop Connecting the Cooktop to the Mains Power Supply IMPORTANT! This cooktop must be connected to the mains power supply only by a suitably qualified person. This cooktop must be earthed. Before connecting the cooktop to the mains power supply, check that: The domestic wiring system is suitable for the power drawn by the cooktop The voltage corresponds to the value given on the rating plate The power supply cable sections can withstand the load specified on the... - Page 24 Four-Zone Induction Cooktop Connecting the terminal block for 75 series, the electrical source is AC220-240V. 3 core power cord 2.5 mm Connecting the terminal block for 60 series, for example the electrical source is AC220- 240V.
- Page 25 Four-Zone Induction Cooktop Connecting the terminal block includes the single-phase power, two-phase power and the three-phase power as follows: Connecting the air switch of the electrical source as follows:...
-
Page 26: Technical Specifications
Four-Zone Induction Cooktop Technical Specifications Timer independent 9-stage power setting Auto-safety switch off Child lock Overheating protection Residual heat indicator for all zones Booster function Stop and go function 220V-240V 50Hz Total power: 7000W Front power: 190mm 2000W Rear zone: 150mm 1500W Rear right zone: 190mm 2000W Front right zone: 150mm 1500W... - Page 27 Some experts believe the incorrect or prolonged use of almost any product could cause serious injury or death. For information that may reduce your risk of serious injury or death consult thepoints below and additionally, the information available at www.datastreamserver.com/safety - Consult all documentation, packaging and - The product has been supplied by a general merchandise product labelling before use.
