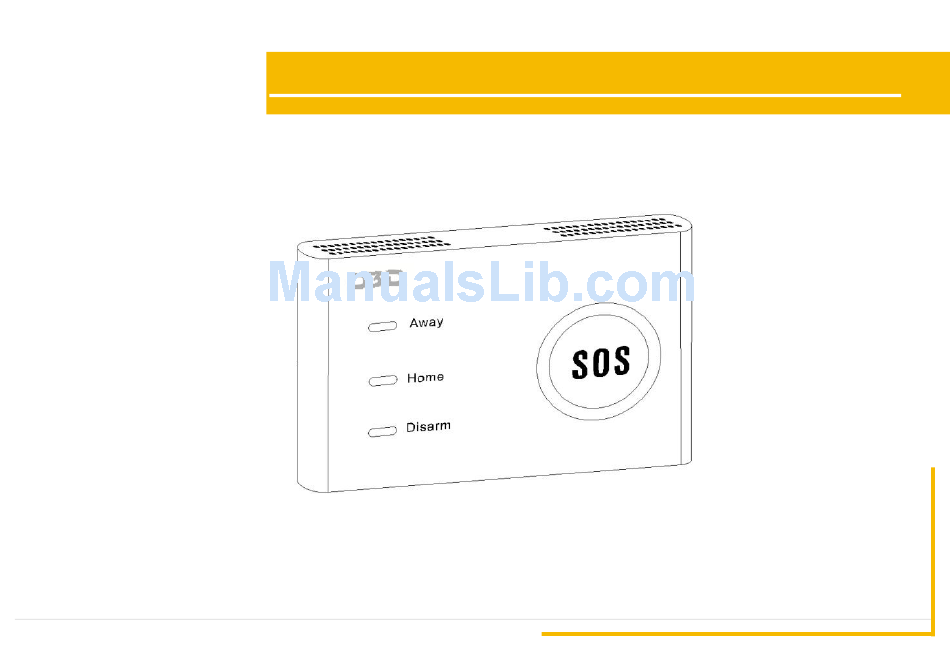

- Page 1 D3D Wi-Fi GSM Smart Alarm System -User Manual D3D Wi-Fi / GSM Smart Alarm system (Model : D10). Please read all instructions carefully & follow steps for easy home installation. P a g e...
- Page 2 Wi-Fi is the default method of all communication, but GSM communication is also present as alternative method of sending alerts in case Wi-Fi signals are lost. Installation of D3D Wi-Fi system is very easy. Following configuration need to be done to use the system.
-
Page 3: Table Of Contents
Contents Initialize Control Unit ........................5 Mobile App Installation ......................6 User Registration on Mobile Application ................6 Configure System with Mobile App ..................7 Zone Information for Each Sensor Type................. 8 Configure Remote with Control Unit ..................9 Configure PIR with Control Unit ..................... 10 Configure Door Sensor with Control Unit ................ - Page 4 Alarm Sound Settings: ......................19 Zone Settings: ........................... 20 Arm/Alarm Delay Settings......................22 Auto Arm/Disarm .......................... 22 Password Settings: ........................23 Alerts Settings: .......................... 23 Time Settings:..........................24 CID Settings:..........................24 Factory Reset Settings ......................25 FAQs ............................26 Systems Notes: ......................... 27 P a g e...
-
Page 5: Initialize Control Unit
Initialize Control Unit Pic 1 Pic 2 • Open the back panel of control unit and insert an active GSM sim card (Pic 1) • Connect the power adaptor (Pic 2). Make sure the power switch at back of unit is switched ON P a g e... -
Page 6: Mobile App Installation
Mobile App Installation A. Search and install mobile application ”wisen” from Google play or App store. A. Alternatively, scan the below QR Code to install the mobile application. User Registration on Mobile Application Open the mobile application and click on ‘Register’. Enter email id and any password to register and click on ‘Register’... -
Page 7: Configure System With Mobile App
Configure System with Mobile App Click top right “+” to add new device. Screen 1 (below) will be displayed. Select option ‘Wi-Fi configuration’ On Screen 2, your Wi-Fi name will be displayed. Enter Wi-Fi password. Now press the Wi-Fi reset button for 3 seconds on back of control unit. -
Page 8: Zone Information For Each Sensor Type
Zone Information for Each Sensor Type Each sensor should be configured within zone shown in below table Zone Number Zone Type Sensor Type Sensors Wireless Remote Maximum 10 pcs Keyfob Panic, Smoke, Gas Emergency Zone 01-05 Wireless Sensors Leak 06-14 Perimeter Zone Wireless Sensors Door sensor, IR beam... -
Page 9: Configure Remote With Control Unit
Configure Remote with Control Unit Remote Screen 1 Screen 2 Screen 3 Screen 4 On Home page (screen 1), select the Wi-Fi Smart Alarm. Click on ‘Set’ (Screen 2) and select Zone Setting (Screen 3). Select ‘#0 Zone setting’ (Screen 4) On Zone setting page, click on ‘Study’... -
Page 10: Configure Pir With Control Unit
on mobile app Configure PIR with Control Unit Screen 1 Screen 2 Screen 3 Screen 4 **Make sure batteries are properly installed in the PIR sensor • On Home page (screen 1), select the WiFi Smart Alarm. • Click on ‘Set’ (Screen 2) and select Zone Setting (Screen 3). •... -
Page 11: Configure Door Sensor With Control Unit
Using above steps, configure additional PIR sensors in zone 16 to 24 Configure Door Sensor with Control Unit Screen 1 Screen 2 Screen 3 Screen 4 **Make sure batteries are properly installed in the Door sensor • On Home page (screen 1), select the WiFi Smart Alarm. •... -
Page 12: Configure Door Bell With Control Unit
Using above steps, configure additional door sensors in zone 07 to 14 Configure Door Bell with Control Unit Door Bell Screen 1 Screen 2 Screen 3 Screen 4 **Make sure batteries are properly installed in the Door Bell • On Home page (screen 1), select the WiFi Smart Alarm. •... -
Page 13: Configure Siren With Control Unit
mobile app Configure Siren with Control Unit Siren Screen 1 Screen 2 Control Unit **Make sure batteries are properly installed in the Siren • On back side of Siren (screen 1), First Press the Green button and then press the Red Button (screen 2), •... -
Page 14: Configure Smart Switch With Control Unit
activated Configure Smart Switch with Control Unit Screen1 Screen 2 Screen 3 Screen 4 • Insert smart switch into power socket • Open mobile application and go to ‘Switch’ tab (Screen 1) • Press the learning button on switch (Screen 3). LED light will turn ON •... -
Page 15: Authorize Family Members To Access The System
Authorize Family Members to Access the System option and select management’ Log onto mobile APP with master account, Click on top left menu on screen 1. Select Alarm system from dropdown On screen 2, select ‘Authorization’. Screen 3 will be displayed. Family member should install mobile application ‘wisen’. -
Page 16: Mobile Application Introduction & Settings
Mobile Application Introduction & Settings To check or configure system settings using mobile app, select the device from home screen (Pic 1) Pic 1 Pic 2 Away arm: This mode is normally selected to activate system when going out of home. Under this mode all sensors will be activated and system will send alert whenever any sensor is triggered Home Arm: This mode is normally selected to activate system when inside home. - Page 17 Record: Event logs, keep all records of operations and alarm details, you can check the event log to find which sensor was triggered. Status: Check the connecting mode and status of the alarm panel. Switch: To control home appliance on/off by using a smart plug/outlet Set: Configure the function of the alarm panel.
-
Page 18: Phone Number Settings
Phone Number Settings: **Open the back cover of the control panel and insert an active GSM SIM card. Power ON the unit. In addition to alert on mobile application, System send SMS and call to user phone when any intrusion is detected. User can configure upto 5 phone numbers to receive SMS and CALL alerts. -
Page 19: Alarm Sound Settings
Alarm Sound Settings: Using this function user can turn ON/OFF the siren sound setting for each zone. User can select which Siren should be activated when any sensor in the configured zone is triggered. Go to Set > Alarm Setting > Alarm Sound Setting. Turn ON/OFF the siren setting for required Zone. If for a zone ‘Built-in Siren’... -
Page 20: Zone Settings
Zone Settings: Using the Zone settings user can add/delete sensors in each zone and can configure how the system should react when any sensor in the selected zone is triggered. Following images show how to configure Zone setting and meaning of each option in Zone setting page: Zone switch: To disable or enable certain zone. - Page 21 Defense Line type: To define the defense line type of each zone [0 Defense line] This Line type is used for fire, panic alarms etc. Sensors configured in the zone with this Line type will trigger the alarm system, even if the system in disarm status. [1 Defense line] This Line type is used for Door sensors.
-
Page 22: Arm/Alarm Delay Settings
Arm/Alarm Delay Settings Auto Arm/Disarm Using auto arm/disarm, the alarm system can arm/disarm automatically at the selected time. Arm Delay: set the delay time before the system enters arm/protection status. For example, if the system set to 30s arm delay, the system will delay 30 seconds to enter into arm system. -
Page 23: Password Settings
Password Settings: Alerts Settings: Change system password for remote phone or User can set to receive alerts via SMS or SMS operation. (Only for GSM + WIFI alarm mobile application for various situations system with 2G SIM card ) Users should set a phone number to receive alerts. -
Page 24: Time Settings
Time Settings: CID Settings: It is used to set time of alarm system. If user It is used to set the parameter of connection does not set correct time, then display time of between alarm system and CMS (Central alarm system's operation and alarming will be Monitoring Station). -
Page 25: Factory Reset Settings
Factory Reset Settings It is used for reset the Alarm system to factory reset 25 | P a g e... -
Page 26: Faqs
FAQs Q1: No alert message received from the GSM Sim card Please make sure the SIM card is in GSM network, not CDMA. When you insert the SIM card, the GSM indicator flashes once in second, it’s searching the network. If it flashes twice in seconds, means the GSM signal is received. -
Page 27: Systems Notes
Systems Notes: 27 | P a g e... - Page 28 28 | P a g e...
