Summary of Contents for Hobie Quest 13

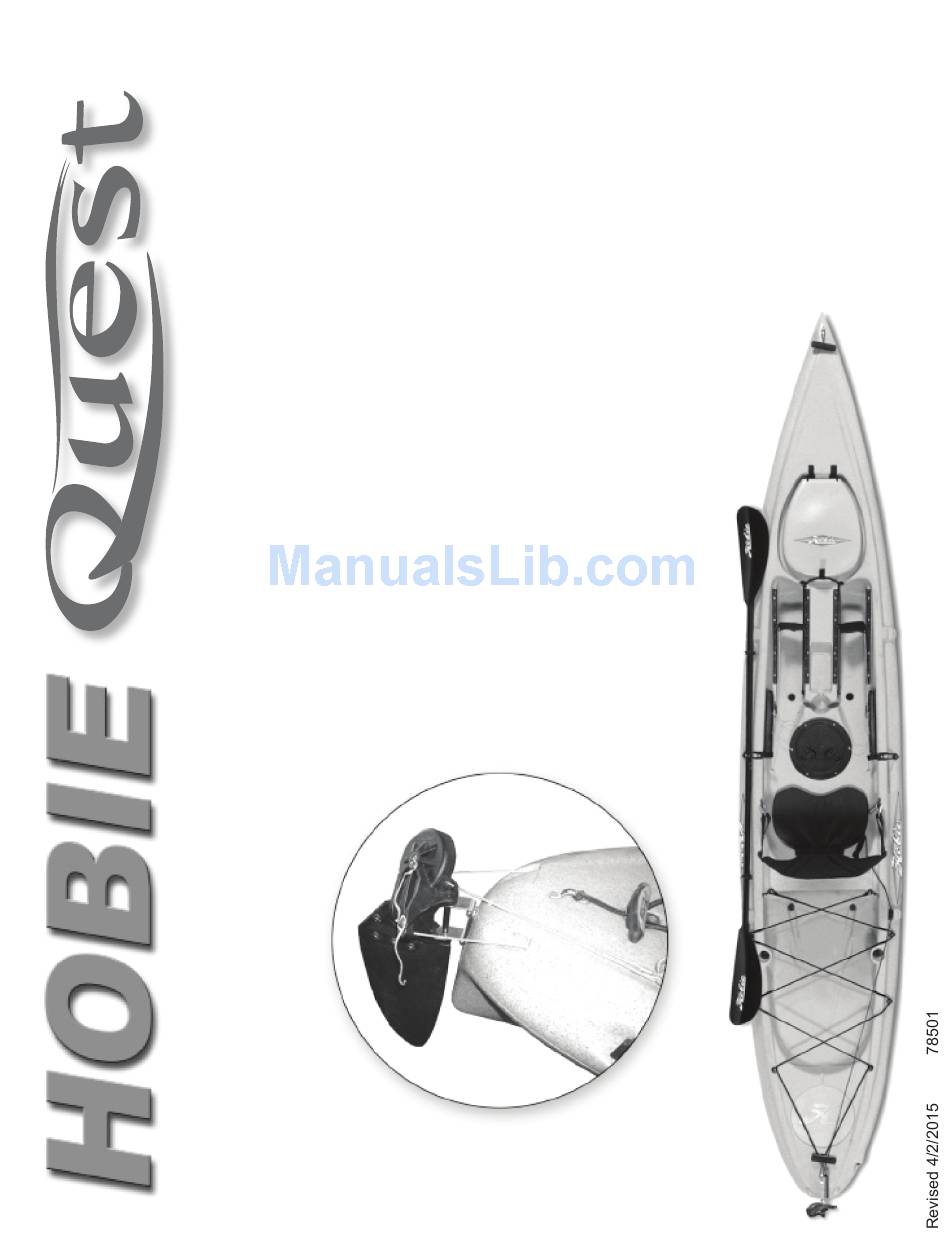

- Page 1 Rudder Kit Assembly Instructions for Quest 13...
-
Page 2: Rudder System
3. Open the 8” center hatch and reach inside the hull for the line and tube you just installed. Pull the line up to the hatch so The Hobie Quest is designed for the addition of an optional that can see it. - Page 3 Installing the Rudder-Bracket Installing the Steering Pedals Important Note: Earlier models of the Quest have slightly There are two molded-in inserts at the stern of the boat that are intended for mounting the rudder bracket. If your boat has different design elements for accepting this rudder seen some use prior to installing the bracket, be sure to wash package.
- Page 4 Older Model Pedal Installation Instructions 5. Place the pedal in the forward-most position and adjust the angle so that the pedal is vertical. Using a marker, place an “X” on the kayak just infront of the bottom pulley on the pedals. The difference between older and current models of the Quest This will be your center location to drill a hole for the is the pedal design.
- Page 5 Rudder Up/ Down Operation Up/ Down Control Line Installation 1. The Quest rudder system 1. Drill a 3/8” hole on the right follows the same operation as side of the boat approximately 25” most traditional kayak rudders. from the stern. The hole should Simply pull on the rear most be located right in the groove of knot to make the rudder go...
