SITRANS F M
6.3
Transmitter
Safety barrier
56
6. Installation of transmitter

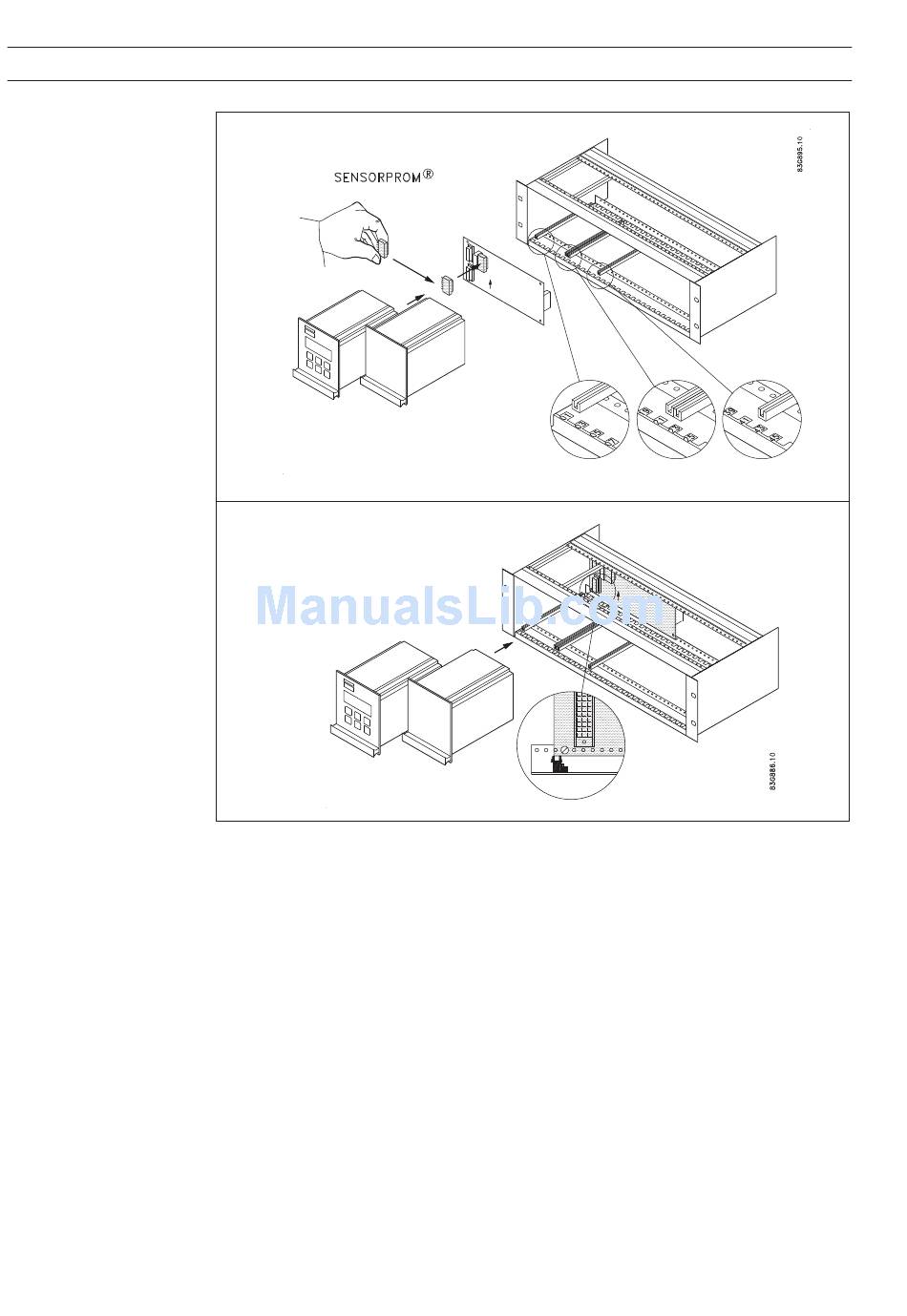

1. Fit the SENSORPROM
The SENSORPROM
®
connection board supplied with the transmitter is not used.
2. Mount the guide rails into the rack system as shown. Distance between guide rails is 20 TE.
Guide rails are supplied with the rack system and not with the transmitter.
3. Mount the connection board as shown. The mounting screw must be installed just in line with
the guide rails.
4. Connect the cables as shown under "Electrical connection", chapter 7.
5. Insert the transmitter and the safety barrier into the rack system.
memory unit on the connection board supplied with the safety barrier.
®
unit is delivered mounted in the terminal box of the sensor. The
