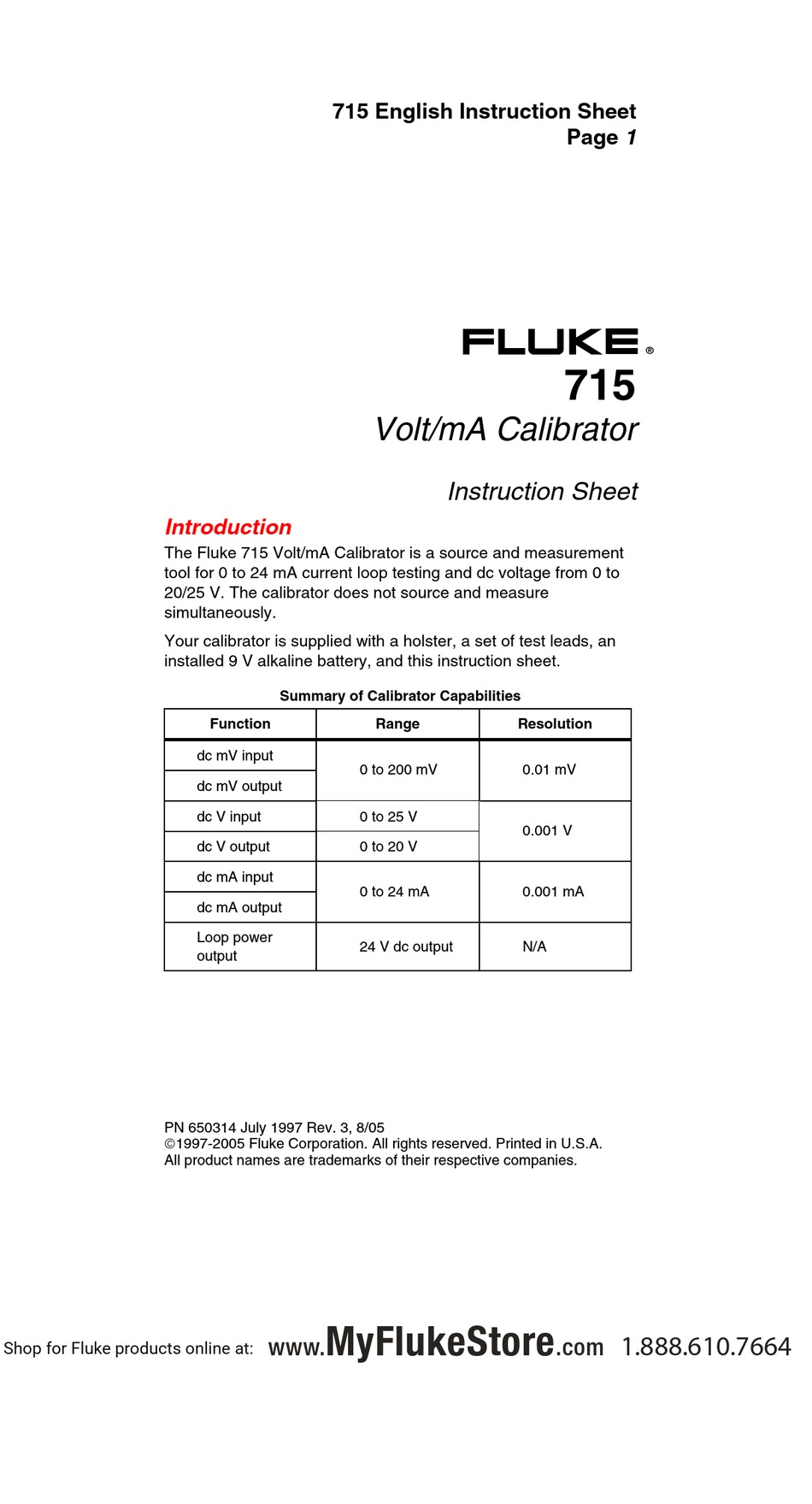

Fluke 715 Instruction Sheet

Shop for Fluke products online at:
Introduction

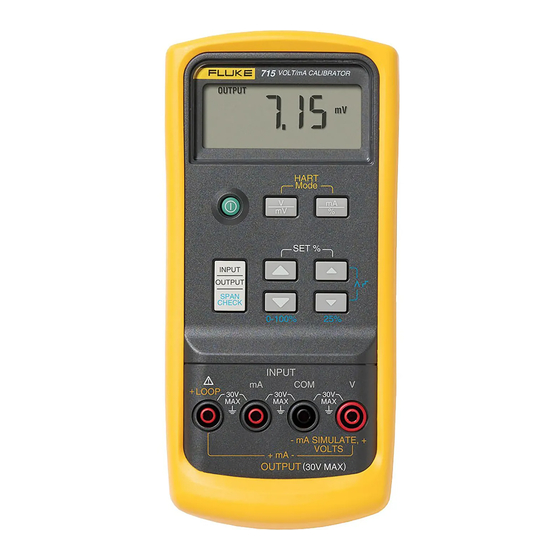

The Fluke 715 Volt/mA Calibrator is a source and measurement
tool for 0 to 24 mA current loop testing and dc voltage from 0 to
20/25 V. The calibrator does not source and measure
simultaneously.
Your calibrator is supplied with a holster, a set of test leads, an
installed 9 V alkaline battery, and this instruction sheet.
Summary of Calibrator Capabilities
Function
dc mV input
dc mV output
dc V input
dc V output
dc mA input
dc mA output
Loop power
output
PN 650314 July 1997 Rev. 3, 8/05
1997-2005 Fluke Corporation. All rights reserved. Printed in U.S.A.
All product names are trademarks of their respective companies.
www.
715 English Instruction Sheet
Volt/mA Calibrator
Instruction Sheet
Range
0 to 200 mV
0 to 25 V
0 to 20 V
0 to 24 mA
24 V dc output
MyFlukeStore
Page 1
®
715
Resolution
0.01 mV
0.001 V
0.001 mA
N/A
