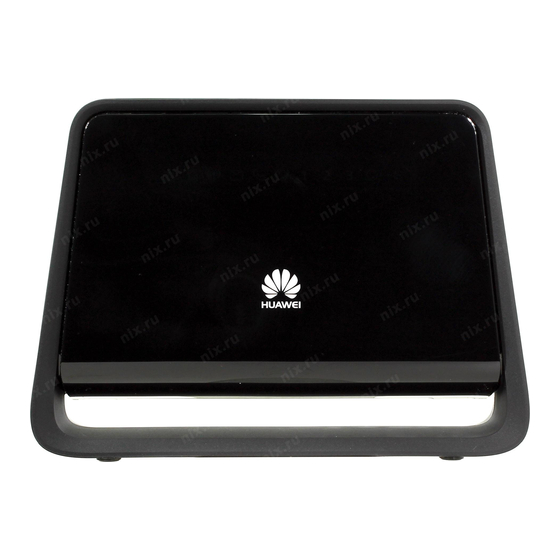

B890 LTE Wireless Gateway
Quick Start
HUAWEI TECHNOLOGIES CO., LTD.

Advertisement

Table of Contents
loading

Related Manuals for Huawei B890

Summary of Contents for Huawei B890

  • Page 1 B890 LTE Wireless Gateway Quick Start HUAWEI TECHNOLOGIES CO., LTD.

  • Page 2: Getting To Know Your Device

    Note: Figures in this guide are only for your reference. For details about the particular  model you have chosen, contact your service provider. Check the information about the product and its accessories when you purchase it.  Some accessories are not provided in the product package. If necessary, contact your local dealer to purchase them.
  • Page 3 Scenario 3： With connecting to the Ethernet and working with a USIM card, you can connect your computer to the device to access the Internet though Ethernet, and answering or making a call thought the USIM card. Appearance Power indicator Dial-up button Network status indicator SIM card slot...
  • Page 4 Indicators Indicator Status Steady on: device powered on.  Off: device powered off.  Blinking red fast: Subscriber Identity Module (SIM) card  unavailable (SIM card not installed or malfunctioning, or PIN code not verified). Steady yellow: device registered with the network. ...

  • Page 5: Installation

    Installation Preparing Internet Connection Your device not only support the mobile data network to access the Internet through USIM card, and also support connected to Ethernet to access to the Internet. Method 1: Installing the USIM Card Step 1 Open and rotate the protective cover, to expose the SIM card slot. Step 2 Insert the USIM card into the card slot.

  • Page 6: Connecting Cables

    Connecting Cables The following figure shows an example of how to connect the cables. In this example, the device is connected to a desktop computer, a laptop computer, and a telephone. If you do not inserted the USIM card to the device, you will not able to answering or making a call,you can skip to connect the telephone.

  • Page 7: (Optional) Installing An External Antenna

    (Optional) Installing an External Antenna In areas with poor network coverage, connect an external antenna to the device's external antenna port. Screw the external antenna in fully, as shown in the following figure. Note: Skip this section if you do not need to connect an external antenna to the device. ...

  • Page 8: Powering The Device On Or Off

    Powering the Device On or Off After connecting to a power outlet, the device will power on automatically.  To manually power the device on, press and hold until all indicators turn on.  To power the device off, press and hold until all indicators turn off.

  • Page 9: Setting Up A Wi-Fi Connection Manually

    Setting Up a Wi-Fi Connection Manually Step 1 Ensure that is steady on. Step 2 Scan for available wireless network connections using your computer's connection manager application. Step 3 Connect to the wireless network that has the same service set identification (SSID) as the device.

  • Page 10: Logging In To The Management Page

    After a connection between your device and the client is set up, you can access the Internet using the modes listed in the following table. Mode Description Auto After being powered on, the device will automatically connect to the Internet. Once connected, the device will not automatically disconnect from the Internet.

  • Page 11: Restoring Factory Defaults

    Restoring Factory Defaults If you are uncertain of which settings you have configured or changed, you can restore the factory defaults that the device came with, and then reconfigure the device. To restore the factory defaults, Use a sharp-pointed object to press and hold the RESET button until the signal indicators on the bottom blink.
  • Page 12 Copyright © Huawei Technologies Co., Ltd. 2012. All rights reserved. THIS DOCUMENT IS FOR INFORMATION PURPOSES ONLY, AND DOES NOT CONSTITUTE ANY KIND OF WARRANTIES. Please visit www.huaweidevice.com/worldwide/support/hotline for recently updated hotline and email address in your country or region.

This manual is also suitable for:

B890-66
