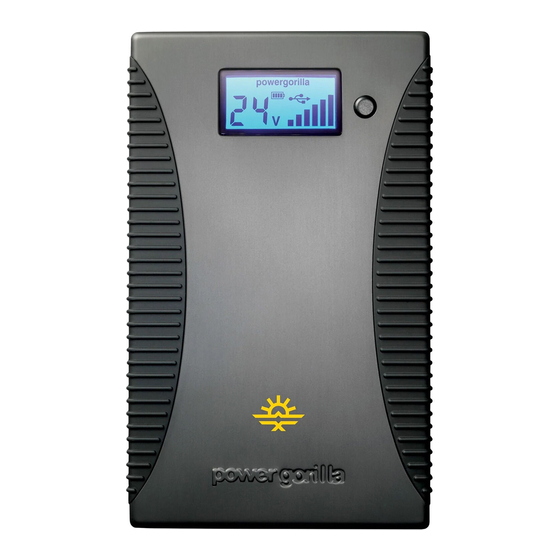

PowerTraveller POWERGORILLA User Manual

5v to 24v rugged high tech
Hide thumbs Also See for POWERGORILLA:
Table of Contents

Advertisement

Quick Links

POWERGORILLA
POWERGORILLA TACTICAL
5V TO 24V
RUGGED
HIGH TECH
CHARGER

USER GUIDE

YOU CAN:
CHARGE LAPTOPS
NETBOOKS TABLETS SMARTPHONES
SAT PHONES SLR CAMERAS GPS
SMART WATCHES & MORE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWERGORILLA and is the answer not in the manual?

Questions and answers

Related Manuals for PowerTraveller POWERGORILLA

Summary of Contents for PowerTraveller POWERGORILLA

  • Page 1: User Guide

    POWERGORILLA POWERGORILLA TACTICAL 5V TO 24V RUGGED HIGH TECH CHARGER USER GUIDE YOU CAN: CHARGE LAPTOPS NETBOOKS TABLETS SMARTPHONES SAT PHONES SLR CAMERAS GPS SMART WATCHES & MORE...

  • Page 2: Table Of Contents

    Dimensions, capacity and output currents powergorilla diagram LCD screen Diagram descriptions Using the powergorilla 1. Turning on the powergorilla 2. Recharging the powergorilla 3. Charging devices via DC 4. Charging devices via USB 5. Permanent USB on mode 6. Permanent DC on mode 7.

  • Page 3: What's In The Box

    IN THE BOX • powergorilla portable charger • 19V universal AC mains charger • 80cm DC out cable • USB to USB-C cable • Female USB-C to male micro USB adaptor • Connector tips pack • Female 12V socket •...

  • Page 4: Technical Specifications

    Cells 4 x 6000mAh Dimensions (L*W*H*) 215 x 130 x 17mm Battery type Lithium Polymer rechargeable powergorilla: 15-25V / powergorilla tactical: 15-30V Input Output 5V USB, DC: 12V, 16V, 19V, 24V Material Aluminium housing with shock resistant rubber protection strips Working temperature -20°...

  • Page 5: Dimensions, Capacity And Output Currents

    DIMENSIONS 215mm 130mm 17mm 130mm 215mm 17mm CAPACITY & DC OUTPUT CURRENTS Voltage 5V USB 17,700 2.4A Max 7,400 4A Max 5,500 4A Max 4,600 4A Max 3,700 3A Max...

  • Page 6: Powergorilla Diagram

    POWERGORILLA DIAGRAM...

  • Page 7: Lcd Screen

    LCD SCREEN DIAGRAM powergorilla...

  • Page 8: Diagram Descriptions

    5. LCD SCREEN powergorilla - Blue LCD screen / powergorilla tactical - Red LCD screen The LCD screen shows the status of USB and DC output voltage settings and the battery level.
  • Page 9 This adaptor converts the USB-C end of the USB to USB-C cable (8) to micro USB. 13. BATTERY ICON When the battery icon flashes, this indicates that there is less than 10% power left in the powergorilla. The battery icon does not represent the amount of power left.

  • Page 10: Using The Powergorilla

    The differences between the two are the colour of the unit and the colour of the LCD screen. 1. Turning on the powergorilla • To turn on the powergorilla, hold down the on/off button (4) for 3 seconds. Repeat to turn the unit off. 2. Recharging the powergorilla •...

  • Page 11: Charging Devices Via Usb

    4. Charging devices from powergorilla via USB out port • Turn the powergorilla on by holding down the on/off button (4) for 3 seconds. • For 5V USB-C devices, use the USB to USB-C cable (8) or your devices’ own USB-C sync/charging cable.

  • Page 12: Ups Feature

    8. Daisy chain feature • When using the 19V AC mains charger (6) to charge the powergorilla, the DC out port (3) will be set at 19V. This will enable you to charge your laptop for example and powergorilla at the same time.

  • Page 13: Recharging Via Solar

    Select the L52D tip and connect it to the 2m charging cable both supplied with the solargorilla and insert the tip into the DC IN (1) of the powergorilla. Place the solargorilla panel in the sun. For further information on the solargorilla, please visit www.powertraveller.com...

  • Page 14: Frequently Asked Questions

    However, we do recommend fully charging the • My powergorilla will not turn on. It shuts down when it still has powergorilla within 7 days of receiving it, and at least once power left in it.

  • Page 15: Product Disposal Instructions

    LCD screen (5). While in this mode the DC out will classed as Electrical or Electronic Equipment and should not be disposed not function. This is so the powergorilla collects as much power as with other household or commercial waste at the end of its working life.
  • Page 16 POWERGORILLA POWERGORILLA TACTICAL POWERTRAVELLER INTERNATIONAL LIMITED 4 Delta Park, Wilsom Road, Alton, Hampshire GU34 2RQ, UK t: +44 (0) 1420 542980 info@powertraveller.com www.powertraveller.com...
