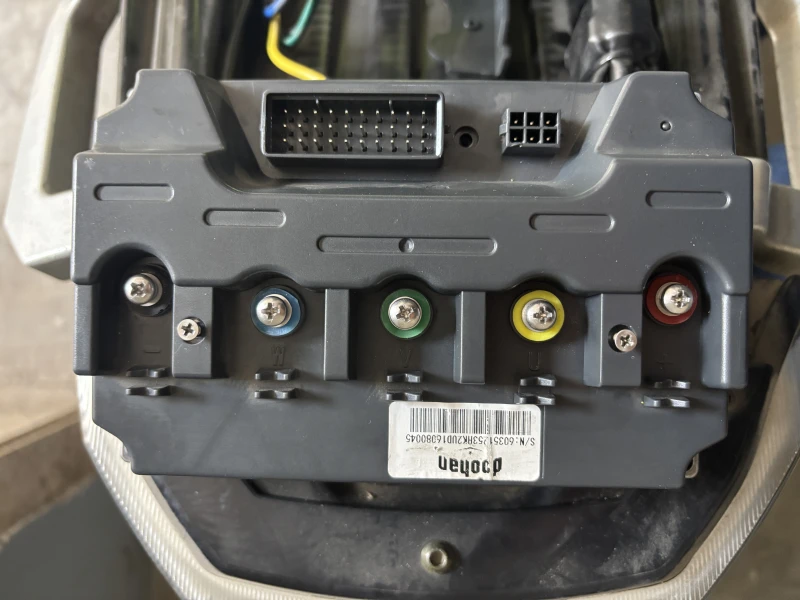

Good morning I drive long time Doohan I Tank and yesterday all electric switch off and no more any indication and no more move. Battery power ist full charged but no any indication on the display. If I like to drive I Tank only move return no forward. And do you have a App?

User image 67ee01095b14b
0

Related Manuals for Doohan DH01

Summary of Contents for Doohan DH01

  • Page 2 Compilation Check Approval Intelligent Scooter DOOHAN Electric DH01 Intelligent Electric Scooter Owner’s Manual Executive standard：168/2013/EU Q/ZGDQ·001 Zhejiang Doohan Technology Corp LTD...
  • Page 3 The company reserves the right of final interpretation. We hope you enjoy riding your Doohan iTank, once again thank you for purchasing a DOOHAN intelligent electric scooter.
  • Page 4 Important notes  Driver and passenger  This scooter is designed for only one driver to operate. Never exceed the load weight provided in this manual.  Road Conditions  This scooter shall only be driven on the normal road. The scooter can be driven in the rain and snow, but cannot wade.
  • Page 5 Warning： Means that if not abiding by the instructions in this manual, your operation may cause serious injury or death. Attention： Means that if not abiding by the instructions in this manual, your operation may cause injury to persons or machine part damage. This manual shall be regarded as a permanent part of the three-wheel electric scooter.

  • Page 6: Table Of Contents

    I、Safe Driving of intelligent electric scooter II、Location schematic of every machine part and operation manual III、Daily inspection and adjustment IV、Operation guide V、Maintenance and repair VI、Common Fault and elimination methods VII、Vehicle Storage VIII、Vehicle Identification IX、Main technical data X、Electrical schematic diagram（DH01） XI、After-sales Service...
  • Page 7 I Safe Driving of Three-wheel Electric Scooter Safe Driving Regulations 1. Many traffic accidents of three-wheel scooters are caused because car drivers fail to see intelligent electric scooter drivers, therefore, three-wheel electric scooter drivers should try to enable car drivers to see them clearly, for example: ※...
  • Page 8 6. Before driving the scooter, detailed checks must be conducted carefully. 7. While driving, both hands must hold the handlebar, and both feet firmly placed on the floorboards. 8. While driving, calling or answering the phone, as the main cause of inattention, is likely to cause traffic accidents.
  • Page 9 ※When calculating the scooter's load-carrying capacity (maximum 150 kg) and estimating whether or not it’s overloaded, the weight of all goods contained on the scooter, the driver and crew should all be added up. ※If the scooter is overloaded, it will affect its stability and operations. ※All objects mounted on the scooter should be fastened tightly.

  • Page 10: Location Schematic Of Every Machine Part And Operation Manual

    Location schematic of every machine part and operation manual Diagram sketch of components and parts Instru License Under-seat Head Rear -ment plate compartment Light Side view lamp cluster battery mirror Turn Side cover Tail Signal stand light Seat Front keyhole battery cover...
  • Page 11 Diagram sketch of components and parts Front brake Charging Handlebar Passenger lever port grip Grab Rail Reflector Rear brake lever...
  • Page 12 Instrument cluster illustration...
  • Page 13 Icon illustration Left Turn Signal Indicator Light up left-turning light Right Turn Signal Indicator Light up right-turning light High beam Indicator Light Light up high beam indicator lamp Headlight Indicator Light up sidelight of the front and back Low Battery Indicator Light Electric quantity of battery is lower than 30% Reverse Gear Indicator Light The motorcycle is in reverse gear state...
  • Page 14 Battery Percentage It shows the current battery percentage. Fault display Lights up if unit is experiencing a failure. Battery indicator Shows the current battery charge level, and per grid represents the 10% of full battery. Low battery Full battery total travelled distance Shows the total travelled distance of the scooter.
  • Page 15 Ignition Switch： Starting state Off state Handlebar Lock △ Start Up Operation: Hit the unlock key on the remote control, and unlock successfully. After the confirmation of successful unlock, insert the key and turn to the position. After that, the scooter can be operated and keys cannot be pulled out. When the self-test of the system is complete, it enters a waiting state.
  • Page 16 Right combination switches: Reverse switch ： witch 1. Reverse S Switch to R for reverse, switch to D for moving forward 2. Gear switch： 1 is the low gear 25km/h, and 2 is high gear 45km/h. Gear switch Gear switches can be used to interchange 25km/h and 45km/h. 3.
  • Page 17 Left combination switches： High/Low 1. Headlight dimmer switch： Press down “ ” to turn on the headlight high beam light Headlight Beam ; Press down “ ”to light up the low beam headlight. Switch 2．Overtake indicator light button Overtake Switch Press this button when high beam is on to temporarily use the low beam only.
  • Page 18 Battery Compartment Operation Open side battery Open front battery Keyhole for Seat compartment compartment Latch ① Opening the seat compartment: insert the key into the keyhole for the seat latch, and turn the key to the right. ② Open seat compartment: rotate the battery compartment knob to the corresponding position along the direction of B to open the front battery compartment, and rotate along the corresponding direction of A to open the side battery compartment lock.

  • Page 19: Daily Inspection And Adjustment

    III、Daily Inspection and Adjustment Check before driving: Before driving the scooter, drivers should make a routine inspection of the intelligent electric scooter to ensure adequte performance of the scooter and to ensure safe driving. Brake handle free stroke: Appropriate clearance is necessary for the brake handles, and normal clearance should in the range of 10 to 20 millimeters.
  • Page 20 Notice: Once brake maintenance is required, owners should take their scooters to an authorized SSR dealership for repairs. All special maintenance departments have trained technical personnel responsible for maintenance and repair. The scooter parts can only be changed with real original parts from the manufacturer.
  • Page 21 Warning:  Low tire pressure can cause rapid tire wear and may cause accidents because of that. While extremely low tire pressure can cause tire slip or un-beading from rims.  It is extremely dangerous to use seriously worn tires, which would impact the adhesive forces between tires and the road surface, and even cause accidents.
  • Page 22 IV、Operation guidance 1. Starting: hold the handlebar with both hands, sit on the scooter from the left side and sit on the saddle with the side stand against ground, turn the power switch to the ON position and rotate the handlebar in the direction of the rider gradually instead of rotating rapidly it to maximum.
  • Page 23 ② Make sure that the side stand is moved to the down position and the scooter is leaned to the left. Turn the handlebars to the left, rotate the key counter clockwise and remove the key. Now the handlebars cannot be turned and the ignition is in the off position. 4.
  • Page 24 6. Braking operation (1) Control speed This is very significant that in the case of speed reduction of the intelligent electric scooter, control the operation, operate the front and rear brakes equally. Warning: when riding on wet or loose gravel roads or on a rainy day, pay more attention to the distances needed to safely stop.
  • Page 25 ① Remove the scooter charging port cover by turning the cover, insert the charging plug into the recharge socket until you hear a “click” which means that the charging plug has connected with the socket, then connect the charger’s input with an electrical supply. The indicator light turns green to red means it starts charging and on the contrary, it is fully charged.
  • Page 26 Attention: If the batteries cannot be fully charged after more than 10 hours of charging, please stop charging and contact an authorized dealership for maintenance. In order to expand the batteries’ maximum service life, use it within the scope of batteries quantity between 20%-80% if possible.

  • Page 27: Maintenance And Repair

    V、Maintenance and repair In order to extend the scooter’s service life and have a safe and comfortable ride, please check and maintain your three-wheel electric scooter regularly even if it has been sitting for a long time. 1．Scheduled maintenance and repair It is required to have the first maintenance performed after one month or 300 miles from the purchase date and return to an authorized service department for complete maintenance and inspection every six months or 2,000 miles after that, which can maintain your scooter in best safety state and ensure the...
  • Page 28 Warning: for your own safety, in the event that you cannot repair or adjust the scooter, please return to the dealer for maintenance. Please repair and adjust the scooter on flat ground with the side stand up, if it is necessary to check while riding, pay attention to traffic safety.
  • Page 29 Periodic Maintenance and Inspection Items Wheel bearing Brakes Headlight Shock absorber Construction check Regular safety and Horn Side Stand performance inspection Steering bearings Electronic parts Fuse wire Battery Main harness Tires Major parts Construction check Lubrication Control system 3. Tips for the usage of the whole scooter 1.
  • Page 30 rain, lest the corrosion of motorcycle body or rotating parts; using in rainy day, the wheel hub should not be covered above the axle centerline, lest motor is broken due to water contamination. 6. Please scrub the scooter, clean the surface of the motor and other parts and keep clean; do not scour the electric parts and drive parts with water directly.
  • Page 31 Horn Check the trumpet for abnormalities 10. The following items are advised for best driving range: a. Try to reduce the times of braking and start under the condition of safety. b. Speed up evenly at takeoff, keep at a low-speed of 20km/h when driving and release the throttle when braking.
  • Page 32 and smoking, even fire or explosion. Please keep the battery away from heat sources, naked flame, combustible and explosive gas, which may cause battery leaks, heating, and smoking, even fire or explosion. If metal enters the battery holder, it may cause battery leakage, heating, and smoking, even fire or explosion.

  • Page 33: Common Fault And Elimination Methods

    cause the battery to undercharge or battery instability. 7. Do not disassemble the charger without approval; in case of replacement, please go to the local dealer or authorized dealership for replacement. Attention: 1. When using the scooter, please ensure that the battery plug has been connected to the battery properly and you hear a “click”...
  • Page 34 1. Low battery voltage 1．Charge the battery 2. Half-hold the brake crank lead to activation 2．Do not hold the brake crank when of outage switch. start. 3．Refer to the “starting operation” Turn power on and 3．The scooter is not started. twist the throttle, but 4．The side stand is not up.
  • Page 35 VII. Motorcycle Storage Storage Short-term Storage： 1）Please store the scooter on a flat surface with good ventilation and desiccation； 2）In order to insure the batteries’ service life, please charge them to at least 50% prior to storing it； 3）Keep your scooter out of the sun and rain, which can help reduce damages or aging of the parts； 4）Please fully charge the battery when using after long-term storage；...

  • Page 36: Vehicle Identification

    VIII、Vehicle Identification Vehicle model，number and label position of the products The intelligent electric scooter VIN and Motor number are required to register the vehicle, receive a driving license and annual verification, as well as reparation or replacement of parts during the warranty period which the above numbers should be available to refer to.

  • Page 37: Main Technical Data

    IX、Main technical data Main dimensions vehicle length 1780mm vehicle width 730mm vehicle height 1030mm Wheelbase 1250mm Track front 460mm Main performance Curb weight 99kg Designed maximum First gear 25km/h speed Second gear 45km/h Rated voltage ≤2m(20km/h) Maximum Payload 160kg Braking distance（dry ≤3.5m(30km/h) Personnel quota 1 person...
  • Page 38 seat height 750mm ≤30° Max leaning angle ≤34° Max steering angle Maximum Range of the Head in the Front 183mm Wheels Battery system Battery type 18650 Ternary Lithium Battery Voltage Capacity 26AH Standard charge current Maximum discharge current Standard charge time 6H~7H Longest Travel Distance 80KM（20km/h）...
  • Page 39 overcurrent protection、balance protection of battery Cover plate material of the Battery Aluminum plate Compartment Power System Motor type BOSCH Motor controller Sine wave controller Rated power and rotate speed of motor 1500W/550rpm Maximum power and rotate speed of motor 2350W/500rpm Maximum torque and rotate speed of motor 117N·m/87rpm Maximum recoverable energy...
