Philips Master Colour CDM-R Specifications

H.I.D. lamps
35 W PAR 20L 10 degrees
35 W PAR 20L 30º 35 W PAR 30L 10º
70 W PAR 30L 40º
∅ 65 max.
PAR 20
1
35 W PAR 30L 30º 70 W PAR 30L 10º
Dimensions in mm
∅ 97 max.
PAR 30

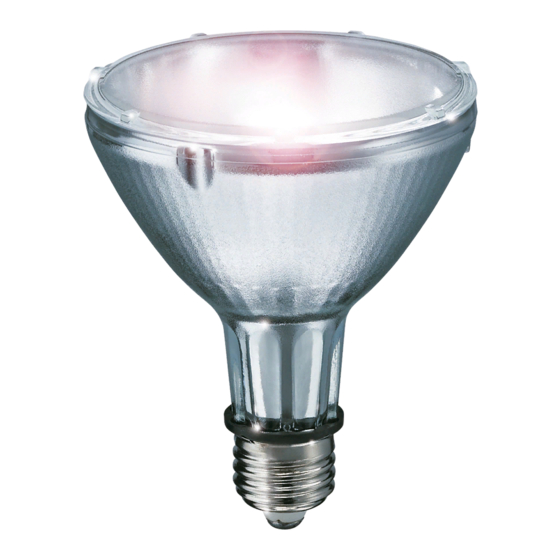

MASTER Colour CDM-R
The CDM-R comprises a range of
reflector metal halide lamps with
a warm colour impression
(3000 K) and excellent colour
rendering.
High beam intensities can be
created thanks to the small axial
discharge arc, optimally positioned
in the internal reflector.
Low operating costs result from
the high lamp efficacy, combined
with long lamp life compared to
incandescent and halogen lamps.
The CDM-R's unique "effect/lamp
volume" ratio increases flexibility
in application and allows powerful
lighting accents from
inconspicuous luminaires.
Ease of luminaire design is
provided since the CDM-R lamps
can be used in open luminaires.
In indoor applications comfort is
enhanced because of the
relatively low heat output of the
lamps.
The lamps contain a UV-Block
burner capsule for reduced fading
risks.
Universal
Burning position
CDM-R lamps have to be used in
combination with a ballast and an
ignitor or a suitable fully
electronic ballast, like the Philips
PrimaVision range.
For a satisfactory operation of the
lamp on conventional gear, the
mains supply should not fluctuate
more than 5% from the rated
voltage of the ballast. If there is a
constant deviation of more than
3 % of the rated voltage, another
ballast rating is recommended.
Burning position: universal.
Note
CDM-R is equipped with an
E27 lamp base, E27 lampholders
used must be suitable for
ignition peaks up to 5 kV.
Applications
- Accent/decorative lighting:
sparkling, theatrical effects in
display lighting, even in
surroundings with a high
luminance level like shop
windows.
- General lighting: in downlighters,
a warm, comfortable
atmosphere can be created.
