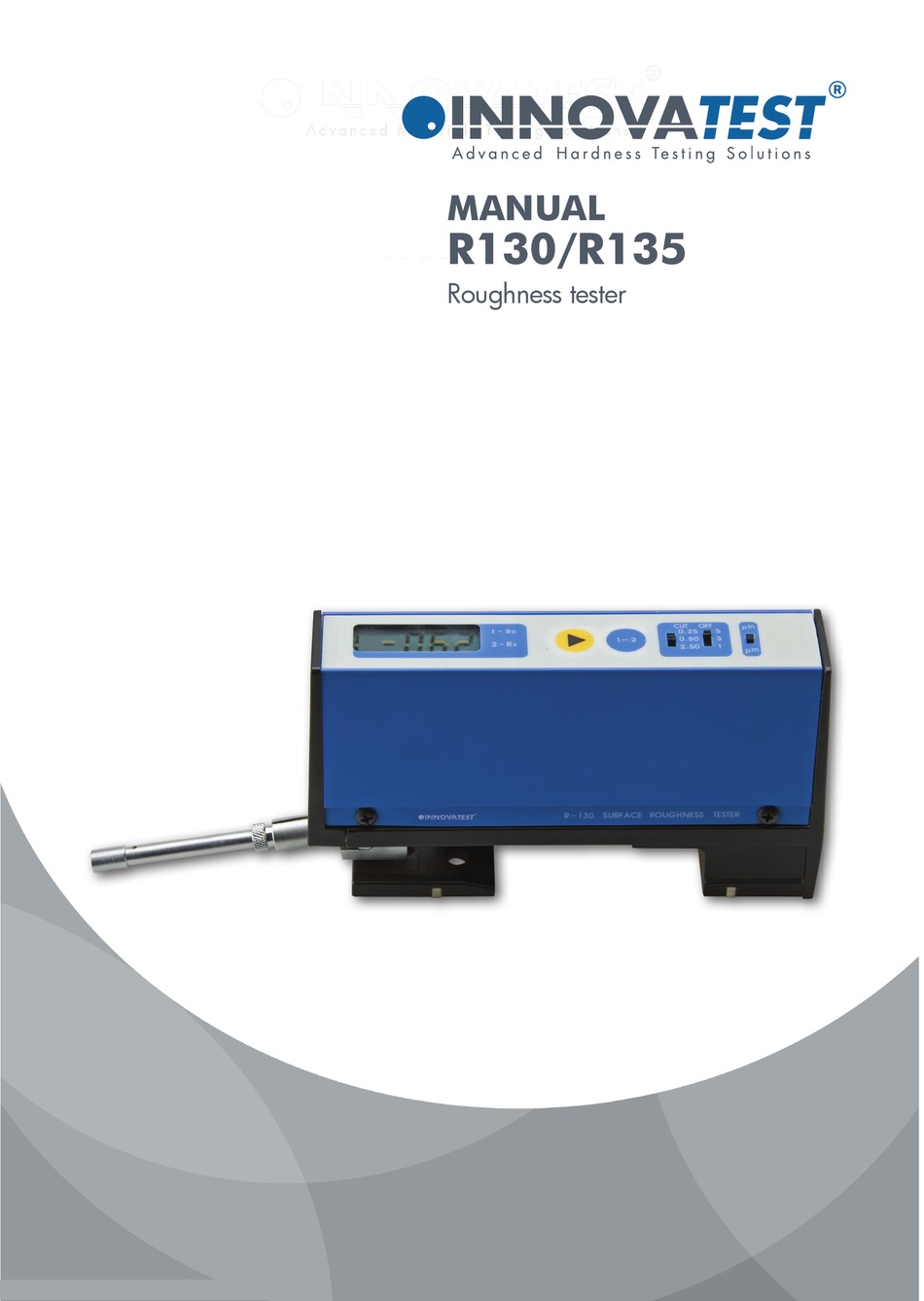

- Page 1 MANUAL R130/R135 MANUAL MANUAL Roughness tester TH-170 TH-170 Universal hardness tester Universal hardness tester...
- Page 2 We reserve the right to change or modify specifi cations of products without prior notice. We recommend you to contact our sales offi ce for up-to-date information. © All rights reserved www.innovatest-europe.com...
-
Page 3: Table Of Contents
Controls and digital display Calibration Operation Probes General purpose probe Transverse chisel probe Parallel chisel probe Small bore probe Groove bottom probe Probe replacement Analog signals output Maintenance 11.1 Protection & storage 11.2 Cleaning 11.3 Repairs Accessory: height stand www.innovatest-europe.com... -
Page 4: Description
1. Description The R130 tester is a portable, battery-powered instrument for checking surface roughness with the measured values displayed on a digital readout. The instrument can be used in the laboratory, an inspection area, in the shop, or wherever on-site surface roughnesss testing is required. -
Page 5: Specifi Cation
Traverse length Evaluation length Numbers of cutoff 3.0mm 2.5mm Probe type : Piezoelectric Maximum stylus force: 15.0mN / 1500mgf Power: 9-volt consume-type alkaline battery Battery capacity: Approx. 3000 measurements Operating temperature:10°~45°C / 50°~113°F Storage temperature : 0°~60°C / 32°~147°F www.innovatest-europe.com... -
Page 6: Measurement Parameters
3. Measurement parameters Roughness Average---the arithmetic average height of roughness irregularities measured from a mean line within the evaluation length (L) Maximum Roughness Depth ---The largest of the peak_to_valley roughness depths in the evaluation length. www.innovatest-europe.com... -
Page 7: Features
3 Parameter selection button 4 Cut-off selection switch 5 Traverse length switch 6 Meter/inch switch 7 Output connector (accessory) 9 Battery (alkaline) 10 Battery compartment cover 11 Protective cover 12 2 “V” feet 13 Probe holding block 14 Probe www.innovatest-europe.com... -
Page 8: Battery Installation/Replacement
4. If the Ra or Rz value displayed is out of the measuring rang which accordance with the selected Cut-off, then re-select the cut-off . Refer to table 1. 5. The digital readout also can display “2-X.XX” (Rz) in circularly by press and release the parameter selection button. www.innovatest-europe.com... - Page 9 The tester can be switch on with the “>” (start) key and be turned off automatically after 2 minutes. If the tester is auto switched off, the last measuring result can’t be shown on the screen when re-start the tester as this auto-off is the real off (power cut-off). www.innovatest-europe.com...
-
Page 10: Calibration
3. Using a screwdriver, carefully adjust the calibration control. Clockwise to increase the displayed Ra value, or Counter clockwise to decrease the displayed Ra value. 4. After adjusting the calibration control, remeasure the reference specimen to assure that the tester is within the calibration tolerance. www.innovatest-europe.com... - Page 11 5. When calibrating with a Small Bore Probe or Groove Bottom Probe, the probe should be in the 180° position. And make sure that the tester base is on the same height as the surface of the calibration specimen. calibration plate or height stand www.innovatest-europe.com...
-
Page 12: Operation
Mounting Block) is parallel to the bottom of the tester housing and parallel to the work- piece’s surface (see below).This ensures that the probe skid and stylus are fl ush on the work surface, even though the probe body will be at an angle to the work surface. www.innovatest-europe.com... -
Page 13: Probes
8. Probes 8.1 General purpose probe (R130-2001 or R130-2002) For most surface roughness applications. R130-2001 has a 90°conical diamond stylus, .0004”/10µm radius per ISO specifi cations. R130-2002 has a 90°conical diamond stylus, .0002”/5µm radius per DIN standards. 8.2 Transverse chisel probe (R130-2003) For gaging sharp edges or small O.D.’s where probe is aligned with (in 180°or closed... -
Page 14: Small Bore Probe
8.4 Small bore probe (R130-2005 or R130-2006) For measuring small bores (min. inside diameter of 5.0mm,up to a depth of 15.0mm). 90°conical diamond stylus, .0004”/10µm radius for R130-2005; .0002/5µm radius for R130-2006. 8.5 Groove bottom probe (R130-2007) For measuring the bottoms of “O” ring grooves, recesses and holes to depth of 6.0mm. -
Page 15: Probe Replacement
Make sure that the probe is fully inserted into the probe mounting block(so that the electrical connector is completely engaged) before tightening the locking collar. Finger tighten only. 4. Check the tester’s calibration after changing probes. www.innovatest-europe.com... -
Page 16: Analog Signals Output
For further information concerning the signals output, please contact the supplier. Printer settings TA-220 settings 1 + 3 + 5 = on TA-230 settings 2 + 3 + 6 + 7 = on www.innovatest-europe.com... -
Page 17: Maintenance
To clean the probe skid and stylus, use a soft (camel’s hair), artist’s brush moistened with denatured alcohol. 11.3 Repairs When fi nded any trouble in using the tester, contact the suppliers. Do not disassemble the unit or attempt any further remedies. www.innovatest-europe.com... -
Page 18: Accessory: Height Stand
(the upside of the mounting block) parallel to the bottom of the tester housing. 3. Once the setup is correctly adjusted, and the probe is properly positioned on the workpiece surface, gently press and release the start button on the tester to make the measurement. Fine adjustment Coarse adjustment Captive screw Bracket www.innovatest-europe.com... - Page 19 EC-Declaration of Conformity This certifi es that the following designated product R130/R135 (Portable roughness tester) complies with the essential protection requirements of Council Directive 89/336/EWG approximation of the laws of the Member States relating to electromagnetic companies. This declaration applies to all specimens manufactured in accordance with the manufacturing drawings which form part of this declaration.
