This manual covers units: May 7, 2015 to Date
Language: English (Hazards: English, French)
The English version of this manual shall prevail over any
error in, or conflicting interpretation of, any translations.

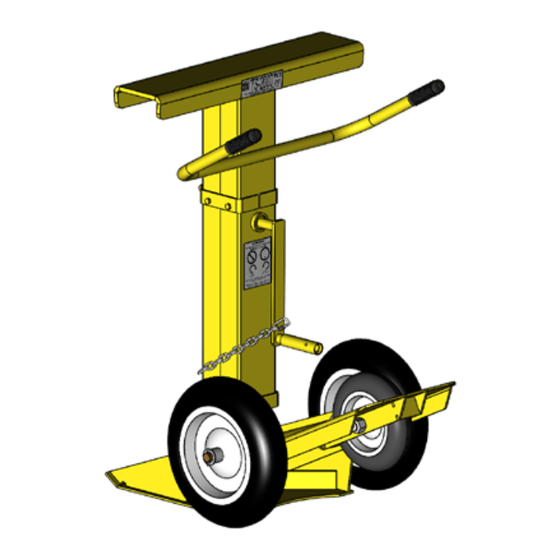

TS-2000 Trailer Stand
Installation/Owner's Manual
NOTICE TO USER . . . . . . . . . . . . . . . . . . .2
SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Safety Identifications . . . . . . . . . . . . . . . . .2
Position TS-2000 . . . . . . . . . . . . . . . . . . . .4
Remove TS-2000 . . . . . . . . . . . . . . . . . . . .4
MAINTENANCE . . . . . . . . . . . . . . . . . . . .5
PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
WARRANTY. . . . . . . . . . . . . . . . . . . . . . . .8
Manual Part #: 54450042
Publication: AMEN00110 2017-07-26
. . .3
Model: TS-2000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS-2000 and is the answer not in the manual?

Questions and answers

Summary of Contents for RITE-HITE TS-2000

  • Page 1: Table Of Contents

    OPERATION Position TS-2000 ....4 Remove TS-2000 ....4 MAINTENANCE .

  • Page 2: Notice To User

    Rite-Hite ® Installation/Owner’s Manual NOTICE TO USER SAFETY Thank you for purchasing the TS-2000 Trailer Stand. Safety Identifications This heavy duty trailer stand provides additional safety to a parked trailer resting on its landing gear. DANGER Capacity: 100,000 lbs [45400 kg]...

  • Page 3: Installation (Optional)

    Rite-Hite TS-2000 Trailer Stand ® Installation/Owner’s Manual INSTALLATION (OPTIONAL) Transport Wheel Assembly (OPTIONAL) Verify you received all components before installation. Notify your authorized Rite-Hite Representative if parts ® are missing or damaged. 1 Transport wheel support weldment (yellow) 1 10in solid rubber wheel...

  • Page 4: Operation

    4. Lift chain off height adjustment crank and allow it to rest on rotating shaft. 5. Turn height adjustment crank counter clockwise to crank down the TS-2000 to allow trailer stand to roll out. NOTE: If trailer stand is tight, remove weight from trailer stand by cranking up legs of trailer so trailer stand can be removed smoothly (without jerking).

  • Page 5: Maintenance

    Welds for breaks Chain is attached Trailer stand is able to move and operate freely. Lubricate the wheels. If there is binding in main structure, contact your authorized Rite-Hite service representative to disassemble top section and determine cause. Publication: AMEN00110 2017-07-26...

  • Page 6: Parts

    TS-2000 Trailer Stand Rite-Hite ® Installation/Owner’s Manual PARTS Exploded View Publication: AMEN00110 2017-07-26...
  • Page 7 Rite-Hite TS-2000 Trailer Stand ® Installation/Owner’s Manual PARTS Continued DESCRIPTION PART # SEAT, ASSY,HNDLD, TS2000,36” 68400001 SEAT, ASSY,HNDLD, TS2000,38.5” 68400002 SEAT, ASSY,HNDLD, TS2000,42.5” 68400003 HANDLE,BAR W/GRIPS,TS2000 51850054 GRIP,HANDLE,VINYL,1-1/4ODX4-1/2" 55150278 LABEL,PRODUCT,TS2000 53850675 LABEL,ROTATION,CAPACITY,TS2000 53850676 LABEL,ROTATION,CAPACITY,TS,CE 53850690 CHAIN,ASSY,TS2000 16600068 CRANK,WLDMNT,TS2000,8.5” 19600003 CRANK,WLDMNT,TS2000,10.5”...

  • Page 8: Warranty

    Product claimed to be defective and shall, at Rite-Hite's option, either (x) grant Rite-Hite or its agent access to Owner's premises for the purpose of repairing or replacing the Product or (y) return of the Product to the Rite-Hite, F.O.B.
