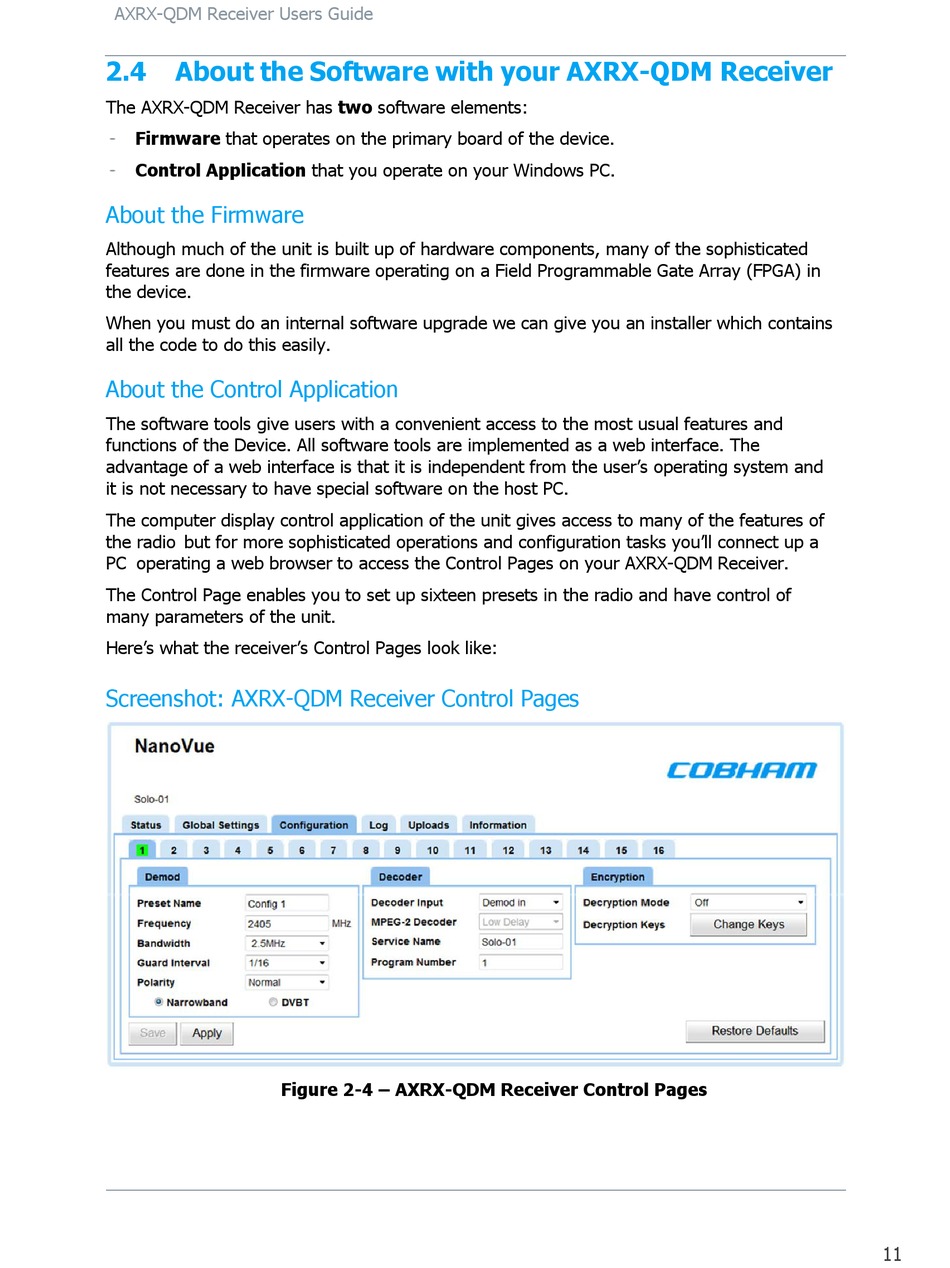

AXRX-QDM Receiver Users Guide
2.4 About the Software with your AXRX-QDM Receiver
The AXRX-QDM Receiver has two software elements:
Firmware that operates on the primary board of the device.

Control Application that you operate on your Windows PC.

About the Firmware
Although much of the unit is built up of hardware components, many of the sophisticated
features are done in the firmware operating on a Field Programmable Gate Array (FPGA) in
the device.
When you must do an internal software upgrade we can give you an installer which contains
all the code to do this easily.
About the Control Application
The software tools give users with a convenient access to the most usual features and
functions of the Device. All software tools are implemented as a web interface. The
advantage of a web interface is that it is independent from the user's operating system and
it is not necessary to have special software on the host PC.
The computer display control application of the unit gives access to many of the features of
the radio but for more sophisticated operations and configuration tasks you'll connect up a
PC operating a web browser to access the Control Pages on your AXRX-QDM Receiver.
The Control Page enables you to set up sixteen presets in the radio and have control of
many parameters of the unit.
Here's what the receiver's Control Pages look like:
Screenshot: AXRX-QDM Receiver Control Pages
Figure 2-4 – AXRX-QDM Receiver Control Pages
