- Page 1 SYGMA INSTRUCTIONS MANUAL SYGMA DIGITAL ELECTRIC RADIATOR MOUNTING, INSTALLATION, STARTING AND OPERATION...
- Page 2 SYGMA WELCOME Dear Customer, Thank you for choosing the low consumption SYGMA digital electric radiator, with an exclusive electronic temperature programmer and made with the highest quality materials especially for you. The low consumption SYGMA digital electric radiators have exceeded the most stringent quality controls in order to comply with the most rigorous requirements for safety and energy efficiency requirements.
-
Page 3: Table Of Contents
If you are the owner of a model bought in the UK or Éire, please refer ONLY to its manual as the specifications of the radiators are different. TABLE OF CONTENTS 1. DESCRIPTION OF THE “SYGMA ” RADIATOR ........4 1.1. Front Panel Parts .................4 1.2. Switching On & Off (stand-by) ............6 1.3. -
Page 4: Description Of The Sygma Radiator
SYGMA 1. DESCRIPTION OF THE SYGMA RADIATOR 1.1. Front panel parts TFT DISPLAY CONTROL PANEL... - Page 5 1.1.1. TFT display symbols NUM. FUNCTION PROGRAMMING DAYS OF THE WEEK TIME OF DAY TEMPERATURE SELECTED LOCKING THE CONTROL PANEL MANUAL/AUTOMATIC FUNCTION COMFORT / ECO / ANTI-FROST MODE OPTIMIZER ENERGY PLUS FUNCTION HEATER ELEMENT ON OPEN WINDOW FUNCTION...
-
Page 6: Switching On & Off (Stand-By)
SYGMA 1.2. Switching On & Off (stand-by) By pressing the key , we can switch the radiator on or off. The following image will appear on the screen when switched on: The screen will automatically go into sleep mode if no button is pushed for 10 seconds. -
Page 7: Temperature Selection
To unlock, press the keys again, at the same time for 3 seconds. 1.5. Temperature selection By pressing we change the temperature. When the room temperature is lower than the one set, the heating element comes on and the symbol appears. 1.6. -
Page 8: Menu/Programming Function
SYGMA 1.7. Menu/Programming function In automatic mode, pressing for 3 seconds allows you to program the radiator directly: 1. Select the COMFORT temperature setting (20ºC to 30ºC), using . The symbol and the temperature will flash. 2. Press and we can select the ECO temperature (15ºC to 19.5ºC) using . -
Page 9: Optimizer Energy Plus Function
“Open window” function being switched on. 1.9. Optimizer Energy Plus Function This product includes Optimizer Energy Plus Rointe technology to efficiently manage the energy consumption of the radiator. Optimizer Energy Plus is a technology that bases its operation on thousands of micropulses being sent to the radiator to keep a stable temperature with a consumption as low as posible. -
Page 10: Installation & Mounting
SYGMA you will see the following screen: In ON mode you can increase or decrease the brightness of the screen by using the buttons. You can change the “Standby” mode brightness by pushing the button to move the frame to the “STAND-BY” position. You can then adjust the brightness by pushing the same keys. -
Page 11: Mounting
2.1. Mounting The SYGMA radiator works by means of natural air convection (Figure 1). In order to achieve optimal functioning and an even distribution of heat, the lower part of the radiator, once mounted on the wall, must be at least 10 to 12 cm from the floor, and 30 cm at the most. - Page 12 SYGMA • Remove the stencil and make the holes in the wall. • Fix the supports using the plugs and screws provided or others suitable for the wall type. • Check the correct positioning of the lower support. • Align the radiator with the top supports.
- Page 13 484 mm 644 mm 322 mm 242 mm Floor Floor SRN0880RAD2 SRN01100RAD2 644 mm 322 mm Floor SRN1320RAD2...
-
Page 14: Maintenance & Cleaning
SYGMA 3. MAINTENANCE & CLEANING The radiator does not require any type of maintenance. We recommend that all parts of the radiator are kept clean (behind, underneath, upper fins, etc.). Do not use any abrasive product on the aluminium. Clean it with a damp cloth and a pH neutral soap, and the stencil with a dry cloth. - Page 15 ROINTE or its after-sales service personnel, who should also be notified should an oil leak be noticed. The regulations on discarding oil when the heater is being disposed of must be observed. If the power cable is damaged, it must be replaced by the manufacturer, its after-sales service or authorized personnel in order to avoid any damage.
-
Page 16: Guarantee
5. GUARANTEE In this section, we hereby describe the guarantee conditions which the buyer acquires on buying a new radiator of Rointe brand. These conditions comply with all the rights construed in the national legislation in force, as well as any additional rights and guarantees which are offered by Rointe brand. - Page 17 ROINTE will repair or substitute the radiator as it may see fit in accordance with the terms and conditions as follows: 5.3.1. The guarantee is only applicable if the original guarantee is issued by the seller and when the said guarantee is filled in correctly including product reference, series number (marked on the product’s...
- Page 18 The defective parts or parts removed or replaced shall become the property of Rointe. 5.4. The technical service of Rointe will advise you if you need to buy any parts not covered under the guarantee or out of guarantee.
- Page 20 The symbol of the container crossed out over a horizontal line is marked on all of ROINTE’s products to remind the consumer of the obligation to separate them on disposal.
- Page 23 SYGMA LOW CONSUMPTION DIGITAL ELECTRIC RADIATOR...
- Page 24 ROINTE UK ROINTE HEAD OFFICE Catalyst House 720, Centennial Pol. Ind. Vicente Antolinos Court, Centennial Park C/ E, Parcela 43 Elstree, Herts, WD6 3SY 30140 Santomera, Murcia, España T. 01432 598 019 T. 902 158 049 F. 0208 953 5861 F.
Need help?
Do you have a question about the SYGMA and is the answer not in the manual?
Questions and answers

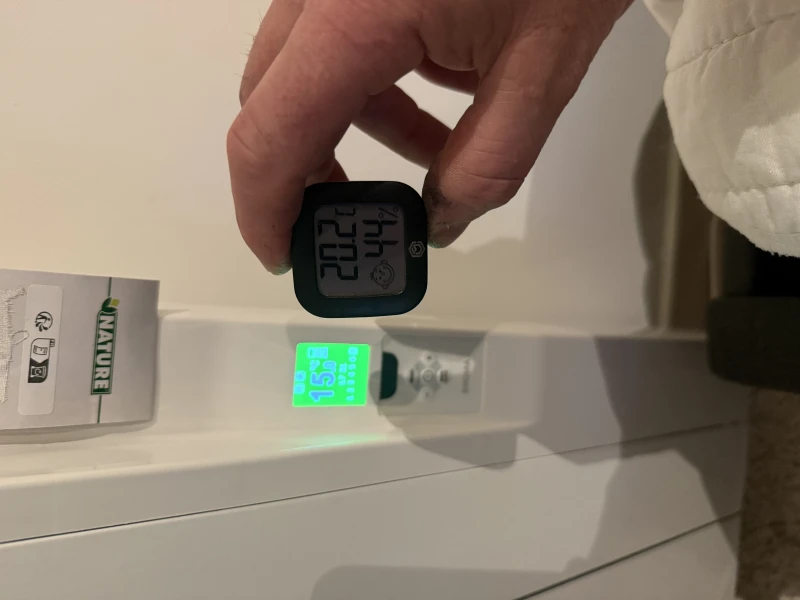

Beste, mijn elektrische Rionte sigma kachel staat op Manuel stand op 15 graden de kachels verwarmen de ruimte naar 19 graden en blijven verwarmen en verbruiken ontzettend veel energie hoe kan ik de kachels in stellen dat ze de ruimte verwarmen naar de gewenste temperatuur en niet eroverheen gaan Groeten Pascal
You can set your Rointe SYGMA heater to maintain a desired temperature by using the personalised temperature presets. This allows you to program specific temperatures for different times of the day, ensuring the heater maintains the set temperature without exceeding it. Additionally, you can monitor the water heating progress on the TFT screen, which displays a percentage indicating how close the water is to reaching the user-defined target temperature.
