KilnMaster
Operating Manual
6441 SE Johnson Creek Blvd. Portland, OR 97206 (503) 774-6000 skutt@skutt.com
www.skutt.com
Revised 04/21/17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KilnMaster and is the answer not in the manual?

Questions and answers

Luis Gabriel
March 29, 2025

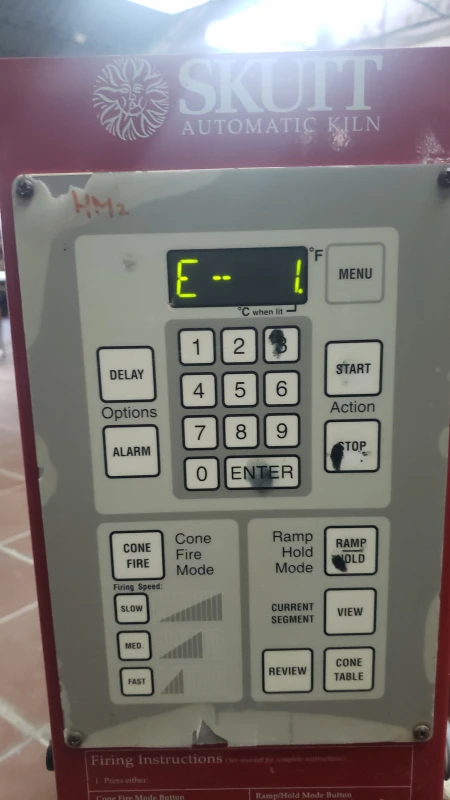

Mi horno km1018 me esta mandando un error E-1 a que se debe

User image 67e8312ec5495
0

Related Manuals for Skutt KilnMaster

Summary of Contents for Skutt KilnMaster

  • Page 1 KilnMaster Operating Manual 6441 SE Johnson Creek Blvd. Portland, OR 97206 (503) 774-6000 skutt@skutt.com www.skutt.com Revised 04/21/17...
  • Page 2 Letter from the President Thank You! Please checkout www.skutt.com for the following Accessories and Upgrades available for your Kiln: • KilnLink • Rolling Stand • EnviroVent 2 • EnviroLink • EV2 Rolling Stand Adapter • EasyView ... and more!

  • Page 3: Be Safe

    Safety Be Safe Tens of thousands of kilns are used safely in homes, schools, and professional studios throughout the world. With a good understanding of your kiln and a little common sense, you can avoid any accidents. Please observe the following safety recommendations: ●...
  • Page 4 ● Always unplug the kiln before performing any repairs or general maintenance. If your kiln is wired direct, turn off the breaker. ● Use only Skutt replacement parts. Improperly sourced parts may pose a hazard to you and your kiln and void your warranty.

  • Page 5: Table Of Contents

    Warranty Work ............... 31 Alarm ................... 14 Menu ..................14 Non-Warranty Work ............... 31 Review ................. 14 Your Local Skutt Distributor ..........31 View ..................14 The Skutt Factory ............... 31 During the Firing ............... 15 The Skutt Website .............. 31 After the Firing ..............
  • Page 6 Appendix 6 — Set up and specifications for PK kilns ....48 Appendix 7 — Set up for the KM 1627 ........50 Appendix 8 — The Wall-Mounted KilnMaster Controller ..52 Appendix 9 — Primary Display Messages........ 54 Warranty ........... 67...

  • Page 7: Quick Start

    Quick Start Quick Start Quick Start is a memory aid, not a substitute to reading and understanding the manual. Activate the power source by plugging in the kiln or controller. After plugging in the kiln, the display will read WAIT for approximately 10 seconds while power is restored to the kiln. It will then switch to Idle Mode.

  • Page 8: Set Up

    Set Up Set Up Your Skutt kiln has traveled a long way by rail or truck. Look for any signs of damage caused by transit. If damage is found, call your freight agent and ask for an inspection. Do not discard the packing materials, they may be needed later.

  • Page 9: Locating The Kiln

    ● When installing a kiln in a room with a fire control sprinkler system, do not place kilns within a 10 ft. (3m) radius below sprinkler heads. If this is not possible, contact Skutt for alternative solutions before installing. Be sure temperature rating of sprinkler heat detector will be adequate for normal operation of kiln at peak temperature.

  • Page 10: Preparation

    Set Up Preparation Certain kiln models may have slightly different set-up instructions. Special set-up instructions for PK Kilns and the KM-1 Wall Mount Controller are located in the Appendices section. ● Save packing material until test fire is complete. The kiln comes almost completely assembled. If you need to disassemble the kiln to make it lighter or smaller to move through doors, see Appendix 1.

  • Page 11: Test Firing

    Set Up Test Firing The test fire is very important and should not be skipped. It accomplishes several objectives ● Ensures the kiln is operating correctly and nothing was damaged in shipping. ● Burns off element oils and develops an oxide coating which will help prolong the life of the elements.

  • Page 12: Tensioning The Lid Lifter

    Set Up Tensioning The Lid Lifter The Lid Lifter is shipped with the hinge springs de-tensioned in order to protect the lid during shipping. Please follow the instructions for tensioning the lid carefully to ensure success and avoid injury. Step 1- Remove the Lid Brace Step 2 - Remove Rod A &...

  • Page 13: Programming

    Programming Programming General Programming Information The LED Display The display, while improved, is still limited to 4 characters and 14 segments per character. This is not always enough to exactly represent the message presented. If you find you do not understand a message, consult the Display Messages section of this manual in Appendix 9.

  • Page 14: Alarm

    Programming From Idle Mode, press DELAY. Input Delay time in hours and minutes, then press ENTER. When START is pressed to begin the program, the time entered for the delay will reappear on the screen and begin counting down. When it reaches 00.00 the kiln will start the program currently loaded.

  • Page 15: View

    Programming View The View key allows you to determine what segment of a Ramp/Hold or Cone Fire program the controller is currently running. While a program is firing press VIEW. The display will show the current segment, the traveling set point, and the circuit board temperature. The segment number is prefixed by either “RA”...

  • Page 16: Choosing A Programming Mode

    Uneven Heat Distribution Kilns will tend to fire cooler on the top and the bottom. Skutt compensates for this effect by putting hotter elements in these spots. If you notice a certain area consistently firing cooler, load those areas a little less dense.

  • Page 17: Programming Cone Fire Mode

    Programming Ramp/Hold is generally considered an advanced form of programming. It requires in-depth knowl- edge of heatwork and a good feel for how your kiln performs under a range of conditions. Graph to the left is an example of a simple glass fusing Ramp/Hold program. Programming Cone Fire Mode Step 1 From Idle Mode.

  • Page 18: Description Of Steps

    Heatwork needed for the clay or glaze to mature. The Heatwork is measured through the use of Pyrometric Cones (see pg 43.) The values of these cones used by the KilnMaster controller ranges from Cone 022 through Cone 10. It will not let you enter a cone value outside of this range.

  • Page 19: Advanced Cone Fire Menu Features

    Programming greenware, large or thick walled pieces. We recommend that most teachers use Slow Speed because it is often hard to tell how thick the walls are in a student’s project. If you are unsure if the piece is completely dry, use this speed. Cone 04, Medium Speed Cone Fire –...

  • Page 20: Programming The Ramp/Hold Mode

    Programming Programming Programming the Ramp/Hold Mode NOTE - You can now use the REVIEW KEY to step back in the program if you make a mistake. Step 1 From Idle Mode, press RAMP/HOLD. Display will show PROG alternating with a number between 1 and 12. Step 2 Input the PROG Number of the Program you wish to create or run.

  • Page 21: Description Of Steps

    Programming Description of Steps RAMP/HOLD Ramp/Hold Mode is a mode of programming that allows you to write your own firing program. When you are entering your program, you will notice data already stored. Simply write over this information. If you mis-enter data, you may either press zeros to clear the data and re-enter it, or if you have already entered a rate or temperature, you can press REVIEW to go back one step.

  • Page 22: Advanced Features

    Programming NOTE: When 9999 is entered in Celsius mode, it will show as 5538 during the REVIEW of the program. Prepare Venting and Start Before starting the program, it is always a good idea to press REVIEW and make sure the data was entered correctly.
  • Page 23 Menu Features KilnMaster Menu Tree MENU dIAG CNFG - - - Settings Diagnostics Configuration Hidden ERTF PRHT ERCd TYPE Err Temp & Time Preheat Error Codes T/C type: K/S for last firing COOL VOLT TCOS CYCL Cooling segment Voltage data...

  • Page 24: Menu Features

    Menu Features Menu Features The KilnMaster 700 Board has the ability to do self-diagnostics. It can now show the voltage and amperage directly from the display, eliminating the need for expensive test equipment or having to hire a technician. Look through the entire MENU selection to become familiar with the options available to you.

  • Page 25: Set (Settings)

    Menu Features SET (Settings) SET, is where all of the commonly used options are located. The following options are available under the SET heading menu: PRHT (Preheat) ● This option allows you to toggle the Preheat feature ON or OFF. The Preheat feature allows you to Input an amount of time to hold at 180˚F (82˚C) prior to running a CONE FIRE Program.

  • Page 26: Volt (Voltage)

    AMPS (Amperes) ● This is probably the most useful diagnostic tool available to you. All KilnMaster kilns produced after 3/20/2006 are equipped with a current sensor in the control box. This allows us to test the current of each output to the kiln.

  • Page 27: Cnfg (Configuration)

    A CONE FIRE offset adjustment is normally used to adjust a specific CONE FIRE program and Thermocouple offsets are normally used on kilns with multiple thermocouples. If you think your CONE FIRE program may need an adjustment, contact a Skutt technician to assist you with this.

  • Page 28: Zone (Zone Control Options)

    Your kiln should be properly programmed for the correct number of thermocouples before it leaves the factory. All KilnMaster kilns will be set at 1 thermocouple except the high-fire KM1627PK which comes standard with Zone Control. You cannot set a kiln to fire in more than one zone unless it is configured in the factory as a Zone Control kiln.

  • Page 29: Max (Maximum Programmable Temperature)

    4 controls floor or lid elements. To ensure output 4 stays off at all times, use this option and set the percentage to zero. The percent can be set from 0 to 150. There are currently no Skutt Kiln designs that can utilize this feature.

  • Page 30: 2Key (2 Keys To Start Kiln)

    - - - - (OTHER) The features contained in this menu heading are accessible only through direct contact with a Skutt technician. If you change from a Type S thermocouple to a Type K thermocouple or vice-a-versa you will need to change a feature setting in this menu section.

  • Page 31: Troubleshooting Your Kiln

    We still recommend that you work closely with a Skutt representative to insure the diagnosis and repair are correct and done safely. There are a number of resources available to help you troubleshoot the problem efficiently and effectively.
  • Page 32 Troubleshooting Error Description Code E- 0 Software Error. The temperature is increasing less than 12 degrees per hour during a ramp E- 1 segment, where the temperature is programmed to increase. This slow rate must persist for 22.5 minutes before the error is displayed. During a hold segment the temperature rises to greater than 50 degrees above the hold temperature which was set.
  • Page 33 Troubleshooting Causes Correction Caused by hardware or electrical noise, can be Recheck the selected program, and caused by electrical spikes, surges, or arcing. reprogram if necessary. Worn or old heating elements. Check elements. Low voltage to the kiln. Check Relays. A broken heating element or faulty relay.
  • Page 34 Troubleshooting Error Description Code When using the CONE FIRE MODE, the temperature is decreasing during E- 8 the last ramp segment. If this a KilnSitter Kiln using a Wall Mount Controller, KilnSitter may have shut off the kiln. E- A Invalid program variable.
  • Page 35 Troubleshooting Causes Correction Faulty relay. Check relay. Broken element. Check elements. KilnSitter shut-off kiln. Check cone used in KilnSitter. Reprogram if problem persists have board sent in for service. Lower room temperature below 100 ° C) or raise kiln chamber and °...

  • Page 36: Questions And Answers

    Troubleshooting Questions and Answers How can I correct a value that’s been incorrectly typed before pressing Enter? ● Clear the display by pressing all zeros, then input the correct number and press ENTER. When a cone value has been incorrectly entered, the process is slightly different. After pressing 0000, press ENTER. The display will again ask for a preheat value and then a cone value.
  • Page 37 Troubleshooting The kiln is plugged in, but there is nothing on the display. ● First check your circuit breaker to ensure it has not tripped. If the circuit breaker is okay, check the fuse. The fuse is located on the bottom of the KM 1 Controller and on the lower left side of the kiln mounted controller.

  • Page 38: Preventive Maintenance

    Preventative Maintenance Preventive Maintenance All Kilns Vacuum floor and element grooves regularly. Carefully vacuum around thermocouple and elements. Leave KM kilns plugged in when you are vacuuming to ground any static charges that may occur at the nozzle tip of the vacuum. Try to keep the vacuum away from the touch pad area. ●...

  • Page 39: Repairs

    Repairs Repairs Brick Replacement The premium brick used in Skutt walls will withstand thousands of firings without crumbling. Broken element grooves are usually the result of carelessness in handling the kiln sections or in loading shelves. It’s almost impossible to cement a broken groove lip back into place without contaminating the heating element.

  • Page 40: Lid Maintenance

    Cone 06 or hotter firing. Lid Maintenance Skutt lids are coated with a refractory cement which helps protect the kiln chamber from falling brick particles.This refractory coating will form hairline expansion cracks after the first few firings. This is normal and should not get worse over time.

  • Page 41: Replacing The Thermocouple

    ● Close the box KilnMaster Controller Circuitry The KilnMaster controller components are solid state and cannot be repaired in the field. If repairs are necessary, call the factory at 503-774- 6000 to arrange repairs. Do not send items without proper authorization.

  • Page 42: Appendices

    Appendices Appendices Appendix 1 — Disassembling Multi-section Kilns Always Unplug a Kiln before Disassembly ● Remove lid (Refer to page 12 for Lid Lifter and lid removal instructions). ● Remove the screws on the left side of the control box that secure the box to the kiln, swing the panel to the side.

  • Page 43: Appendix 3 - Heatwork

    Supporting Cone and has become the standard for commercial clay bodies, glazes and controller software. All clay bodies and glazes are designed to fire to a certain cone value. In a KilnMaster Kiln the computer calculates the heatwork and shuts the kiln off at the proper heat and time combination.

  • Page 44: Appendix 4 - Loading Tips

    Appendices Appendix 4 — Loading Tips ● Balance the Load. ● When planning how to load your kiln, keep in mind that the center of the kiln is generally the hottest. Therefore, you will want to distribute the load with the larger, thicker pieces towards the middle and the smaller, thinner pieces towards the top and bottom.

  • Page 45: Appendix 5 - Electrical Requirements

    It is not possible to connect a 3 phase kiln to 1 phase supply. Voltage As you can see from the chart, most Skutt models are available in either 208 or 240 volt versions. The exception is Model KM714 which is universal, and will fire with a 240V or 208V power supply.
  • Page 46 Appendices KilnMaster Kilns and Wall Mount Controllers Copper NEMA Model Volts Amps Watts Wire Size* Receptacle KM614 2300 5 – 20 5 – 30 KM614 2300 (Canada) KM714 208-240 3600 14 – 30 KM818 27.8 6660 6 – 50 KM818 26.7...
  • Page 47 Appendices PK SPECIFICATIONS Copper NEMA Model Volts Amps Watts Wire Size* Receptacle KM1227PK 14300 Direct Wire KM1227PK 14300 Direct Wire KM1227PK 14300 Direct Wire KM1227PK 46.7 14300 Direct Wire KM1231PK 17300 Direct Wire KM1231PK 16640 Direct Wire KM1231PK 44.5 17300 Direct Wire KM1231PK 51.5...

  • Page 48: Appendix 6 - Set Up And Specifications For Pk Kilns

    Firing Skutt PK kilns feature our KilnMaster controller, so operation is identical to other KM kilns. Even though the earlier sections of this manual do not refer specifically to the PK kiln line, you may follow all the instructions on programming and firing routines.
  • Page 49 Appendices To separate a PK kiln into sections ● Refer to page 12 for Lid Lifter and lid removal instructions. ● Remove the screws from the side of the red control box and swing the panel to the side. ● Number the feeder wires using tape so you can remember where they will be reconnected. ●...

  • Page 50: Appendix 7 - Setup For The Km 1627

    Appendices Appendix 7 — Setup for the KM 1627 The 1627 will be packed in three separate boxes which will include the following: Box 1 ● KM1627 Box 2 ● 3 Piece Fiber Slab Insert ● 12 — 2 inch (2.54 centimeter) Posts Box 3 ●...
  • Page 51 Appendices REASSEMBLING KM 1627 ● Stack the sections in original sequence and secure the draw pull catches. ● Place the control box on its hinges. ● Reattach the feeder wires to their corresponding block. ● Make sure the connection is tight to avoid electrical problems. ●...

  • Page 52: Appendix 8 - The Wall-Mounted Kilnmaster Controller

    However, an electrician may need to wire a receptacle for the controller if a three-phase contractor box was used previously. You may need to make other changes to the supply for kilns not made by Skutt. Other manufacturers may not use pilot cords. Please discuss this with your distributor.
  • Page 53 Drill two, 3/32 in (0.23 cm) holes for the smaller sheet metal screws. Drill through the metal only. Install the flange with the sheet metal screws provided. ● For the remaining installation steps consult the previous section on Thermocouple Installation for a Skutt Kiln.

  • Page 54: Appendix 9 - Primary Display Messages

    ● If activated in the configuration MENU, upon REVIEW the controller will display the cost of the last firing, in dollars and cents. Cost of previous firings and other firing history data can be accessed through the optional KilnLink upgrade. Visit www.skutt.com for more information on KilnLink. CPLt ●...
  • Page 55 Appendices RA1, RA2, RA3, RA4, RA5, RA6, RA7 or RA8 ● The controller is in RAMP/HOLD programming mode. The user needs to input an appropriate temperature in °F/hr or °C/hr for each segment in the profile. SEGS ● (Looks like SE65) The controller is in RAMP/HOLD mode. The user needs to Input the number of segments in the profile being programmed.

  • Page 56: Wiring Diagrams

    Wiring Diagrams KM614 1 Phase Wiring Diagram Automatic Kiln Current Sensor KM614 1-Phase 2W+G MJH 6/29/06 Grnd. / green W_7524 KM714 1 Phase Wiring Diagram Automatic Kiln Current Sensor KM714 1-Phase 2W+N+G Element Element Element Grnd. / green MJH 6/29/06 W_7525...
  • Page 57 Wiring Diagrams KM818, KM818-30A 1 Phase Wiring Diagram Automatic Kiln KM818 Current Sensor 1-Zone 1-Phase 2-Wire + G Top Ring Master Ring Grnd. / green MJH 6/8/06 W_7520 KM1018 1 Phase 700 Board Wiring Diagram Current Automatic Kiln Sensor KM1018 1-Zone 1-Phase Top Ring...
  • Page 58 Wiring Diagrams KM822, KM1022, KM1222 1 Phase Wiring Diagram Automatic Kiln Models: KM822 / KM1022 / KM1222 Current 1-Zone Sensor 1-Phase 2-Wire + G Top Ring Element Element Master Ring Element Element Element MJH 1/21/11 Grnd. / green.yel W_7565 KM822, KM1022, KM1222 3 Phase Wiring Diagram Automatic Kiln...
  • Page 59 Wiring Diagrams KM1218 1 Phase Wiring Diagram Automatic Kiln KM1218 Current 1-Zone Sensor 1-Phase 2-Wire + G Top Ring Element Element Bottom Ring Element Element Grnd. / green.yel MJH 6/22/06 W_7522 KM1218 3 Phase Wiring Diagram Automatic Kiln KM1218 1-Zone Current Sensor 3-Phase 3-Wire + G...
  • Page 60 Wiring Diagrams KM1027/KM1227 1 Phase Wiring Diagram Automatic Kiln Current Sensor KM1027/KM1227 1-Zone 1-Phase Top Ring Middle Ring Bottom Ring Grnd. / green MJH 4/13/06 W_7510 KM1027 3 Phase/KM1227 3 Phase Wiring Diagram Automatic Kiln Current Sensor KM1027/KM1227 1-Zone 3-Phase 3-Wire Top Ring Middle Ring Bottom Ring...
  • Page 61 Wiring Diagrams KM1227 PK 1 Phase Wiring Diagram Automatic Kiln Terminal Strip Front Back Current KM1227PK (FUSED) Sensor Pilot 1-Phase 2-Wire+G Pilot Pilot Top Ring Fuse Relay Middle Ring Relay Fuse Relay Relay Bottom Ring Fuse Relay Relay Grnd. / green MJH 4/17/06 W_7516 KM1227 PK...
  • Page 62 Wiring Diagrams KM1231 PK 1 Phase Wiring Diagram Automatic Kiln Terminal Strip Front Back Current KM1231PK (FUSED) Sensor Pilot 1-Phase 2-Wire+G Pilot Pilot Top Ring Fuse Relay Middle Ring Relay Fuse Relay Relay Fuse Relay Bottom Ring Relay Grnd. / green MJH 4/17/06 W_7515 KM1231 PK...
  • Page 63 Wiring Diagrams KM1627 PK 1 Phase Wiring Diagram Automatic Kiln Terminal Strip Front Back Current KM1627PK (Fused) Sensor Pilot 1-Phase 2-Wire Pilot Pilot Top Ring Fuse Fuse Fuse Relay Relay Middle Ring Fuse Relay Relay Fuse Relay Bottom Ring Relay Grnd.
  • Page 64 Wiring Diagrams KM1627 LF 1 Phase Wiring Diagram Automatic Kiln Current KM1627PKLF 1-Zone Sensor 1-Phase 2-Wire Pilot Transformer Top Ring Fuse Fuse Relay Relay Middle Ring Fuse Relay Relay Fuse Bottom Ring Relay Relay MJH 7/6/06 Grnd. / green W_7532 KM1627 LF 3 Phase Wiring Diagram...
  • Page 65 Wiring Diagrams KM-1 1 Phase 700 BOARD Wiring Diagram KM-1 1-zone 2-Wire + G 1-Phase Transformer PILOT 250V 50 Amp 1-Phase 1-Phase Recept. 1-Phase Plug Contactor MJH 6/30/06 W_7527 KM-1 3 Phase 700 BOARD Wiring Diagram KM-1 1-zone 3-Wire + G 190 - 250 Volts Transformer PILOT...
  • Page 66 My Programs PROGRAM 1 SEGMENT RATE TEMP HOLD NOTES PROGRAM 2 SEGMENT RATE TEMP HOLD NOTES PROGRAM 3 SEGMENT RATE TEMP HOLD NOTES PROGRAM 4 SEGMENT RATE TEMP HOLD NOTES...

  • Page 67: Warranty

    Warranty SKUTT CERAMIC PRODUCTS, INC. warrants this product to be free from defects in materials and workmanship for two full years from the date of the first retail purchase from an authorized Skutt dealer. What Skutt Will Do: Skutt will repair or replace, at its expense, any defective part upon return, freight prepaid, to any authorized Skutt Service center.
  • Page 68 6441 SE Johnson Creek Blvd. Portland, OR 97206 (503) 774--6000 skutt@skutt.com www.skutt.com...
