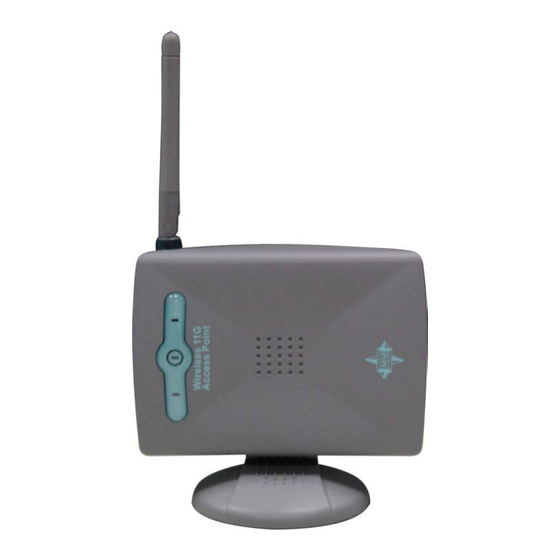

MSI AP54G (MS-6844)
Wireless 11g Access Point
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP54G and is the answer not in the manual?

Questions and answers

Related Manuals for MSI AP54G

Summary of Contents for MSI AP54G

  • Page 1 MSI AP54G (MS-6844) Wireless 11g Access Point User’s Guide...

  • Page 2: Fcc Caution

    FCC Caution 1. The device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 3: Important Safety Precautions

    Important Safety Precautions Always read and follow these basic safety precautions carefully when handling any piece of electronic component. 1. Keep this User’s Manual for future reference. 2. Keep this equipment away from humidity. 3. Lay this equipment on a reliable flat surface before setting it up. 4.
  • Page 4 Advanced user authentication ensures a high level of security for wireless networking, while easy-to-use web-based configuration tools ensure that you’ll always be in control. Best of all, the AP54G wireless access point features easy installation---your choice to be free-standing, wall- or ceilingmounted.

  • Page 5: Networking Options

    2. Networking Options Infrastructure Mode: Infrastructure networking differs from Ad-hoc networking is that it includes an Access Point. The Access Point enables users on a wireless LAN to access an existing wired network, allowing wireless users to take advantage of the wired networks resources, such as Internet, email, file transfer, and printer sharing.

  • Page 6: Features And Benefits

    3. Features and Benefits 54Mbps Data Rate/150-500ft Indoor Range The AP54G runs with data-intensive applications like multimedia and streaming video/audio --- even through walls, floors and ceilings. You get high-speed networking without wires --- ideal for home office networking requirements.

  • Page 7: Package Contents

    Also, keep the box and packing materials in case you need to ship the unit in the future. Your AP54G package should contain the following items: AP54G x 1...

  • Page 8: Product View

    5. Product View Antenna LEDs LEDs Indicate the power and traffic utilization status. Antenna External dipole antenna.

  • Page 9: Installation And Configuration

    6.1 Default Parameters Password admin IP address 192.168.1.254 Subnet mask 255.255.255.0 SSID AP54G Channel Encryption DHCP client Disable 6.2 System Requirements You need the followings to configure respective network settings: Computers with the following operating systems and with an installed Ethernet...
  • Page 10 Connecting Cables 1. Plug the DC end of the power adapter into the connector of the AP54G, and the AC end to the wall outlet later. 2. For wired connection, connect the AP54G to the LAN port.
  • Page 11 Typical Configuration provides a step-by-step setup wizard to guide you through the basic settings. Generally, after completing the three steps in this option, your AP54G can connect to the ISP and your client computer can access to the Internet without any problem.

  • Page 12: Specification

    7. Specification Data Rates IEEE 802.11b (Auto-Fallback): - CCK @ 5.5 and 11Mbps - DQPSK @ 2Mbps - DBPSK @ 1Mbps IEEE 802.11g (Auto-Fallback): - OFDM @ 54, 48, 36, 24, 18, 12, 9, 6Mbps Standard IEEE 802.11g/b, IEEE802.3u 10/100 Base-Tx Range 150-500 feet (indoor), 1000-1600 feet (outdoor) Frequency...
