Summary of Contents for Philips LC5241

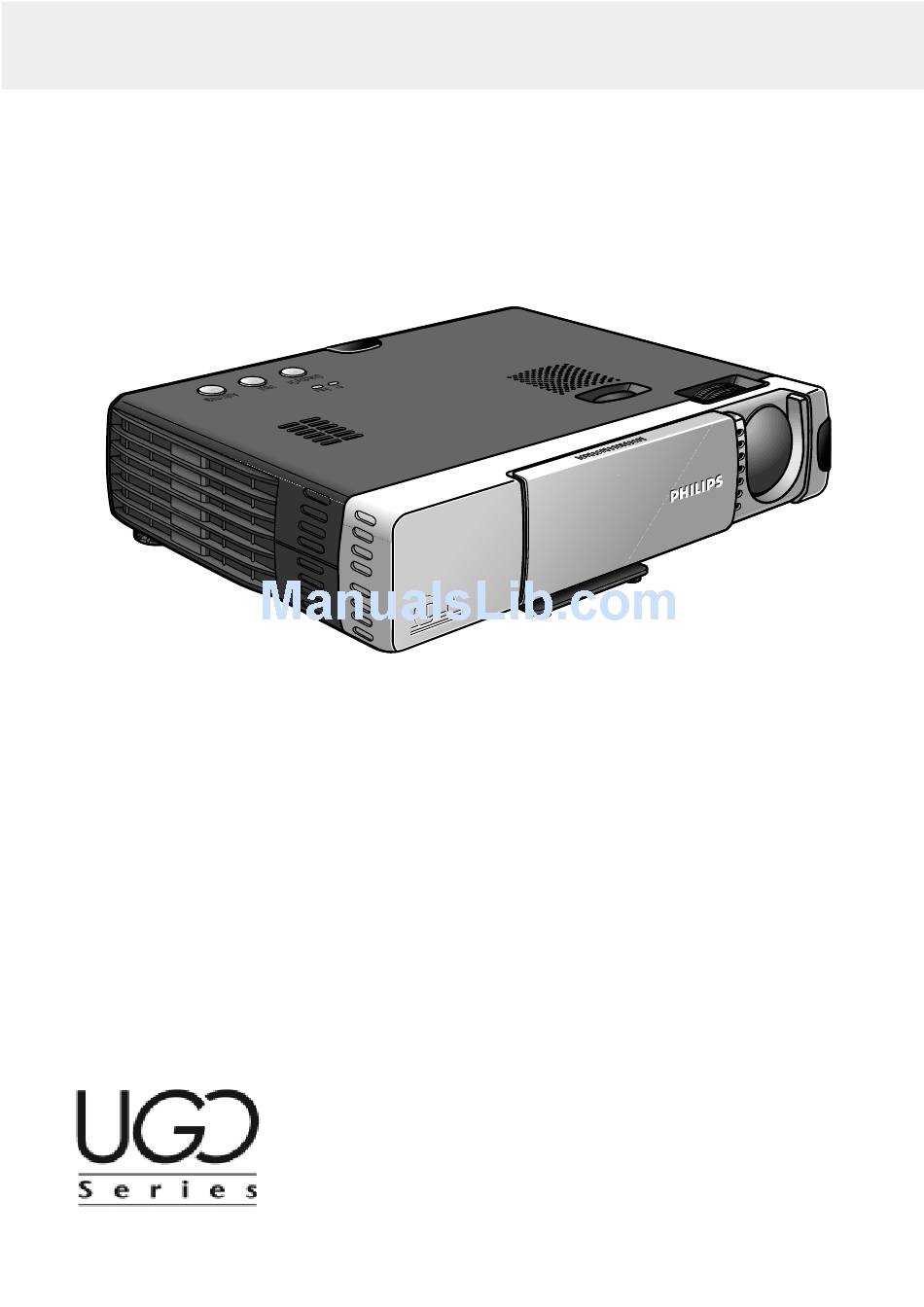

- Page 1 Philips Multimedia projector LC5241, LC5231 User guide English...
-
Page 2: Controls And Connections
0. Controls and connections Status Standby/On Audio in Mouse Input Auto image Data / YCbCr ™ ¡ S-Video in Video in & fig. 1 fig. 2... - Page 3 0. Controls and connections £ Mouse ≤ Video ∞ Mouse Video ⁄ ¤ ‹ º ª Standby Menu • Data ≥ Cancel § Standby Menu Data Cancel ‡ Auto image D-Freeze A/V Mute fl D-Zoom D-Keystone Volume fi › ° fig.
-
Page 4: Table Of Contents
Note: Save energy! Please put the projector in the STANDBY position if you are not going to use the projector for more than 15 minutes. Important note for users in the U.S.A. -
Page 5: Important Safeguards
Do not use a chemical duster or polisher-cleaner because it can adversely affect the unit and peel the paint. 3. Do not use attachments not recommended by PHILIPS, as they may cause hazards. 4. Do not use the projector near water- for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, near a swimming pool, etc. -
Page 6: Projector Features
The projector is equipped with a full mirror scan conversion function (‘vertical/horizontal mirror’). 9. Digital features The digital features of the projector are of great value for an attractive presentation. Digital keystone correction; A keystoned image (picture top width larger than picture bottom width or vice versa) appears when the relative positions of the projector and the screen are not correct. -
Page 7: Functional Overview
– Flashes green when the lamp is starting up (1 min.) – Lights up green when the lamp is on – Flashes orange when the projector is switched from the on into the standby mode (1 min) Status indicator (see also page 24) –... -
Page 8: Set Up
When moving the projector or when it is not in use, cover the lens with the sliding lens cap. • Only use the projector on a solid flat level surface. If the projector falls to the ground, you may be injured and the projector may severely be damaged. -
Page 9: Adjusting The Focus Of The Image
Use the Height/Level Adjuster to adjust the vertical angle of the projector as specified under ‘Positioning the projector and screen’. Projection angle • Press the adjuster button on the top cover of the projector. • Lift the projector to allow the adjuster leg to drop into position. •... -
Page 10: Inserting The Batteries In The Remote Control
Using the remote control as PC mouse The remote control of this projector can be used as the PC mouse (wireless mouse function) by connecting the Mouse connector of this projector and the PC. The PC Mouse functions of the Remote Control function after pushing the Mouse button on the RC Unit. -
Page 11: Installation
S-Video Cable Video/computer cables These accessories (1 to 7) are supplied with the product for connecting the projector to computer/AV equipment. The numbers in the left-hand column correspond with the numbers in the connection diagrams on the following pages. Video/computer cables and adapter... -
Page 12: Connecting To A Computer
For this, use the PC audio cable (3) (supplied) . Connecting to PC mouse connector General – The remote control of this projector can be used as the PC mouse (wireless mouse function) by connecting the Mouse connector of this projector to the corresponding connector of the PC. -
Page 13: Connecting To Video Equipment
S-Video in 1. Connect the video OUT socket of a VCR, Laser Disc player, video camera or TV to the Video in socket & of the projector. For this, use the video connection cable (2) (supplied). 2. Connect the audio OUT L/R sockets of the VCR, Laser Disc player, video camera or TV to the AUDIO socket # of the projector. -
Page 14: Installation
3. To use the built-in audio system, connect one end of the computer audio cable (3) to the Audio in terminal # on the projector. Connect the other end (4) to the Audio output terminal on the video source. Connecting to video equipment... -
Page 15: Operation
When this happens, turn off the projector and replace the lamp cartridge with a new one. The projector will not turn on after 1100 hours. (It will turn off if it is in use) For lamp cartridge replacement see the section under Maintenance. -
Page 16: Menu Structure - Data Input
8. Operation Data mode - Normal menu flip cover closed IMAGE INFORMATION BRIGHTNESS Mouse Standby Menu CONTRAST Video Data Cancel PICTURE ADJ FINE PICTURE -POSITION- POSITION Data mode - Advanced menu flip cover open IMAGE COLOR VIEW SET UP V-EFFECT NORMAL NATURAL Mouse... -
Page 17: Menu Structure - Video Input
8. Operation Video mode - Normal menu flip cover closed IMAGE INFORMATION BRIGHTNESS Mouse Standby Menu Video Data Cancel CONTRAST COLOR TINT SHARPNESS Video mode - Advanced menu flip cover open IMAGE COLOR VIEW SET UP V-EFFECT NORMAL NATURAL Mouse Standby Menu COLOR TEMP. -
Page 18: Display And Picture Control/Audio Volume Control
So when you switch from one source to another, the settings of the source switched from will be stored and the settings of the source switched to will be recalled. When the projector is switched off and on again the settings for the selected source will be recalled again. - Page 19 8. Operation DATA MODE - ADVANCED MENU Press the Menu button with the flip cover of the remote control open , to display the advanced menu. Use the cursor key (up/down) to select the display and picture control functions. After selection of the required function, set the required value setting by means of the cursor key (left /right).
-
Page 20: Other Settings
- OFF: - for a darkened room. Color around white portion is natural and smooth. - ON: - for a bright-lit room. White is emphasised. – COLOR SYSTEM The following color systems can be used with this projector: - NTSC 3.58 - NTSC 4.43 - PAL - PAL-M... -
Page 21: Operation
8. Operation – PROJECTION The projector can be used in various positions with respect to the viewers and the projection screen. With the PROJECTION function via setup menu the picture can be displayed in a way that is suitable for a specific application. -
Page 22: Maintenance
Note: Obtain a replacement lamp cartridge at the store where the unit was purchased. Please specify the following information when ordering a replacement lamp cartridge: – Model name: LC5241 (XGA) / LC5231(SVGA) – Lamp type: LCA 3119; 12nc: 8670 931 19009... -
Page 23: Lamplife Time
9. Maintenance Caution! – Do not use a lamp cartridge other than the Philips replacement lamp cartridge. Order this from your Philips dealer using the unit model number (see ‘Note’ under ‘Lamp replacement’). – Be very careful. The lamp and lampholder may still be too hot to touch. -
Page 24: Troubleshooting
If this does not solve the problem, please contact your dealer. Flashing Slowly (On and off The cooling fan has stopped. Contact your Philips dealer for service. in a cycle of 8 sec.) Flashing Very Slowly (On and The lamp is not turned on.
