Casio TM-100 Service Manual & Parts List page 9

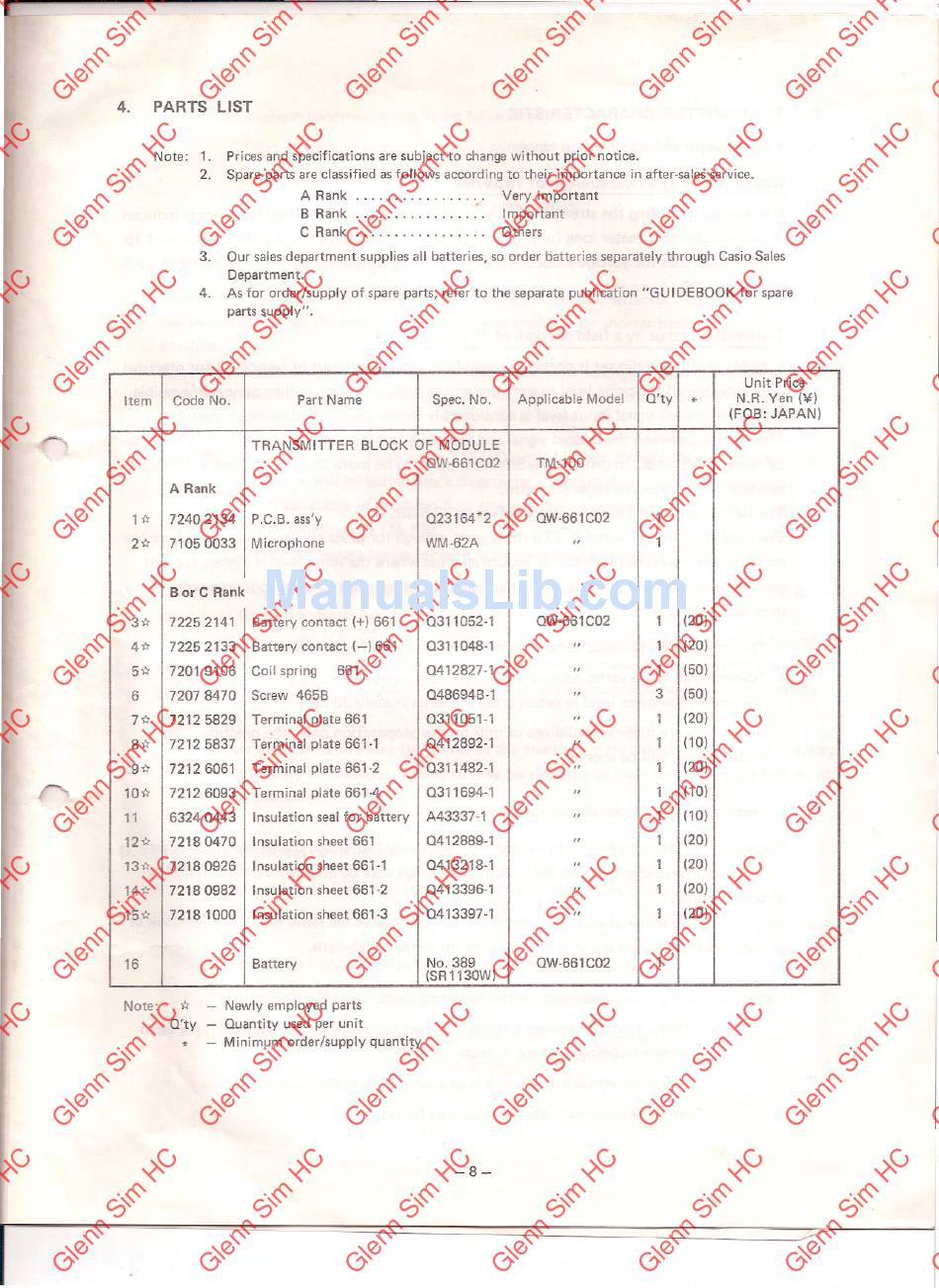

4. PARTS LIST
Note: 1. Prices and specifications are subject to change without prior notice.
2. Spare parts are classified as follows according to their importance in after-sales service.
A Rank Very Important
'B Rank. . . . . . . . . . . . . . . .. Important
CRank Others
3. Our sales department supplies all batteries, so order batteries separately,through Casio Sales
Department.
4. As for order/supply of spare parts, refer to the separate publication "GUIDEBOOK for spare
parts supply".
Unit Price
Code No. Part Name
Spec. No.
Applicable Model
O'ty
* N.R. Yen
(¥)
(FOB: JAPAN)
OW-661 C02
TM-l00
1~
72402134 P.C.B. ass'y 023164*2
OW-661C02
1 71050033 Microphone WM-62A
"
1
3~
72252141 Battery contact (+) 661 0311052-1 QW-661 C02 1 (20) 72252133 Battery contact (-) 661 0311048-1
"
1
(20) 72019106 Coil spring 661 0412827-1
"
1
(50) 72078470 Screw 465B 048694B-l
"
3
(50) 72125829 Terminal plate 661 0311051-1
"
1
(20) 72125837 Terminal plate 661-1 0412892-1
"
1
(10) 72126061 Terminal plate 661-2 0311482-1
"
1
(20) 7 2126093
Terminal plate 661-4
0311694-1
"
1
(10) 6 3240443
Insulation seal for battery
A43337·1
"
1
(10) 7 2180470 Insulation sheet 661 0412889-1
"
1
(20) 7 2180926 Insulation sheet 661-1 0413218-1
"
1
(20) 7 2180982 Insulation sheet 661-2 0413396-1
"
1
(20) 7 2181000
Insulation sheet 661-3 0413397-1
"
1
(20)
Battery NO.389
QW-661C02 1
Note: ~
O'ty
*
Newly employed parts
Ouantity used per unit
Minimum order/supply quantity
-8-
