4.

Windows Wireless Utility

4.1

Windows AutoConfig Service for Win 7

4.1.1 Ralink Wireless Utility and Windows AutoConfig Service

Notes: The following installation was operated under Windows 7. ( Procedures are similar for Windows XP
/vista)
In Windows 7, the AutoConfig service provides basic wireless configuration functions for the Ralink
Wireless Network Interface Controller. In order to perform these functions, the AutoConfig service
should first be enabled (Refer to Section 1-2-2).

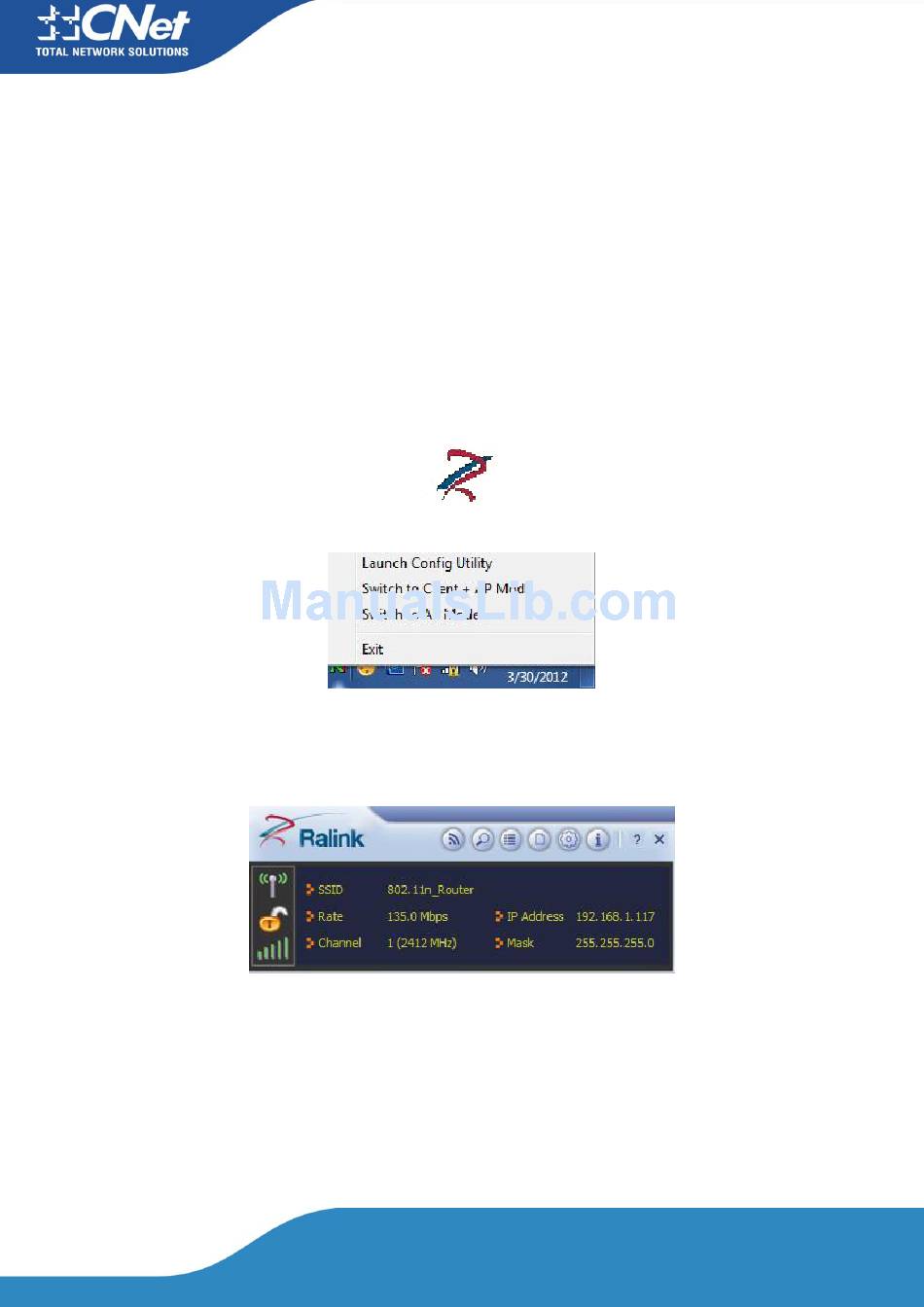

Once the Ralink wireless utility is minimized, click the Ralink icon as shown in Figure 1-1. This will
bring up the option menu shown as Figure 1-2 for the user to restore the utility window or terminate
the utility.
The Ralink wireless utility as shown in Figure 1-3, provides profile management, the available net-
works listing, a statistical counter display, Wi-Fi multimedia (WMM), protected Wi-Fi setup, Cisco
compatible extensions (CCX), call admission control (CAC), radio controls, Ralink driver/utility in-
formation, and help functions.
The Ralink wireless utility starts in compact mode as shown in Figure 1-3. Clicking the expanding
icon at the bottom-right corner can change to the full mode as shown in Figure 1-4.
Figure 1-1
Figure 1-2
Figure 1-3 Ralink Utility
