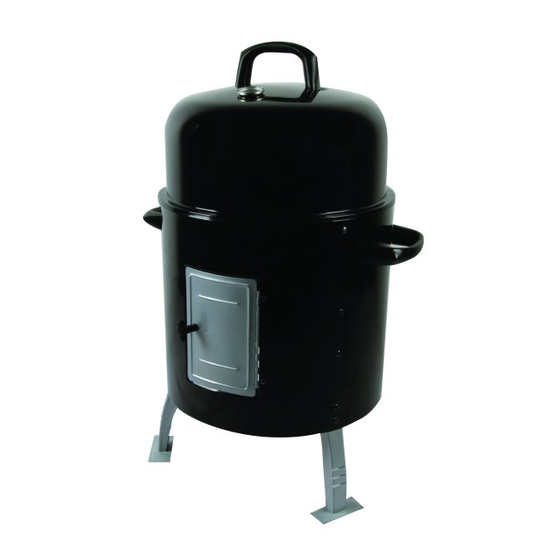

OWNER'S MANUAL

Charcoal Water Smoker

Model No

XG17-096-034-15

Page 1

Table of Contents

Need help?

Do you have a question about the XG17-096-034-15 and is the answer not in the manual?

Questions and answers

Summary of Contents for EXPERT GRILL XG17-096-034-15

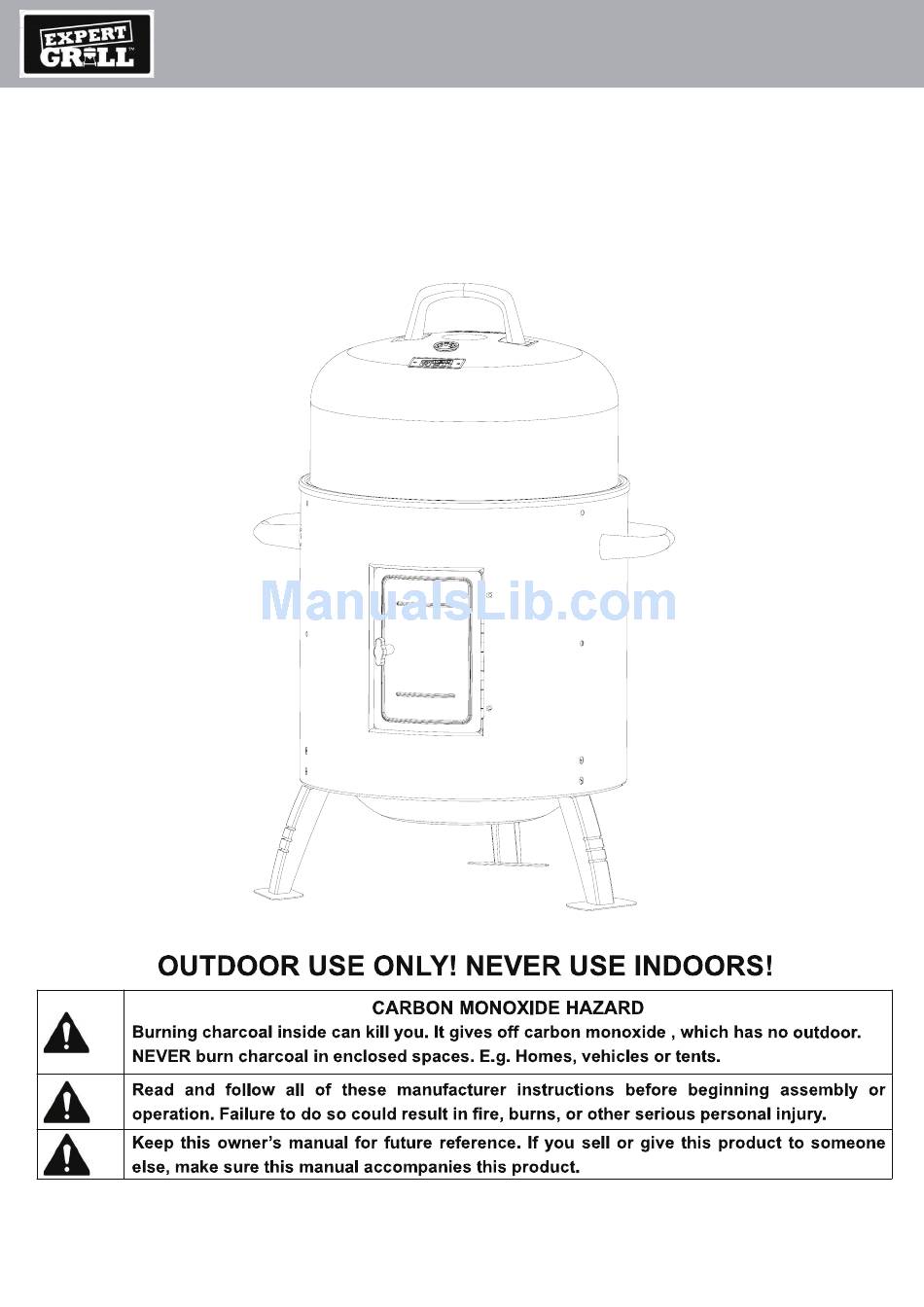

Page 1 OWNER’S MANUAL Charcoal Water Smoker Model No XG17-096-034-15 Page 1...
Page 2 Model No XG17-096-034-15 Smoker smoker smoker smoker smoker smoker smoker smoker smoker smoker Smoker smoker Page 2...
Page 3 Model No XG17-096-034-15 smoker When using charcoal lighting fluid, allow charcoal to burn until covered with a light ash (approximately 20 minutes) prior to closing door and placing dome lid on smoker. This will allow charcoal lighting fluid to burn off. Failure to do this could trap fumes from charcoal lighting fluid in smoker and may result in a flash-fire or explosion when door is opened or dome lid is removed.
Page 4 Model No XG17-096-034-15 Water bowl should always be used when smoking. Do not allow liquid in water bowl to completely evaporate. Check water bowl every 2 hours and add water if level is low (a sizzling sound may indicate a need for water). Follow instructions in “Adding Water During Cooking”...
Page 5 Model No XG17-096-034-15 or email customerservice sanxinint.com . Page 5...
Page 6 Model No XG17-096-034-15 Page 6...
Page 7 Model No XG17-096-034-15 Parts List Part Part Description Qty Image Description Qty Image Handle Charcoal Bowl Temperature Upper Grate Gauge Bracket Lower Grate Lid Air Vent Bracket Body Dome Lid Cooking Door Grate Water Bowl Charcoal Grate Page 7...
Page 8 Model No XG17-096-034-15 Hardware Part Part Description Qty Image Description Qty Image M5*10 Screw M6 Wing Nut Washer M5*10 Screw M5 Wing Nut M6*12 Screw Tools Required for Assembly (Not Included) Phillips Head Screwdriver Page 8...
Page 9 Model No XG17-096-034-15 Step 1 1-1:Assembly of lid handle (1) with wing nuts (D) . 1-2:Assembly of lid air vent (3) with screw (A) , washer (E) and wing nut (C) . 1-3: Assembly of temperature gauge (2) . Step 2 Assembly of upper grate brackets (9) and lower grate brackets (10) to body with screw (F) .
Page 10 Model No XG17-096-034-15 Step 3 Assembly of legs (13) to body (11) with screw (F). Step 4 Assembly of side handles (1) to body (11) with wing nut (D). Page 10...
Page 11 Model No XG17-096-034-15 Step 5 Attaching front door (12) to body (11) with screw (B). Step 6 Placing components into smoker . Page 11...
Page 12 Model No XG17-096-034-15 GRILLING Step 1 Remove the cooking grates, water bowl and charcoal bowl with grate. Replace the cooking grate on lower bracket. Make sure the rim is resting securely on notched out step of lower support brackets. Step 2 Put the charcoal grate in the charcoal bowl and set charcoal bowl on cooking grate.
Page 13 Model No XG17-096-034-15 WATER SMOKING Step 1 Put the charcoal in the charcoal bowl and light it up through door. Step 2 Once unit is lit, position water bowl so rim is resting securely on notched out step of all support brackets.
Page 14 Model No XG17-096-034-15 Flavoring Wood To obtain your favorite smoke flavor, experiment by using chunks, sticks or chips of flavor producing wood such as hickory, pecan, apple, cherry, or mesquite. Most fruit or nut tree wood may be used for smoke flavoring. Do not use resinous woods such as pine as it will produce an unpleasant taste.
Page 15 Model No XG17-096-034-15 Adding Water During Cooking Check the water level in water bowl if the complete cooking process takes longer than 2 hours. A low water level can be detected by listening for the sound of water sizzling. Water can be added to the water bowl through the top of smoker or through the door.
Page 16 Model No XG17-096-034-15 Proper Care & Maintenance Wash cooking grates, water and charcoal bowls with hot, soapy water, rinse well and dry. Lightly coat cooking grates with vegetable oil or vegetable cooking spray. Clean inside and outside of smoker by wiping off with a damp cloth. After cleaning, apply a light coat of vegetable oil or vegetable cooking spray to the interior surface of the dome lid, smoker body, cooking grates and water bowl.
Page 17 Model No XG17-096-034-15 Page 17...
