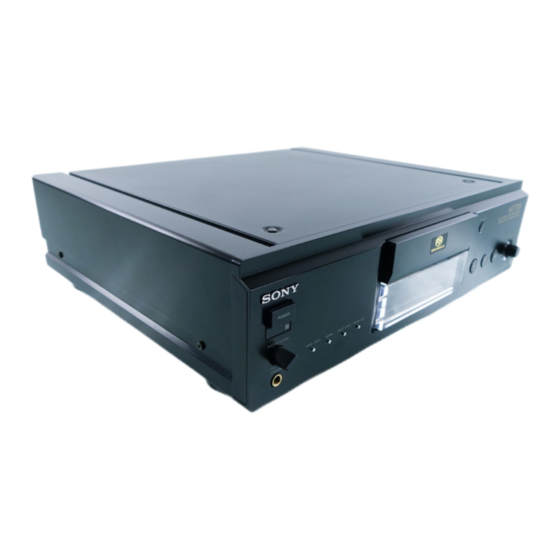

Super audio cd player
Hide thumbs Also See for SCD-XA777ES:
Table of Contents

Advertisement

SERVICE MANUAL
Ver 1.1 2001.10
When a super audio CD is played
Playing frequency range 2 Hz to 100 kHz
Frequency response
2 Hz to 50 kHz (–3 dB)
Dynamic range
108 dB or more
Total harmonic distortion rate
0.0012 % or less
Wow and flutter
Value of measurable limit (±0.001 %
W. PEAK) or less
When a CD is played
Frequency response
2 Hz to 20 kHz
Dynamic range
100 dB or more
Total harmonic distortion rate
0.0017 % or less
Wow and flutter
Value of measurable limit (±0.001 %
W. PEAK) or less
Sony Corporation
9-873-192-02
2001J0500-1
Home Audio Company
C 2001.10
Published by Sony Engineering Corporation
SCD-XA777ES
Model Name Using Similar Mechanism NEW
CD Mechanism Type
Base Unit Name
Optical Pick-up Name

SPECIFICATIONS

Output connector
Load impedance
Jack type
Output level
Over 10 kilohms
ANALOG OUT
Phono
2 Vrms
jacks
(at 50 kilohms)
Square
–18 dBm
Light emitting
DIGITAL (CD)
(
optical
wave length:
OUT
output
660 nm
OPTICAL*
connector
DIGITAL (CD)
Coaxial
0.5 Vp-p
75 ohms
OUT
output
COAXIAL*
connector
32 ohms
PHONES
Stereo
10 mW
phone jack
*Output only the audio signals of the CD
General
Laser
Semiconductor laser
(SACD: λ = 650 nm)
(CD: λ = 780 nm)
Emission duration: continuous
Canadian Model
AEP Model
CDM19JB-DVBU4B
CDM19JN-DVBU4B
DVBU4B
KHM-230AAA
Laser radiant power:
5.47 uW at 650 nm
*These output is the value measured at a distance of about
200mm from the objective lens surface on the optical pick-up.
Power requirements
120 V AC, 60 Hz
(US and Canadian models)
230 V AC, 50/60 Hz (AEP model)
)
Power consumption
32 W
430 × 130 × 380 mm
Dimensions (w/h/d)
(17 × 5 1/8 × 15 in.)
incl. projecting parts
Mass (approx.)
16 kg (35 lbs 5 oz.)
Supplied accessories
• Audio connecting cord
phono jack × 2 (Red and White) y phono jack × 2 (Red
and White) (3)
phono jack × 1 (Black) y phono jack × 1 (Black) (2)
• Remote commander RM-SX700 (1)
• R06 (size-AA) batteries (2)
• AC power cord (Mains lead) (1)
Design and specifications are subject to change without notice.
SUPER AUDIO CD PLAYER
