thermostatic mixer valve
ADJUSTING THE MAXIMUM

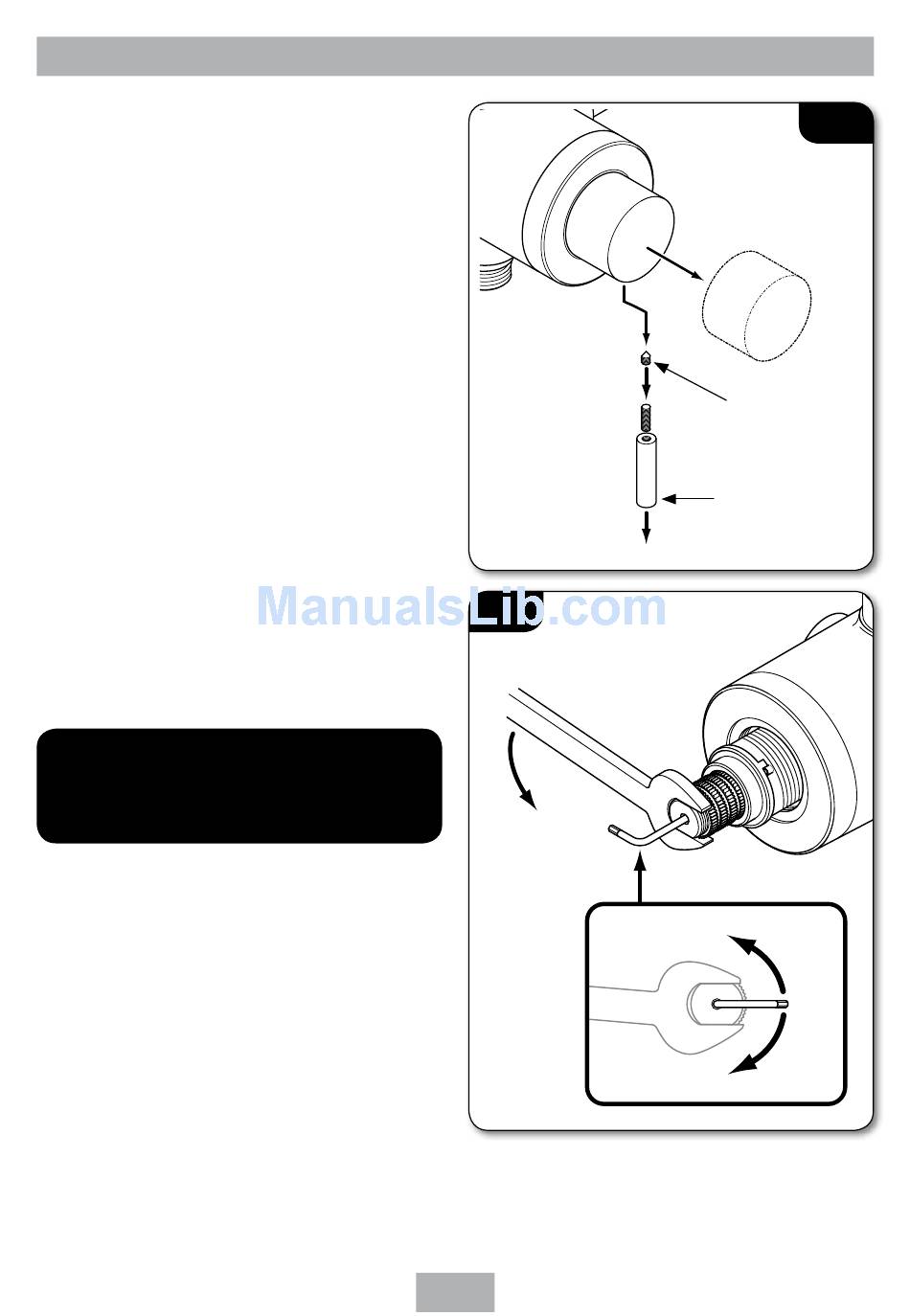

Fig.11
TEMPERATURE SETTING
(and fitting the lever)
The mixer valve is supplied with the flow and
temperature knob fitted and the maximum
temperature stop factory set to 38°C (this can be
adjusted during installation).
The lever is supplied loose in the box.
Using a suitable Allen key, loosen the retaining
screw and pull off the temperature control knob
(fig.11).
Retaining screw
Using an appropriate sized spanner, slightly
loosen the end of the thermostatic cartridge.
Insert an appropriately sized Allen key into the
end of the cartridge and turn in the directions
'Hex' end of lever
shown in (fig.12) to adjust the temperature.
Once the desired temperature is obtained, re
tighten the end of the thermostatic cartridge.
Refit the temperature control housing, making
sure the temperature control lever hole is aligned
Fig.12
at 6 o'clock. Secure in place with the retaining
grub screw and fit the lever.
When you are satisfied with the temperature turn
the flow control off.
Note: If 'Tamper proof' lever fitting is required,
tighten the lever into the control using a suitable Allen
key placed into the recessed 'hex' end of the lever.
Undo
DO NOT OVERTIGHTEN THE LEVER.
Increase MAX temperature
Decrease MAX temperature
9
