FORM 201.23-EG1 (1013)

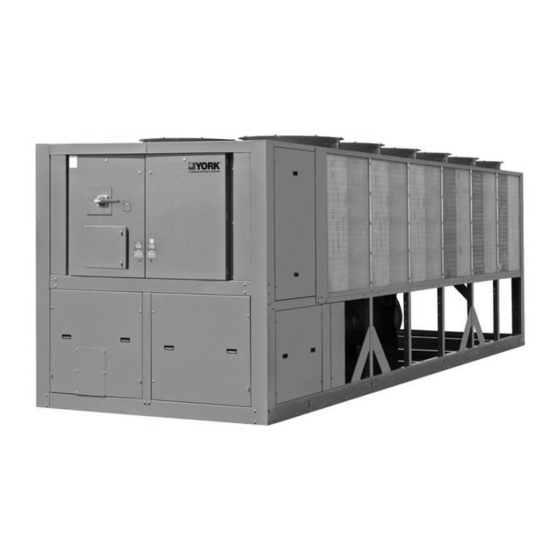

Model YCIV Air-Cooled Screw Liquid Chillers
with Variable Speed Drive
Style A
150 - 385 TONS
(527 - 1354 kWi)
2, 3, and 4 Compressor
140-200 Tons
60 Hz
60Hz
ASHRAE 90.1 Compliant
HFC-134a

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YCIV0177S/P and is the answer not in the manual?

Questions and answers

Related Manuals for York YCIV0177S/P

Summary of Contents for York YCIV0177S/P

  • Page 1 FORM 201.23-EG1 (1013) Model YCIV Air-Cooled Screw Liquid Chillers with Variable Speed Drive Style A 150 - 385 TONS (527 - 1354 kWi) 2, 3, and 4 Compressor 140-200 Tons 60 Hz 60Hz ASHRAE 90.1 Compliant HFC-134a...

  • Page 2: Table Of Contents

    FORM 201.23-EG1 (1013) Table of Contents Introduction ..........................................3 Unit Overview..........................................4 Accessories and Options ......................................7 Nomenclature..........................................9 Temperatures and Flows ......................................10 Water Pressure Drop ......................................... 12 Standard Efficiency Ratings - English - 460V/60Hz..............................16 High Efficiency Ratings - English - 460V/60Hz ..............................20 Standard Efficiency Ratings - SI - 460V/60Hz ................................

  • Page 3: Introduction

    FORM 201.23-EG1 (1013) Introduction YORK YCIV Air-Cooled Screw Liquid Chillers Johnson Controls has a proud history of innovation in both compressor design and variable-speed- drive (VSD) technology. The Latitude series of air-cooled chillers uses the best of modern screw compressor design and manufacturing techniques and combines them with the latest in a long line of chiller variable speed drives.

  • Page 4: Unit Overview

    All controls and motor starting equipment necessary tory mounted and wired. for unit operation shall be factory wired and function tested. SEMI-HERMETIC YORK TWIN SCREW COMPRES- • VSD Power/Control Panel includes main power SORS connection(s), VSD and fan motor contactors, cur- Johnson Controls Engineered Systems’...
  • Page 5 FORM 201.23-EG1 (1013) glass with moisture-indicator, and electronic expansion • Standard and reduced sound level models have valve. condensers fitted with single-speed fans. Low sound models have two-speed fans fitted. • Discharge line provided with manual compressor shutoff service valve (See Options and Accessories for •...
  • Page 6 FORM 201.23-EG1 (1013) Unit Overview - continued • Display Data: Chiller liquid return and leaving tempera- • Each compressor is installed on its own independent tures, ambient, lead compressor identification, clock refrigerant circuit, which is factory pressure tested, and schedule, (variable) out of range, remote input evacuated, then fully charged with HFC-134a refriger- indication, chilled liquid reset setpoint, and history ant and oil.

  • Page 7: Accessories And Options

    FORM 201.23-EG1 (1013) Accessories and Options HIGH STATIC FANS - (380V/60Hz) Condenser fans with SOUND REDUCTION OPTIONS higher power motors suitable for high external static pres- The standard chiller has fans that operate at normal sure, upto 100Pa (0.4 in. water), across condenser coils. speed, no compressor enclosure, and is typically used Select this option if additional air-flow resistance may in non-sensitive sound areas such as industrial areas or...
  • Page 8 FORM 201.23-EG1 (1013) Accessories and Options Louvered Panels (condenser coils only) – Lou- of up to eight chillers in parallel based on mixed liquid • vered panels, painted the same color as the unit, are temperature (interconnecting wiring by others). (Field- mounted over the exterior con denser coil faces on the mounted) sides of the unit to visually screen and protect coils.

  • Page 9: Nomenclature

    FORM 201.23-EG1 (1013) Nomenclature NOMENCLATURE The Model Number denotes the following characteristics of the unit: JOHNSON CONTROLS...

  • Page 10: Temperatures And Flows

    FORM 201.23-EG1 (1013) Temperatures and Flows TEMPERATURE AND FLOWS (English Units) LEAVING WATER COOLER FLOW MODEL AIR ON CONDENSER (°F) TEMPERATURE (°F) (GPM) NUMBER YCIV MIN. MAX. MIN. MAX. MIN. 60 HZ 0157(S/P) 0157(E/V) 0177(S/P) 0177(E/V) 0187(S/P) 0187(E/V) 0197(E/V) 0207(S/P) 0207(E/V) 0227(S/P) 0227(E/V)
  • Page 11 FORM 201.23-EG1 (1013) TEMPERATURE AND FLOWS (SI Units) LEAVING WATER COOLER FLOW MODEL AIR ON CONDENSER (°C) TEMPERATURE (°C) (L/S) NUMBER YCIV MIN. MAX. MIN. MAX. MIN. 60 HZ 15.6 42.6 -17.8 51.7 0157(S/P) 15.6 10.1 47.3 -17.8 51.7 0157(E/V) 15.6 10.1 47.3...

  • Page 12: Water Pressure Drop

    FORM 201.23-EG1 (1013) Water Pressure Drop ENGLISH UNITS MODEL NUMBER YCIV COOLER 60Hz 0157(S/P) 0157(E/V) 0177(S/P/E/V) 0187(S/P/E/V) 0197(E/V) 0207(E/V) 0227(E/V) 0207(S/P) 0227(S/P) 0247(S/P/E/V) 0267(S/P) JOHNSON CONTROLS...
  • Page 13 FORM 201.23-EG1 (1013) SI UNITS MODEL NUMBER YCIV COOLER 60Hz 0157(S/P) 0157(E/V) 0177(S/P/E/V) 0187(S/P/E/V) 0197(E/V) 0207(E/V) 0227(E/V) 0207(S/P) 0227(S/P) 0247(S/P/E/V) 0267(S/P) JOHNSON CONTROLS...
  • Page 14 FORM 201.23-EG1 (1013) Water Pressure Drop ENGLISH UNITS Pressure Drop Through Three and Four Circuit YCIV Evaporators 1000 2000 Water Flow Rate (GPM) YCIV MODELS EVAP 60Hz 0267EA/VA 0287SA/PA 0287EA/VA 0307SA/PA 0327EA/VA 0357SA/PA 0357EA/VA 0397SA/PA 0457PA JOHNSON CONTROLS...
  • Page 15 FORM 201.23-EG1 (1013) SI UNITS Pressure Drop Through Three and Four Circuit YCIV Evaporators YCIV MODELS EVAP 60Hz 0267EA/VA 0287SA/PA 0287EA/VA 0307SA/PA 0327EA/VA 0357SA/PA 0357EA/VA 0397SA/PA 0457PA JOHNSON CONTROLS...

  • Page 16: Standard Efficiency Ratings - English - 460V/60Hz

    52.0 177.8 138.4 14.0 176.4 148.2 13.1 174.8 158.9 12.2 173.1 170.2 11.3 171.2 182.3 10.5 168.6 195.6 9.7 162.2 206.1 8.9 155.8 216.8 8.1 149.2 227.6 7.4 55.0 185.4 140.6 14.4 184.0 150.3 13.5 182.3 160.8 12.6 180.5 172.1 11.7 178.5 184.1 10.8 175.0 196.8 10.0 168.3 207.2 9.2 161.7 217.8 8.4 151.7 218.9 7.8 MODEL: YCIV0177S/P S_IPLV = 13.0 P_IPLV = 14.8 AIR TEMPERATURE ON - CONDENSER (°F)
  • Page 17 FORM 201.23-EG1 (1013) MODEL: YCIV0207S/P S_IPLV = 13.2 P_IPLV = 14.7 AIR TEMPERATURE ON - CONDENSER (°F) LCWT (°F) TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER 40.0 194.8 168.3 12.7 192.9 182.2 11.7 190.9 197.4 10.8 188.7 213.5 9.9 186.4 230.3 9.1 181.9 244.1 8.4 176.0 254.8 7.8 168.7 261.6 7.3 149.2 238.0 7.1 42.0 200.9 169.6 13.1 199.0 183.3 12.0 196.8 198.2 11.1 194.6 214.3 10.2 192.1 231.2 9.4 187.1 244.4 8.7 180.7 254.7 8.0 173.2 261.8 7.5 151.0 232.8 7.3 44.0 207.2 171.2 13.3 205.2 184.5 12.3 202.9 199.3 11.4 200.5 215.2 10.4 197.6 231.3 9.6 192.4 244.6 8.9 185.4 254.4 8.3 177.7 261.8 7.7 152.8 227.3 7.6...
  • Page 18 FORM 201.23-EG1 (1013) Standard Efficiency Ratings - English - 460V/60Hz MODEL: YCIV0267S/P S_IPLV = 12.3 P_IPLV = 14.9 AIR TEMPERATURE ON - CONDENSER (°F) LCWT (°F) TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER 40.0 252.3 217.0 12.8 250.2 233.1 11.9 247.9 250.3 11.0 245.4 268.3 10.2 242.7 287.2 9.5 239.6 308.5 8.7 233.9 325.1 8.1 227.3 340.0 7.6 220.8 354.7 7.1 42.0 260.2 219.0 13.1 258.0 235.2 12.1 255.6 252.2 11.3 252.9 270.4 10.4 250.1 289.2 9.7 246.8 310.7 9.0 240.4 326.4 8.3 233.6 341.3 7.8 226.8 356.2 7.2 44.0 268.2 221.2 13.3 265.9 237.3 12.4 263.3 254.3 11.5 260.6 272.4 10.7 257.6 291.5 9.9 254.0 312.6 9.2 247.1 327.6 8.5 240.1 342.6 7.9 231.8 354.5 7.4...
  • Page 19 FORM 201.23-EG1 (1013) MODEL: YCIV0357S/P S_IPLV = 13.5 P_IPLV = 15.1 AIR TEMPERATURE ON - CONDENSER (°F) LCWT (°F) TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER 40.0 336.3 288.0 12.8 333.4 309.9 11.9 330.1 333.5 11.0 326.6 358.2 10.2 322.9 384.1 9.4 318.6 413.2 8.7 309.3 432.1 8.1 298.3 446.9 7.6 287.4 460.8 7.1 42.0 346.9 290.6 13.1 343.8 312.4 12.2 340.4 335.8 11.3 336.7 360.5 10.4 332.8 386.5 9.7 328.3 415.8 8.9 317.7 433.0 8.3 306.3 447.8 7.7 295.0 462.0 7.2 44.0 357.7 293.3 13.4 354.5 315.0 12.4 350.9 338.3 11.5 347.1 363.1 10.7 342.9 389.0 9.9 338.1 418.1 9.1 326.3 433.8 8.5 314.6 448.7 7.9 302.8 463.1 7.4...

  • Page 20: High Efficiency Ratings - English - 460V/60Hz

    FORM 201.23-EG1 (1013) High Efficiency Ratings - English - 460V/60Hz MODEL: YCIV0157E/V E_IPLV = 13.5 V_IPLV = 14.6 AIR TEMPERATURE ON - CONDENSER (°F) LCWT (°F) TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER 40.0 148.1 121.7 13.1 146.8 130.5 12.2 145.2 139.6 11.4 143.4 149.1 10.6 141.4 158.9 9.8 139.1 170.1 9.1 136.1 181.5 8.4 130.1 190.6 7.7 124.0 200.1 7.0 42.0 152.7 122.8 13.4 151.5 131.6 12.5 149.9 140.8 11.7 148.1 150.3 10.9 146.1 160.2 10.1 143.7 171.4 9.3 140.1 182.5 8.6 133.9 191.5 7.8 127.6 200.9 7.1 44.0 157.4 123.9 13.8 156.2 132.8 12.8 154.7 142.0 11.9 152.8 151.6 11.1 150.8 161.6 10.3 148.3 172.8 9.6 144.2 183.5 8.8 137.7 192.5 8.0 131.3 201.8 7.3...
  • Page 21 FORM 201.23-EG1 (1013) MODEL: YCIV0197E/V E_IPLV = 12.9 V_IPLV = 15.0 AIR TEMPERATURE ON - CONDENSER (°F) LCWT (°F) TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER 40.0 189.8 153.1 13.4 188.2 165.6 12.4 186.4 179.5 11.4 184.5 194.4 10.5 182.5 210.2 9.6 180.1 227.8 8.8 176.4 243.2 8.1 169.4 250.7 7.6 162.4 257.3 7.1 42.0 195.8 154.3 13.7 194.1 166.4 12.7 192.2 180.0 11.7 190.3 194.8 10.8 188.1 210.6 9.9 185.6 228.4 9.1 181.3 242.8 8.4 174.0 250.6 7.8 166.7 257.5 7.3 44.0 201.9 155.8 14.0 200.1 167.5 13.0 198.2 180.8 12.0 196.1 195.4 11.1 193.9 211.0 10.2 191.3 228.9 9.3 186.2 242.3 8.6 178.7 250.3 8.0 171.2 257.5 7.5...
  • Page 22 FORM 201.23-EG1 (1013) High Efficiency Ratings - English - 460V/60Hz MODEL: YCIV0247E/V E_IPLV = 12.8 V_IPLV = 14.9 AIR TEMPERATURE ON - CONDENSER (°F) LCWT (°F) TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER 40.0 232.7 192.6 13.1 230.8 206.9 12.2 228.7 222.3 11.3 226.4 238.6 10.5 223.9 255.8 9.7 221.1 275.2 9.0 216.9 292.5 8.3 210.2 305.1 7.8 202.9 316.2 7.2 42.0 240.0 194.4 13.4 238.0 208.6 12.5 235.8 223.9 11.6 233.4 240.2 10.8 230.8 257.3 10.0 227.9 276.8 9.2 223.2 293.8 8.5 216.0 305.8 8.0 208.5 317.0 7.4 44.0 247.4 196.3 13.7 245.4 210.4 12.8 243.1 225.6 11.9 240.6 241.8 11.0 237.9 259.0 10.2 234.7 278.3 9.4 229.7 294.9 8.7 221.9 306.4 8.2 213.0 315.2 7.6...
  • Page 23 FORM 201.23-EG1 (1013) MODEL: YCIV0327E/V E_IPLV = 13.8 V_IPLV = 14.8 AIR TEMPERATURE ON - CONDENSER (°F) LCWT (°F) TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER 40.0 305.7 244.9 13.5 303.0 264.3 12.5 300.2 285.6 11.5 297.2 308.6 10.6 293.9 332.8 9.8 290.2 360.1 9.0 283.6 382.0 8.3 273.3 395.7 7.8 262.0 405.9 7.3 42.0 315.4 246.9 13.8 312.6 265.9 12.8 309.7 286.8 11.8 306.4 309.5 10.9 303.0 333.8 10.1 299.1 361.2 9.2 291.6 382.1 8.6 280.6 395.6 8.0 269.0 406.3 7.5 44.0 325.4 249.3 14.1 322.5 267.8 13.1 319.3 288.4 12.2 315.9 310.7 11.2 312.3 334.8 10.4 308.2 362.3 9.5 299.7 382.2 8.8 288.1 395.4 8.2 276.1 406.4 7.6...

  • Page 24: Standard Efficiency Ratings - Si - 460V/60Hz

    542.9 223.8 532.1 225.6 13.0 651.2 144.5 641.0 163.1 628.7 184.2 597.5 205.1 555.1 224.4 537.5 220.3 MODEL: YCIV0177S/P AIR TEMPERATURE ON - CONDENSER (°C) 25.0 30.0 35.0 40.0 45.0 46.0 LCWT (°C) 587.3 149.5 576.4 171.3 563.2 194.8 536.0 213.2...
  • Page 25 FORM 201.23-EG1 (1013) MODEL: YCIV0207S/P AIR TEMPERATURE ON - CONDENSER (°C) 25.0 30.0 35.0 40.0 45.0 46.0 LCWT (°C) 689.5 174.1 676.6 200.8 662.1 230.6 629.2 253.3 564.5 253.3 530.0 238.1 709.0 175.2 695.5 201.6 680.0 231.2 644.2 253.1 569.7 247.9 536.2 233.4...
  • Page 26 FORM 201.23-EG1 (1013) Standard Efficiency Ratings - SI - 460V/60Hz MODEL: YCIV0267S/P AIR TEMPERATURE ON - CONDENSER (°C) 25.0 30.0 35.0 40.0 45.0 46.0 LCWT (°C) 894.3 224.1 879.6 254.5 862.6 287.9 834.9 322.6 793.0 349.4 784.6 354.6 919.1 225.9 903.8 256.3 886.1...
  • Page 27 FORM 201.23-EG1 (1013) MODEL: YCIV0357S/P AIR TEMPERATURE ON - CONDENSER (°C) 25.0 30.0 35.0 40.0 45.0 46.0 LCWT (°C) 1191.3 297.4 1170.8 339.2 1147.5 384.9 1105.5 429.4 1034.8 455.7 1020.8 460.7 1224.9 299.8 1203.5 341.3 1179.0 387.1 1132.5 430.1 1059.6 456.7 1045.0 461.8...

  • Page 28: High Efficiency Ratings - Si - 460V/60Hz

    FORM 201.23-EG1 (1013) High Efficiency Ratings - SI - 460V/60Hz MODEL: YCIV0157E/V AIR TEMPERATURE ON - CONDENSER (°C) 25.0 30.0 35.0 40.0 45.0 46.0 LCWT (°C) 525.0 125.6 515.6 141.9 503.3 159.4 487.8 180.0 449.0 196.6 441.1 200.0 539.7 126.6 530.4 143.0 518.1...
  • Page 29 FORM 201.23-EG1 (1013) MODEL: YCIV0197E/V AIR TEMPERATURE ON - CONDENSER (°C) 25.0 30.0 35.0 40.0 45.0 46.0 LCWT (°C) 672.7 158.3 661.6 182.6 648.7 210.3 631.4 241.5 586.1 254.8 577.1 257.1 691.7 159.3 680.1 183.1 666.7 210.7 647.0 241.1 600.4 254.8 591.1 257.3...
  • Page 30 FORM 201.23-EG1 (1013) High Efficiency Ratings - SI - 460V/60Hz MODEL: YCIV0247E/V AIR TEMPERATURE ON - CONDENSER (°C) 25.0 30.0 35.0 40.0 45.0 46.0 LCWT (°C) 824.5 198.8 811.2 226.0 795.7 256.3 773.5 289.6 730.4 312.1 721.2 316.0 847.7 200.4 833.8 227.5 817.7...
  • Page 31 FORM 201.23-EG1 (1013) MODEL: YCIV0327E/V AIR TEMPERATURE ON - CONDENSER (°C) 25.0 30.0 35.0 40.0 45.0 46.0 LCWT (°C) 1082.7 253.0 1064.7 290.5 1044.3 333.1 1013.0 378.6 945.2 402.1 930.6 405.7 1113.5 254.7 1094.7 291.6 1073.2 334.0 1038.5 378.7 967.8 402.2 953.0 406.0...

  • Page 32: Standard Efficiency Ratings - English - 380V/60Hz

    52.0 177.8 135.6 14.3 176.4 145.3 13.3 174.8 155.7 12.4 173.1 166.8 11.5 171.2 178.6 10.7 168.6 191.7 9.9 162.2 202.0 9.0 155.8 212.5 8.3 149.2 223.0 7.6 55.0 185.4 137.8 14.7 184.0 147.3 13.7 182.3 157.6 12.8 180.5 168.7 11.9 178.5 180.4 11.0 175.0 192.8 10.2 168.3 203.1 9.3 161.7 213.5 8.5 151.7 214.5 8.0 MODEL: YCIV0177S/P S_IPLV = 13.3 P_IPLV = 15.0 AIR TEMPERATURE ON - CONDENSER (°F)
  • Page 33 FORM 201.23-EG1 (1013) MODEL: YCIV0207S/P S_IPLV = 13.5 P_IPLV = 14.9 AIR TEMPERATURE ON - CONDENSER (°F) 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 LCWT (°F) TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER 40.0 194.8 164.9 13.0 192.9 178.5 12.0 190.9 193.4 11.0 188.7 209.2 10.1 186.4 225.7 9.3 181.9 239.3 8.6 176.0 249.7 8.0 168.7 256.4 7.5 149.2 233.3 7.2 42.0 200.9 166.2 13.3 199.0 179.6 12.3 196.8 194.3 11.3 194.6 210.0 10.4 192.1 226.6 9.5 187.1 239.5 8.8 180.7 249.6 8.2 173.2 256.6 7.6 151.0 228.1 7.5 44.0 207.2 167.7 13.6 205.2 180.8 12.6 202.9 195.3 11.6 200.5 210.9 10.6 197.6 226.7 9.8 192.4 239.7 9.1 185.4 249.4 8.4 177.7 256.6 7.8 152.8 222.7 7.7...
  • Page 34 FORM 201.23-EG1 (1013) Standard Efficiency Ratings - English - 380V/60Hz MODEL: YCIV0267S/P S_IPLV = 12.5 P_IPLV = 15.2 AIR TEMPERATURE ON - CONDENSER (°F) 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 LCWT (°F) TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER 40.0 252.3 212.7 13.0 250.2 228.4 12.1 247.9 245.3 11.2 245.4 262.9 10.4 242.7 281.5 9.7 239.6 302.4 8.9 233.9 318.6 8.3 227.3 333.2 7.7 220.8 347.6 7.2 42.0 260.2 214.7 13.3 258.0 230.5 12.4 255.6 247.2 11.5 252.9 265.0 10.6 250.1 283.5 9.9 246.8 304.5 9.1 240.4 319.9 8.5 233.6 334.5 7.9 226.8 349.1 7.4 44.0 268.2 216.8 13.6 265.9 232.5 12.6 263.3 249.2 11.7 260.6 267.0 10.9 257.6 285.6 10.1 254.0 306.3 9.3 247.1 321.1 8.7 240.1 335.8 8.1 231.8 347.4 7.6...
  • Page 35 FORM 201.23-EG1 (1013) MODEL: YCIV0357S/P S_IPLV = 13.7 P_IPLV = 15.4 AIR TEMPERATURE ON - CONDENSER (°F) 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 LCWT (°F) TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER 40.0 336.3 282.3 13.1 333.4 303.7 12.1 330.1 326.9 11.2 326.6 351.0 10.4 322.9 376.4 9.6 318.6 404.9 8.9 309.3 423.4 8.2 298.3 437.9 7.7 287.4 451.6 7.2 42.0 346.9 284.7 13.4 343.8 306.1 12.4 340.4 329.1 11.5 336.7 353.3 10.6 332.8 378.7 9.8 328.3 407.4 9.1 317.7 424.3 8.4 306.3 438.9 7.9 295.0 452.8 7.4 44.0 357.7 287.5 13.7 354.5 308.7 12.7 350.9 331.5 11.7 347.1 355.8 10.9 342.9 381.2 10.1 338.1 409.8 9.3 326.3 425.1 8.7 314.6 439.7 8.1 302.8 453.8 7.6...

  • Page 36: High Efficiency Ratings - English - 380V/60Hz

    FORM 201.23-EG1 (1013) High Efficiency Ratings - English - 380V/60Hz MODEL: YCIV0157E/V E_IPLV = 13.8 V_IPLV = 14.9 AIR TEMPERATURE ON - CONDENSER (°F) 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 LCWT (°F) TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER 40.0 148.1 119.3 13.4 146.8 127.9 12.5 145.2 136.8 11.6 143.4 146.1 10.8 141.4 155.8 10.0 139.1 166.7 9.3 136.1 177.9 8.5 130.1 186.8 7.8 124.0 196.1 7.1 42.0 152.7 120.3 13.7 151.5 129.0 12.8 149.9 138.0 11.9 148.1 147.3 11.1 146.1 157.0 10.3 143.7 168.0 9.5 140.1 178.8 8.7 133.9 187.6 8.0 127.6 196.9 7.3 44.0 157.4 121.4 14.0 156.2 130.1 13.1 154.7 139.2 12.2 152.8 148.6 11.3 150.8 158.3 10.5 148.3 169.3 9.7 144.2 179.8 9.0 137.7 188.7 8.2 131.3 197.7 7.5...
  • Page 37 FORM 201.23-EG1 (1013) MODEL: YCIV0197E/V E_IPLV = 13.1 V_IPLV = 15.2 AIR TEMPERATURE ON - CONDENSER (°F) 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 LCWT (°F) TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER 40.0 189.8 150.0 13.7 188.2 162.3 12.6 186.4 175.9 11.6 184.5 190.5 10.7 182.5 206.0 9.8 180.1 223.2 9.0 176.4 238.4 8.3 169.4 245.7 7.7 162.4 252.2 7.2 42.0 195.8 151.2 14.0 194.1 163.1 12.9 192.2 176.4 11.9 190.3 190.9 11.0 188.1 206.3 10.1 185.6 223.8 9.3 181.3 238.0 8.5 174.0 245.6 8.0 166.7 252.4 7.4 44.0 201.9 152.7 14.3 200.1 164.2 13.3 198.2 177.1 12.3 196.1 191.4 11.3 193.9 206.8 10.4 191.3 224.3 9.5 186.2 237.5 8.8 178.7 245.3 8.2 171.2 252.3 7.6...
  • Page 38 FORM 201.23-EG1 (1013) High Efficiency Ratings - English - 380V/60Hz MODEL: YCIV0247E/V E_IPLV = 13.0 V_IPLV = 15.2 AIR TEMPERATURE ON - CONDENSER (°F) 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 LCWT (°F) TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER 40.0 232.7 188.7 13.4 230.8 202.8 12.4 228.7 217.8 11.5 226.4 233.8 10.7 223.9 250.7 9.9 221.1 269.7 9.2 216.9 286.7 8.5 210.2 299.0 7.9 202.9 309.9 7.4 42.0 240.0 190.5 13.7 238.0 204.4 12.7 235.8 219.4 11.8 233.4 235.4 11.0 230.8 252.2 10.2 227.9 271.2 9.4 223.2 287.9 8.7 216.0 299.7 8.1 208.5 310.7 7.6 44.0 247.4 192.4 14.0 245.4 206.2 13.0 243.1 221.0 12.1 240.6 237.0 11.2 237.9 253.8 10.4 234.7 272.7 9.6 229.7 289.0 8.9 221.9 300.3 8.3 213.0 308.9 7.8...
  • Page 39 FORM 201.23-EG1 (1013) MODEL: YCIV0327E/V E_IPLV = 14.1 V_IPLV = 15.0 AIR TEMPERATURE ON - CONDENSER (°F) 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 LCWT (°F) TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER 40.0 305.7 240.0 13.7 303.0 259.0 12.7 300.2 279.9 11.7 297.2 302.4 10.8 293.9 326.1 10.0 290.2 352.9 9.2 283.6 374.3 8.5 273.3 387.8 7.9 262.0 397.8 7.4 42.0 315.4 242.0 14.1 312.6 260.6 13.1 309.7 281.0 12.1 306.4 303.3 11.1 303.0 327.1 10.3 299.1 353.9 9.4 291.6 374.4 8.7 280.6 387.7 8.1 269.0 398.2 7.6 44.0 325.4 244.3 14.4 322.5 262.4 13.4 319.3 282.6 12.4 315.9 304.5 11.4 312.3 328.1 10.6 308.2 355.1 9.7 299.7 374.5 9.0 288.1 387.5 8.3 276.1 398.3 7.8...

  • Page 40: Standard Efficiency Ratings - Si - 380V/60Hz

    542.9 219.3 532.1 221.1 13.0 651.2 141.6 641.0 159.8 628.7 180.5 597.5 201.0 555.1 219.9 537.5 215.9 MODEL: YCIV0177S/P AIR TEMPERATURE ON - CONDENSER (°C) 25.0 30.0 35.0 40.0 45.0 46.0 LCWT (°C) 587.3 146.6 576.4 167.9 563.2 190.9 536.0 208.9...
  • Page 41 FORM 201.23-EG1 (1013) MODEL: YCIV0207S/P AIR TEMPERATURE ON - CONDENSER (°C) 25.0 30.0 35.0 40.0 45.0 46.0 LCWT (°C) 689.5 170.6 676.6 196.8 662.1 226.0 629.2 248.2 564.5 248.2 530.0 233.3 709.0 171.7 695.5 197.6 680.0 226.6 644.2 248.0 569.7 242.9 536.2 228.8...
  • Page 42 FORM 201.23-EG1 (1013) Standard Efficiency Ratings - SI - 380V/60Hz MODEL: YCIV0267S/P AIR TEMPERATURE ON - CONDENSER (°C) 25.0 30.0 35.0 40.0 45.0 46.0 LCWT (°C) 894.3 219.6 879.6 249.4 862.6 282.2 834.9 316.1 793.0 342.4 784.6 347.5 919.1 221.4 903.8 251.2 886.1...
  • Page 43 FORM 201.23-EG1 (1013) MODEL: YCIV0357S/P AIR TEMPERATURE ON - CONDENSER (°C) 25.0 30.0 35.0 40.0 45.0 46.0 LCWT (°C) 1191.3 291.5 1170.8 332.4 1147.5 377.2 1105.5 420.8 1034.8 446.6 1020.8 451.5 1224.9 293.8 1203.5 334.4 1179.0 379.3 1132.5 421.5 1059.6 447.6 1045.0 452.5...

  • Page 44: High Efficiency Ratings - Si - 380V/60Hz

    FORM 201.23-EG1 (1013) High Efficiency Ratings - SI - 380V/60Hz MODEL: YCIV0157E/V AIR TEMPERATURE ON - CONDENSER (°C) 25.0 30.0 35.0 40.0 45.0 46.0 LCWT (°C) 525.0 123.1 515.6 139.0 503.3 156.2 487.8 176.4 449.0 192.6 441.1 196.0 539.7 124.0 530.4 140.2 518.1...
  • Page 45 FORM 201.23-EG1 (1013) MODEL: YCIV0197E/V AIR TEMPERATURE ON - CONDENSER (°C) 25.0 30.0 35.0 40.0 45.0 46.0 LCWT (°C) 672.7 155.1 661.6 178.9 648.7 206.1 631.4 236.7 586.1 249.7 577.1 252.0 691.7 156.1 680.1 179.4 666.7 206.4 647.0 236.3 600.4 249.7 591.1 252.1...
  • Page 46 FORM 201.23-EG1 (1013) High Efficiency Ratings - SI - 380V/60Hz MODEL: YCIV0247E/V AIR TEMPERATURE ON - CONDENSER (°C) 25.0 30.0 35.0 40.0 45.0 46.0 LCWT (°C) 824.5 194.8 811.2 221.5 795.7 251.2 773.5 283.8 730.4 305.9 721.2 309.7 847.7 196.4 833.8 222.9 817.7...
  • Page 47 FORM 201.23-EG1 (1013) MODEL: YCIV0327E/V AIR TEMPERATURE ON - CONDENSER (°C) 25.0 30.0 35.0 40.0 45.0 46.0 LCWT (°C) 1082.7 247.9 1064.7 284.7 1044.3 326.4 1013.0 371.0 945.2 394.1 930.6 397.6 1113.5 249.6 1094.7 285.8 1073.2 327.3 1038.5 371.1 967.8 394.2 953.0 397.8...

  • Page 48: Physical Data (English - Standard Efficiency)

    FORM 201.23-EG1 (1013) Physical Data (English - Standard Efficiency) STANDARD EFFICIENCY REFRIGERANT R-134A MODEL NUMBER (YCIV____ S/P) GENERAL UNIT DATA 60Hz 0157 0177 0187 0207 0227 0247 0267 NUMBER OF INDEPENDENT REFRIGERANT CIRCUITS REFRIGERANT CHARGE, R-134A, CKT.-1/CKT.-2, LBS 162/162 170/170 185/170 192/175 192/192...
  • Page 49 FORM 201.23-EG1 (1013) STANDARD EFFICIENCY REFRIGERANT R-134A MODEL NUMBER (YCIV____ S/P) GENERAL UNIT DATA 60Hz 0287 0307 0357 0397 0457 NUMBER OF INDEPENDENT REFRIGERANT CIRCUITS REFRIGERANT CHARGE, R-134A, CKT.-1/CKT.-2, LBS 185/170/170 185/185/170 185/185/230 230/230/230 310/310/300/300 OIL CHARGE, CKT.-1/CKT.-2, GAL. 5/4/4 5/4/4 5/5/5 5/5/5...

  • Page 50: Physical Data (English - High Efficiency)

    FORM 201.23-EG1 (1013) Physical Data (English - High Efficiency) HIGH EFFICIENCY REFRIGERANT R-134A MODEL NUMBER (YCIV____ E/V) GENERAL UNIT DATA 60Hz 0157 0177 0187 0197 0207 0227 0247 NUMBER OF INDEPENDENT REFRIGERANT CIRCUITS REFRIGERANT CHARGE, R-134A, CKT.-1/CKT.-2, LBS 170/170 185/170 185/185 192/192 225/192...
  • Page 51 FORM 201.23-EG1 (1013) HIGH EFFICIENCY REFRIGERANT R-134A MODEL NUMBER (YCIV____ E/V) GENERAL UNIT DATA 60Hz 0267 0287 0327 0357 NUMBER OF INDEPENDENT REFRIGERANT CIRCUITS REFRIGERANT CHARGE, R-134A, CKT.-1/CKT.-2, LBS 185/185/170 185/185/230 185/185/230 230/230/230 OIL CHARGE, CKT.-1/CKT.-2, GAL. 5/5/4 5/5/5 5/5/5 5/5/5 GLYCOL CHARGE (43% CONCENTRATION), GAL COMPRESSORS, SEMIHERMETIC SCREW QTY PER CHILLER...

  • Page 52: Physical Data (Si - Standard Efficiency)

    FORM 201.23-EG1 (1013) Physical Data (SI - Standard Efficiency) STANDARD EFFICIENCY REFRIGERANT R-134A MODEL NUMBER (YCIV____ S/P) GENERAL UNIT DATA 60HZ 0157 0177 0187 0207 0227 0247 0267 NUMBER OF INDEPENDENT REFRIGERANT CIRCUITS REFRIGERANT CHARGE, R-134A, CKT.-1/CKT.-2, KG. 74/74 77/77 84/77 87/80 87/87...
  • Page 53 FORM 201.23-EG1 (1013) STANDARD EFFICIENCY REFRIGERANT R-134A MODEL NUMBER (YCIV____ S/P) GENERAL UNIT DATA 60HZ 0287 0307 0357 0397 0457 NUMBER OF INDEPENDENT REFRIGERANT CIRCUITS 84 / 77 / 77 84 / 84 / 77 84 / 84 / 105 105 / 105 / 105 142/142/137/137 REFRIGERANT CHARGE, R-134A, CKT.-1/CKT.-2, KG.

  • Page 54: Physical Data (Si - High Efficiency)

    FORM 201.23-EG1 (1013) Physical Data (SI - High Efficiency) HIGH EFFICIENCY REFRIGERANT R-134A MODEL NUMBER (YCIV____ E/V) GENERAL UNIT DATA 60HZ 0157 0177 0187 0197 0207 0227 0247 NUMBER OF INDEPENDENT REFRIGERANT CIRCUITS REFRIGERANT CHARGE, R-134A, CKT.-1/CKT.-2, KG. 77/77 84/77 84/84 87/87 102/87...
  • Page 55 FORM 201.23-EG1 (1013) HIGH EFFICIENCY REFRIGERANT R-134A MODEL NUMBER (YCIV____ E/V) GENERAL UNIT DATA 60Hz 0267 0287 0327 0357 NUMBER OF INDEPENDENT REFRIGERANT CIRCUITS REFRIGERANT CHARGE, R-134A, CKT.-1/CKT.-2, KG. 84 / 84 / 77 84 / 84 / 105 84 / 84 / 105 105 / 105 / 105 OIL CHARGE, CKT.-1/CKT.-2, LITERS 19 / 19 / 15...

  • Page 56: Dimensions - English

    FORM 201.23-EG1 (1013) Dimensions - English Models YCIV0157E/V and YCIV0157S/P YCIV 19.1" 28.1" 84.5" 112.8" 0157E/V 17.4" 29.1" 90.0" 110.1" 0157S/P Notes: 1. Placement on a level surface free of obstructions (including snow, for winter operation) or air recirculation ensures rated performance, reliable operation, and ease of maintenance.
  • Page 57 FORM 201.23-EG1 (1013) JOHNSON CONTROLS...
  • Page 58 FORM 201.23-EG1 (1013) Dimensions - English Models YCIV0177E/V, YCIV0177S/P, YCIV0187E/V and YCIV0187S/P YCIV 88.1" 274.0" 0177E/V 80.0" 230.0" 0177S/P 88.1" 274.0" 0187E/V 88.1" 274.0" 0187S/P Notes: 1. Placement on a level surface free of obstructions (including snow, for winter operation) or air recirculation ensures rated performance, reliable operation, and ease of maintenance.
  • Page 59 FORM 201.23-EG1 (1013) JOHNSON CONTROLS...
  • Page 60 FORM 201.23-EG1 (1013) Dimensions - English Models YCIV0197E/V, YCIV0207S/P, and YCIV0227S/P YCIV 20.4" 28.1" 85.6" 112.3" 0197E/V 22.2" 26.0" 79.1" 113.3" 0207S/P 22.2" 26.0" 79.1" 113.3 0227S/P Notes: 1. Placement on a level surface free of obstructions (including snow, for winter operation) or air recirculation ensures rated performance, reliable operation, and ease of maintenance.
  • Page 61 FORM 201.23-EG1 (1013) JOHNSON CONTROLS...
  • Page 62 FORM 201.23-EG1 (1013) Dimensions - English Models YCIV0207E/V and YCIV0227E/V Notes: 1. Placement on a level surface free of obstructions (including snow, for winter operation) or air recirculation ensures rated performance, reliable operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpre- dictable air patters and possible diminished performance.
  • Page 63 FORM 201.23-EG1 (1013) JOHNSON CONTROLS...
  • Page 64 FORM 201.23-EG1 (1013) Dimensions - English Models YCIV0247S/P, YCIV0247E/V, and YCIV0267S/P Notes: 1. Placement on a level surface free of obstructions (including snow, for winter operation) or air recirculation ensures rated performance, reliable operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpre- dictable air patters and possible diminished performance.
  • Page 65 FORM 201.23-EG1 (1013) JOHNSON CONTROLS...
  • Page 66 FORM 201.23-EG1 (1013) Dimensions - English Models YCIV0267E/V, and YCIV0287S/P Notes: 1. Placement on a level surface free of obstructions (including snow, for winter operation) or air recirculation ensures rated performance, reliable operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpre- dictable air patters and possible diminished performance.
  • Page 67 FORM 201.23-EG1 (1013) JOHNSON CONTROLS...
  • Page 68 FORM 201.23-EG1 (1013) Dimensions - English Models YCIV0287E/V Notes: 1. Placement on a level surface free of obstructions (including snow, for winter operation) or air recirculation ensures rated performance, reliable operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpre- dictable air patters and possible diminished performance.
  • Page 69 FORM 201.23-EG1 (1013) JOHNSON CONTROLS...
  • Page 70 FORM 201.23-EG1 (1013) Dimensions - English Models YCIV0307S/P Notes: 1. Placement on a level surface free of obstructions (including snow, for winter operation) or air recirculation ensures rated performance, reliable operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpre- dictable air patters and possible diminished performance.
  • Page 71 FORM 201.23-EG1 (1013) JOHNSON CONTROLS...
  • Page 72 FORM 201.23-EG1 (1013) Dimensions - English Models YCIV0327E/V and YCIV0357S/P Notes: 1. Placement on a level surface free of obstructions (including snow, for winter operation) or air recirculation ensures rated performance, reliable operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpre- dictable air patters and possible diminished performance.
  • Page 73 FORM 201.23-EG1 (1013) JOHNSON CONTROLS...
  • Page 74 FORM 201.23-EG1 (1013) Dimensions - English Models YCIV0357E/V and YCIV0397S/P Notes: 1. Placement on a level surface free of obstructions (including snow, for winter operation) or air recirculation ensures rated performance, reliable operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpre- dictable air patters and possible diminished performance.
  • Page 75 FORM 201.23-EG1 (1013) JOHNSON CONTROLS...
  • Page 76 FORM 201.23-EG1 (1013) Dimensions - English Models YCIV0457P Notes: 1. Placement on a level surface free of obstructions (including snow, for winter operation) or air recirculation ensures rated performance, reliable operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpre- dictable air patters and possible diminished performance.
  • Page 77 FORM 201.23-EG1 (1013) JOHNSON CONTROLS...

  • Page 78: Isolator Locations - English

    FORM 201.23-EG1 (1013) Isolator Locations - English STANDARD EFFICIENCY - ENGLISH MODEL YCIV ISOLATOR LOCATIONS ( X , Y ) - IN. AND POINT LOADS - LBS 60 HZ LEFT - L ( 9.1 , 86.8 ) ( 59.4 , 86.8 ) ( 109.4 , 86.8 ) ( 211 , 86.8 ) AL FIN COILS...
  • Page 79 FORM 201.23-EG1 (1013) STANDARD EFFICIENCY - ENGLISH MODEL YCIV ISOLATOR LOCATIONS ( X , Y ) - IN. AND POINT LOADS - LBS 60 HZ LEFT - L ( 9.1 , 86.8 ) ( 59.4 , 86.8 ) ( 97.2 , 86.8 ) ( 161.4 , 86.8 ) ( 210.6 , 86.8 ) ( 307.9 , 86.8 )
  • Page 80 FORM 201.23-EG1 (1013) Isolator Locations - English HIGH EFFICIENCY - ENGLISH MODEL YCIV ISOLATOR LOCATIONS ( X , Y ) - IN. AND POINT LOADS - LBS 60 HZ LEFT - L ( 9.1 , 86.8 ) ( 59.4 , 86.8 ) ( 109.4 , 86.8 ) ( 211 , 86.8 ) AL FIN COILS...
  • Page 81 FORM 201.23-EG1 (1013) HIGH EFFICIENCY - ENGLISH MODEL YCIV ISOLATOR LOCATIONS ( X , Y ) - IN. AND POINT LOADS - LBS 60 HZ LEFT - L ( 9.1 , 86.8 ) ( 59.4 , 86.8 ) ( 97.2 , 86.8 ) ( 161.4 , 86.8 ) ( 210.6 , 86.8 ) ( 307.9 , 86.8 )

  • Page 82: Isolator Locations - Si

    FORM 201.23-EG1 (1013) Isolator Locations - SI HIGH EFFICIENCY - SI MODEL YCIV ISOLATOR LOCATIONS ( X , Y ) - MM AND POINT LOADS - KG 60 HZ LEFT - L ( 230 , 2204 ) ( 1510 , 2204 ) ( 2780 , 2204 ) ( 5360 , 2204 ) AL FIN COILS...
  • Page 83 FORM 201.23-EG1 (1013) HIGH EFFICIENCY - SI MODEL YCIV ISOLATOR LOCATIONS ( X , Y ) - MM AND POINT LOADS - KG 60 HZ LEFT - L ( 230 , 2204 ) ( 1510 , 2204 ) ( 2470 , 2204 ) ( 4100 , 2204 ) ( 5350 , 2204 ) ( 7820 , 2204 )
  • Page 84 FORM 201.23-EG1 (1013) Isolator Locations - SI HIGH EFFICIENCY - SI MODEL YCIV ISOLATOR LOCATIONS ( X , Y ) - MM AND POINT LOADS - KG 60 HZ LEFT - L ( 230 , 2204 ) ( 1510 , 2204 ) ( 2780 , 2204 ) ( 5360 , 2204 ) AL FIN COILS...
  • Page 85 FORM 201.23-EG1 (1013) HIGH EFFICIENCY - SI MODEL YCIV ISOLATOR LOCATIONS ( X , Y ) - MM AND POINT LOADS - KG 60 HZ LEFT - L ( 230 , 2204 ) ( 1510 , 2204 ) ( 2470 , 2204 ) ( 4100 , 2204 ) ( 5350 , 2204 ) ( 7820 , 2204 )

  • Page 86: Isolator Details

    FORM 201.23-EG1 (1013) Isolator Details ONE INCH DEFLECTION SPRING ISOLATOR CROSS-REFERENCE CPX-X- 5/8" EQUIPMENT BASE (by Others H" C" T" B" L" D" W" MOUNT DIMENSION DATA (INCHES) TYPE 7-3/4 6-1/2 4-3/4 5-5/8 10-1/2 9-1/4 7-3/4 9/16 RATED CAPACITY (FOR UNITS WITH ALL LOAD POINTS LESS THAN 1785 LBS (810 KG) MODEL NUMBER COLOR CODE...
  • Page 87 FORM 201.23-EG1 (1013) ELASTOMERIC ISOLATOR CROSS-REFERENCE RD-Style Isolators MOLDED DURULENE MOLDED DURULENE Ø = AD Thru Typ 2 Places R = 0.280 Slot Typ 2 Places LD17304 DIMENSION DATA (INCHES) MOUNT TYPE 5/16-18 UNC 3.13 1.75 1.25 2.38 0.34 0.19 1.25 RD1-WR X 3/4...
  • Page 88 FORM 201.23-EG1 (1013) Isolator Details TWO INCH DEFLECTION, SEISMIC SPRING ISOLATOR CROSS-REFERENCE Y2RS 1-1/8” 5/8” 2-3/4” 2-3/4” 3/8” GAP 3/4” TYP. (4) 3/4” 7/8” STOP & 8-3/8” OPER. HEIGHT MODEL Y2RSI-2D SEISMICALLY RESTRAINED VIBRATION ISOLATOR FOR 2" DEFLECTION MODEL NUMBER ISOL.
  • Page 89 FORM 201.23-EG1 (1013) INTENTIONALLY LEFT BLANK JOHNSON CONTROLS...

  • Page 90: Electrical Data - 2 Comp Standard Efficiency

    FORM 201.23-EG1 (1013) Electrical Data - 2 Comp Standard Efficiency STANDARD EFFICIENCY YCIV_ _ _ _ S/P SYSTEM 1 MODEL NO./NAMEPLATE STD. & ULTRA QUIET COND. HIGH HEAD/STATIC COND. FANS TWO-SPEED COND. FANS FANS COMPRES- CONDENSER FANS CONDENSER FANS CONDENSER FANS COMPRES- COMPRES- INPUT...
  • Page 91 FORM 201.23-EG1 (1013) STANDARD EFFICIENCY YCIV_ _ _ _ S/P SYSTEM 2 STD. & ULTRA QUIET COND. FANS HIGH HEAD/STATIC COND. FANS TWO-SPEED COND. FANS CONDENSER FANS CONDENSER FANS CONDENSER FANS COMPRES- COMPRES- COMPRES- RLA (5) RLA (5) RLA (5) QTY.

  • Page 92: Electrical Data - 2 Comp High Efficiency

    FORM 201.23-EG1 (1013) Electrical Data - 2 Comp High Efficiency HIGH EFFICIENCY YCIV_ _ _ _ E/V SYSTEM 1 MODEL NO./NAMEPLATE STD. & ULTRA QUIET COND. HIGH HEAD/STATIC COND. FANS TWO-SPEED COND. FANS FANS COMPRES- COMPRES- COMPRES- CONDENSER FANS CONDENSER FANS CONDENSER FANS INPUT INPUT...
  • Page 93 FORM 201.23-EG1 (1013) HIGH EFFICIENCY YCIV_ _ _ _ E/V SYSTEM 2 STD. & ULTRA QUIET COND. FANS HIGH HEAD/STATIC COND. FANS TWO-SPEED COND. FANS COMPRES- CONDENSER COMPRES- CONDENSER COMPRES- CONDENSER FANS FANS FANS RLA (5) QTY. FLA (EA) RLA (5) QTY.

  • Page 94: Electrical Data - 3 & 4 Comp Standard Efficiency

    FORM 201.23-EG1 (1013) Electrical Data - 3 & 4 Comp Standard Efficiency SYSTEM 1 SYSTEM 2 MODEL STD. & ULTRA QUIET HIGH HEAD/STATIC TWO-SPEED COND. STD. & ULTRA QUIET HIGH HEAD/STATIC TWO-SPEED COND. COND. FANS COND. FANS FANS COND. FANS COND.
  • Page 95 FORM 201.23-EG1 (1013) SYSTEM 3 SYSTEM 4 STD. & ULTRA QUIET HIGH HEAD/STATIC TWO-SPEED COND. STD & ULTRA QUIET HIGH HEAD/STATIC TWO-SPEED COND COND. FANS COND. FANS FANS COND FANS COND. FANS FANS COMP. COND. FANS COMP. COND. FANS COMP. COND. FANS COMP COND. FANS COMP. COND. FANS COMP COND. FANS QTY.

  • Page 96: Electrical Data - 3 Comp High Efficiency

    FORM 201.23-EG1 (1013) Electrical Data - 3 Comp High Efficiency SYSTEM 1 SYSTEM 2 MODEL NO./NAMEPLATE STD. & ULTRA QUIET HIGH HEAD/STATIC COND. STD. & ULTRA QUIET TWO-SPEED COND. FANS COND. FANS FANS COND. FANS CONDENSER CONDENSER CONDENSER CONDENSER COMP. COMP.
  • Page 97 FORM 201.23-EG1 (1013) SYSTEM 2 SYSTEM 3 HIGH HEAD/STATIC COND. STD. & ULTRA QUIET HIGH HEAD/STATIC COND. TWO-SPEED COND. FANS TWO-SPEED COND. FANS FANS COND. FANS FANS CON- CON- CONDENSER CONDENSER CONDENSER COMP. COMP. COMP. DENSER COMP. DENSER COMP. FANS FANS FANS FANS...

  • Page 98: Electrical Notes

    6. Local codes may take precedence. 7. Control KVA includes operational controls and evaporator heaters. 8. System inrush current is less than RLA due to the use of York Variable Speed Drive technology. Typical Compressor Starting Current ( first four seconds of startup):...

  • Page 99: Power Wiring

    FORM 201.23-EG1 (1013) Power Wiring 2 COMPRESSOR POWER WIRING CONNECTIONS FIG. 1 – TWO COMPRESSOR WIRING DIAGRAM WITH CIRCUIT BREAKER FIG. 2 – TWO COMPRESSOR WIRING DIAGRAM WITH TERMINAL BLOCK JOHNSON CONTROLS...
  • Page 100 FORM 201.23-EG1 (1013) Power Wiring 3 COMPRESSOR POWER WIRING CONNECTIONS VSD CONTROL PANEL STANDARD UNIT CONTROLS CONTROL TRANSFORMER EVAPORATOR HEATER CONTACTORS LINE REACTOR CIRCUIT BREAKER See Note 3 FIELD PROVIDED UNIT POWER SUPPLY FIG. 3 – THREE COMPRESSOR WIRING DIAGRAM WITH CIRCUIT BREAKER – SINGLE POINT 3 COMPRESSOR POWER WIRING CONNECTIONS VSD CONTROL PANEL STANDARD...
  • Page 101 FORM 201.23-EG1 (1013) FIG. 7 – FOUR COMPRESSOR WIRING DIAGRAM WITH CIRCUIT BREAKER – MULTI POINT FIG. 8 – FOUR COMPRESSOR WIRING DIAGRAM WITH TERMINAL BLOCK – MULTI POINT JOHNSON CONTROLS...

  • Page 102: Typical Control Wiring - Two Compressor

    FORM 201.23-EG1 (1013) Typical Control Wiring - Two Compressor JOHNSON CONTROLS...
  • Page 103 FORM 201.23-EG1 (1013) For informational purposes only. Do not attempt to tie into wiring without a proper wiring diagram. JOHNSON CONTROLS...

  • Page 104: Typical Control Wiring - Three Compressor

    FORM 201.23-EG1 (1013) Typical Control Wiring - Three Compressor JOHNSON CONTROLS...
  • Page 105 FORM 201.23-EG1 (1013) For informational purposes only. Do not attempt to tie into wiring without a proper wiring diagram. JOHNSON CONTROLS...
  • Page 106 FORM 201.23-EG1 (1013) Typical Control Wiring - Four Compressor JOHNSON CONTROLS...
  • Page 107 FORM 201.23-EG1 (1013) JOHNSON CONTROLS...

  • Page 108: Application Data

    FORM 201.23-EG1 (1013) Application Data UNIT LOCATION Ground Locations – Units must be installed on a sub- The YCIV chillers are designed for outdoor installation. stantial base that will not settle and cause strain on the When selecting a site for installation, be guided by the refrigerant lines, resulting in possible leaks.

  • Page 109: Guide Specifications

    FORM 201.23-EG1 (1013) Guide Specifications D. Warranty: Manufacturer shall Warrant all equipment PART 1 — GENERAL and material of its manufacture against defects in 1.01 SCOPE workmanship and material for a period of eighteen (18) months from date of initial start-up or date of A.
  • Page 110 FORM 201.23-EG1 (1013) Guide Specifications controls including capacity controller, control center, ential pressure shall provide oil flow through service motor starting components, and special features as replaceable, 0.5 micron, full flow, cartridge type oil filter specified herein or required for safe, automatic opera- internal to compressor.
  • Page 111 FORM 201.23-EG1 (1013) alloy fins with full height collars. Subcooling coil The installing contractor is responsible for ad- an integral part of condenser. Design working ditional cost to furnish and install power factor pressure shall be 450 psig (31 barg). correction capacitors if they are not factory mounted and wired.
  • Page 112 FORM 201.23-EG1 (1013) Guide Specifications data for last ten shutdown faults. Compressor suc- b. Two-speed fans and acousticallly lined enclo- tion, discharge, and oil pressures and temperatures, sure. (Factory Mounted) suction and discharge superheats, percent of full-load, c. Sound power octave band data, dB per AHRI operating hours, starts, and anti-recycle timer status.
  • Page 113 FORM 201.23-EG1 (1013) unit panels. Heavy gauge, welded wire-mesh, 2" Deflection Seismic Isolators: Level adjust- coated to resist corrosion, around base of ma- able, restrained mounts in rugged welded steel chine to restrict unauthorized access. housing with vertical and horizontal limit stops. Housings shall be designed to withstand a mini- mum 1.0g accelerated force in all directions to E.
  • Page 114 Form 201.23-EG1 (1013) Supersedes: 201.23-EG1 (713)
