Summary of Contents for Co-pilot CPDVR3

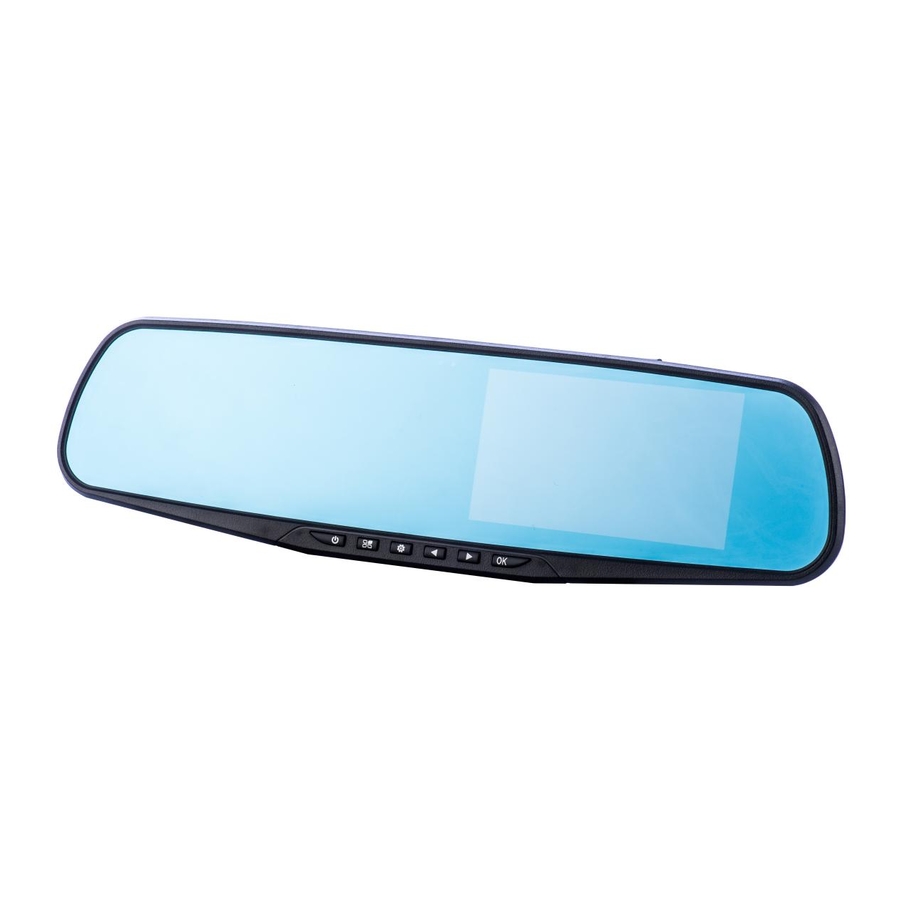

- Page 1 CPDVR3 – Mirror Car Video Recorder User Manual For Help using or Fitting Product call: 0330 123 9040...
- Page 2 CO-PILOT. Warranty and Registration Your CO-PILOT device is guaranteed for one year from the date of purchase from all manufacturing defects that occur with normal use. If your unit fails to perform as specified in this user guide please contact your retailer or ourselves with regards to your warranty.
- Page 3 Introduction Thank you for purchasing your CO-PILOT device. It’s never been more important to record your journeys on the road and be prepared for any incidents that may occur along the way. In today’s society fake insurance claims are becoming ever more prevalent, not only is your health at risk but your insurance premium could rise by up to 30%.
- Page 4 Icon Name Operating instructions Hold to turn on / off; press to toggle Power Button screen back-light on / off; In Standby mode, press the key to transfer function setup menu; Continuously press the key to switch The menu key /Video between the settings menu;...
- Page 5 Video / Photo / Menu confirmation key Standby mode, press this button to Confirmation key/video record launch the on / off camera; & photo taking button Photograph mode, press the key to take photos; menu mode to confirm key; 4.3 inch 16:9 TFT, high-definition Display display screen;...
- Page 6 Display Icons Icon Description Video / Photo / Playback / Motion Detector mode 1080P Video Resolution Video Locked Parking Control On / Off Memory Card Present Recording On / Battery Status Video Runtime will 00:17 be here 2016/8/10 Date 02:19:50 Time Installation and Operation Quick Start...
- Page 7 1. Please insert the Micro SD card in the TF slot, CPDVR3 supports the memory size from 4GB to 32G (Class 8 or above). Note: Please format the memory card for first time usage and please do not remove or insert the memory card whilst the device is on, it is easy to damage the memory card 2.
- Page 8 5. Manual On / Off mode: Short Press the power button， and you will hear the boot up sound, the DVR will start to record automatically, To stop recording press "OK" Button, the DVR will save the data to your SD card and be in standby mode.
- Page 9 automatic cycle. Move Detect OFF/ON White Balance Auto/ Daylight/ Cloudy/ Tungsten/ Fluorescent Sharpness Strong/ Normal/ Soft Exposure 0;-1/3;-2/3;-1.0;/-4/3;-5/3;-2 Power ON OFF/ON Record Screen Saver 10 Seconds /20 Seconds /30 Seconds/Close Record Voice OFF/ON Park monitor OFF/ON G-sensor High/ Mid/ Low/ Close Date /Time Can set the year, month, day, hour, minute, second English/ Simplified Chinese/ German/ Japanese/...
- Page 10 key to take pictures, while the DVR takes a picture you will hear a sound to confirm a photo has been taken correctly. Video / Photo playback operation 1. In standby mode, press “ ”key twice and enter into playback mode, the “ ”icon showing in the middle of the screen.
-
Page 11: Product Specifications
detection from the menu setting, then the LCD display will appear icon will appear in the middle of upper corner of the screen, if it detects movement from any object within 3 meters, the DVR start to record 10-30 seconds automatically. - Page 12 Language Multi language Video resolution 1920*1080P 1280*720P Video format H．264, AVI loop video Seamless loop video, no leakage. Motion detection function Support Date time Support carrier medium built-in (total: 1024MB) Photo 500M Photo format JPEG Memory card TF (Maximum support 32GB) Microphone Support Sound...
