Tumble Forms Starfish Bath Chair

Instruction Manual

Table of Contents

Need help?

Do you have a question about the Tumble Forms and is the answer not in the manual?

Questions and answers

Summary of Contents for Starfish Tumble Forms

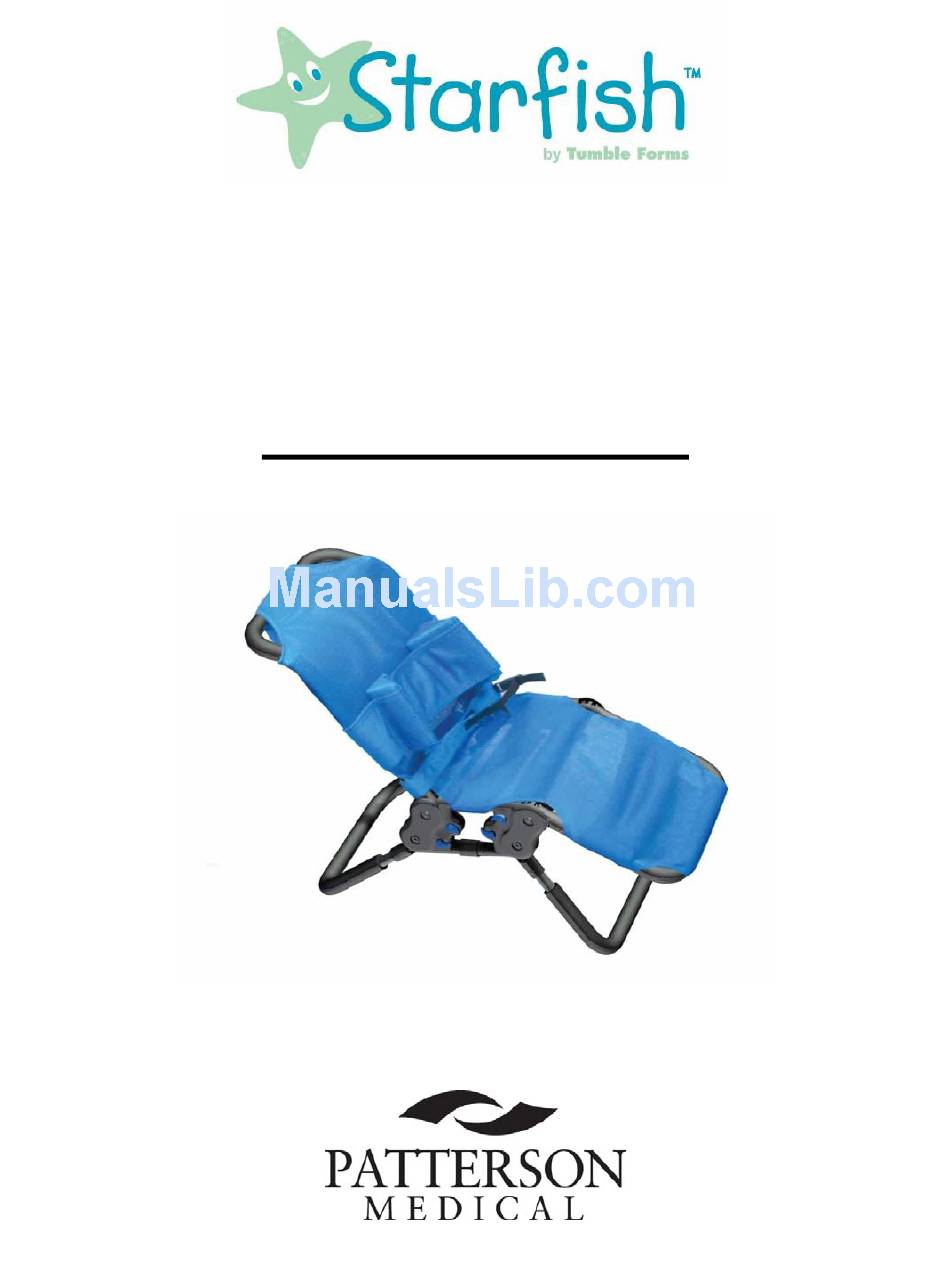

Page 1 Tumble Forms Starfish Bath Chair Instruction Manual...
Page 2: Table Of Contents
About the Tumble Forms Starfish Bath Chair Page 3 Item Numbers and Product Specifications Page 4-5 Setup of the Tumble Forms Starfish Bath Chair Product Pages 6-8 Clinical Setup of the Tumble Forms Starfish Bath Chair Page 9-13 Safety Instructions...
Page 3: About The Tumble Forms Starfish Bath Chair
About the Tumble Forms Starfish Bath Chair The Tumble Forms Starfish Bath Chair is intended for use in the shower or bath. Usage in the shower should be accompanied with the Tumble Forms Starfish Shower Trolley. It is recommended for children with disabilities from age 1-18.
Page 4: Item Numbers And Product Specifications
Item Numbers and Product Specifications ITEM # DESCRIPTION 92152411 Starfish Bath Chair, Size 1, No Cover 92152412 Starfish Bath Chair, Size 2, No Cover 92152413 Starfish Bath Chair, Size 3, No Cover 92152414 Starfish Bath Chair, Size 4, No Cover...
Page 5 Item Specifications: STARFISH BATH CHAIR USER WEIGHT & HEIGHT SIZE MAX WEIGHT (Kg) MIN. HEIGHT (mm) MAX HEIGHT (mm) 159 lbs (72) Up to 31.5” (800) 39” (1000) 159 lbs (72) 35” (900) 47” (1200) 159 lbs (72) 43” (1100) 55”...
Page 6: Setup Of The Tumble Forms Starfish Bath Chair Product
Setup of the Tumble Forms Starfish Bath Chair Product ***IMPORTANT*** Carefully unpack your new product ensuring that you have received the following: 1) Bath Chair Frame 2) Bath Chair Cover 3) Hip Belt 4) Chest Belt If not, please contact Patterson Medical immediately.
Page 7 Attaching the Hip Belt When user is in the seated position, wrap the hip belt around the chair and the user. Make sure that the belt goes thru the blue plastic pieces attached to the rear support bar to ensure that the belt will stay in place.
Page 8 Attaching the Bath Chair to the Shower Trolley 1) Alter the length of the frame by turning the knobs on the bottom of the trolley and adjusting the frame to correspond with the adjusted positions of the bath chair. Make sure knobs are tightened after adjustment is complete to ensure user’s safety.
Page 9: Clinical Setup Of The Tumble Forms Starfish Bath Chair
Clinical Setup of the Tumble Forms Starfish Bath Chair Setup and use of this product should be done by someone who has been trained and familiar with the overall use of the bath chair product. This person can also train parents and care giving professionals on how to adjust the product –...
Page 10 Height Adjustment The Tumble Forms Starfish Bath Chair can be adjusted in height to allow for a range of positions from flat in the bathtub to a raised position, requiring less bending by the caregiver. The height is adjusted by pushing the bottom blue levers on the sides of the bath chair.
Page 11 Back Recline Adjustment The back recline adjustment of the Tumble Forms Starfish Bath Chair allows for 4 different positions. The back recline is made by pushing the top blue lever on either side of the chair – the adjustment is made when the seatback clicks into position.
Page 12 Rear Chair Leg/Tilt Adjustment The rear leg on the Tumble Forms Starfish Bath Chair adjusts past 90 degrees for a more significant tilt. The rear chair leg adjustment is made by pushing the bottom blue lever on either side of the back of the chair –...
Page 13 Calf Support Adjustment The calf support adjustment of the Tumble Forms Starfish Bath Chair allows for 4 different positions. The calf support adjustment is made by pushing the top blue lever on either side of the front of the chair –...
Page 14: Safety Instructions
Safety Instructions 1) Read all instructions completely before use. 2) Do not leave item unattended while being used. 3) Only use Starfish components and accessories with the bath chair products. Failure to do so will invalidate the warranty of the product.
Page 15: Care Instructions
Care Instructions 1) Clean your Starfish Bath Chair product on a regular basis. 2) Do not use harsh/abrasive cleaners on the bath chair frame – as this may scratch or ruin the surface of the bath chair. Use soap and water or antibacterial spray to clean – and for deep cleaning use a low pressure steam cleaner.
Page 16: Product Inspections
Product Inspection To ensure the safe use of the Starfish Bath Chair product, we recommend daily product inspection, consisting of: 1) Making sure all adjustment levers are in place and secure. 2) Checking the hook and loop portions on the straps and covers for signs of wear.
