BNF Transmitter Setup

The X-VERT™ aircraft requires a transmitter with a minimum of 6 channels
with one 3-position switch and one momentary switch available.
Flight Modes are controlled by channel 5 (GEAR).
Motor arming/disarming is controlled by channel 6 (AUX 1).
IMPORTANT: After you set up your model, always rebind the transmitter and
receiver to set the desired failsafe positions.
Using the settings shown in the table:
Sw itch B = Flight Modes
Position 0 = Multirotor Mode
Position 1 = Stability Mode
Position 2 = Acro Mode
Switch I = Motor Arm/Disarm
Switch H = Throttle Cut
Expo
If desired, you may add exponential to soften the feel of the controls around
neutral. We recommend starting with 10% on the aileron and elevator channels
for Acro Mode only. You may adjust the expo values to better suit your fl ying style.

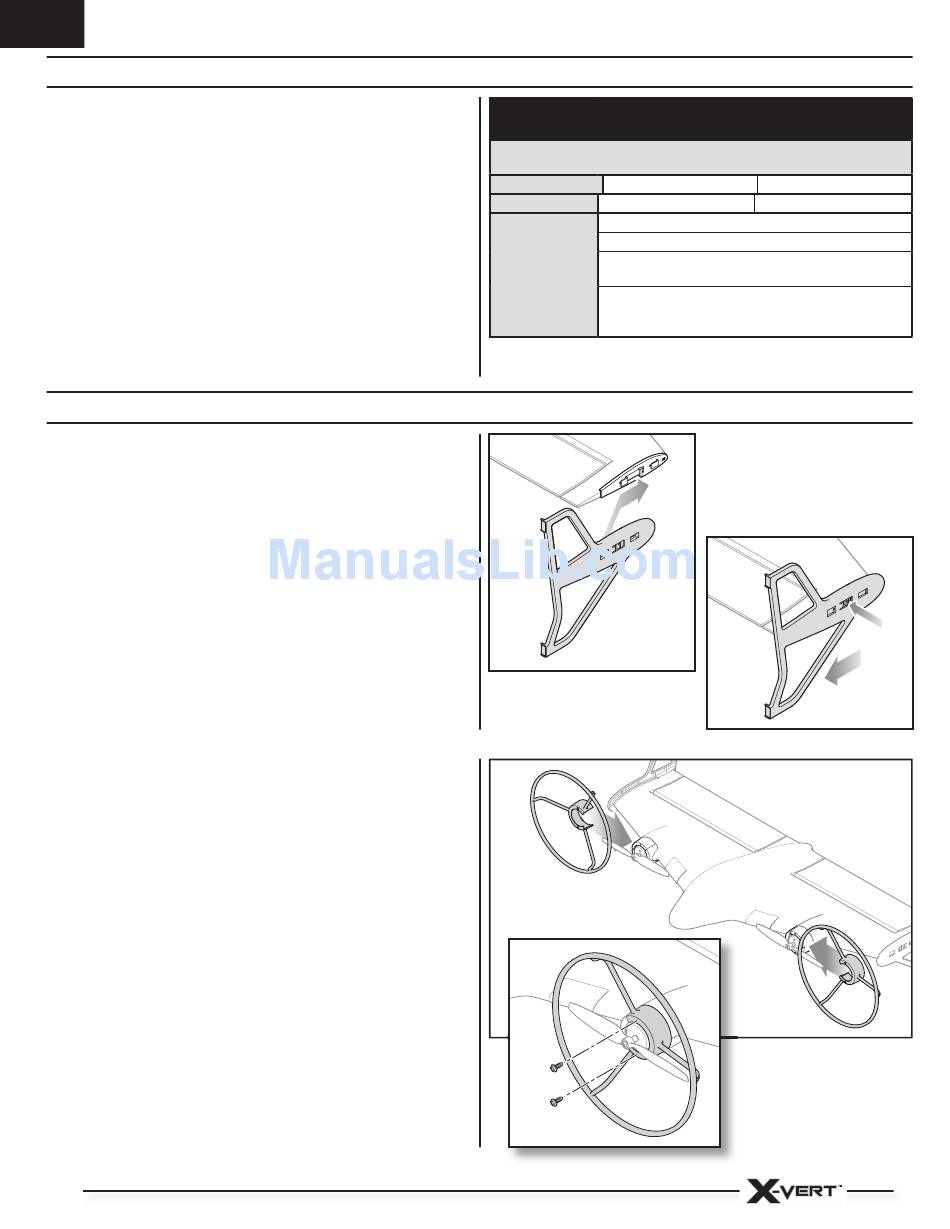

Model Assembly

Install the Wingtip Plates/Landing Gear
The wingtips and tip plates are marked with an "R" and "L". Match the tip plate
to the corresponding wingtip.
Slide the tip plates forward over the wingtips until the lock clicks in place.
To remove the plates, press the locking tab in and slide the plate to the rear.
Install the Propeller Guards
Install the propeller guards by sliding them around the propellers and over the
motor pods as shown, until they snap into place.
Install 2 screws into each guard to secure in place. Do not overtighten the
screws as damage to the mounts or guards may result.
6
Computerized Transmitter Setup
(DXe*, DX6e, DX6, DX7 (Gen2), DX8 (Gen2), DX9, DX18 and DX20)
Start all transmitter programming with a blank ACRO model (perform a model
reset), then name the model.
Set DR values to Hi 100%
Set Throttle Cut to Active
1. Go to the SYSTEM SETUP
DX6e
2. Set MODEL TYPE: AIRPLANE
DX6 (Gen2)
DX7 (Gen2)
3. Set AICRAFT TYPE:
DX8 (Gen2)
WING: NORMAL
DX9
4. Set CHANNEL ASSIGN: (NEXT)
DX18
CHANNEL INPUT CONFIG: GEAR: B
DX20
* To download the DXe X-Vert setup, visit www.spektrumrc.com.
Low 70%
Switch H
AUX1: I
