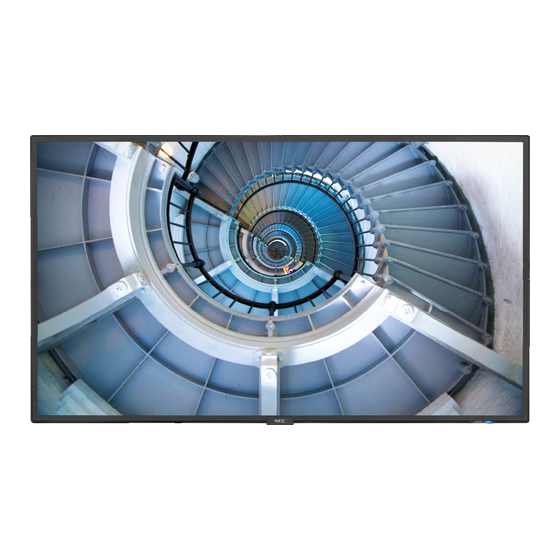

40 inch lcd display
Hide thumbs Also See for V404:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Setup Manual
V404/P404 Installation Guide
40" LCD Display
Contents:
Product Description and Notes
Tilt Angle and Rotation
Ventilation Recommendations
Display Dimensions
Display Dimensions with stand
Optional Table Top Stand Dimensions
Dimensions of Optional Wall Mount (WMK-3255S)
Compute Module Integration
Control Codes
Input Terminals
Browser Control

Product Description

Power Consumption (Max Brightness)
*Overall Max refers to when the unit is at max brightness and the following features are also active: OPS Slot, External Speaker, Raspberry Pi
Compute Module Slot
NOTES:
This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not
•
intended to be a step-by step procedure for installation.
Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local
•
building codes. All mounts should make secure contact to wood studs.
4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally
•
to fill the screen using the menus (see "Aspect Modes" in menus and user manual).
Distances are in inches, for millimeters multiply by 25.4.
•
Tilt Angle and Rotation
Monitor may be angled and rotated from normal landscape and portrait orientation to both face up and face down positioning. Rotate
only clockwise for portrait orientation.
www.necdisplay.com
Display Resolution
Maximum Supported Resolution
Power Consumption (Typical)
Power Consumption (Overall Max)*
BTU's (Typical)
BTU's (Max Brightness)
BTU's (Overall Max)*
Net Dimensions
Net Weight
NEC Display Solutions of America, Inc.
Page 1
Page 1
Page 2
Page 3-4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 10
V404
1920 x 1080 at 60Hz
3840 x 2160 at 30Hz
75W
95W
235W
255.91 BTU/hr
324.15 BTU/hr
801.85 BTU/hr
36.1 x 20.9 x 2.2 in. / 918.0 x 530.6 x 54.7mm
40.3lbs. / 18.3kg
P404
92W
115W
260W
313.92 BTU/hr
392.40 BTU/hr
887.15 BTU/hr
V404/P404
Page 1 of 10
Rev 1.0

Advertisement

Table of Contents
loading

Related Manuals for NEC V404

Summary of Contents for NEC V404

  • Page 1: Product Description

    NEC Display Solutions of America, Inc. V404/P404 Installation Guide 40” LCD Display Rev 1.0 Contents: Product Description and Notes Page 1 Tilt Angle and Rotation Page 1 Ventilation Recommendations Page 2 Display Dimensions Page 3-4 Display Dimensions with stand Page 5...

  • Page 2: Ventilation Recommendations

    The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be covered, other means of ventilation will need to be incorporated into the design. Contact NEC for design review and recommendations.

  • Page 3: Display Dimensions

    NEC Display Solutions of America, Inc. V404/P404 Installation Guide 40” LCD Display Rev 1.0 Display dimensions: www.necdisplay.com V404/P404 Page 3 of 10...
  • Page 4 NEC Display Solutions of America, Inc. V404/P404 Installation Guide 40” LCD Display Rev 1.0 Display dimensions (cont.): www.necdisplay.com V404/P404 Page 4 of 10...
  • Page 5 NEC Display Solutions of America, Inc. V404/P404 Installation Guide 40” LCD Display Rev 1.0 Display Dimensions (with ST-401 stand): NOTE: The ST-401 optional stand attaches to the VESA hole pattern on the back of the display and can be set so the display is either 30mm or 50mm from the tabletop www.necdisplay.com...
  • Page 6 NEC Display Solutions of America, Inc. V404/P404 Installation Guide 40” LCD Display Rev 1.0 Optional Table Top Stand Dimensions (ST-322): NOTE: The Pole of the ST-401 stand connects directly to the VESA hole pattern on the back of the display.
  • Page 7 NEC Display Solutions of America, Inc. V404/P404 Installation Guide 40” LCD Display Rev 1.0 Dimensions of Optional Wall Mount Kit (WMK-4655S): www.necdisplay.com V404/P404 Page 7 of 10...

  • Page 8: Compute Module Integration

    NEC Display Solutions of America, Inc. V404/P404 Installation Guide 40” LCD Display Rev 1.0 Compute Module Integration: Door on the back of the display can be opened by loosening captive screws. • Separate IO Board is necessary to accompany RPi Compute Module in unit •...

  • Page 9: Control Codes

    NEC Display Solutions of America, Inc. V404/P404 Installation Guide 40” LCD Display Rev 1.0 Control Codes: NOTE: Contact your NEC rep for codes not listed. Cable Connection: Communication Protocol: Interface: RS-232C Communication System: Asynchronous Baud Rate: 9600 bps Data Length:...

  • Page 10: Browser Control

    NEC Display Solutions of America, Inc. V404/P404 Installation Guide 40” LCD Display Rev 1.0 Input Panel (Bottom) Input Panel (Side - Rotated) Browser Control Information and control can also be available through the HTTP browser control menu. In order to accomplish this, type: http://<the Monitor’s IP address>/pd_index.html Note that the LAN Power needs to be turned on in order for the display to be controlled while the units are off.
