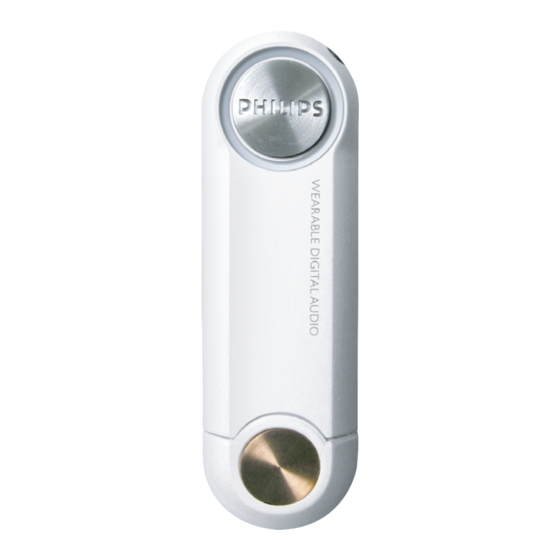

Thank you for buying this Philips wearable digital audio player.To get started, follow the steps as shown. 1 Charge • Charge up your player (5 hours) before using it. Adjust the function switch on the player to OFF/CHARGE. Switch on your computer.
Safety & maintenance Safety & satisfaction • To enjoy your Philips product, please read and operate the set according to the instructions inside our user manual (on the CD-ROM.) • Child safety: The remote control neckstrap (included with KEY004, KEY006 models only) is not a toy. Special care should be taken if handled by young children.
Page 5
Safety & maintenance Environmental information We have reduced the packaging to its minimum and made it easy to separate into mono materials: PET, paper and aluminum foil. Your player consists of material which can be recycled if disassembled by a specialized company.
Controls Safety & satisfaction To enjoy your Philips product, please read and operate the set according to the instructions inside our user manual.
Page 7
Remote control neck strap supplied with key004 & key006 Controls wire remote supplied with key003 & key005...
Page 8
Controls metal pin you can thread and attach a neck or wrist strap (optional) here. remote control jack Insert your remote control plug here and then connect your headphones to your remote control indicator lights up/ blinks according to different functions: green: during charging the built-in battery orange: power on/ off and during file transfer.
1 x Safety & Warranty booklet About KEY audio KEY003/004/005/006 – plays MP3,WMA (Windows Media Audio) and future digital audio formats files e.g. digitized and compressed CD tracks, tape tracks, audio books, newspapers, sound effects, etc., that are encoded into format MP3 or WMA.
Minimum computer system requirements Windows system requirements – Pentium® MMX 166MHZ processor or better – USB port with Windows 98 / Me / 2000 / XP – 96MB RAM – 50MB hard disk space – CD-ROM drive – video display card For Win98 users only: •...
1 Insert the supplied CD-ROM into your CD- ROM drive. 2 The quick start guide screen appears. Follow the screen instructions. 3 Select your product to start installation. TIP: – The installation process is automatically launched for first-time application users. –...
Page 12
Software installation 4 Select and install the MUSICMATCH Jukebox or plug-in. Follow all the screen instructions to complete installation. 5 For further details and instructions on using MUSICMATCH Jukebox, click Read MUSICMATCH tutorial.
Preparing your player Your player is powered by a built-in rechargeable battery (NiMH), which you can charge direct from your computer. TIP: • When you use the player for the very first time, fully charge up the built-in battery first! (See next chapter) •...
AAA battery AAA alkaline battery box When on the move, the AAA alkaline battery box can help increase playtime. It acts as a back-up to using the built-in rechargeable battery. 1 Open the battery door. Insert a fresh AAA alkaline battery as shown with the correct polarity.
Switching on, playback 2;... To playback your music files on the player, download the files as .MP3 or .WMA files on the root directory of the player.Your KEY player can only playback files stored in this way. (See page 18-21) 1 Connect the remote control and headphones to the player as shown on page 7.
Switching off Switching off • During playback, press and hold 2; for more than 2 seconds to turn off. ➜ The indicator lights up orange briefly before switching off.The Flash memory in the player stores the last song played and the volume setting.
CAUTION! Windows 98 users only WHEN CONNECTING THE PLAYER FOR THE VERY FIRST TIME TO DOWNLOAD, MAKE SURE YOU ONLY DO SO AFTER YOU HAVE INSERTED THE SUPPLIED CDROM INTO THE CDROM DRIVE FOR INSTALLATION OF THE REQUIRED DRIVERS. When you connect the player to your computer via the USB port, your computer operating system will recognize the player as a removable USB Mass Storage Device (MSD).
Page 18
Transferring data Transferring audio files To playback your music files on the player, download the files as .MP3 or .WMA files on the root directory of the player.Your KEY player can only playback files stored in this way. Any music files downloaded as albums or folders to your player are treated as data files and cannot be played.
Page 19
Using Windows File Manager or Windows Explorer to handle your MP3 and other files: 1 Launch Windows File Manager or Windows Explorer to access your MP3/ WMA files etc. 2 Select the files you want to transfer (by copying / drag and drop to or from your Removable Disk folder.) ➜...
Page 20
Transferring data 3 When you have finished transferring your files, check the orange indicator has stopped flashing and remains lit. 4 Click the Unplug or Eject Hardware icon at the bottom of the screen.
2 The update will add files to your computer, then automatically restart MUSICMATCH Jukebox for you. Note • requires an active Internet connection. Upgrading your device For the latest FAQ, product information, news & software upgrades, visit: http://www.philips.com/support http://www.audio.philips.com Transferring data...
Troubleshooting WARNING! Do not dismantle the unit as there is a risk of electric shock! Under no circumstances should you try to repair the set yourself, as this will invalidate the warranty. If a fault occurs, first check the points listed below before taking the set for repair.
Page 23
– Corrupted file/ track. • Clear all tracks from the device memory. Click from your PC task bar: Start ➜ Programs ➜ Philips Key Ring Wearable Audio player (xxxMB) ➜ Format. In the Key Ring Format dialogue box, uncheck the Quick Format option and then click Start to start the format application.
4 Hold 2; for another 5 seconds. On your PC: 5 Click on the START icon to select the following: Programs ➜ Philips Key Ring Wearable Audio player (xxxMB) ➜ Recovery.This takes you to the Key Ring Recovery dialogue window.
Supported format Case material Dimensions Weight Battery playtime 6.5 hours 10 hours PHILIPS reserves the right to make design and specification changes for product improvement without prior notice. Technical data orange, green rechargeable NiMH (via USB) USB 1.1 64MB 128MB...
Page 26
Meet Philips at the Internet http://www.philips.com http://www.audio.philips.com KEY003 KEY004 KEY005 KEY006 lkw336/hk...
