Summary of Contents for XYZrobot Diver

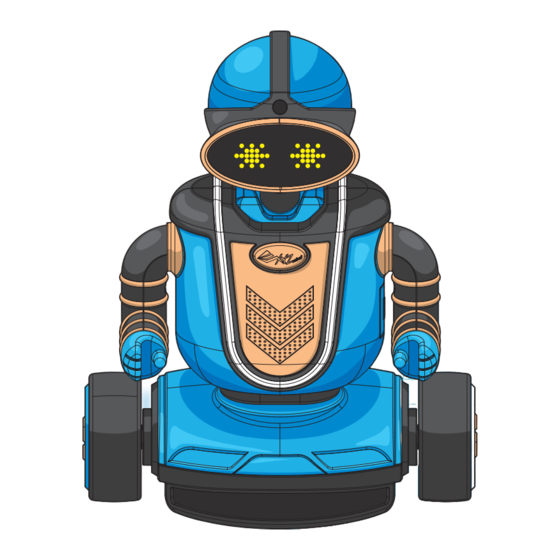

- Page 1 DIVER Construct of Your Imagination...
- Page 3 Safety Guideline Important notes: • This toy is not intended for children under age 3. • This toy contains small parts. Keep away from children under 3 years old of age to avoid choking. • Keep this toy away from fire. Use under adult supervision. •...
- Page 4 Certification Regulatory Compliance Information Federal Communications Commission (FCC) FCC ID: 2AB9WW01 This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 5 Certification Taiwan Wireless NCC Information CCAF15LP0280T1 本產品內含射頻模 CCAF15LP0280T1 低功率電波輻射性電機管理辦法 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功 率或變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並 改善至無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學 及醫療用電波輻射性電機設備之干擾。 You can help protect the environment! Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre. 0700 Environmental Conditions: Working Temperature: 0 ~ 40℃...
-
Page 6: Table Of Contents
Avoid Obstacles Mode ...................19 Taking Picture Mode ..................20 Customizing DIVER ..................21 Customizing the Matrix LED Eyes ..............21 Customizing the Music ..................21 DIVER APP (iOS / Android) ............22 Introduction ....................22 Downloading the APP ................. 23 Compatibility ....................23 APPLE ......................23 Android ......................23... - Page 7 Patrol ......................29 Sumo......................30 Music......................31 Albums ......................32 Selecting Modes ..................33 Adventure Mode ....................33 Patrol Mode ....................34 Sumo......................36 Setting Audio ....................37 Support Music Specifications .................37 Keeping Your DIVER Clean ............38 Troubleshooting ................39 Specifications ................. 41 Warranty ..................42...
-
Page 8: Getting Started
The XYZRobot DIVER is the next generation of smart edutainment for the entire family. The DIVER is specially designed for beginners in robotics and for all kind of robotics enthusiasts. The DIVER can be easily programmed, and includes Bluetooth and WiFi connectivity for manual and APP control. -
Page 9: Part List
Getting Started Part List DIVER AA BATTERIES QUICK START GUIDE... -
Page 10: Unpacking Your Diver
Getting Started Unpacking Your DIVER Open the box. Remove the batteries from the plastic shell. Flip down the plastic shell as shown in the following illustration. - Page 11 Getting Started Pull the plastic shell out of the box. Remove DIVER from the plastic shell. Remove the plastic cover from the Matrix LED eyes. CAUTION: To prevent damage, do not pull the arms more than 30 degrees back, or 60 degrees forward.
-
Page 12: Overview
Getting Started Overview DIVER Front View No. Menu Description Camera 640 * 480 Matrix LED Eye 5 * 7 LED matrix Speaker 2 W speaker IR Sensor Sensor for preventing collision Light Sensor Sensor for line tracking... -
Page 13: Diver Rear View
MicroSD slot Insert microSD card Micro USB Connect to computer for programming Component Cover Remove to access I/O ports Power Button Press to turn DIVER on or off Battery Cover Remove to install the batteries Mode Button Press to switch modes... -
Page 14: Installing Batteries
Risk of explosion if battery is replaced by an incorrect type. • Dispose of used batteries according to instructions. Press the release button on the battery cover. Remove the battery cover. Disconnect the battery holder from the cable and remove the battery holder from DIVER. - Page 15 Insert the batteries into the battery holder. Make sure the batteries are aligned properly (positive marking to positive terminal, negative marking to negative terminal). Align the battery holder with the slot on DIVER. Connect the cable to the battery holder.
-
Page 16: Installing Microsd Cards
Getting Started Installing MicroSD Cards The microSD slot is designed for microSD cards for the purpose of playing sounds when DIVER is on. Only .WAV formatted files are supported. The following microSD card types are supported: • microSD card •... -
Page 17: Turning On Diver
Getting Started Turning on DIVER Once the battery is installed, DIVER is ready for a functional test. Place DIVER on a clean flat surface before starting. Press the power switch to turn on DIVER. Once powered up, the LEDs light up and DIVER speaks. -
Page 18: Instructions For Use
Introduction After installing the batteries no further component installation is required for use. The XYZRobot DIVER is designed for beginners and for all kind of robotic enthusiasts. The next generation of smart edutainment for the entire family. The DIVER is specially designed for beginners in robotics and for all kind of robotics enthusiasts. The DIVER can be easily programmed, and includes Bluetooth and WiFi connectivity for manual and APP control. -
Page 19: Modes
The DIVER follows the line and plays sounds when changing more than 22.5 degrees in any direction. NOTE: For DIVER to follow the line easily, it must have a strong color contrast with the floor. Remote Control... -
Page 20: Selecting Modes
Instructions for Use Selecting Modes Auto Pilot Mode Press the Power button to turn on DIVER. Auto Pilot mode is the default mode. In this mode, speech and actions are random. -
Page 21: Avoid Obstacles Mode
Instructions for Use Avoid Obstacles Mode Press the Power button to turn on DIVER. Press the Mode button once to switch to the Avoid Obstacles mode. In Avoid Obstacles mode, DIVER moves randomly, while avoiding obstacles. -
Page 22: Taking Picture Mode
Instructions for Use Taking Picture Mode Press the Power button to turn on DIVER. Press the Mode button once to switch to the Taking Picture mode. In Taking Picture mode, DIVER follows a marked path. -
Page 23: Customizing Diver
Instructions for Use Customizing DIVER Customizing the Matrix LED Eyes You can customize the Matrix LED Eyes when you using the DIVER APP. See “LED Eye” on page 28 . Customizing the Music Save a new .WAV file onto the microSD card to customize the sounds DIVER plays. -
Page 24: Diver App (Ios / Android)
DIVER APP (iOS / Android) Introduction The DIVER APP allows you to control and play with the wheeled robot. Through the APP you can access various modes and access the DIVER camera to record pictures and videos. Features: • Supports Bluetooth connection •... -
Page 25: Downloading The App
DIVER APP (iOS / Android) Downloading the APP The DIVER APP supports both iOS and Android systems. Please follow these procedures to install the APP. Compatibility • iOS 8.0 or later • Android 4.3 or later APPLE Download link on APP Store: [ADDRESS] Tap APP Store on your smart device. -
Page 26: Connecting The Diver
DIVER APP (iOS / Android) Connecting the DIVER Press the power switch to turn on the DIVER. Open the APP. Tap the DIVER and tap select. - Page 27 DIVER APP (iOS / Android) Enter the DIVER name and choose a representative color. Tap Done. You are ready to use the DIVER.
- Page 28 DIVER APP (iOS / Android) NOTE: This screen pops up when your smart device’s Bluetooth connection is off. Tap OK to turn on Bluetooth.
-
Page 29: Learn About The Menus
Main Menu No. Menu Description Sound Tap to mute. Selecting Robots Tap to disconnect the DIVER or edit a DIVER. Adventure Time Tap to enter Adventure Time menu. Patrol Tap to enter Patrol menu. Sumo Tap to enter Sumo menu. -
Page 30: Adventure Time
Tap to return to the previous menu. Selecting Robots Show the current status. Head/Waist Control Tap to change the DIVER’s head angle/waist angle. LED Eye Slide to change the LED eyes. Movement Control Tap to choose the DIVER direction and movement. -
Page 31: Patrol
Tap once to switch to photo mode (the icon will move to the top), then tap again to take a photo. Head/Camera Control Tap to choose the direction in which to point the head camera. LED Eye Slide to change the LED eyes. Movement Control Tap to choose the DIVER direction and movement. -
Page 32: Sumo
Show the current status. Specific A Programmable specific A. Specific B Programmable specific B. Specific C Programmable specific C. Specific D Programmable specific D. LED Eye Slide to change the LED eyes. Movement Control Tap to choose the DIVER direction and movement. -
Page 33: Music
DIVER APP (iOS / Android) Music No. Menu Description Back Tap to return to the previous menu. Selecting Robots Show the current status. Decrease Tap to decrease the volume. Increase Tap to increase the volume. Next Tap to skip to the next audio file. -
Page 34: Albums
DIVER APP (iOS / Android) Albums No. Menu Description Back Tap to return to the previous menu. Selecting Robots Show the current status. VIDEOS Tap to view the video recorded in Patrol mode. PHOTOS Tap to view the images taken in Patrol mode. -
Page 35: Selecting Modes
Adventure Mode Please follow this procedure to switch to Adventure mode. To connect the DIVER, see “Connecting the DIVER” on page 24 . Tap Adventure Time on the main menu. For details on using Adventure Time mode, see “Adventure Time” on page 28. -
Page 36: Patrol Mode
Patrol Mode Set WiFi Notification Before using the Patrol mode, following this procedure to pair with the Wi-Fi camera on DIVER. To connect the DIVER, see “Connecting the DIVER” on page 24 . Go to Wi-Fi Settings on your smart device. - Page 37 Set Wi-Fi settings, see “Set WiFi Notification” on page 34 . Open the APP. Slide and tap Patrol on the main menu. For details on using Patrol mode, see “Patrol” on page 29. to return the main menu. NOTE: Pressing the Mode button on DIVER will disconnect the Wi-Fi camera.
-
Page 38: Sumo
Sumo Please follow this procedure to switch to Sumo mode. To connect the DIVER, see “Connecting the DIVER” on page 24 . Slide and tap Sumo on the main menu. For details on using Sumo mode, see “Sumo” on page 30. -
Page 39: Setting Audio
DIVER APP (iOS / Android) Setting Audio Support Music Specifications Item Description MicroSD Support SPI mode, FAT32 file system WAV File Format 44.1KHz, 16 bits, stereo, Windows PCM, no compression ACM waveform Supported A/mu-Law wave Unsupported DVI/IMA ADPCM Unsupported Microsoft ADPCM... -
Page 40: Keeping Your Diver Clean
Always: • Keep DIVER in sight at all times when operating, to prevent injury to people or animals or damage to property. • Periodically examine DIVER to prevent potential hazards. In the event of damage, do not use DIVER until it can be replaced or repaired. -
Page 41: Troubleshooting
The DIVER calibrates the sensor value of the line tracking sensors at the beginning of the line tracking mode, so please put the DIVER on the line as soon as it is in line tracking mode. The line does not contrast sufficiently with the surroundings. - Page 42 Music files in the memory card must be in .WAV format and given a name using 4 digits. See “Customizing the Music” on page 21 . ALERT popup shows in APP. Patrol mode requires connection to the DIVER Wi-Fi Camera. Please confirm that your cellphone Wi-Fi has been set to “XYZrobot-W01” connection. Loading Music popup shows in APP.
-
Page 43: Specifications
Specifications Item Description Button Power, Mode DC jack x 1, micro USB x 1, microSD slot x 1 ATmega1280 Camera 640 x 480 Storage MicroSD (4 GB) Speaker 2 W x 1 Sensor IR sensor x 3, light sensor x 3 Bluetooth Bluetooth 4.0 Wifi... -
Page 44: Warranty
Services/information Contact the original distributor or retailer of purchase or go to http://www.xyzrobot.com/us_en/home for more information if any services covered by the warranty are required. When providing maintenance services under warranty, XYZprinting Inc. has the right to determine whether to fix or replace the problematic parts. After repair or replacement, the repaired or replaced part is covered by the remaining time of the original warranty;... - Page 45 Warranty Keep the original packaging for use when maintenance is required. If other packaging is used, the robot may sustain damage during shipping. XYZprinting Inc. reserves the right to request a service fee. Returns/exchanges Unopened and undamaged products can be returned within the return period. Retailers and distributors may have different policies regarding returns.
