Summary of Contents for Howdens HJA8900

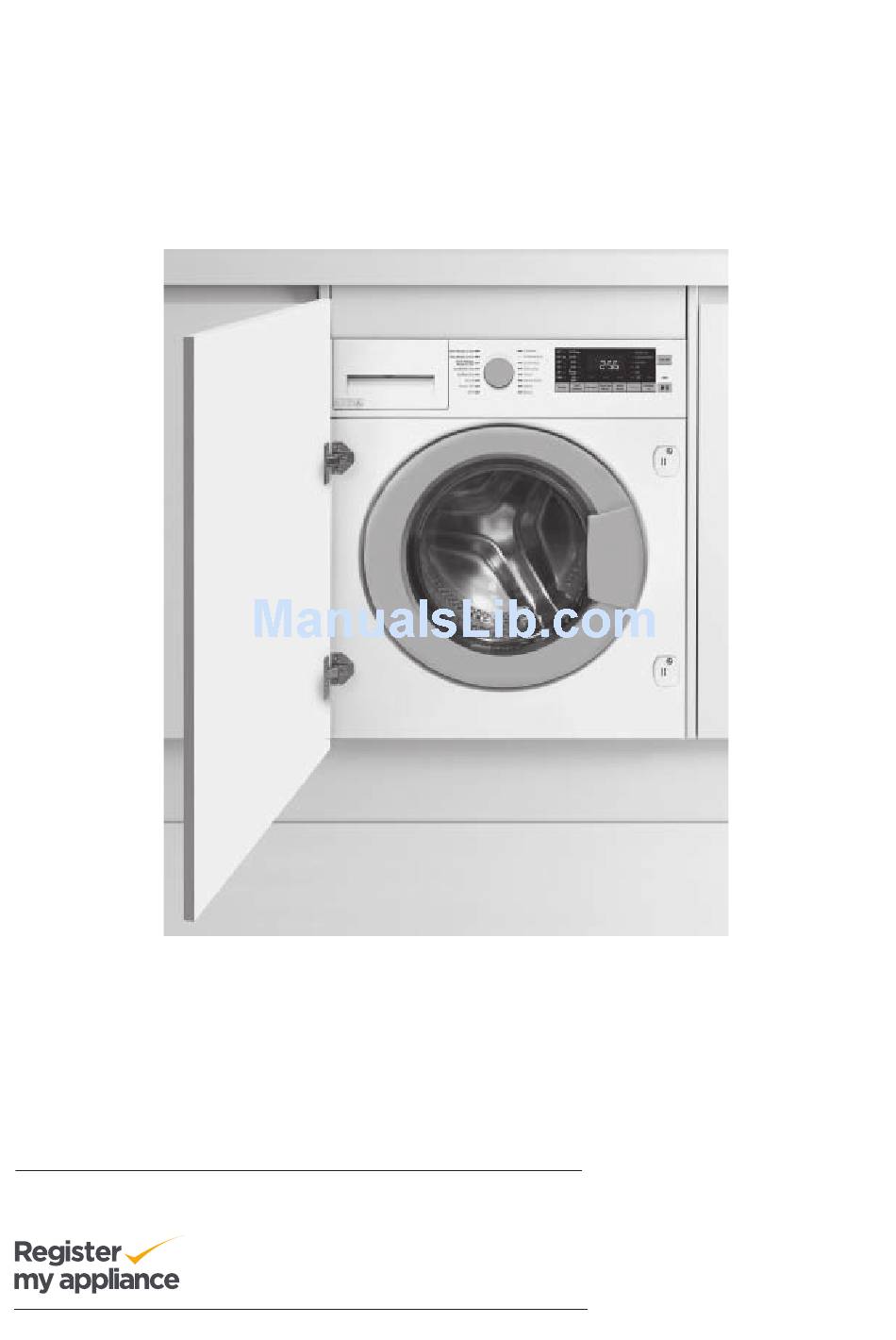

- Page 1 Integrated Washer Dryer HJA8900 User Guide www.howdens.com/appliance-registration...
- Page 2 Built-In Appliances See back page for product serial number...
- Page 3 User manual HJA8900 Dear Customer, Congratulations on your choice of washer dryer. The user manual will help you use your machine quickly and safely. • Please read this user manual before installing and using the machine. • Always follow the safety instructions.
-
Page 4: Table Of Contents
Built-In Appliances Index 01 - Your washer Dryer Cancelling / changing the programme Overview Washing and drying programmes Child lock 02 - Warnings & Safety Information Door lock General Safety Mini wash and dry Intended use Drying programmes Safety instructions Programme end If there are children in your house Standby mode... -
Page 5: Your Washer Dryer
User manual HJA8900 01 - Your washer Dryer Overview Power cable Top lid Control panel Filter cap Adjustable feet Door Detergent drawer Drain hose _ 05 Your washer dryer... -
Page 6: Warnings & Safety Information
Built-In Appliances 02 - Warnings & safety information Failure to read and follow discharge housing securely these guidelines may result in to prevent any water leakage personal injury or damage to and to allow machine to the machine which may not discharge water as required. -
Page 7: Intended Use
User manual HJA8900 02 - Warnings & safety information • Children aged less than Intended use three years should be kept away from the appliance • This product has been unless continuously designed for home use only. supervised. • The appliance may only be •... - Page 8 Built-In Appliances • The supply and draining • Never touch the plug with hoses must always be wet hands. Never unplug by securely fastened and pulling on the cable, always remain in an undamaged pull out from the plug only. state.
-
Page 9: If There Are Children In Your House
User manual HJA8900 • Laundry stained with Liquid If there are children in your cooking oil, acetone,alcohol, house petrol, kerosene, spot • Electrical appliances may removers,turpentine, waxes be dangerous for children. and wax removers must be Keep children away from... - Page 10 Built-In Appliances • Do not stop the machine • When you use industrial before drying programme chemicals for cleaning, do is completed. If you have to not use drying function. It stop the machine, remove may cause fi re risk. all laundry and lay them in a suitable place to let them •...
-
Page 11: Installation
User manual HJA8900 03 - Installation Loosen all the bolts with a spanner until they rotate freely (C). To make the product ready for use, review the information in the user manual and make sure that the electricity, tap water supply and water drainage systems are appropriate. -
Page 12: Removing Packaging Reinforcement
Built-In Appliances Removing packaging Connect the special hose supplied with the product to the water inlet on the product. reinforcement Tilt the machine backwards to remove the packaging reinforcement. Remove the packaging reinforcement by pulling the ribbon. Failure to do this will cause the appliance to vibrate loudly and may result in damage to your machine and or furniture. -
Page 13: Connecting To The Drain
User manual HJA8900 Connecting to the drain Adjusting the feet • The end of the drain hose must be securely In order to ensure that the product operates fi xed to the waste water outlet silently and vibration-free, it must stand level and balanced on its feet. -
Page 14: Electrical Connection
Built-In Appliances Electrical connection Important - Fitting a different plug Connect the product to an earthed outlet protected As the colours of the wires in the mains lead of this by a fuse complying with the values in the appliance may not correspond with the coloured “Technical specifi... -
Page 15: First Use
User manual HJA8900 First use Transportation of the product Before starting to use the product, make sure Drain any remaining water in the product that all preparations are made in accordance completely; see, “Draining remaining water with the instructions in sections “Important safety and cleaning the pump fi... -
Page 16: Preparation
Built-In Appliances 04 - Preparation Things to be done for energy saving Wash with sensitive, Following information will help you use the product Washing water .short programmes temperature in an ecological and energy-effi cient manner. • Operate the product to the highest capacity allowed by the programme you have selected, but do not overload;... -
Page 17: Preparing Laundry For Washing
User manual HJA8900 Preparing laundry for washing • Laundry that is subjected to materials such as fl our, lime dust, milk powder, etc. Must be shaken before placing into the machine. Such • Laundry items with metal attachments such dusts and powders on the laundry may build... -
Page 18: Loading The Laundry
Built-In Appliances Loading the laundry powder bleach/stain remover) Left compartment with number “II ” (Main wash compartment for liquid detergent or (DO NOT USE TOO MUCH DETERGENT - SEE liquid stain remover) INSTRUCTIONS ON PACKS) Middle compartment with number “I” (pre- wash compartment for powder detergent, •... - Page 19 User manual HJA8900 get clogged in time. • Never use fabric softener and starch together in the same washing cycle. Do not fi ll the detergent above the maximum fi lling • Wipe the inside of the drum after using starch.
-
Page 20: Selecting A Programme Operating Your Machine
Built-In Appliances 05 - Selecting a Programme & Operating Your Machine Control panel Programme selection knob Temperature selection lights Spin speed selection lights Display Drying programmes lights On / Off button Start / Pause button End time adjustment button Drying level adjustment button 10. -
Page 21: Turning The Machine On
User manual HJA8900 Turning the machine on You can wash your durable clothes with this programme. Your laundry will be washed with vigorous washing movements during a longer Check if the hoses are connected tightly. washing cycle. It is recommended for your cotton Plug in your machine. -
Page 22: Additional Programmes
Built-In Appliances Additional programmes • Machine Clean (Drum cleaning) It is suggested to run this programme at certain For special cases, there are also extra programmes intervals (e.g. Once every 1 or 2 months) for the available: self-cleaning of your machine. This programme must be run without any laundry in the machine. -
Page 23: Special Programmes
User manual HJA8900 Special programmes Temp Load Normally soiled, white cottons For specifi c applications, select any of the following and linens. (Eg: coffee table programmes: 90 ºc covers, tablecloths, towels, bed sheets) • Rinse Normally soiled, fade proof This programme is used when you want to rinse or... -
Page 24: Auxiliary Functions
Built-In Appliances Auxiliary functions in the fi nal rinsing water in order to prevent them creasing when there is no water in the machine. Press “Start/Pause” button after this process if you want to drain the water without spinning. Auxiliary Function Selection Buttons Programme resumes. -
Page 25: Cancelling The Time Delay
User manual HJA8900 Cancelling the time delay Progress of programme • Press end time button until the end time The progress of a running programme is shown indicator turns off, or press on/off button to through a number of symbols on the display. -
Page 26: Washing And Drying Programmes
Built-In Appliances Cancelling / changing programme Child lock (If the water level in the machine is above a certain Press and hold the two option buttons for three level the door will not open. A spin programme will seconds and the machine will display: be needed to drain the water.) ‘Child lock 3-2-1’... -
Page 27: Mini Wash And Dry
User manual HJA8900 *Mini wash and dry Standby Mode Used to wash and dry 0.5kg of laundry (2 shirts) in If no button is pressed for two minutes, the machine 40 minutes. will switch to standby mode. The display and all... -
Page 28: Programme And Consumption Table (Washing)
Built-In Appliances Programme & consumption table (washing) Auxiliary functions Selectable temperature Programme (°C) range °C 2,40 1400 • • • • 90-Cold 1,50 1400 • • • • Cottons 90-Cold • • • • 1,00 1400 90-Cold • 0,76 1400 60** 60-Cold Cottons Eco... -
Page 29: Programme And Consumption Table (Drying)
User manual HJA8900 Programme & consumption table (drying) Auxiliary Drying level functions Selectable temperature Programme (°C) range °C * • • • • Cottonn Dry 2,75 1400 • • • 1,70 Synthetic Dry * • • • • Anti Allergy Wash & Dry... -
Page 30: Maintenance & Cleaning
Built-In Appliances 06 - Maintenance and cleaning General The door and the drum The use of low temperature wash programmes can After each wash: lead to a build up of residues and odours. • Check if there are any foreign objects in the To help avoid this it is recommended to run a hot drum. -
Page 31: Inlet Water Fi Lters
User manual HJA8900 Inlet water fi lters In addition, water may have to be drained off before transporting the machine (e.g. when moving house) There is a fi lter in the end of the water intake valve To drain the water from the machine follow this... -
Page 32: Troubleshooting
Built-In Appliances 07 - Troubleshooting TROUBLESHOOTING GUIDE Symptoms Possible Cause Solutions / Information Programmes do not start • Start / Pause / Cancel button is not Press and hold Start / Pause / Cancel button after the loading door is pressed closed. - Page 33 User manual HJA8900 TROUBLESHOOTING GUIDE Symptoms Possible Cause Solutions / Information Loading door cannot be • Door lock is activated because of the Drain the water by running the drain or Spin programme. opened. water level in the machine. •...
- Page 34 Built-In Appliances TROUBLESHOOTING GUIDE Symptoms Possible Cause Solutions / Information Machine does not switch to • There might be an imbalance of Automatic unbalanced load detection system might spinning step. laundry in the machine. be activated due to the unbalanced distribution of the laundry in the drum.
- Page 35 User manual HJA8900 TROUBLESHOOTING GUIDE Symptoms Possible Cause Solutions / Information Colour of the clothes is • Excessive laundry was loaded in. Do not load the machine in excess. fading. • Detergent in use is damp. Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures.
- Page 36 Built-In Appliances TROUBLESHOOTING GUIDE Symptoms Possible Cause Solutions / Information Detergent residue in the • Detergent is put in wet drawer. Dry the detergent drawer before putting in detergent. detergent drawer. • Detergent has gotten damp. Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures.
-
Page 37: Troubleshooting
User manual HJA8900 TROUBLESHOOTING GUIDE Symptoms Possible Cause Solutions / Information Foam is overfl owing from the • Too much detergent is used To reduce foam mix 1 tablespoonful softener and ½ l detergent drawer. water and pour into the main wash compartment of the detergent drawer. -
Page 38: Built-In Installation
Built-In Appliances 08 - Built-in Installation IMPORTANT REMOVE TRANSIT BOLTS FROM THE REAR OF THE MACHINE REMOVE POLYSTYRENE BLOCK FROM UNDER THE FRONT OF THE MACHINE Cut panel for hoses as necessary 600 Min 575 Min Ensure feet are adjusted so the machine is level and stable (i.e doesn’t move, rock or wobble) - Once adjusted to the correct height tighten the locking nuts Decor fillet can be added 450mm... -
Page 39: Built-In Installation
User manual HJA8900 08 - Built-in Installation Door Preparation Fittings 597mm S1 (x8) A (X2) 35mm S2 (x6) 12mm +/- 1mm Door Plate 21.5mm 41mm Remove cap or cut open When pushing the machine back into position, be careful not to trap or kink hoses - machine will not... -
Page 40: Specifi Cation
09 - Specifi cation Complying Commission Delegated Regulation (EU) NO 96/60/EC/1996 Supplier name or trademark Howdens HJA8900 Model name (1) Washer dryer energy effi ciency class (1) Washing energy effi ciency class (Washing & drying) energy consumption - full load per cycle (kWh) -
Page 41: Guarantee
Call the Depot number on your Proof of Purchase Document supplied with the product / kitchen. Call the Howdens Appliance Service Line on 0845 00 60 006 * Product installed within a domestic kitchen or non-domestic kitchen where 8 or fewer people are using the appliance. - Page 42 Product serial number (Place sticker here) Issue v1 060417...
