Astralpool E25 Installation And Operating Instructions Manual

Salt chlorinator
Hide thumbs Also See for E25:

Advertisement

Table of Contents

INSTALLATION AND OPERATING INSTRUCTIONS
Melbourne: 03 8796 8600
North Sydney: 02 9853 2100
8/05/2017
Brisbane: 07 3308 5400
INSTALLATION AND

OPERATING INSTRUCTIONS

Gold Coast: 07 5552 2600
South Sydney: 02 8778 9500
Adelaide: 08 8152 7600
I
INSTALLATION AND OPERATING INSTRUCTIONS
Bolero ND Cleaner
Salt Chlorinator
Perth: 08 9350 2600
Townsville: 07 4796 0100
www.astralpool.com.au
E25 & E35

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E25 and is the answer not in the manual?

Questions and answers

Related Manuals for Astralpool E25

Summary of Contents for Astralpool E25

  • Page 1: Operating Instructions

    INSTALLATION AND OPERATING INSTRUCTIONS INSTALLATION AND OPERATING INSTRUCTIONS E25 & E35 Bolero ND Cleaner Salt Chlorinator INSTALLATION AND OPERATING INSTRUCTIONS Melbourne: 03 8796 8600 Gold Coast: 07 5552 2600 Perth: 08 9350 2600 North Sydney: 02 9853 2100 8/05/2017 South Sydney: 02 8778 9500...

  • Page 2: Table Of Contents

    INDEX ...................... General Overview ..................Chlorinator Control Installation ......................Cell Installation ....................... Pool Preparation ......................Programming ......................Chlorine Output ......................User Mode ............. Setting The Right Chlorine output And Filtration Time ................General Operation/Pool Chemistry ............Setting the right Chlorine Output and Filtration Time ...............

  • Page 3: General Overview

    GENERAL OVERVIEW Congratulations! You have purchased an AstralPool E- SERIES Salt Chlorinator. Please read the instructions carefully and your purchase will provide you with years of trouble free use. Your AstralPool Chlorinator works by converting some of the salt (sodium chloride) in your pool into chlorine which starts to destroy algae and bacteria and sanitises your pool.

  • Page 4: Pool Preparation

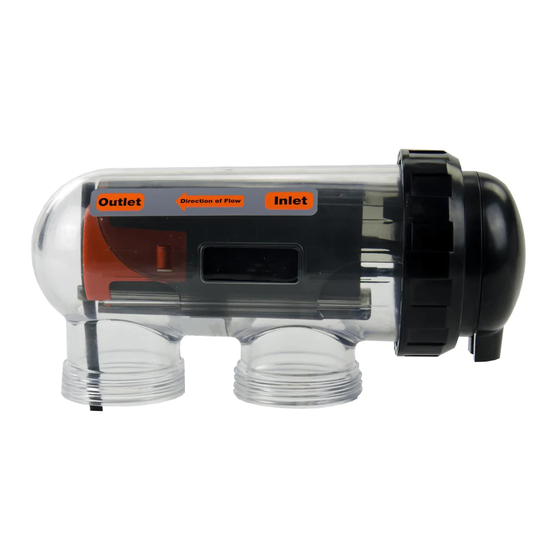

    WARNING: It is essential that pipe work and equipment do not allow gases generated from the cell to collect and build up. Cell must be installed horizontally with water connections pointing downwards – this WARNING: creates a safety gas trap. Installation in any other way may cause explosion, injury or death.

  • Page 5: Programming

    PROGRAMMING Setting Current Time/Day Select Off (a) Press the MENU button and screen should display CLK. Press ENTER (b) Press ENTER and the hour digit will flash. Use up and down arrows to adjust. (c) Press ENTER to change to minutes and set. (d) Press ENTER and select AM or PM (e) Press MENU to save Setting Timers...

  • Page 6: Setting The Right Chlorine Output And Filtration Time

    SETTING THE RIGHT CHLORINE OUTPUT AND FILTRATION TIME Your E-SERIES Chlorinator must be run every day to ensure that your pool is correctly sanitised. As the sun dissipates chlorine, running times are higher in the summer compared to the winter. AstralPool recommend that you initially run you chlorinator at maximum output.

  • Page 7: Maintenance Of Your Chlorinator

    E25 Series cells have a negative charge sensor that monitors the flow and salt levels of the water. This sensor is designed to be fail safe. As it is negative charge deposits of calcium or other debris may be deposited on it and cause it to indicate a low salt or no flow condition.

  • Page 8: Troubleshooting

    Record your Equipment details here for quick reference: Model No.: ____________________________ Serial No.: ____________________________ TROUBLESHOOTING Your E-SERIES Chlorinator has diagnostic and safety features to make it easy to maintain your system. The table below summarises potential faults and their causes. Fault Indication Potential Cause Remedy...

  • Page 9: Warranty

    WARRANTY AstralPool Australia Pty Ltd (ABN 97 007 284 504) ("AstralPool") provides the following warranty in relation to its E- Series Salt Chlorinator ("Product"). The benefits of this warranty are in addition to any rights and remedies imposed by Australian State and Federal legislation that cannot be excluded.
  • Page 10 Examples of exclusions include but are not limited to:  Use of sharp tools for cleaning electrodes  Incorrect installation Commercial Installations On commercial installations, such as health clubs, motels/hotels and hydrotherapy facilities, the warranty is limited to parts and in field labour (within capital city metropolitan areas or 20 km radius of Authorised AstralPool Service Agents) for a period of 12 months from the date of purchase plus 30 days to allow for installation.

This manual is also suitable for:

E35
