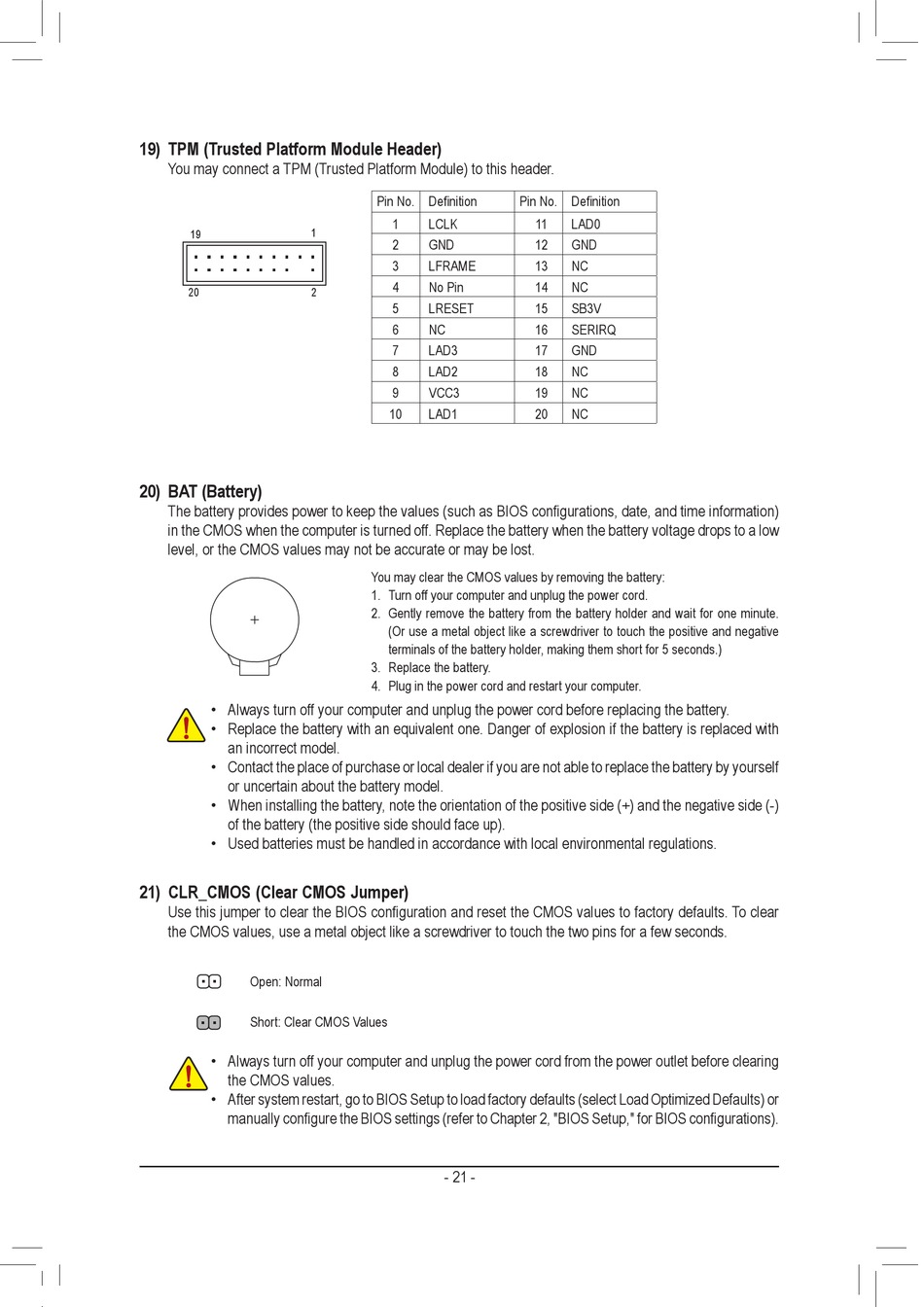

19) TPM (Trusted Platform Module Header)
You may connect a TPM (Trusted Platform Module) to this header.
1
19
20 2
20) BAT (Battery)
The battery provides power to keep the values (such as BIOS configurations, date, and time information)
in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low
level, or the CMOS values may not be accurate or may be lost.
S 3
S _
• Always turn off your computer and unplug the power cord before replacing the battery.
• Replace the battery with an equivalent one. Danger of explosion if the battery is replaced with
an incorrect model.
• Contact the place of purchase or local dealer if you are not able to replace the battery by yourself
or uncertain about the battery model.
• When installing the battery, note the orientation of the positive side (+) and the negative side (-)
of the battery (the positive side should face up).
• Used batteries must be handled in accordance with local environmental regulations.
21) CLR_CMOS (Clear CMOS Jumper)
Use this jumper to clear the BIOS configuration and reset the CMOS values to factory defaults. To clear
the CMOS values, use a metal object like a screwdriver to touch the two pins for a few seconds.
S _
Open: Normal
Short: Clear CMOS Values
• Always turn off your computer and unplug the power cord from the power outlet before clearing
the CMOS values.
• After system restart, go to BIOS Setup to load factory defaults (select Load Optimized Defaults) or
manually configure the BIOS settings (refer to Chapter 2, "BIOS Setup," for BIOS configurations).
S _
B_
Pin No. Definition Pin No. Definition
1 LCLK 11
2 GND 12
3 LFRAME 13
4 No Pin 14
5 LRESET 15
6 NC 16
7 LAD3 17
S
8 LAD2 18
9 VCC3 19
10 LAD1 20
B S S S
You may clear the CMOS values by removing the battery:
1. Turn off your computer and unplug the power cord.
2. Gently remove the battery from the battery holder and wait for one minute.
(Or use a metal object like a screwdriver to touch the positive and negative
terminals of the battery holder, making them short for 5 seconds.)
3. Replace the battery.
4. Plug in the power cord and restart your computer. S F
B_
S _S
- 21 -
B S S
1
_S
LAD0
GND
S
NC
NC
SB3V
SERIRQ
1 2 3
GND
NC
NC
NC
