Summary of Contents for Philips BDL6531E

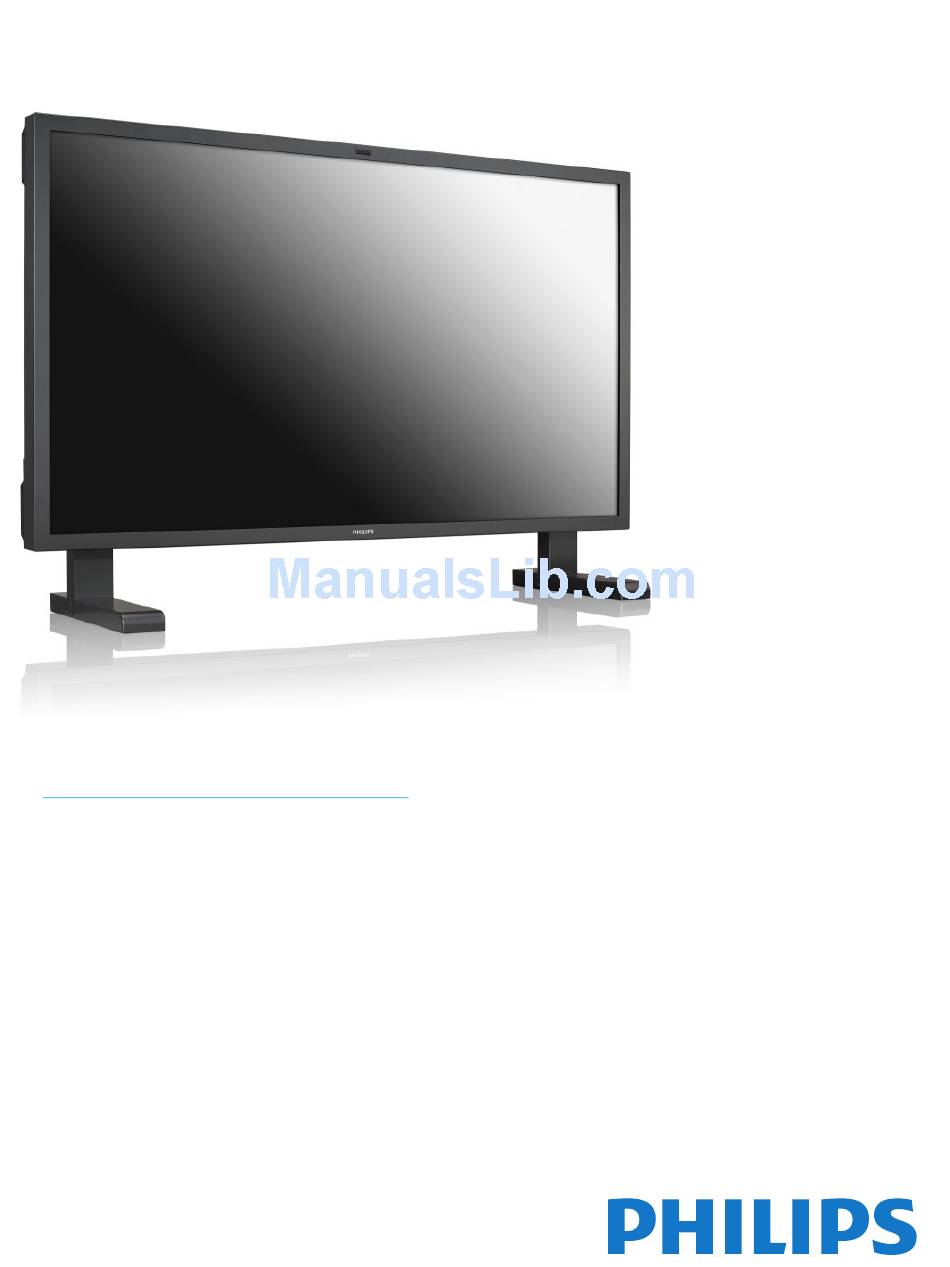

- Page 1 BDL6531E www.philips.com/welcome EN User manual Cleaning and troubleshooting...
-
Page 2: Safety And Troubleshooting Information
• When turning off the display by detaching the power cord, wait for 6 seconds before re-attaching the power cord for normal operation. • Ensure the use of an approved power cord provided by Philips at all times. If your power cord is missing, please contact your local service center. - Page 3 Service: • The casing cover should be opened only by qualified service personnel. • If there is any need for repair or integration, please contact your local service center. • Do not leave your display under direct sunlight. Consult a service technician if the display does not operate normally, or you are not sure what procedure to take when the operating instructions given in this manual have been followed.
-
Page 4: Regulatory Information
EQUIPMENT REGULATIONS. FCC DECLARATION OF CONFORMITY Trade Name: Philips Declaration of Conformity for Products Marked with FCC Logo, United States Only: This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 5 POLISH CENTER FOR TESTING AND CERTIFICATION NOTICE The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, display, printer and so on) should have the same power supply source. The phasing conductor of the room’s electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 Amperes (A).
- Page 6 INFORMATION FOR UK ONLY WARNING - THIS APPLIANCE MUST BE EARTHED. Important: This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows: 1. Remove fuse cover and fuse. 2.
- Page 7 中国电子信息产品污染控制表示要求 ( 中国 RoHS 法规标示要求 ) 产品中有毒有害物质或元素 的名称及含量 部件名称 外壳 液晶面板 电路板组件 附件 ( 遥控器，电源线，连接线 ) 遥控器电池 O：表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。 环保使用期限 此标识指期限 ( 十年 )，电子信息产品中含有的有毒有害物质或元素在正常使用的条件下不会发生外泄或突变， 电子信息产品用户使用该电子信息产品不会对环境造成严重污染或对其人身、财产造成严重损害的期限。 为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终止时，请遵守国家废弃电器电子产品回收处 理相关法律法规，将其交给当地具有国家认可的回收处理资质的厂商进行回收处理。 有毒有害物质或元素 铅 汞 镉 (Hg) (Cd) (Pb) 六价铬 多溴联苯 多溴二苯醚...
- Page 8 Please find out about the local regulations on how to dispose of your old display from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury.
-
Page 9: Table Of Contents
3.5. EXTERNAL AUDIO CONNECTION 3.5.1. CONNECTING EXTERNAL SPEAKERS 3.5.2. CONNECTING EXTERNAL AUDIO DEVICE 3.6. CONNECTING ANOTHER BDL6531E DISPLAY OSD MENU 4.1. NAVIGATING THE OSD MENU 4.1.1. NAVIGATING THE OSD MENU USING THE REMOTE CONTROL 4.1.2. NAVIGATING THE OSD MENU USING THE DISPLAY’S CONTROL BUTTONS 4.2. - Page 10 6.3. BRIGHT DOT DEFECTS 6.4. DARK DOT DEFECTS 6.5. PROXIMITY OF PIXEL DEFECTS 6.6. PIXEL DEFECT TOLERANCES CLEANING AND TROUBLESHOOTING 7.1. CLEANING 7.2. TROUBLESHOOTING TECHNICAL SPECIFICATIONS...
-
Page 11: Unpacking And Installation
1. LCD display 2. Remote control with batteries 3. CD-ROM (EDFU and SICP) 4. Quick Start Guide 5. Logo guider 6. PHILIPS logo 7. BNC-to-RCA adapter (x 2) 8. RCA-to-BNC adapter (x 3) 9. Cable retainer (x 2) 10. Power cords 11. -
Page 12: Mounting The Display
1.4. MOUNTING THE DISPLAY Wall mounting holes Notes: • Metric 6 (10mm) screws (having a length 10-15mm longer than the thickness of the mounting bracket) are needed for wall mounting (not included). Tighten the screws securely (recommended torque: 470 - 635N•cm) •... -
Page 13: Parts And Functions
PARTS AND FUNCTIONS 2.1. FRONT VIEW 1. Remote control sensor, ambient light sensor and power indicator • Receives command signals from the remote control. • Detects the ambient lighting conditions around the display. • Indicates the operating status of the display: - lights blue when the display is turned on - lights amber in standby mode - blinks blue when remote control signal is received... -
Page 14: Rear View
2.2. REAR VIEW 1. ENTER/VIDEO SOURCE button • Use this button to select the input source. • When the On Screen Display menu is active, this is also used as the SET button. 2. MENU button • Use this button to engage the On Screen Display menu. •... -
Page 15: Input/Output Terminals
1. AC IN (10 A) Connects the supplied power cord to the wall outlet. 2. AC OUT (5.0 A) Connects to the AC IN socket of another BDL6531E display or external media device. 3. Main power switch Press to switch the main power on/off. -
Page 16: Remote Control
2.4. REMOTE CONTROL 2.4.1. GENERAL FUNCTIONS POWER button Press to switch on the display from standby mode. Press again to turn it off to standby mode. SMART button To select smart picture mode from: • HIGHBRIGHT: for moving image such as Video •... -
Page 17: Menu Button
DISPLAY button To turn on/off the setting information displayed on the upper right corner of the screen. MENU button To turn the OSD menu on/off. UP button • To move the highlight bar up to adjust the selected item when OSD menu is on. •... -
Page 18: Inserting The Batteries In The Remote Control
2.4.2. INSERTING THE BATTERIES IN THE REMOTE CONTROL 1. Remove the cover on the rear of the remote control. 2. Insert two AAA size 1.5V batteries ensuring that the “+” and “-” ends of the batteries are correctly aligned. 3. Replace the cover. Note: Do not mix battery types, e.g. -
Page 19: Connections To External Equipment
CONNECTIONS TO EXTERNAL EQUIPMENT 3.1. USING THE CABLE RETAINER 3.2. USING THE SWITCH COVER You can use the switch cover to prevent the display from being turned on or off accidentally. 3.3. CONNECTING EXTERNAL EQUIPMENT (DVD/VCR/VCD) 3.3.1. USING COMPONENT VIDEO INPUT 1. -
Page 20: Using S-Video Input
3.3.2. USING S-VIDEO INPUT 1. Connect the S-Video connector of the external device to the S-VIDEO input of the display. 2. Connect the red (R) and white (L) audio jacks of the device to the AUDIO IN (AUDIO2 or AUDIO3) jacks of the display. -
Page 21: Using Hdmi Input
3.3.4. USING HDMI INPUT Connect the HDMI connector of the external device to the HDMI input of the display. 3.4. CONNECTING A PC 3.4.1. USING VGA INPUT 1. Connect the 15-pin VGA connector of the PC to the VGA IN connector of the display. 2. -
Page 22: Using Dvi Input
3.4.2. USING DVI INPUT 1. Connect the DVI-D connector of the PC to the DVI-D connector of the display. 2. Connect the audio cable to the AUDIO IN (AUDIO1) input of the display. 3.4.3. USING HDMI INPUT 1. Connect the DVI-D connector of the PC to the HDMI connector of the display using a DVI-HDMI cable. 2. -
Page 23: External Audio Connection
3.5. EXTERNAL AUDIO CONNECTION 3.5.1. CONNECTING EXTERNAL SPEAKERS 1. Connect the speaker wires to the external speaker (SPEAKERS) output of the display. 2. Turn on the display. Note: Make sure your display is turned off before connecting the speaker wires. 3.5.2. -
Page 24: Connecting Another Bdl6531E Display
CONNECTING ANOTHER BDL6531E DISPLAY You can interconnect multiple BDL6531E displays to create a daisy-chain configuration for applications such as a TV wall. Note: The number of displays that can be used in a daisy-chain configuration will depend on the resolution of the input signal being used. -
Page 25: Osd Menu
OSD MENU An overall view of the On-Screen Display (OSD) structure is shown below. This can be used as a reference for further adjusting your display. 4.1. NAVIGATING THE OSD MENU 4.1.1. NAVIGATING THE OSD MENU USING THE REMOTE CONTROL 1. -
Page 26: Navigating The Osd Menu Using The Display's Control Buttons
4.1.2. NAVIGATING THE OSD MENU USING THE DISPLAY’S CONTROL BUTTONS 1. Press the MENU button to display the OSD menu. 2. Press the / button to choose the item you want to adjust. 3. Press the ENTER/VIDEO SOURCE button to enter the submenu. -
Page 27: Osd Menu Overview
4.2. OSD MENU OVERVIEW 4.2.1. PICTURE MENU P IC T UR E BR IGH TNE S S CON T RA ST S HA RP NE S S BL ACK L E V E L NOI S E RE DU CTI O N TI NT COL O R COL O R T EM P E RAT U RE... - Page 28 Use the PLUS/MINUS button to make selection. COLOR CONTROL Note: This function is only available when COLOR TEMPERATURE is set to USER. With this function you can adjust the color tones of the image precisely by changing the R (Red), G (Green) and B (Blue) settings independently.
-
Page 29: Screen Menu
4.2.2. SCREEN MENU S CR EE N H P O SI TI ON V P O S IT I O N CL OCK CL OCK P HAS E ZOOM M O DE CU S TOM ZOO M S CR EE N RE S E T Se l A djus t E nter... - Page 30 • 21:9 - The picture is enlarged to 16:9 format. This mode is recommended when displaying pictures that have black bands at the top and bottom (letterbox format). CUSTOM ZOOM Note: This item is only available when ZOOM MODE is set to CUSTOM. You can use this function to further customize the zoom settings to suit the image you want to display.
-
Page 31: Audio Menu
4.2.3. AUDIO MENU AU DI O V O L UM E M UTE AU DI O S O UR CE S P EA KE R AU DI O RE S E T Se l A djus t E nter VOLUME Adjust to increase or decrease the audio output level. -
Page 32: Pip Menu
4.2.4. PIP MENU Note: For COMPONENT, VGA, DVI-D and HDMI inputs only. P IP P IP SI Z E P IP AUD IO P IP RE SE T Se l A djus t E nter PIP SIZE Select the size of the sub picture in the PIP (Picture-in-Picture) mode. Use the PLUS/MINUS button to toggle between •... -
Page 33: Configuration 1 Menu
4.2.5. CONFIGURATION 1 MENU CO N F IG U RAT IO N 1 AU TO AD JU ST P O W ER S AV E LA NGUA GE PANE L S AV ING CO L O R S Y S T E M CO N F IG U RAT IO N RE S E T FACTO RY RE S ET Se l... - Page 34 User Manual BDL6531E CONFIGURATION RESET Reset all settings in the CONFIGURATION 1 menu. Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to make selection. Select YES and press the SET button to restore settings to factory preset values. Press the EXIT button to cancel and return to the previous menu.
-
Page 35: Configuration 2 Menu
4.2.6. CONFIGURATION 2 MENU CO N F IG U RAT IO N 2 O S D T U R N O F F O S D MO D E IN FORM ATI O N OS D S L E E P T IM E R OS D H PO S I TION O S D V P O S IT I O N M O NITO R IN FORM ATI O N... -
Page 36: Advanced Option Menu
4.2.7. ADVANCED OPTION MENU AD VA NC ED OP TI ON I N P U T R ES O LU T I ON BLACK LEVEL EXPANSION G AM M A S E L E CT IO N S CA N M O DE S CA N C O NV E RS IO N FI LM MO D E IR C O NT R O L... - Page 37 • OFF - Disable the film mode frame conversion function. This mode is suitable for TV broadcasting and VCR signals. IR CONTROL Select the operation mode of the remote control when multiple BDL6531E displays are connected via RS232C cables. Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to toggle between •...
- Page 38 With this function you can create a single large screen matrix (display wall) that consists of up to 150 BDL6531E displays (10 displays on the vertical side and 15 displays on the horizontal side). This requires you to connect each BDL6531E display in a daisy-chain configuration. Example:...
- Page 39 • ENABLE: Choose to enable or disable the TILING function. If enabled, the display will apply the settings in H MONITORS, V MONITORS, POSITION, and FRAME COMP. Note: PIP function is disabled when TILING is enabled. HEAT STATUS This function allows you to check the thermal status of the display at any time. The accuracy of the temperature indicated is Press the SET button to view the heat status.
-
Page 40: Input Mode
Set the ID number for controlling the display via the RS232C connection. Each display must have a unique ID number when multiple BDL6531E displays are connected. See table under "Tiling" for more information. Use the PLUS/MINUS button to select a monitor ID. - Page 41 User Manual BDL6531E SMART POWER Set the display to reduce the power consumption automatically. Setting to HIGH will bring the most power savings. Use the PLUS/MINUS button to toggle between • OFF • MEDIUM • HIGH AUTO SIGNAL DETECTION Select to let the display detect and display available signal source automatically.
-
Page 42: Input Mode
INPUT MODE VGA Resolution Active Resolution Standard Resolution H Pixels WVGA SVGA 1024 WXGA 1280 WXGA 1280 SXGA 1280 SXGA 1280 WXGA 1360 WXGA 1366 UXGA 1600 HD1080 1920 SDTV Resolution Active Resolution Standard Resolution H Pixels 480i 480p 576i 576p HDTV Resolution Active Resolution... - Page 43 • If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 31.5KHz (horizontal). In some cases, abnormal signals (such as stripes) might appear on the screen when the PC power is turned off (or if the PC is disconnected).
-
Page 44: Pixel Defect Policy
LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any Plasma- & LCD- displays with an unacceptable number of defects will be repaired during the warranty period in line with your local guarantee conditions. -
Page 45: Bright Dot Defects
PIXEL DEFECT TOLERANCES In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Philips Plasma / LCD display must have pixel or sub-pixel defects exceeding the tolerances listed in the following table. -
Page 46: Cleaning And Troubleshooting
CLEANING AND TROUBLESHOOTING 7.1. CLEANING Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of air being expelled through the ventilation holes. -
Page 47: Troubleshooting
7.2. TROUBLESHOOTING Symptom No picture is displayed 1. The power cord is disconnected. 2. The main power switch on the back of 3. The selected input has no connection. 4. The display is in standby mode with Interference displayed on Caused by surrounding electrical the display or audible noise appliances, traffic or fluorescent lights. -
Page 48: Technical Specifications
TECHNICAL SPECIFICATIONS Display Item Screen Size (Active Area) Aspect ratio Number of pixels Pixel pitch Displayable colors Brightness (typical) Smart Contrast Contrast ratio (typical) Viewing angle In/Out Terminals Item Speaker Output Internal Speaker Audio Output RCA Jack x 1 Audio Input RCA Jack x 2 RS232C D-Sub Jack x 2 (9 pin) - Page 49 Dimension [W x H x D mm] With Stand Without Stand Weight With Stand Without Stand Environmental Condition Item Operational Temperature Storage Operational Humidity Storage Operational Pressure Storage / Shipment Internal Speaker Item Type Input Impedance Output Sound Pressure Frequency Response 1523.6 x 1025.7 x 421.7 mm 1523.6 x 891.6 x 124.8 mm 56.7 Kg...
