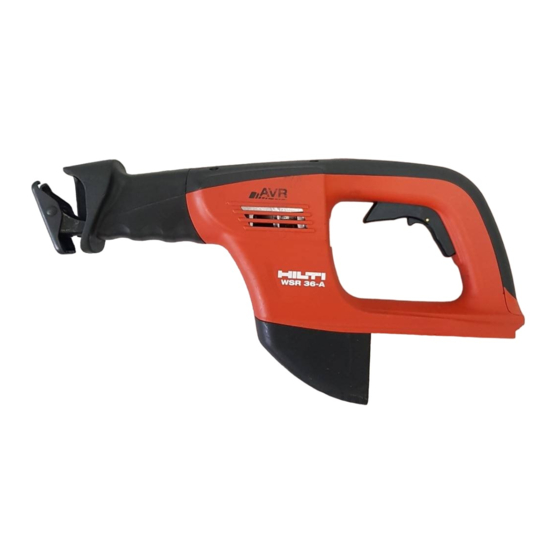

Hilti WSR 36-A Operating Instructions Manual
Hide thumbs
Also See for WSR 36-A:
- Original operating instructions (180 pages) ,
- Manual (174 pages) ,
- Operating instructions manual (18 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Hilti WSR 36-A
Summary of Contents for Hilti WSR 36-A
- Page 1 WSR 36-A English Français Español Português...
- Page 6 WSR 36-A Original operating instructions ........
- Page 7 Make a note of the designation and serial number printed on the identification plate in the following table. ▶ Always quote this information when you contact a Hilti representative or Hilti Service to make an enquiry: Product information → page 1...
- Page 8 Generation: Serial no.: 2 Safety 2.1 Safety instructions The safety rules given in the following section contain all general safety rules for electric tools which, in accordance with the applicable standards, require to be listed in the operating instructions. Accordingly, some of the rules listed may not be relevant to this electric tool.
- Page 9 Power tool use and care ▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. ▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
- Page 10 ▶ If the battery is too hot to touch it may be defective. In this case, place the power tool in a non- flammable location, well away from flammable materials, where it can be kept under observation and allowed to cool down. Contact Hilti Service after the battery has cooled down. 3 Description 3.1 Overview of the product...
- Page 11 To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Center or online at: www.hilti.com 3.6 Stroke rate setting...
-
Page 12: Operation
4 Technical data 4.1 Reciprocating saw WSR 36A Rated voltage 36 V Weight 9.63 lb (4.37 kg) Stroke rate 0 rpm … 2,850 rpm Stroke 1.3 in (32 mm) Keyless chuck for standard accessory tools 1/2 in 5 Operation 5.1 Safe operation CAUTION Risk of injury! Inadvertent starting of the product. - Page 13 2. Check that the connection end of the accessory tool is clean and lightly greased. Clean it and grease it if necessary. 3. Turn the chuck locking sleeve counterclockwise and hold it in this position. 4. Push the saw blade into the chuck from the front end of the tool. 5.
- Page 14 5.8 Inserting the battery WARNING Electrical hazard! Risk of short circuiting. ▶ Before inserting the battery, check to ensure that the battery terminals and the contacts on the reciprocating saw are free from foreign objects. WARNING Risk of injury! Hazard presented by a falling battery. ▶...
-
Page 15: Troubleshooting
Note To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Center or online at: www.hilti.com 6.2 Transport and storage... - Page 16 Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.
- Page 17 Hilti = registered trademark of Hilti Corp., Schaan Pos. 3 | 20151215...
