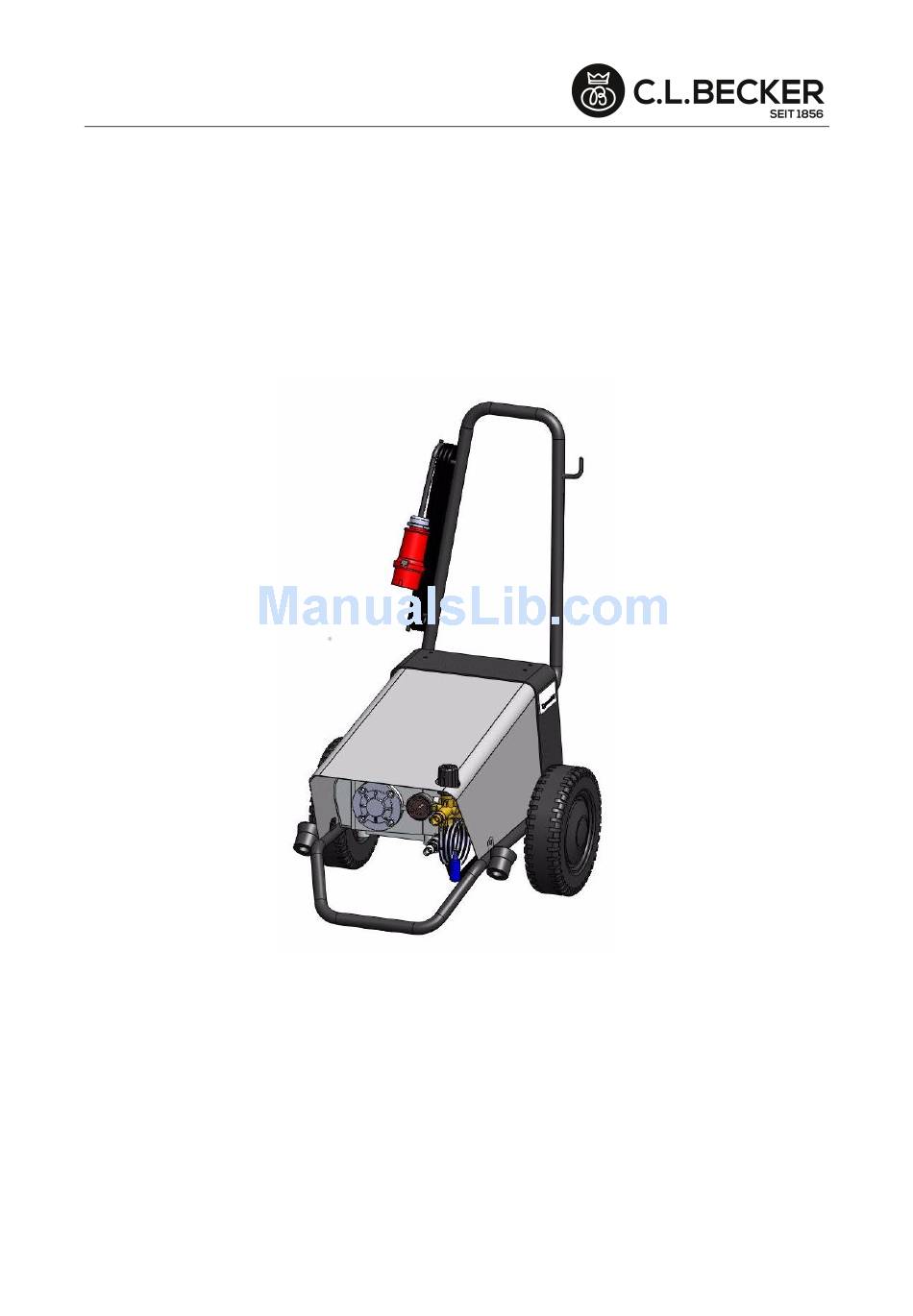

Operating and Maintenance
High Pressure Cleaner
Type HHPC 170/21 60Hz
Technischer Schiffs- und Industriebedarf
BA HHPC-170/21 60Hz englisch
Art.Nr. 02505004/60/BECKER/ENG
Instructions
(Translation)
C.L. BECKER GmbH
Süderstraße 129
D – 20357 Hamburg
Tel. +49 40 25 00 75 0
Fax +49 40 25 03 57 8
www.clbecker.de
info@clbecker.de
Stand 05/2013
Seite 1 von 23
Advertisement
Table of Contents
Summary of Contents for C.L.BECKER HHPC 170/21
- Page 1 Operating and Maintenance Instructions High Pressure Cleaner Type HHPC 170/21 60Hz (Translation) C.L. BECKER GmbH Technischer Schiffs- und Industriebedarf Süderstraße 129 D – 20357 Hamburg Tel. +49 40 25 00 75 0 Fax +49 40 25 03 57 8 www.clbecker.de info@clbecker.de...
-
Page 2: Table Of Contents
Contents Foreword Page 3 Signs and symbols Page 4 General technical description Page 5 Description Page 5 Description of the device Page 6 Intended purpose Page 6 Important operation and safety indications Page 7-8 Transport Page 9 Loading and transportation Page 9 Unpack Page 9... -
Page 3: Foreword
Foreword Congratulations on purchasing your HANSEAT high pressure washer. You have purchased a device that was developed with great care using the latest technology and the relevant national and European safety standards. To ensure safe and proper handling an instruction manual is attaches to the high pressure washer, which is to make available to the operating personnel. -
Page 4: 1.2 Signs And Symbols
1.2 Signs and symbols This command sign appears in this manual for the observance of the fol- lowing operation and maintenance instructions. This warning sign appears in this manual at all indications for obser- vance of guidelines, regulations, the correct sequence of work and to avoid damage and destruction of the machine. -
Page 5: General Technical Description
General technica al descri ption This cha apter describ es the comp ponents and a assemblies o of the high-pressure clea aner and thei r func- tion. Descript tion low pres ssure nozzle (chemica al nozzle) High pre essure nozzle double-p pipe double-p... -
Page 6: Description Of The Device
Description of the device The water passes through the water inlet and the behind mounted water filter, leading into the engine- driven high-pressure pump. By the circulation valve the water passed through the high-pressure hose and the gun, is leaded through the ray pipe and resigns through the high pressure nozzle. -
Page 7: Important Operation And Safety Indications
Important operation and safety indications Following indications have to be observed before, during and after operation: Read and understand this manual before first start up. In case of intended use hazards are not expected. This device is to be used only by adult persons over 18 years, which are familiar with the operation and which have been informed about the dangers. - Page 8 The operation of oil-heated high pressure cleaners in enclosed spaces is prohibited without aeration and proper exhaust system! Exhaust gases are harmful to health, in- creased concentrations of carbon monoxide can be deadly! The operation of by combustion engines driven high pressure cleaners in enclosed spaces is prohibited without aeration and proper exhaust system! Exhaust gases are harmful to health, increased concentrations of carbon monoxide can be deadly! Inadequate and faulty high-pressure hoses are often a cause of accidents in the oper-...
-
Page 9: Transport
Transport Loading and transportation The device has to be loaded only upright. Protect the high pressure cleaner against rolling, slipping and falling upon the transport vehicle. Unpack Keep the device and the packaging material beyond the reach of children. Dispose the packaging material according to environmental regulations to prevent pollution of the environment Location of installation Check the proposed location carefully and reject the installation site, if there are safety... -
Page 10: Commissioning
Commissioning Read, understand and consider this manual before starting up. Preparation for commissioning Unpack the unit and make sure that it is complete and undamaged. If it is not complete and unda- maged, do not use the device. Consult your dealer in this case. In order to simplify packaging and transportation, certain accessories may be shipped separately. -
Page 11: First Commissioning
First commissioning Check the oil level through the sight glass at the pump or the oil dipstick. Check the water filter cartridge. It must be free of contamination. Connect one end of the high-pressure hose to the gun and the other at the outlet of the pressure washer on. -
Page 12: Re-Start-Up
Closing the gun causes the hydraulic shutdown of the exiting water jet. After the end of the delay time the motor-pump unit will turn into stand-by. Don’t let the machine run longer than 3 minutes with gun closed. If it is running for some time, the temperature of the circulating water rises rapidly. -
Page 13: Decommissioning
If the use of chemicals / soap is finished, the hose and the valve have to be cleaned with pure water. To do this you lay the suction hose into a container with pure water and let the high pressure washer suck in water for several minutes. -
Page 14: Maintenance And Care
Maintenance and care In this chapter you get informations about maintenance, which is necessary for a secure and effective operation with the machine. Service and maintenance should be performed only by trained personnel. We expressly point out that you must complete all required checks, inspections and preventive maintenance work conscientiously. -
Page 15: Electrical
Electrical 9.1 Wiring diagram Gloss: phase 1 phase 2 phase 3 protective conductor motor protection switch motor connection cable motor connection cable Setting of motor protection switch: Fuse: 16A träge / gl BA HHPC-170/21 60Hz englisch Stand 05/2013 Seite 15 von 23 Art.Nr. -
Page 16: Spare Part Lists
Spare part lists 10.0.1 1 Spare part list accesso ories Gun com mplete CLZS230 Seal kit r rotating coup p ling CLZVS5 Double p pipe complete e without hig g h pressure n n ozzle CLZS336 Seal kit d double pipe v valve CLZVS33 High pres... - Page 17 10.0.2 Spare part list pump Item no. Quantity Description Details 153007 High pressure pump complete CLVS1002 Spare part kit 1 consisting valve kit complete 6x item no. 4, 9, 11 CLVS2004 Spare part kit 2 consisting seal kit for 3 pistons 3x item no.
-
Page 18: Technical Data
10.1 Technical Data Modell HHPC-170/21 60Hz Operating pressure H.P. nozzle 15 / 25 070 L.P. nozzle 25 400 Flow rate L/min. Max. temperature Water inlet °C Pump pistons E-Motor kW / PS / A 6,5 / 9,0 / 16 Degree of protection IP55 Power supply Volt / Hz... -
Page 19: 11 Troubleshooting
11 Troubleshooting Problem Cause Corrective action • defective fuse • change Device doesn`t start • defective plug • change • motor protection triggered • press red button firmly, than start again • consumption in the engine is too high • check electrical system Motor protection switch turns off •... - Page 20 Use only original HANSEAT spare parts, otherwise the safety is compromised. Unplug the unit from all electrical power before starting repair or maintenance. Electricity can cause severe injuries. Remove all references to faulty electrical equipment seriously and eliminate possible causes for accidents immediately. BA HHPC-170/21 60Hz englisch Stand 05/2013 Seite 20 von 23...
-
Page 21: Declaration Of Conformity
BA HHPC-170/21 60Hz englisch Stand 05/2013 Seite 21 von 23 Art.Nr. 02505004/60/BECKER/ENG... -
Page 22: Appendix
Appendix The following documents are attached to this manual: 1. Warranty card If your high pressure cleaner has got additional equipment, there are attached corresponding documents. BA HHPC-170/21 60Hz englisch Stand 05/2013 Seite 22 von 23 Art.Nr. 02505004/60/BECKER/ENG... - Page 23 13.0.1 Maintenance book HANSEAT high pressure cleaner type HHPC-170/21 60Hz erial number:_________________________ Operator:______________________________ Location: ______________________________ Date of test Hours of Test acc. to Test acc. Test results Name of examiner / signature operation BGR 500 to VDE part 2 0701/0702 chapter 2.36 BA HHPC-170/21 60Hz englisch Stand 05/2013...
